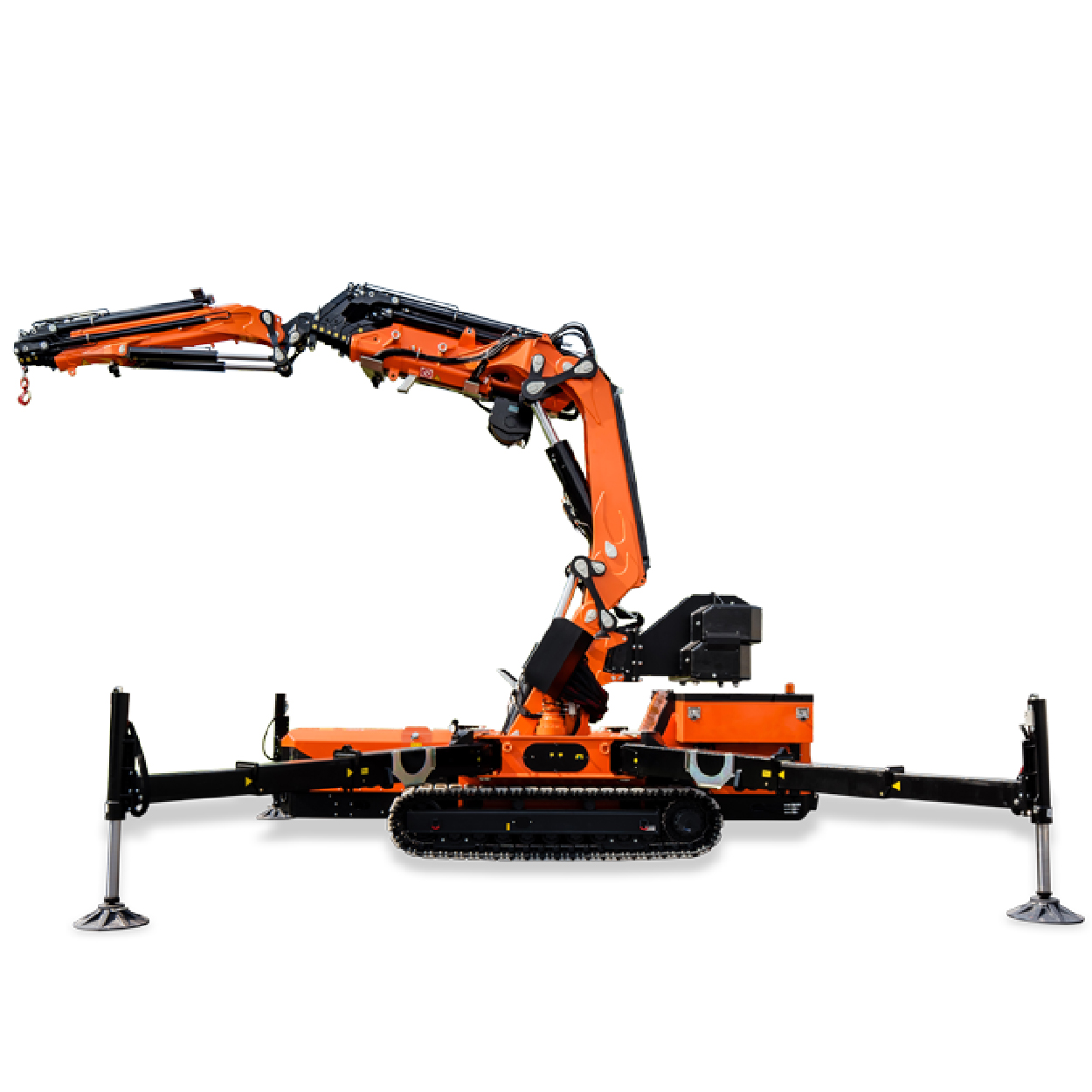

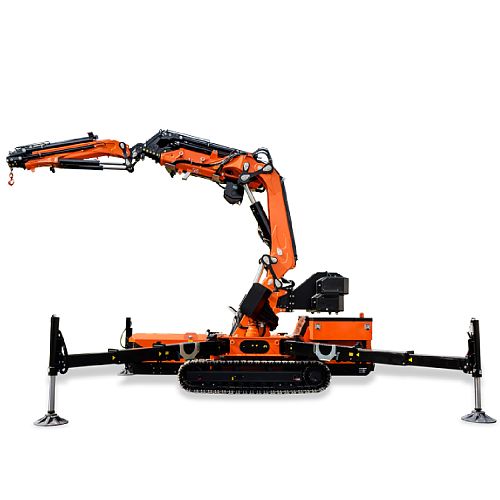

Mini crane JF545CDH-2

Self-propelled crawler loader-manipulator. Model JF545 - it seems that from the realm of fantasy.

15500 kg

5450 х 1840 х 2910 mm

28 m

31 m

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

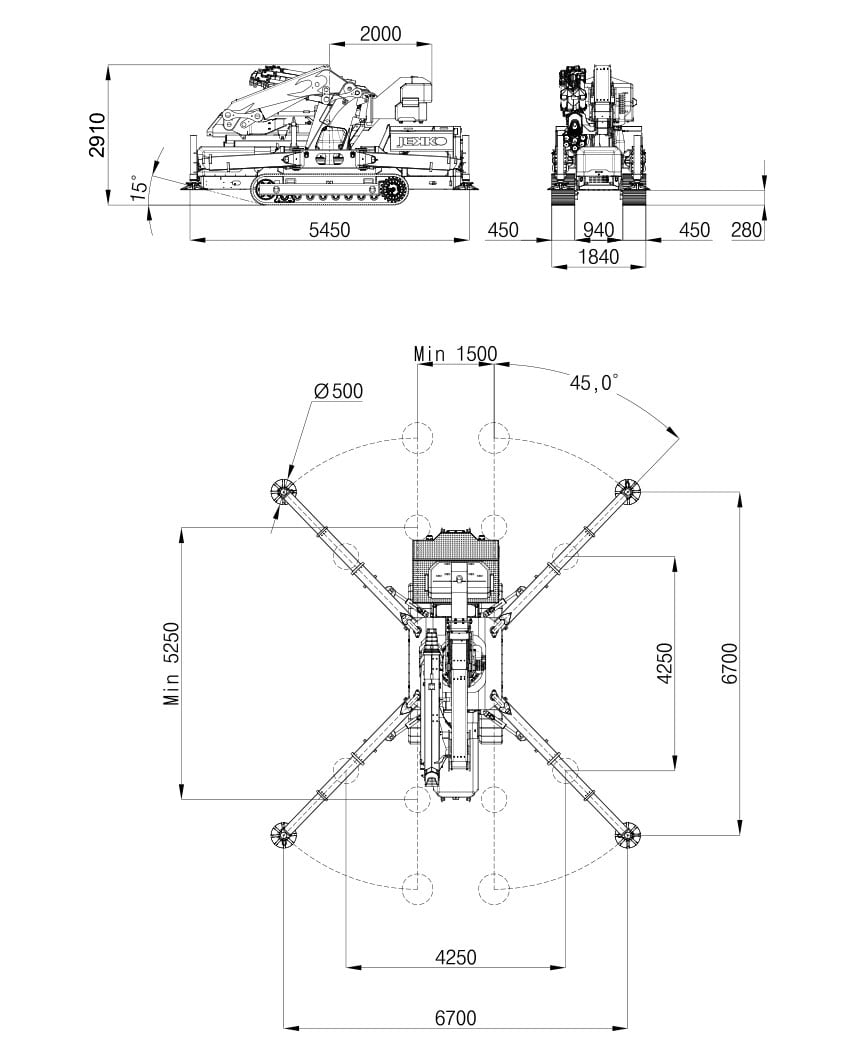

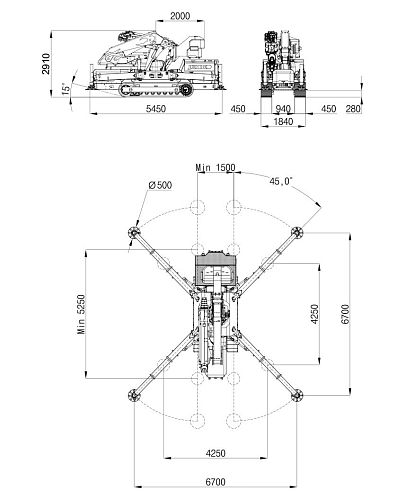

Габариты

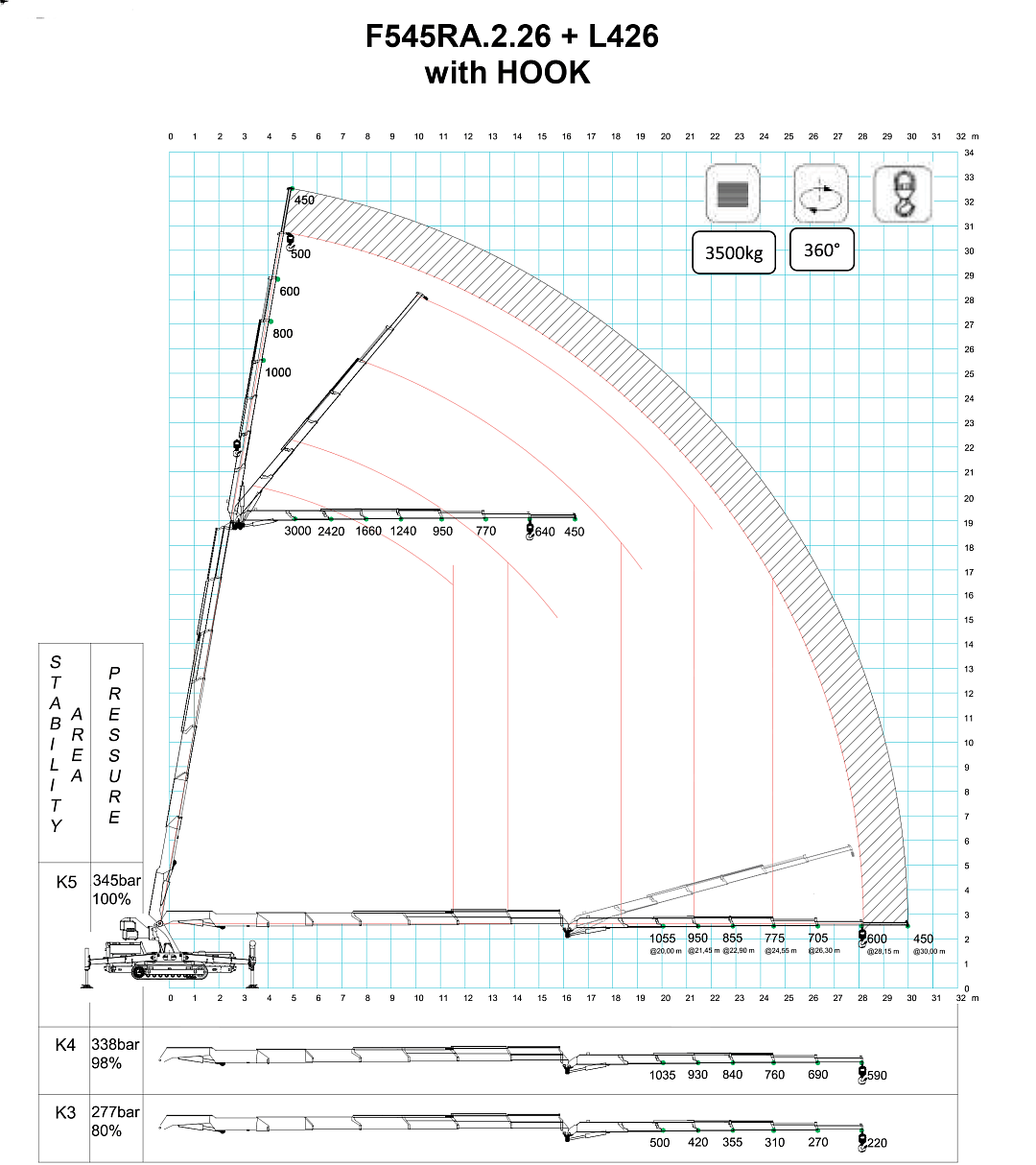

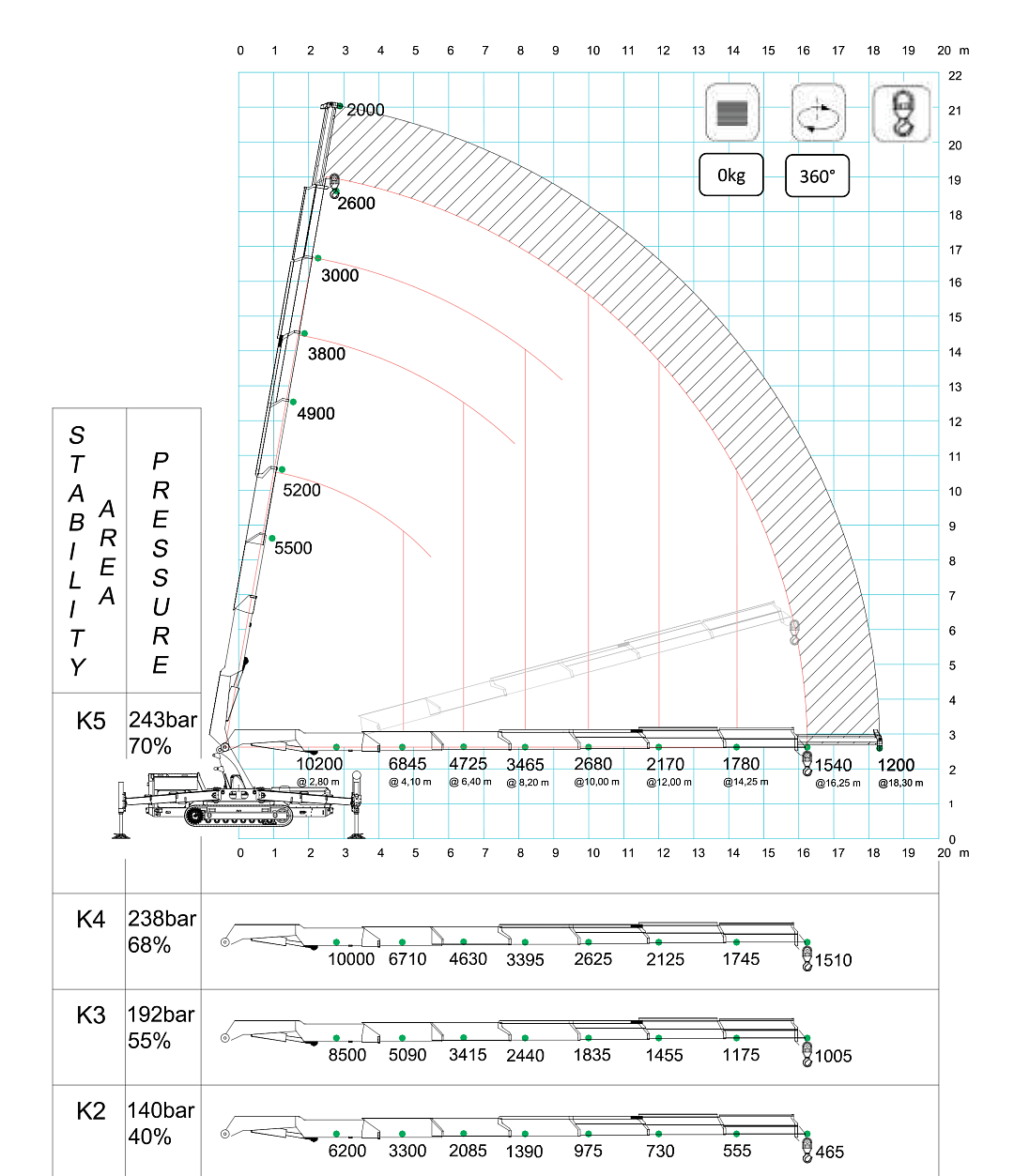

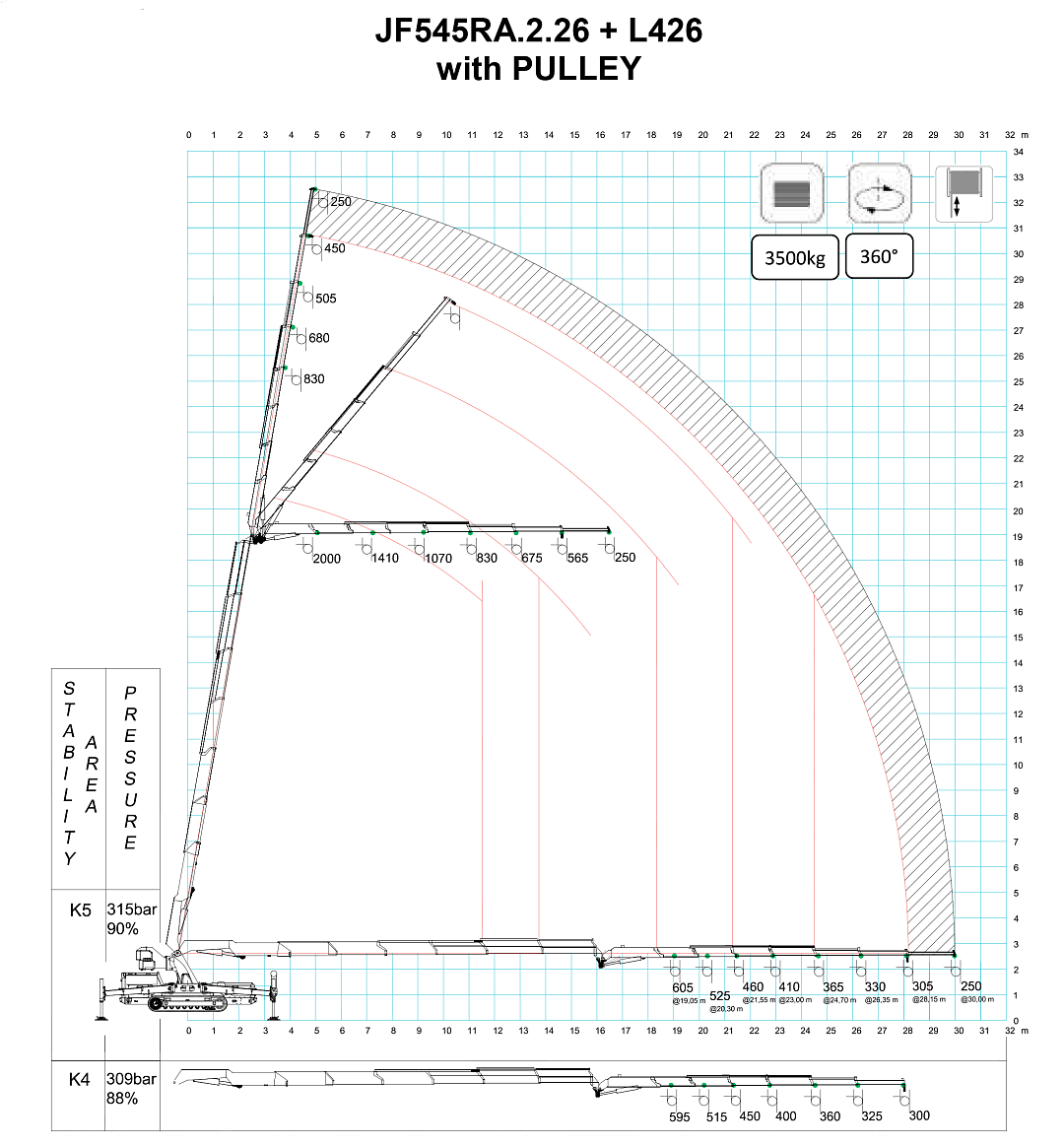

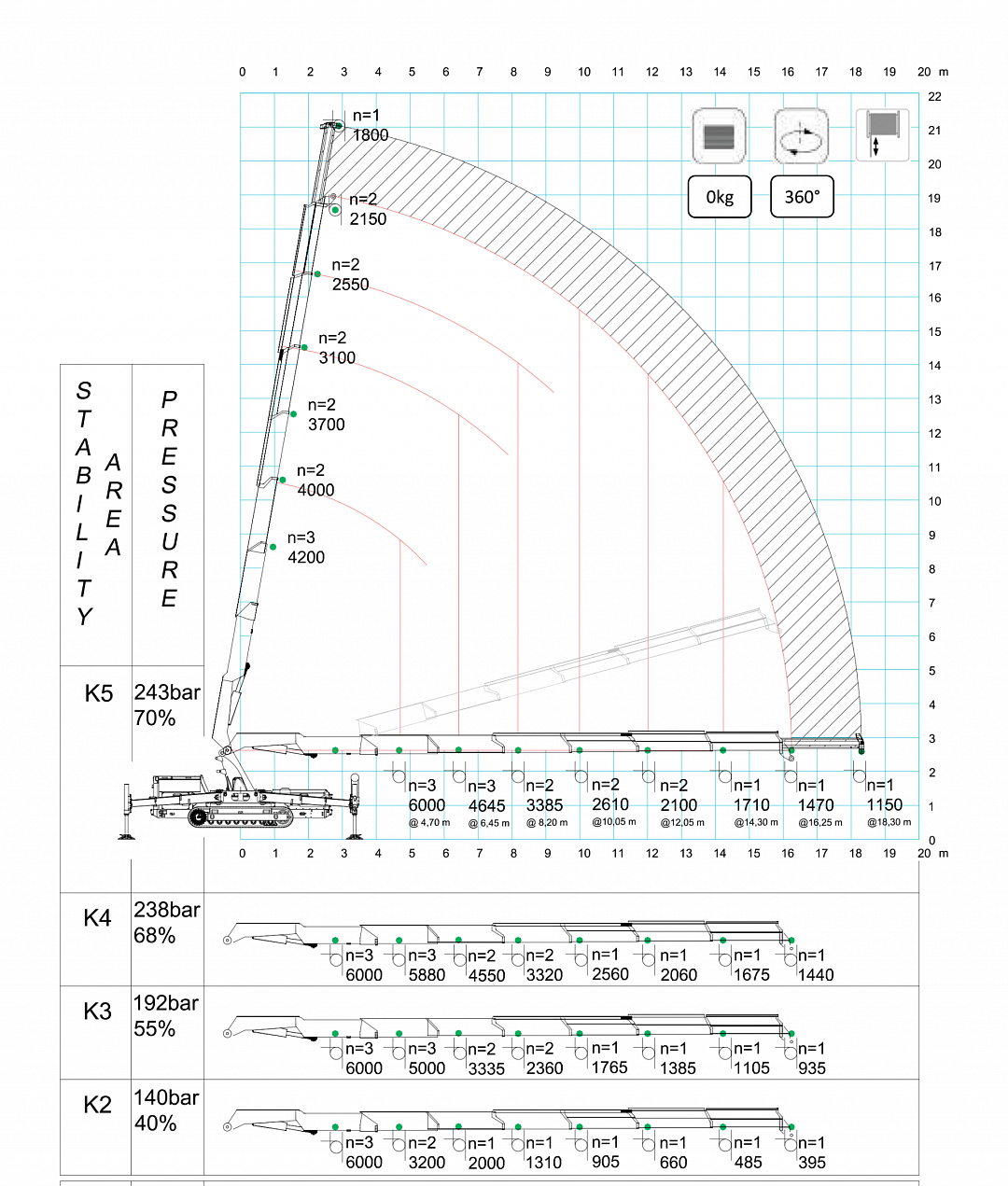

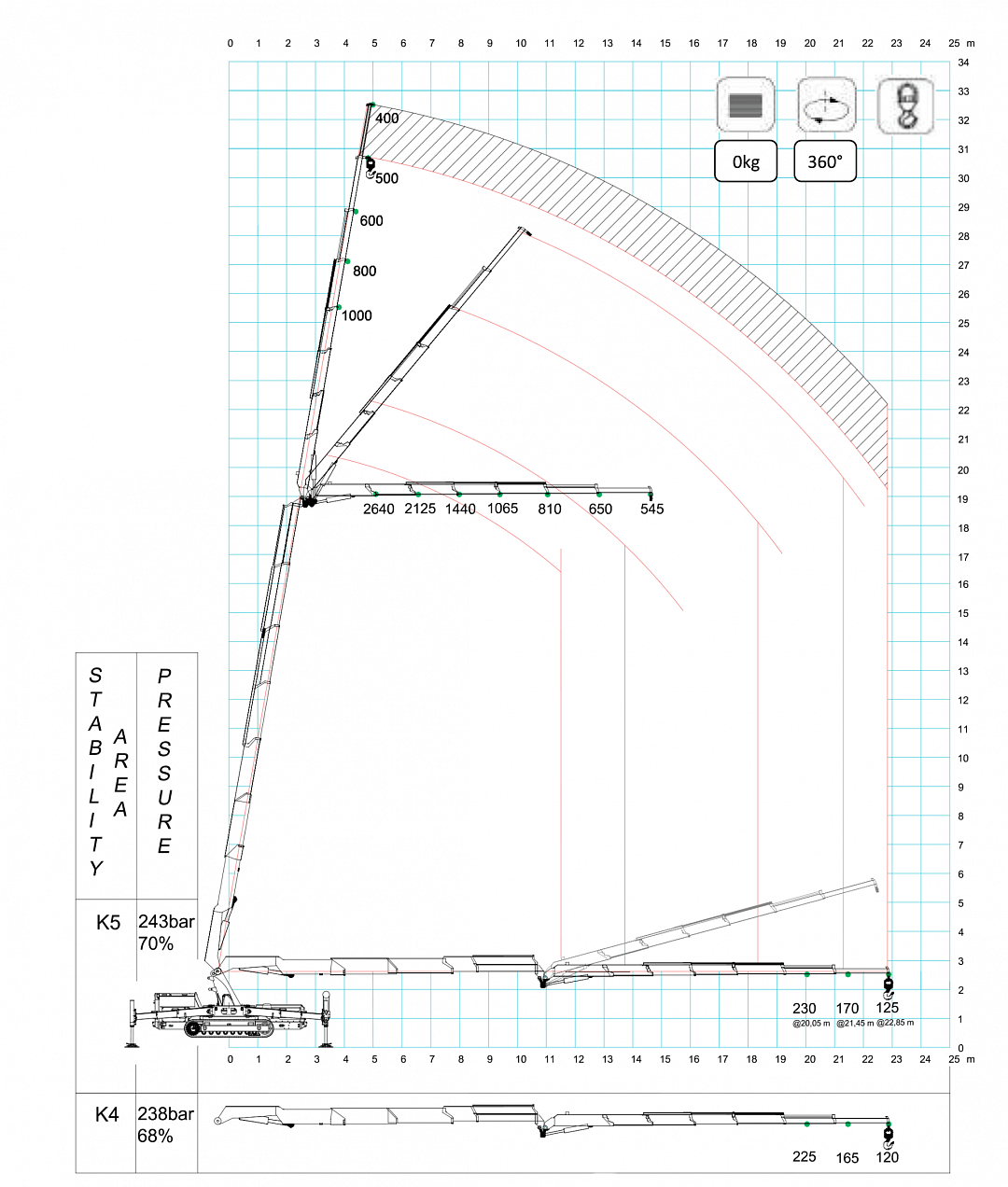

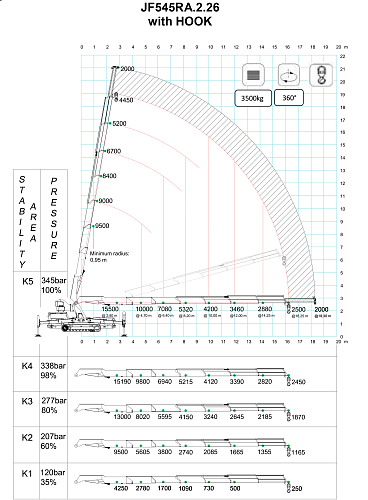

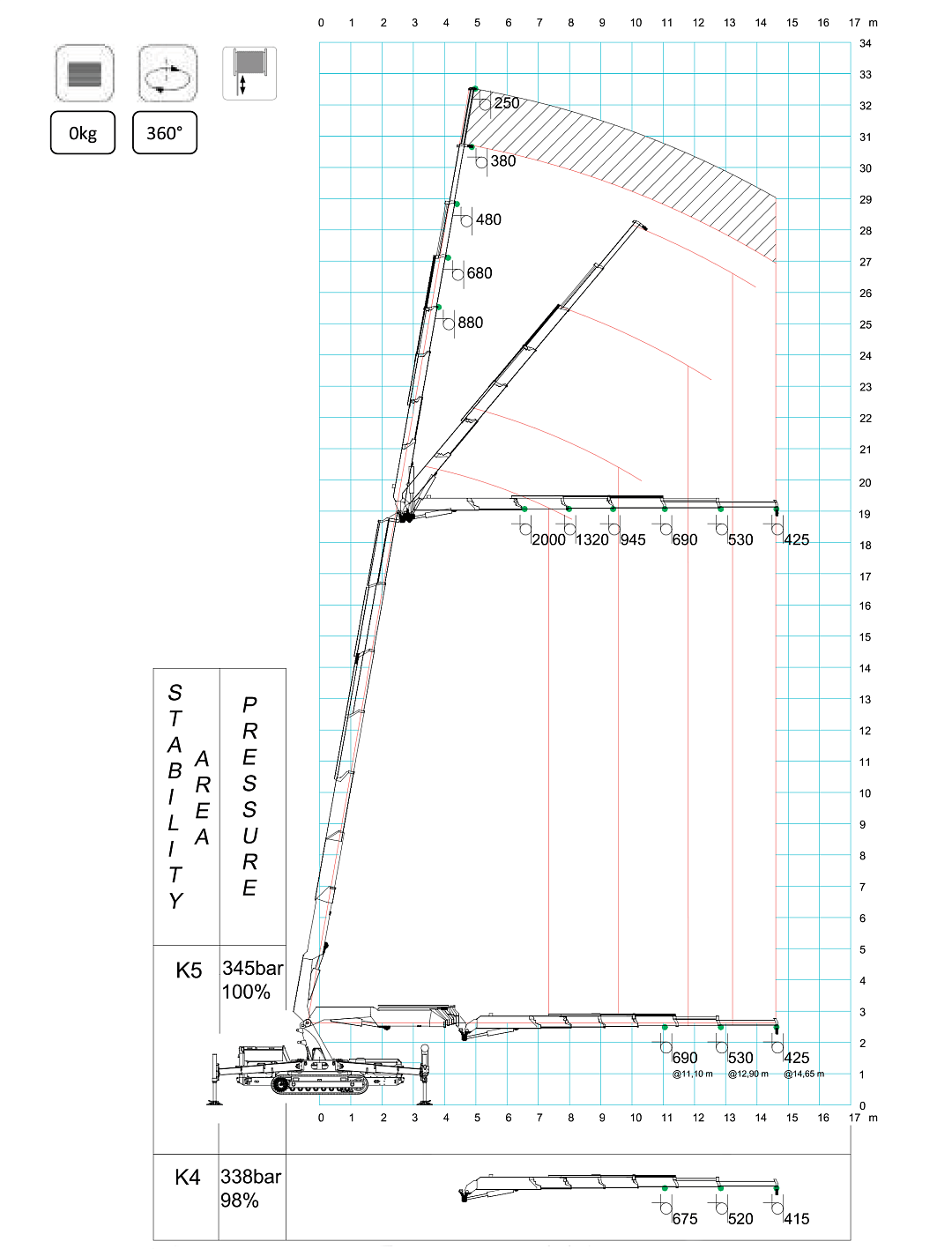

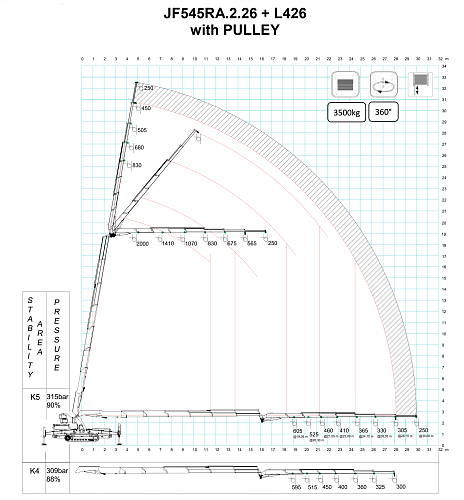

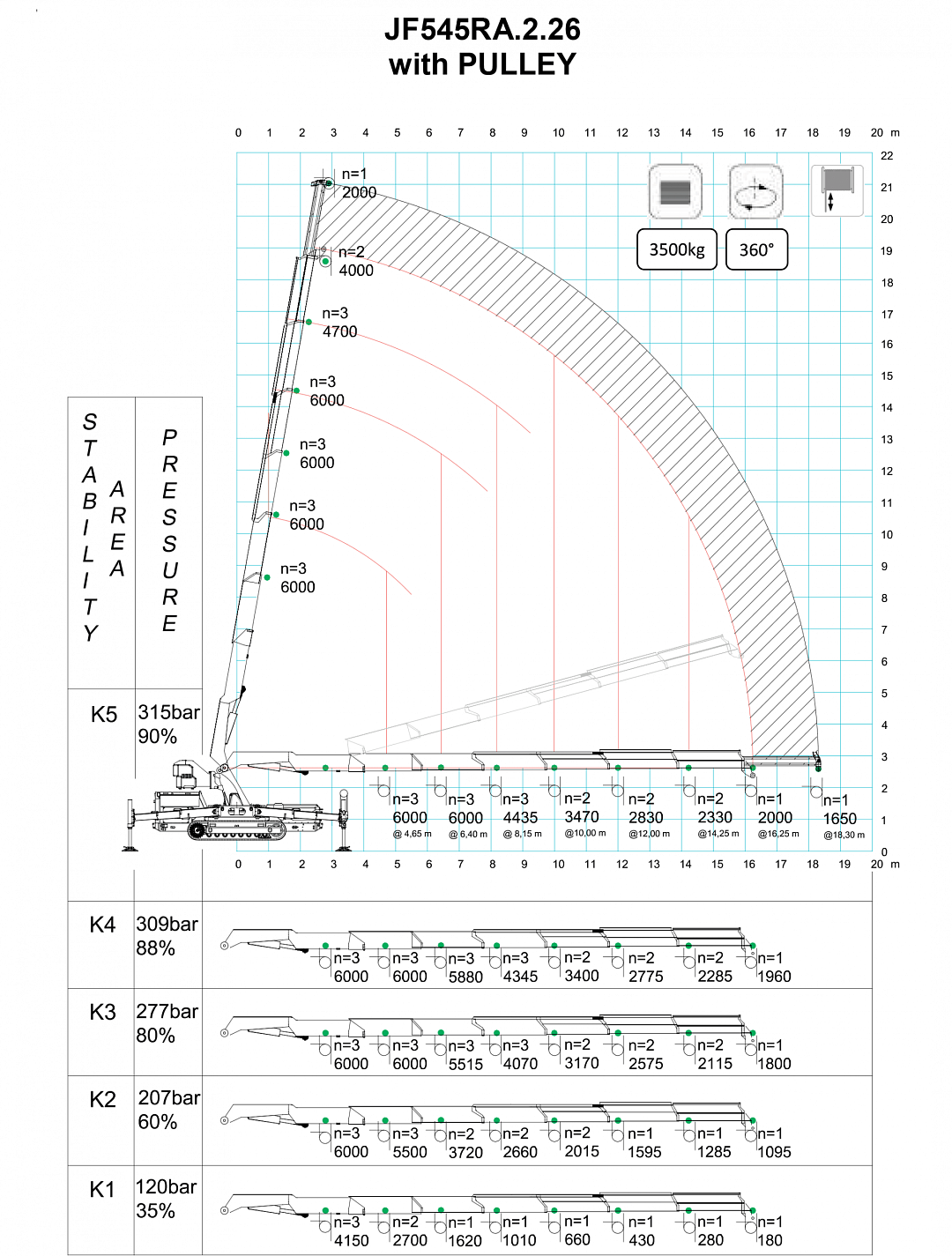

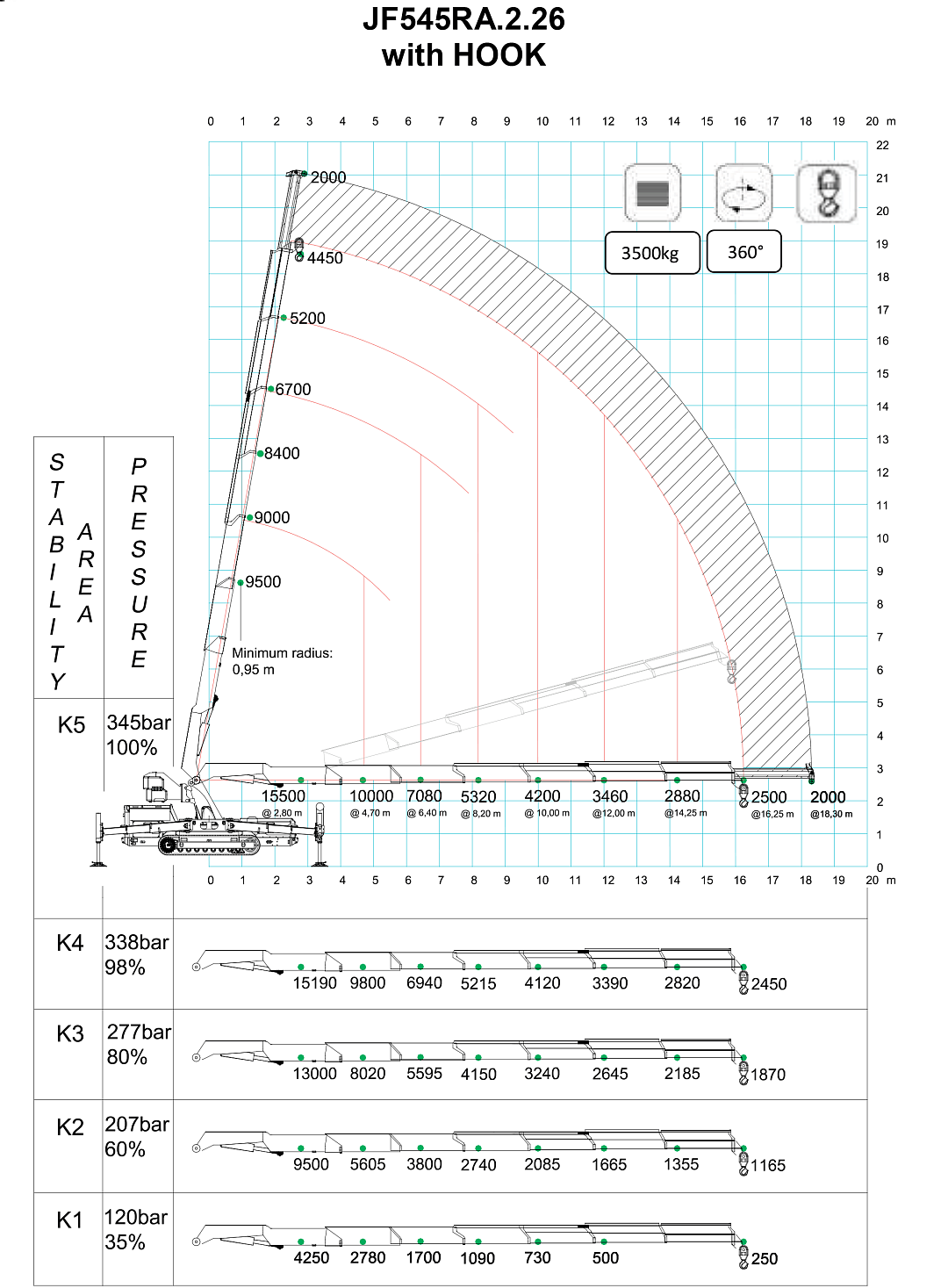

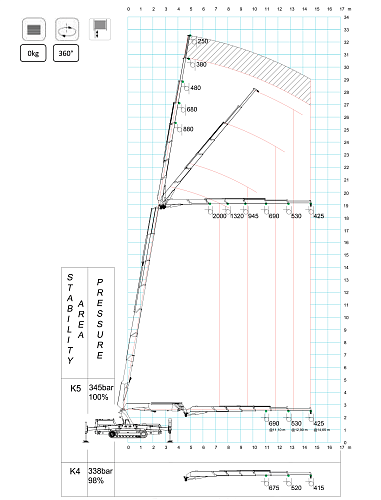

Диаграммы

Комплектация

Area stabilization

6700 х 6700 mm

Max. lifting height

31 m

Lifting capacity

15500 kg

Engine type

diesel/network 380V

Rotation

360В°

Size

5450 х 1840 х 2910 mm

Weight

19125 kg

Horizontal reach

28 m

Drive

DVS

Engine

Kubota V3307-CR-te4 TIER IV Stage 5-TURBO 55.4 kW / 74.3 HP

The length of the hoist rope

60 m

Fuel tank capacity

70 l

The pressure of the tracks on the ground

0.85 kg/cm

Max. the load on the outriggers

11250 kg

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 52 м х 3000 кг, при двукратной запасовке — 26 м х 6000 кг

Basic configuration

Diesel engine Kubota V3307-CRTE 4 TIER IV Stage 5 - TURBO of 55.4 kW/74.3 per HP

6 sections hydraulic telescopic main boom

Dual hydraulic motor on the rotary ring

The dual compound on the joints of main boom

Continuous rotation of the rotary rings

Remote control

Mechanical, hydraulic and electrical installation for the winch

Mechanical, hydraulic and electrical installation for jib

Opposed to 3.5 tons

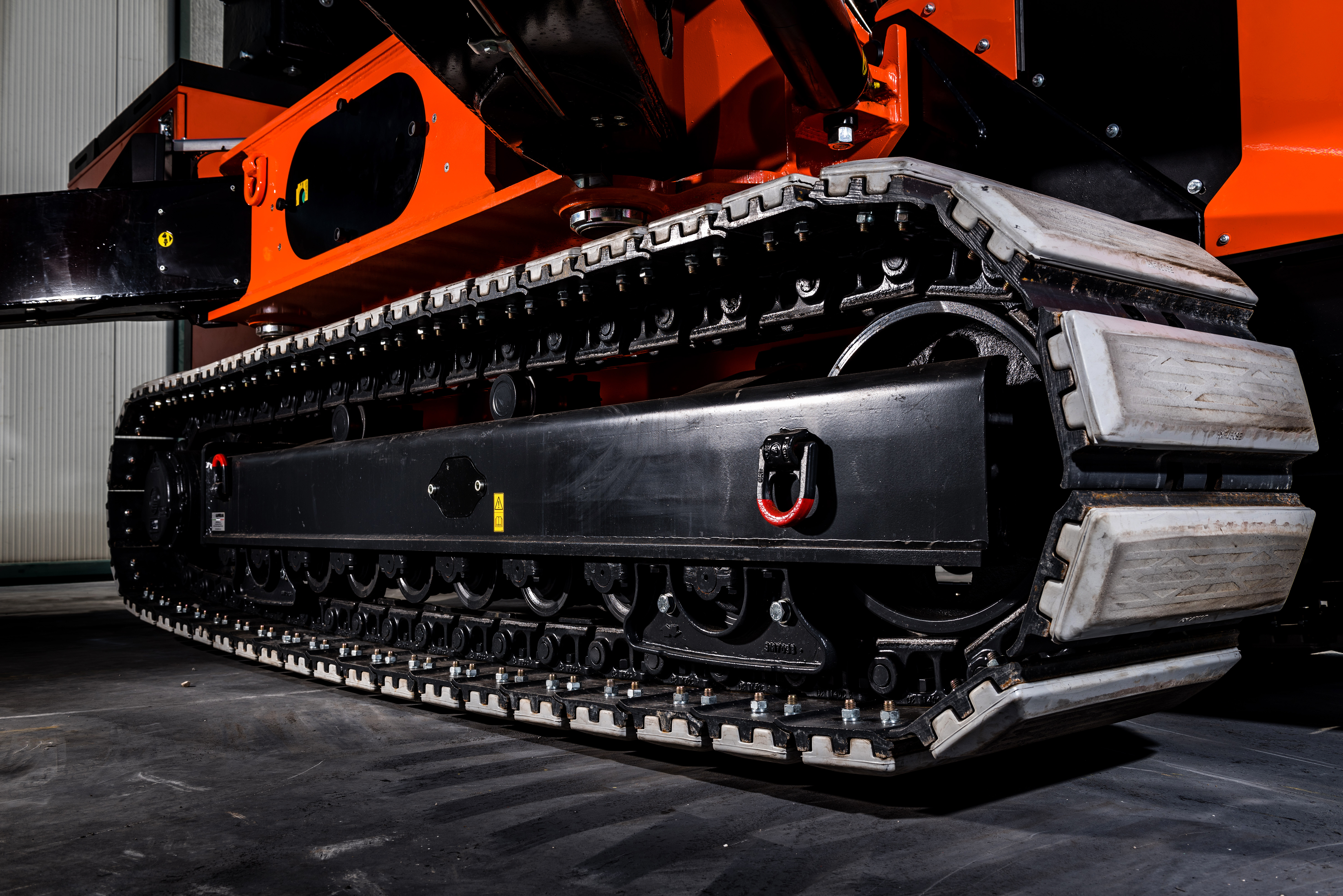

Steel track with two motors

Automatic and selectable control of the geometrical stability with four levels of stability

Tool box

Non-marking pads for tracks made of white rubber

Winter set

Three-phase power supply drive module 50 Hz 400V-13 kW

Winch V30, g/n 3 tons, 60 m, with hook block triple stocking

Automatic counterweight removal system

Set of pulleys for V30 winch on hydraulic jib

The hydraulic drive for the hydraulic jib

Hydraulic jib, g / n 3000 kg

Tasks

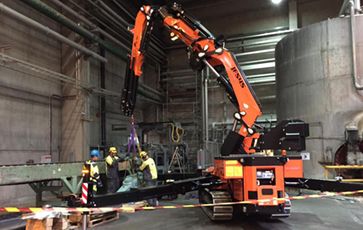

Installation of metal structures

This type of work is no less often performed by mini-cranes than the installation of glass and equipment. Installation of metal mini-cranes on caterpillar tracks produced during the construction of shopping centers, parking lots and even transport infrastructure.

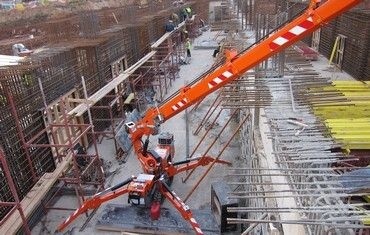

Mounting the formwork

When installing the formwork using a truck crane or tower crane is often extremely inefficient. One sheet of formwork weighs about 200 kilograms, and in terms of power and load-carrying characteristics, JF545 mini-cranes are not inferior to other types of cranes.

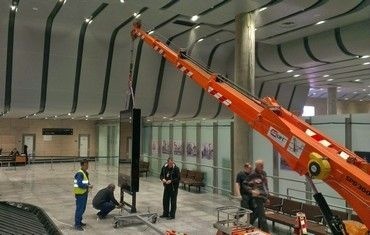

Installation of equipment

Due to the ability to work on the network and ease of transportation, the mini-crane JF545 is often used for the installation of equipment and advertising structures that takes place indoors. When performing this kind of work, a mini-crane is usually indispensable.

Functional benefits

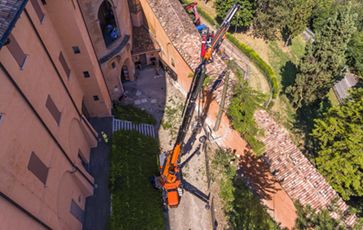

Work in limited space

Despite the power, strength of this crane, a lot of weight compared to other members of the Jekko family - the Jekko JF545 mini-crane passes to any hard-to-reach places that large vehicles cannot access.

Improved stabilization system

Thanks to the new software, the use of the JF545 is greatly simplified. The crane stabilization system automatically calculates one of four “stability levels”: the first is minimal, and the fourth is maximum, which allows the operator of a mini-crane to control the process comfortably and safely.

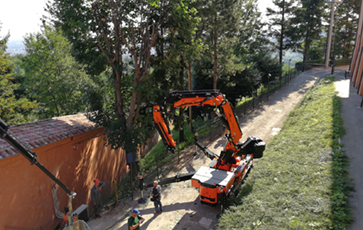

Overpower and power

Jekko JF545 - the only mini-crane in the Jekko line with a load capacity of 15.5 tons! At the same time the crane is distinguished by high maneuverability and small dimensions.

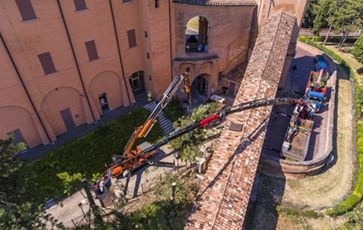

Refined boom

Unlike SPX cranes with telescopic boom with extensions, the JF 545 has a hinged boom: main boom + secondary boom + 6 additional sections, which allows the crane to be more compact, versatile and powerful.

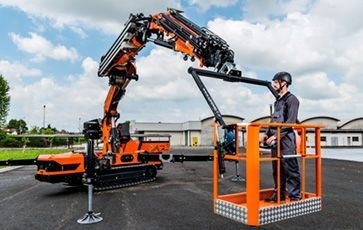

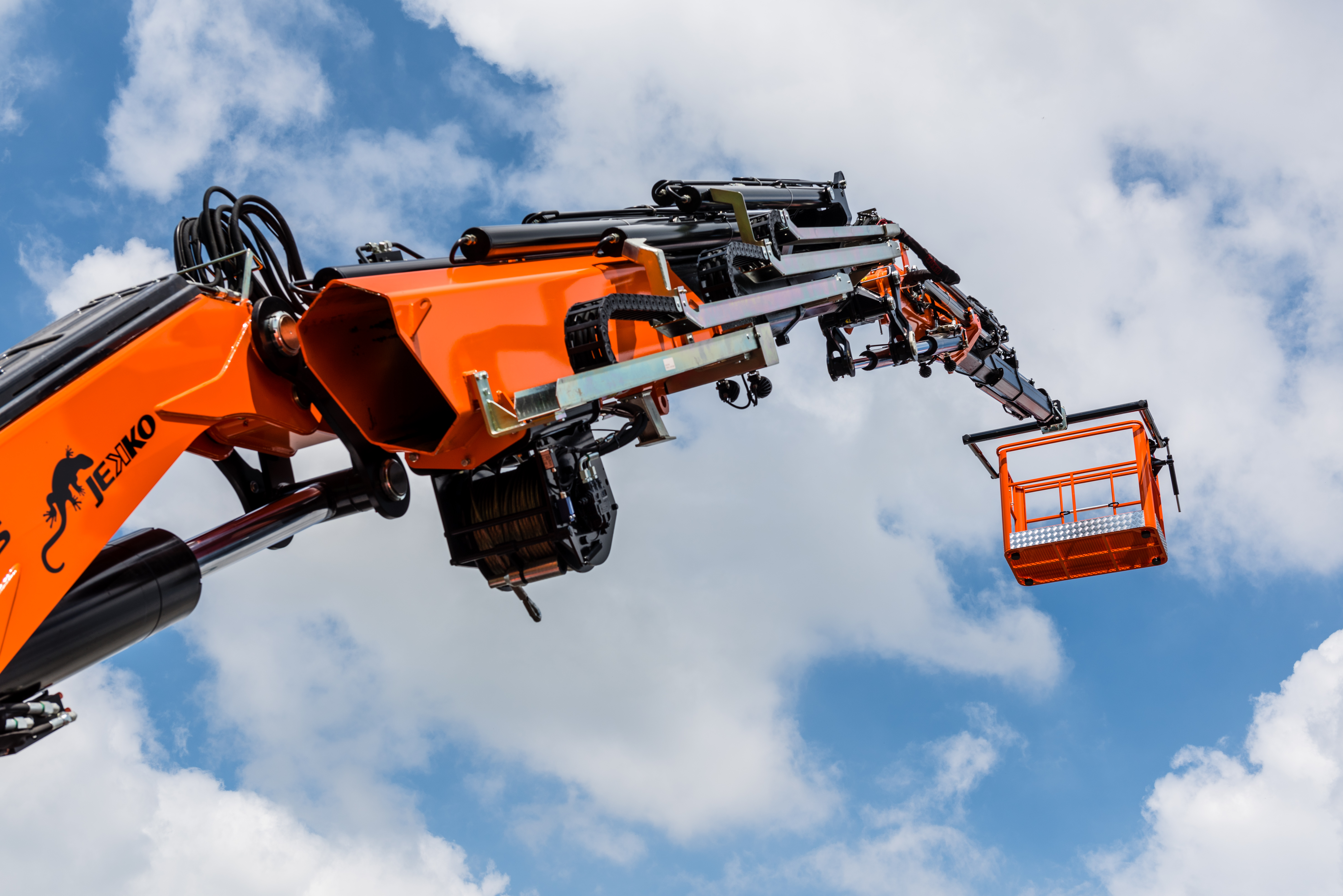

The presence of a basket for the operator

On the mini-crane Jekko JF545 you can install a basket for lifting people. The crane turns not only into a machine for lifting and moving cargo, but also into a tower for the operator to solve various tasks.

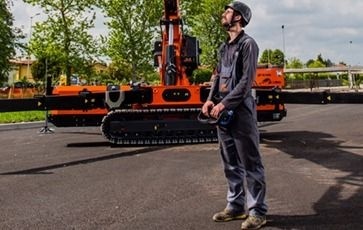

One crane - one operator

JF545, as well as other cranes of the Jekko range, is operated by one operator performing all operations using a radio remote control. The presence of the remote allows you to work with maximum accuracy.
