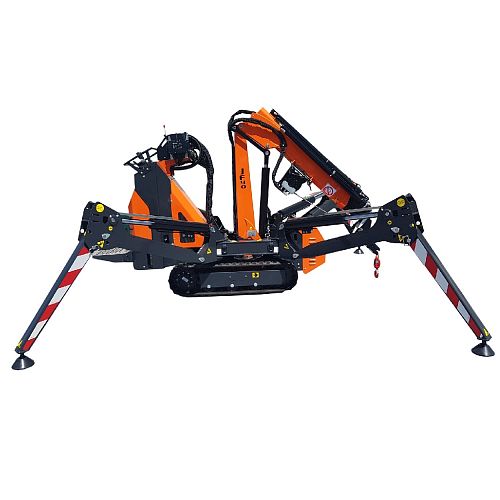

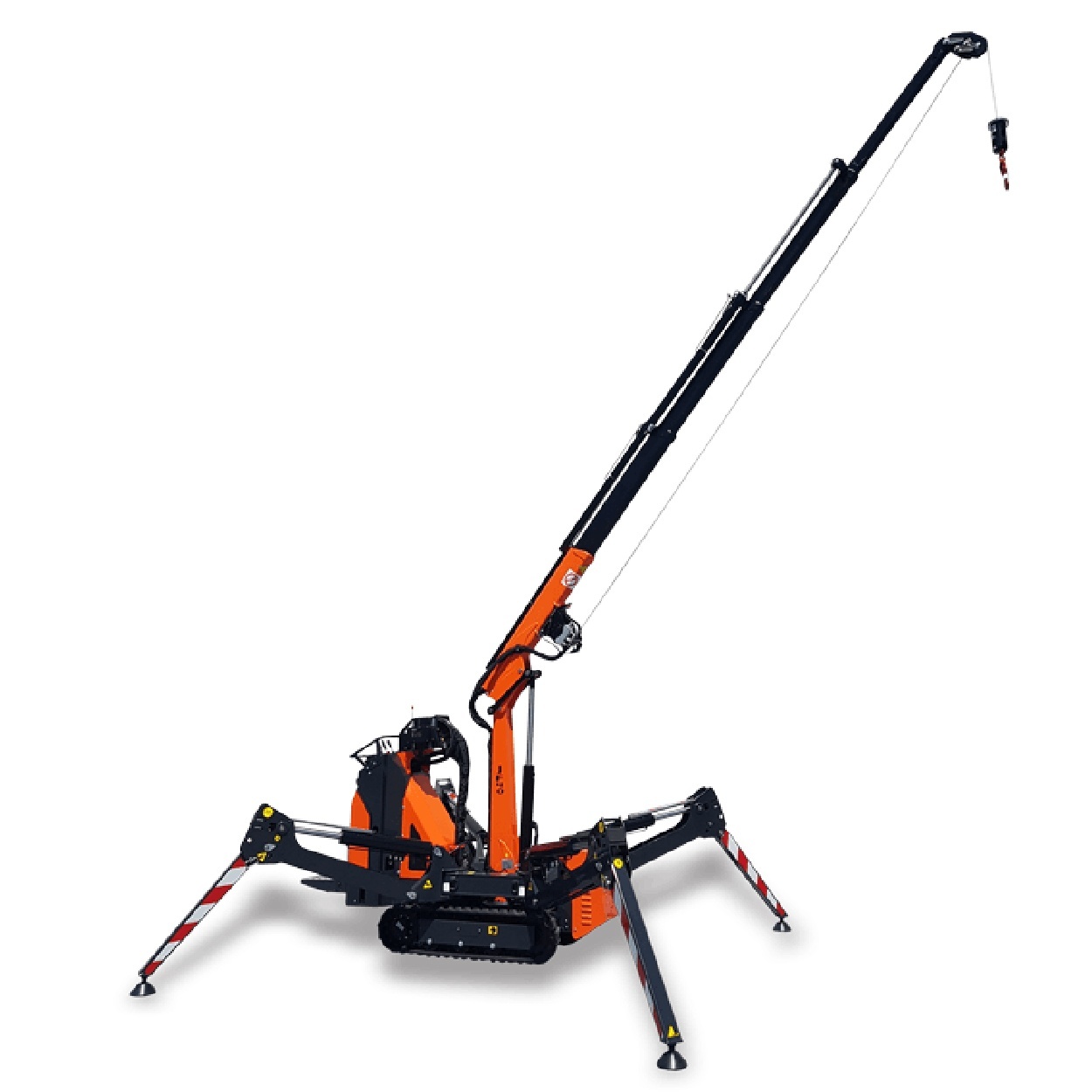

Mini crane JF40

Intuitive, compact and maneuverable JF40 crawler-mounted mini crane with excellent payloads.

2500 kg

2495 x 780 x 1850 mm

6,8 m

8 m

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

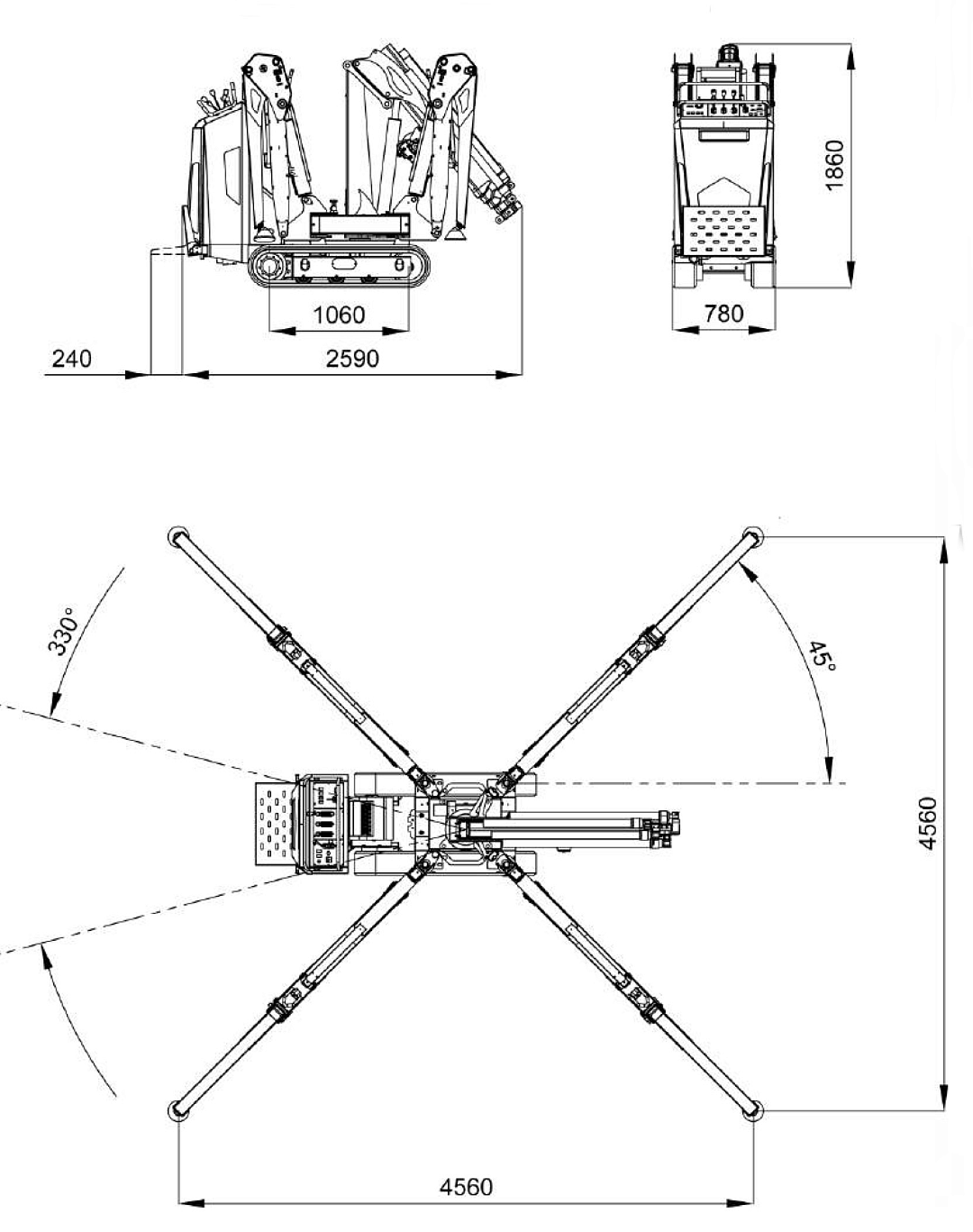

Габариты

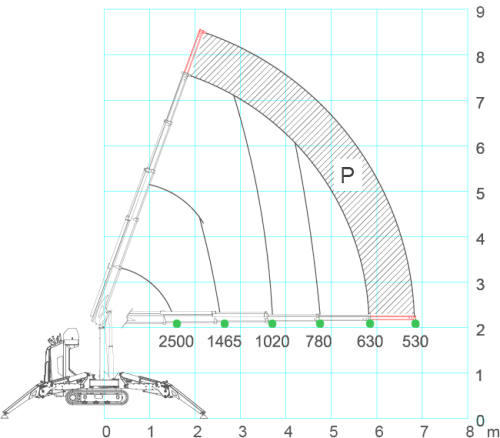

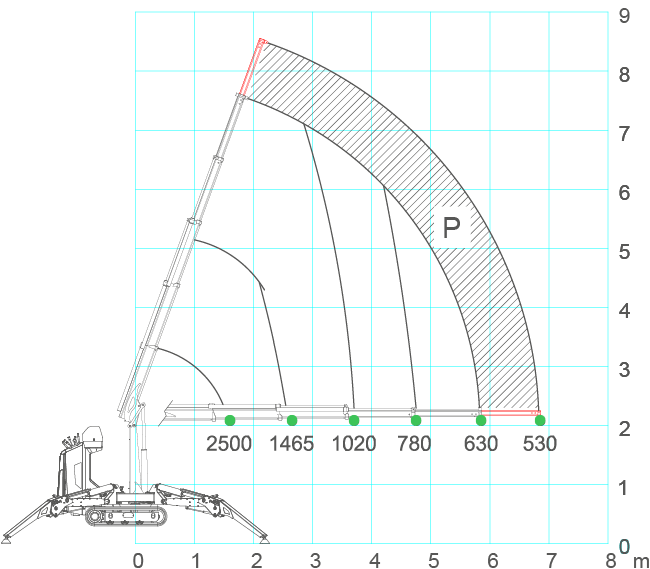

Диаграммы

Дополнительная комплектация

Lifting capacity

2500 kg

Max. lifting height

8 m

Area stabilization

4005 х 4005 mm

Engine type

gasoline / mains (380V)

Rotation

360В°

Size

2495 х 780 х 1850 mm

Weight

1500 kg

Horizontal reach

6,8 m

Drive

DVS

Engine

Petrol Yamaha MZ360 – 7.6 kW / 10.4 HP

The length of the hoist rope

36 m

Fuel tank capacity

6.7 l

The pressure of the tracks on the ground

0.42 kg/cm

Max. the load on the outriggers

1530 kg

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 36 м х 475 кг, при двукратной запасовке — 18 м х 950 кг

Диаметр грузового каната

6 мм

Basic configuration

The Yamaha MZ360 Petrol engine AND 7.6 KW / Hp 10.4

Four hydraulic telescopic sections

Rotation by 337 °

Four hydraulic outriggers, mechanical rotation

The device of the instant stopping

Two independent tracks

Folding platform for the operator

Double stock hook block

Remote control

Winch, GP 990 kg, 36 m, 6 mm

Additional complete set

Single-phase 50 HZ, 400 V, 4kW power supply drive module

Mechanical jib, type P

Stabilization system and LMI (load torque indication) for mechanical jib

Tasks

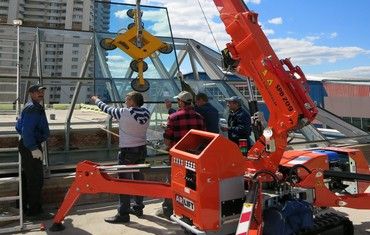

Glazing

The possibility of equipping with a vacuum manipulator allows the mini-crane to perform work on the glazing of balconies, shop windows, and building facades. This ensures the accuracy and smoothness of working with glass: the movement of the crane changes in proportion to the efforts applied to the joystick.

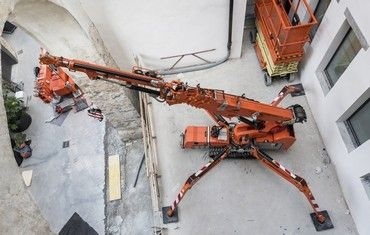

Installation work with floors

Low weight, minimum stabilization area, tracked drive and high maneuverability allow the most difficult high-altitude installation (on ceilings and roofs) in any conditions. Depth of lowering of a cable can reach 100 meters.

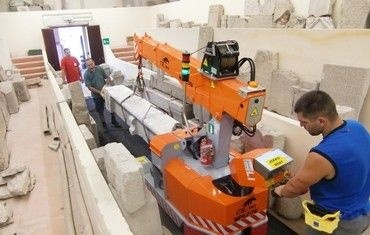

Lifting cargo in cramped conditions

Compact dimensions and excellent load carrying capacity at departure make it possible for JEKKO mini cranes to carry out work on lifting cargo in rooms with a small area, courtyards, wells, narrow openings and even underground. The width of the JF40 is only 0.77 m.

Functional benefits

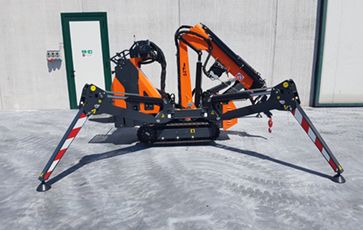

Light weight equipment

The weight of the JF40 is only 1600 kg - this allows the mini-crane to perform work on the floor slabs, to move from platform to platform, even in an elevator.

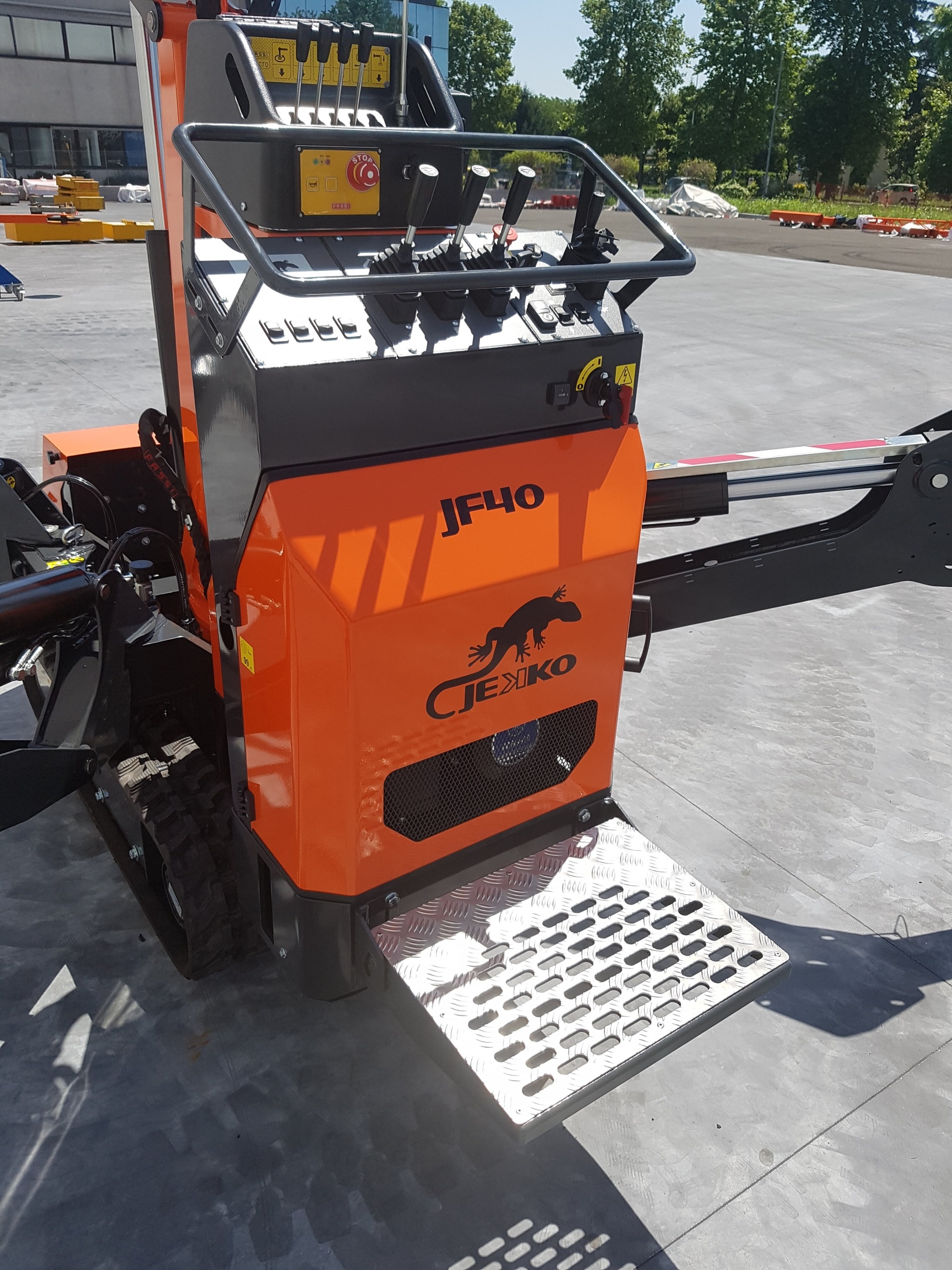

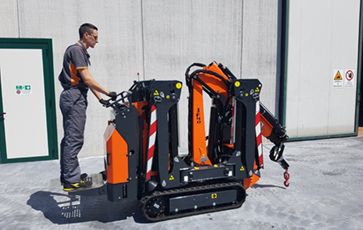

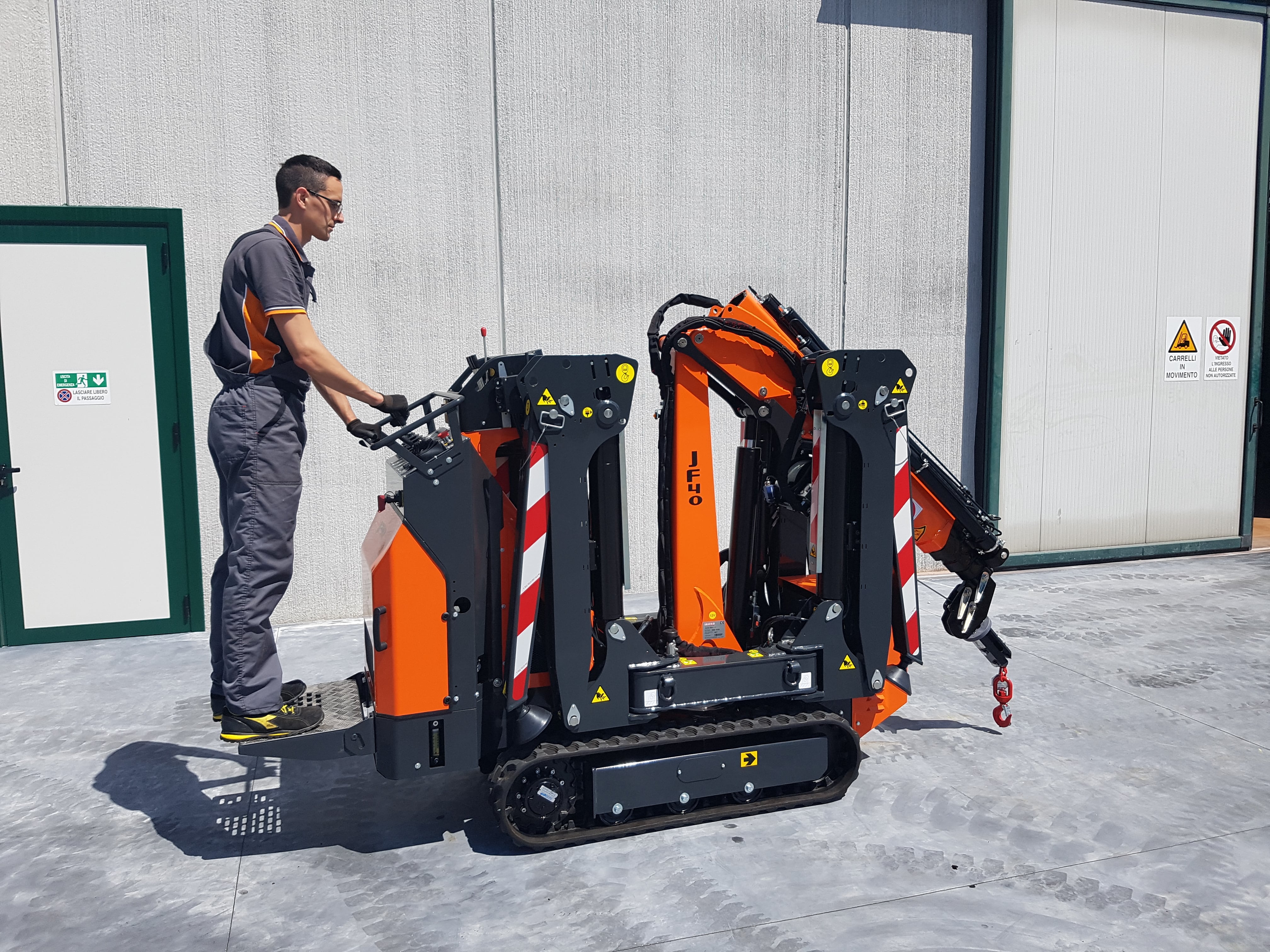

Operator's stand

One of the few mini-cranes in the Jekko line, which has a special support for the operator, allowing work directly from the crane itself.

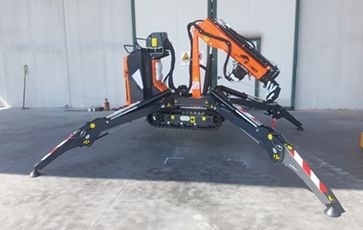

Compact size

Due to its small dimensions, the mini-crane JF 40 can work in cramped conditions, pass through doorways.

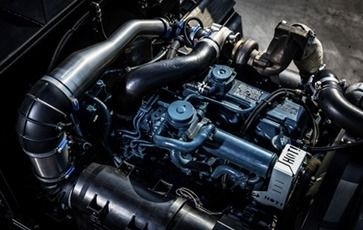

Work from the mains

The presence of two types of engines - diesel and 380V mains - makes it possible to use it on various construction sites and in any premises.

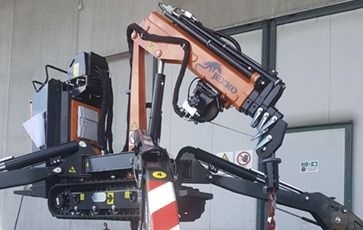

Installation of additional equipment

The mini-crane can be equipped with various types of mounted equipment for the installation of metal structures, glazing of facades of buildings or the supply of goods.

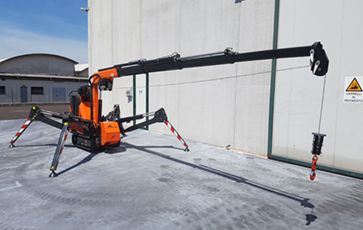

Affordable price

The cost of a mini-crane JF 40 is significantly lower than the cost of other mini-cranes Jekko. Although this crane is able to perform complex construction tasks.

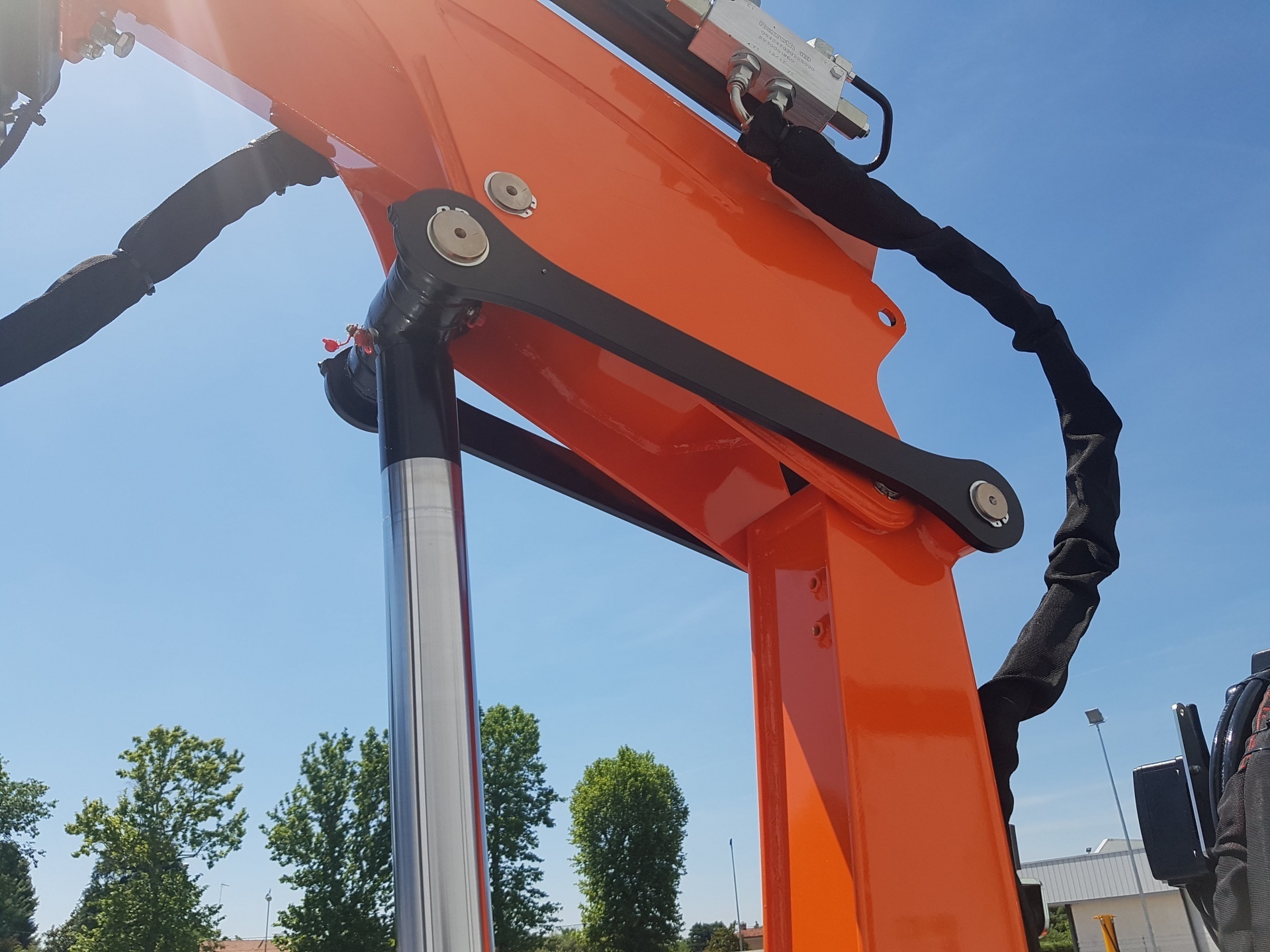

Gallery
