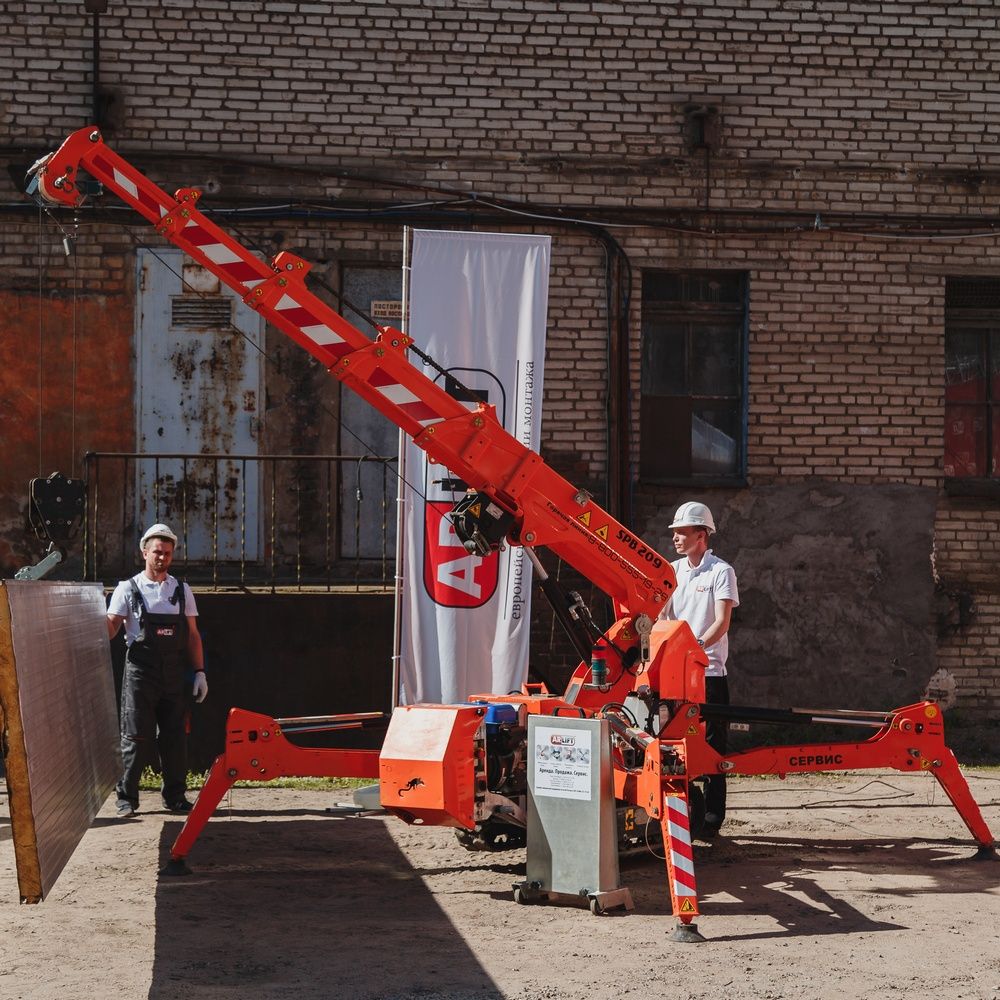

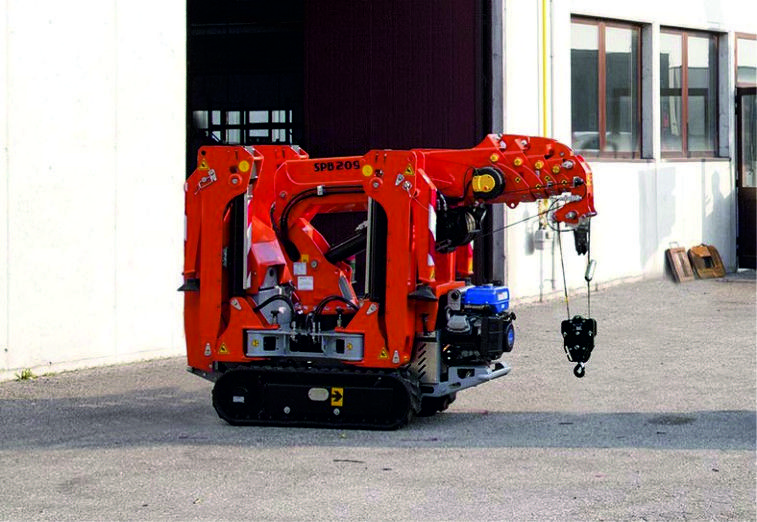

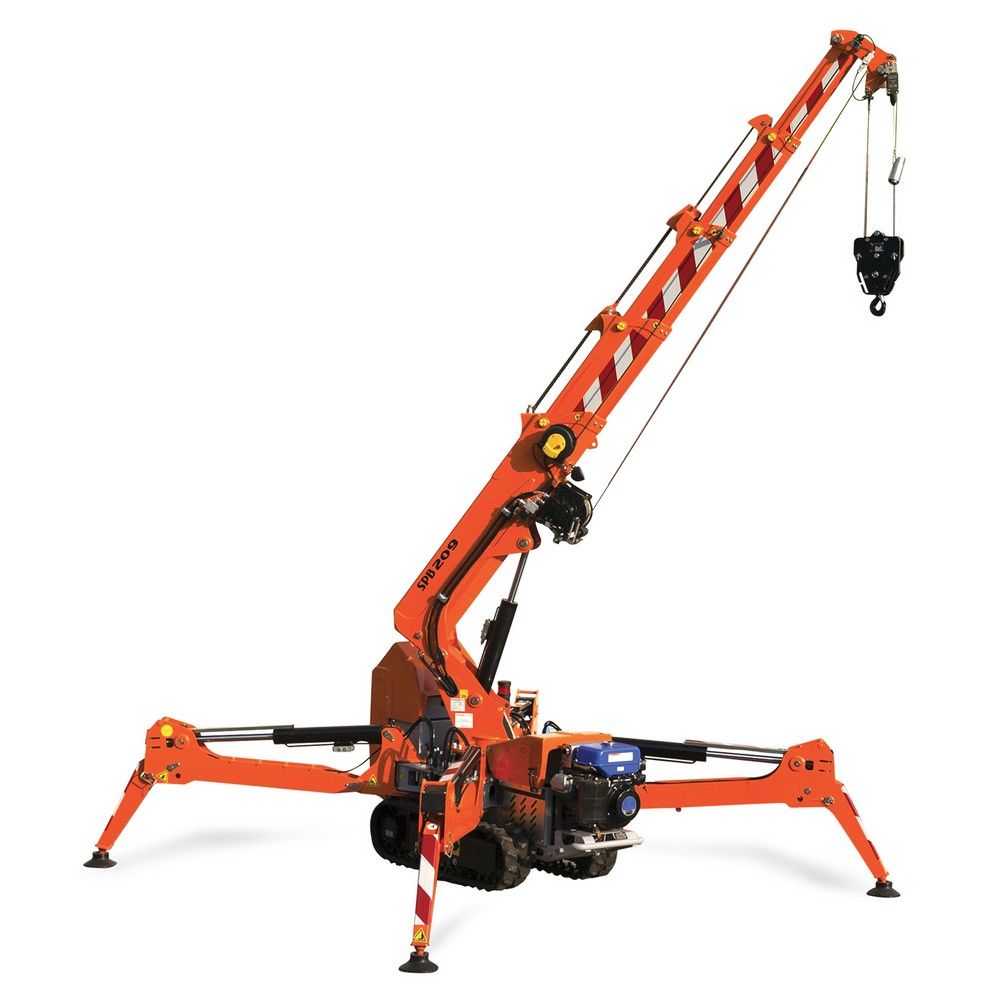

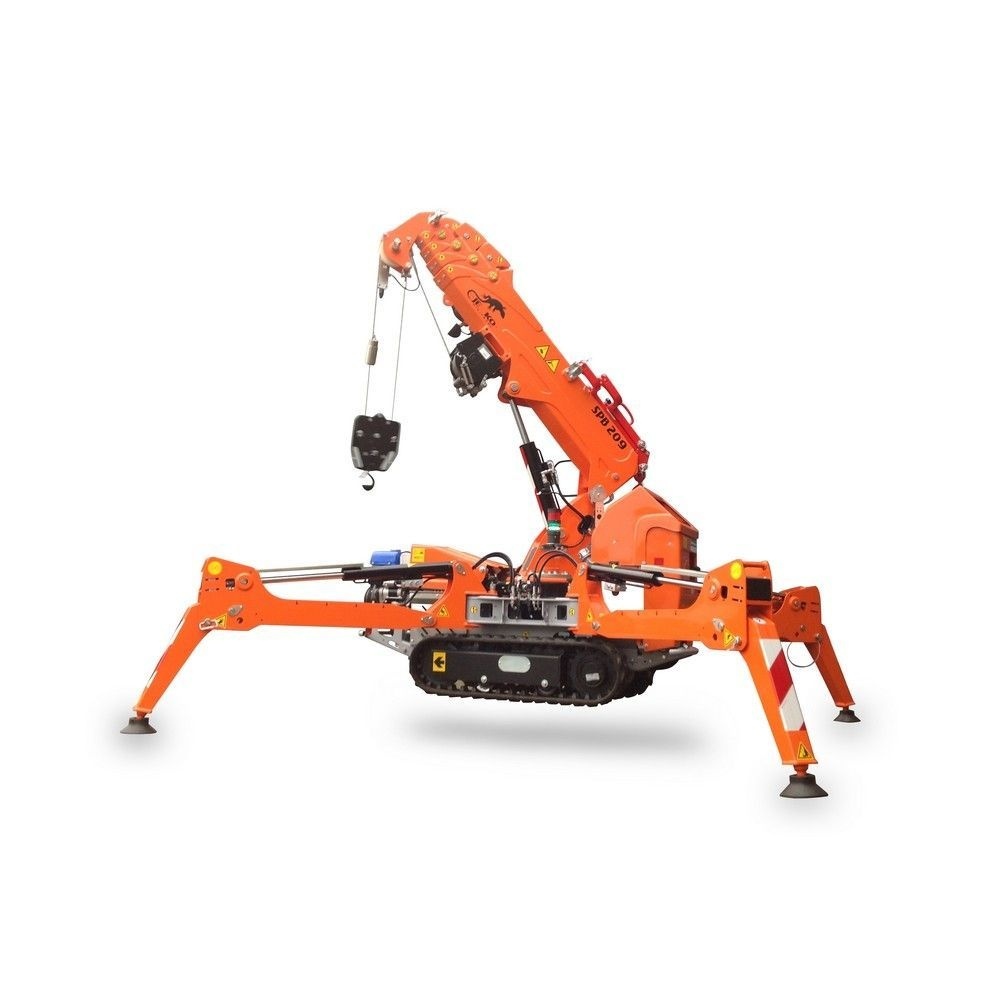

Mini crane SPB209CP

The SPB209 mini crane is the smallest and lightest in the Jekko range. The compact SPB209 cranes easily pass through doorways and fit into a freight elevator

990 kg

6.5 m

7.5 m

2530 x 770 x 1600 mm

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

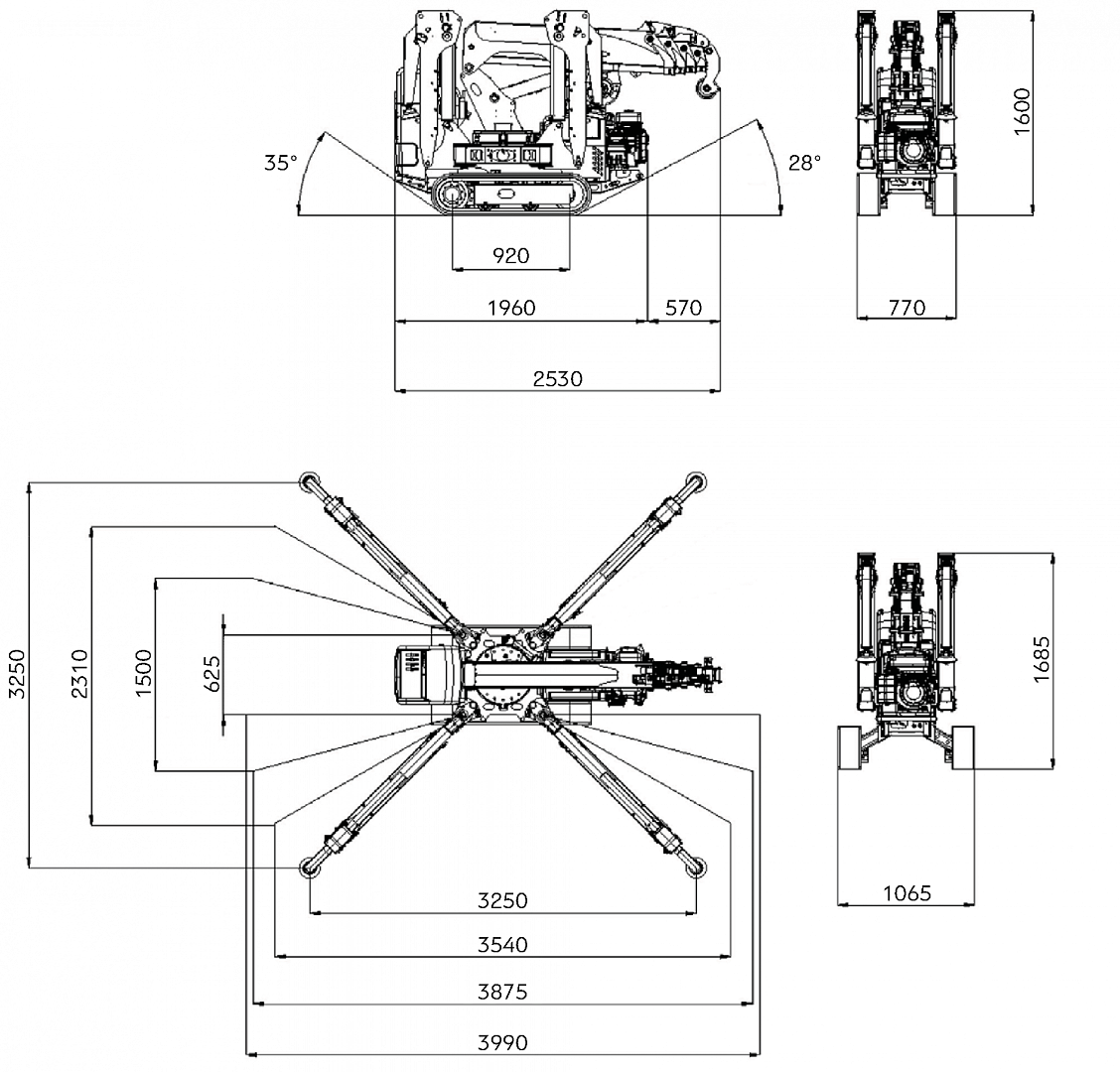

Габариты

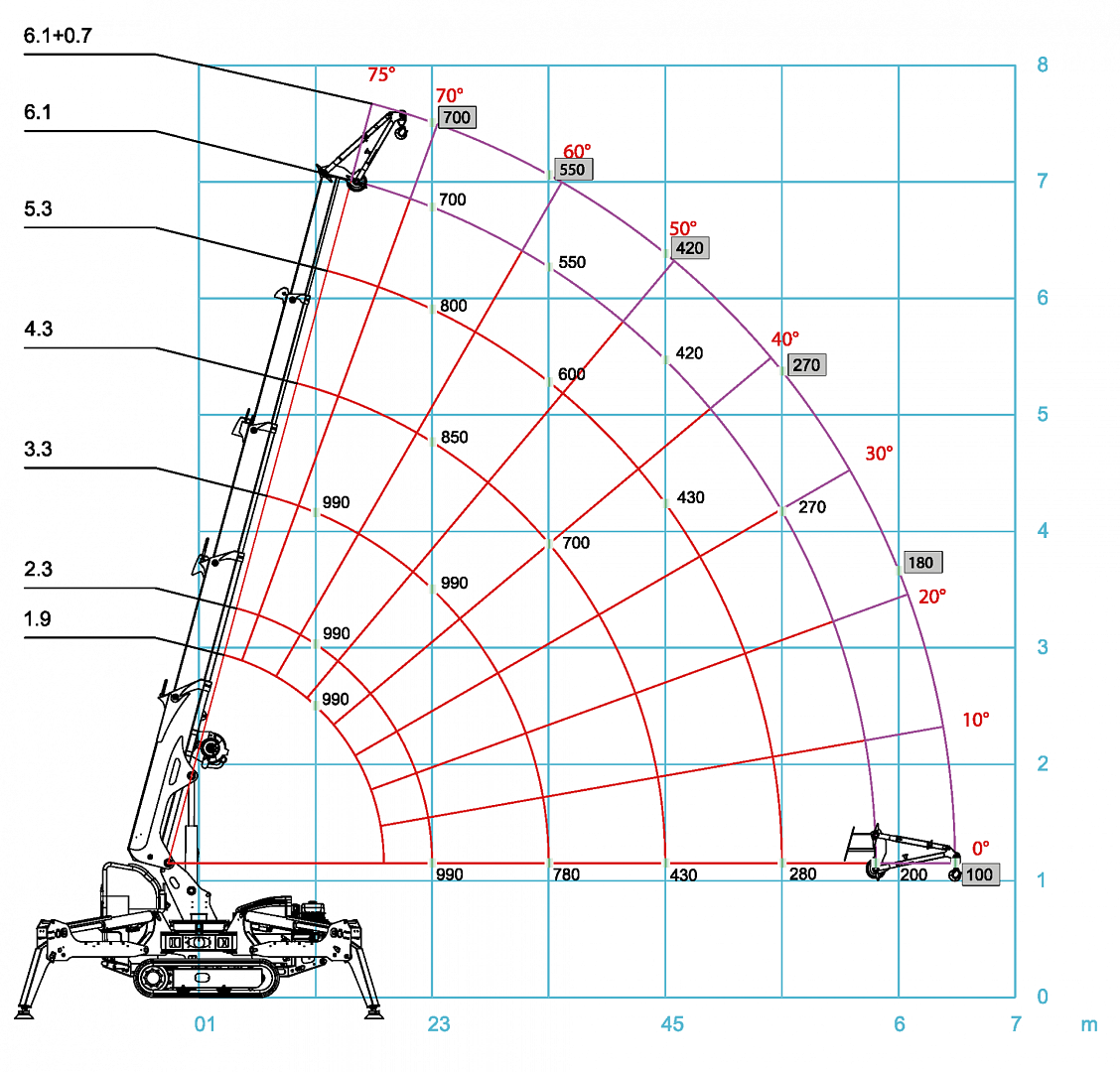

Диаграммы

Дополнительная комплектация

Lifting capacity

990 kg

Max. lifting height

7 m

Area stabilization

3250 x 3250 mm

Engine type

petrol/mains (380 V)

Weight

1450 kg

Size

2530 x 770 x 1600 mm

Rotation

280В°

Horizontal reach

8 m

Drive

DVS

Engine

7.6/10.4 kW / HP

The length of the hoist rope

50 m

Fuel tank capacity

6.7 l

The pressure of the tracks on the ground

0.40 kg/cm

Max. the load on the outriggers

1050 kg

Диаметр грузового каната

6 мм

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 50 м х 495 кг, при двукратной запасовке— 25 м х 990 кг

Basic configuration

Gasoline engine Yamaha MZ360

Tower lamp

Stabilization system

Locking outriggers

Winter package

Additional complete set

Three-phase power supply drive module 380 V, 4kW

Geese with reverse tilt GP 800 kg

Stand under the outriggers

Tasks

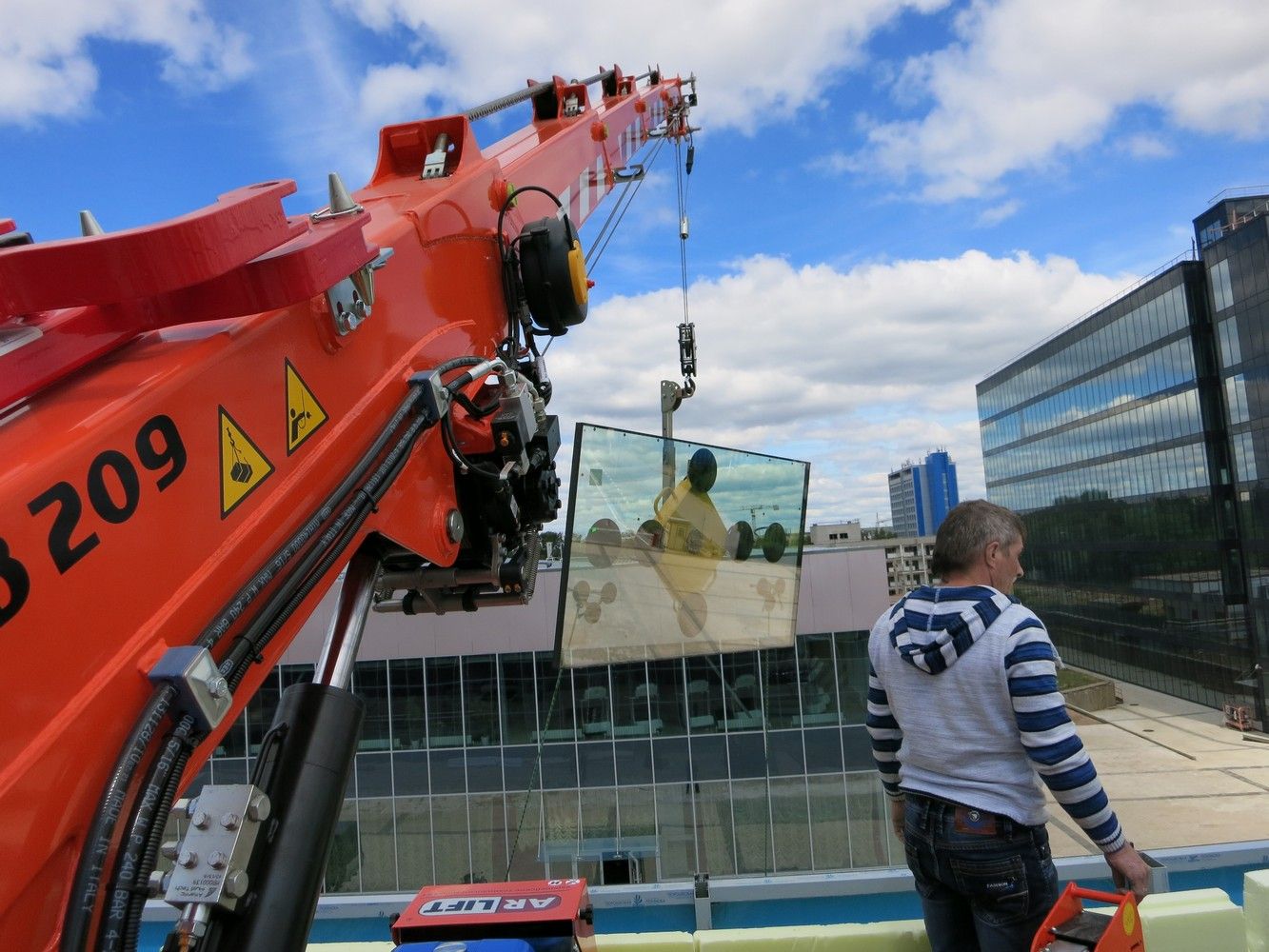

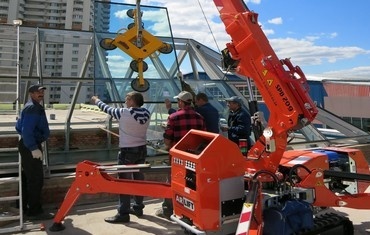

Glazing

The possibility of equipping a vacuum manipulator allows the mini-crane to perform work on the glazing of balconies, shop Windows, and building facades. This ensures accuracy and smooth operation with the glass: the movement of the crane changes in proportion to the forces applied to the joystick.

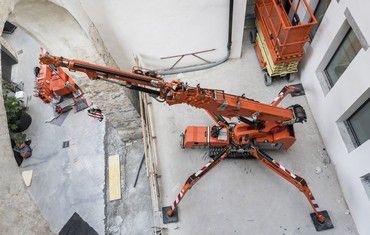

Assembling performed from roof slabs

Low weight, minimal stabilization area, crawler track and high maneuverability make it possible to carry out the most complex high-altitude installation (on floors and roofs) in any conditions. The depth of lowering the cable can reach 100 meters.

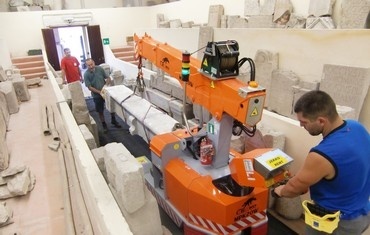

Lifting loads in constraint environment

The compact size and excellent performance of the lifting capacity on departure give jekko mini cranes the ability to perform work on lifting cargo in rooms with a small area, courtyards, wells, narrow openings and even underground. The width of the JF40 is only 0.77 m.

Functional benefits

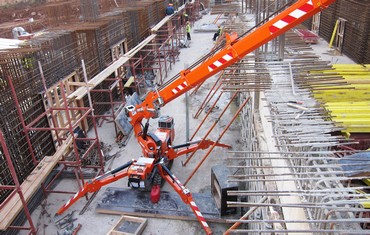

Compact size

Provides excellent maneuverability in tight areas, not only folded, but in good working condition. The design of mini cranes allows you to place them on completely unsuitable surfaces for conventional cranes.

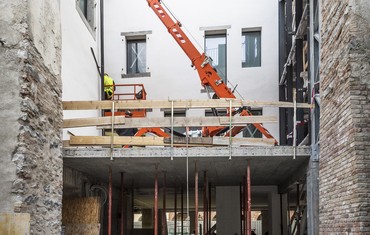

Light weight of equipment

The weight of the SPВ209CP crane is 1450 kg. The crane can be used on the roof, ceiling, underground or indoors.

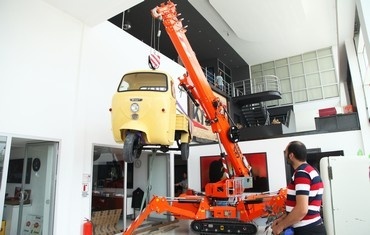

Working from the power grid

The ability to work both from the internal combustion engine and from the 380V network allows you to use the equipment both in open areas and in closed rooms, without special ventilation.To perform a whole range of tasks, the mini-crane can be equipped with a vacuum manipulator, two-section jib, grabber and other attachments.

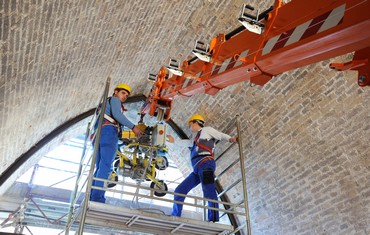

Installation of additional equipment

To perform a whole range of tasks, the mini-crane can be equipped with a vacuum manipulator, two-section jib, grabber and other attachments.

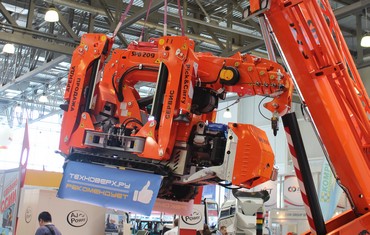

Easy transportation

The SPB209 crane is so small that it can be easily transported to the installation site, wherever it is located (roof of the building, balcony, floor slab).

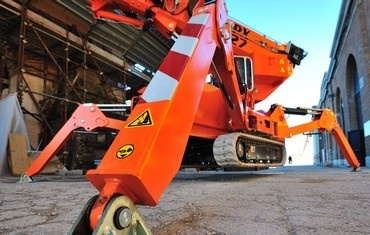

Stabilization system

The mini-crane starts handling the load only after all four outriggers are fully fixed.

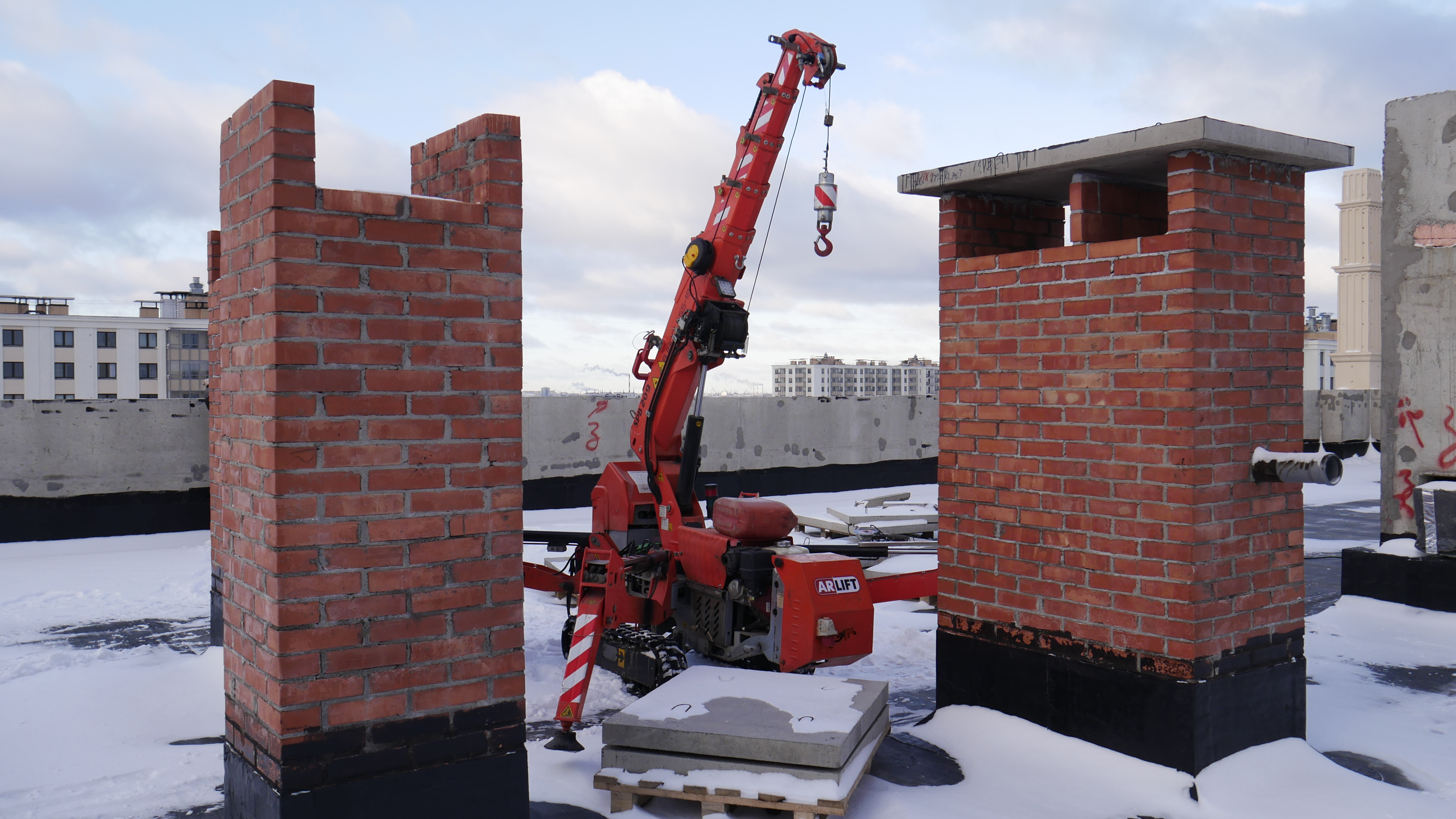

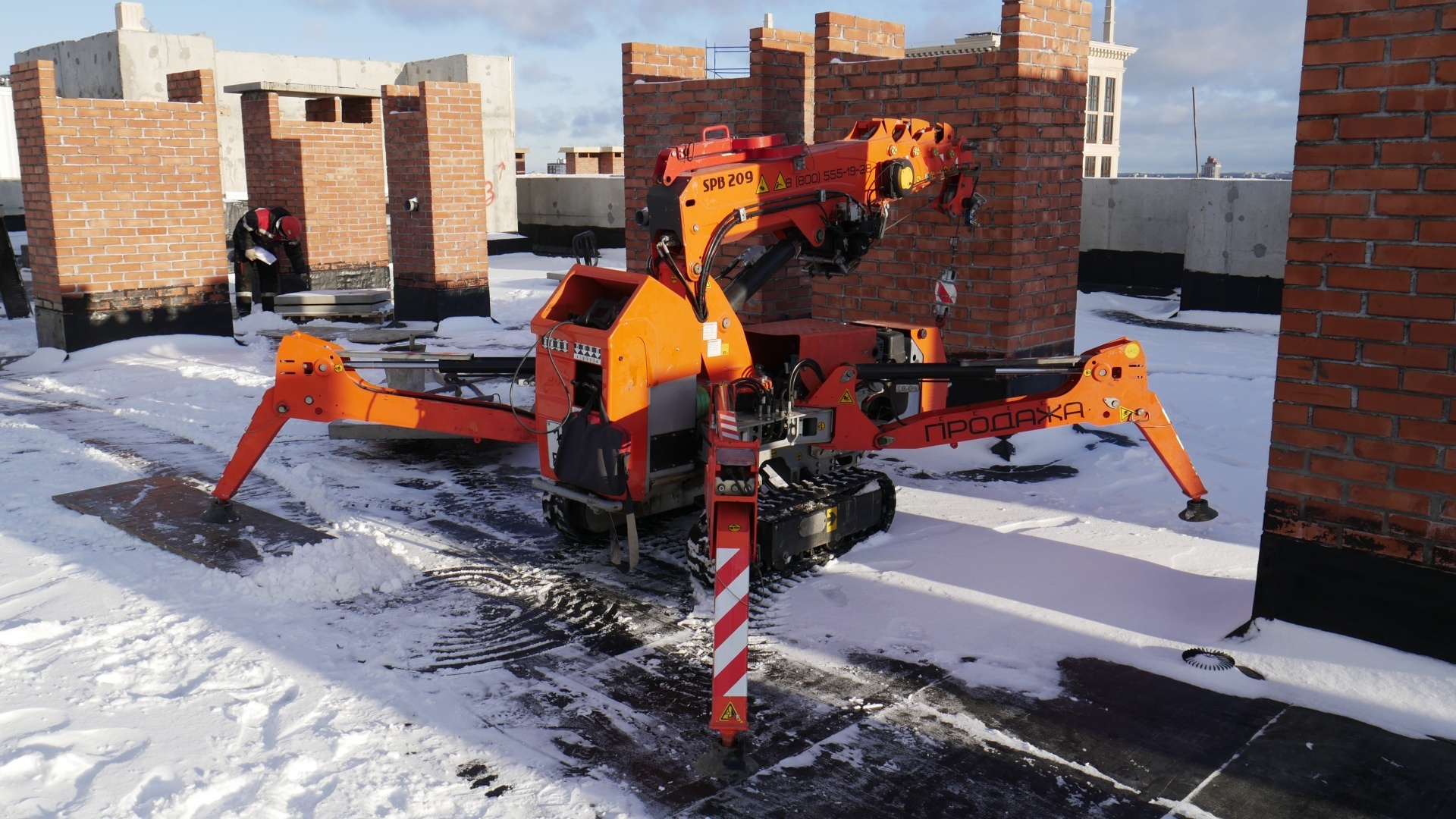

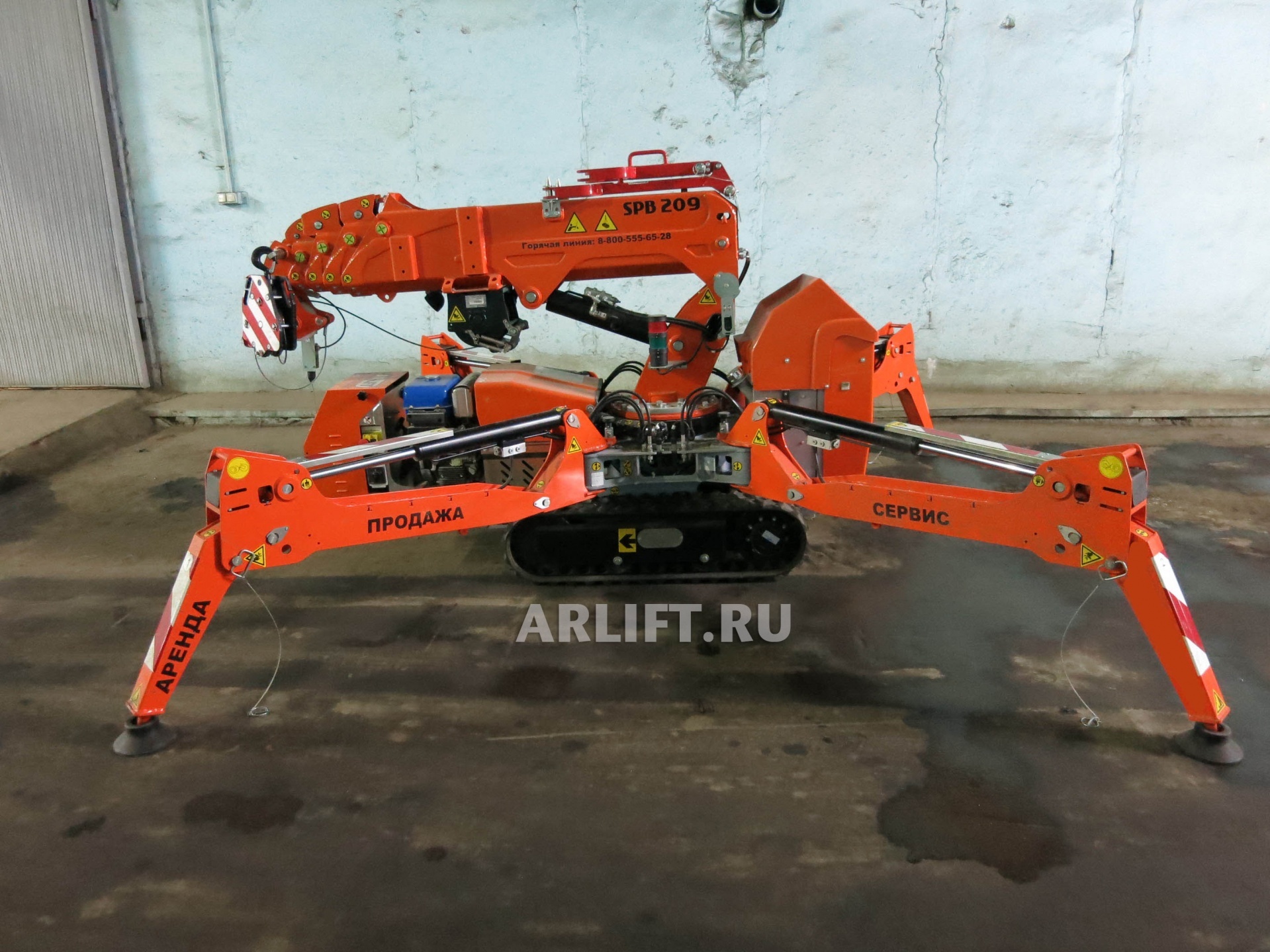

Gallery
