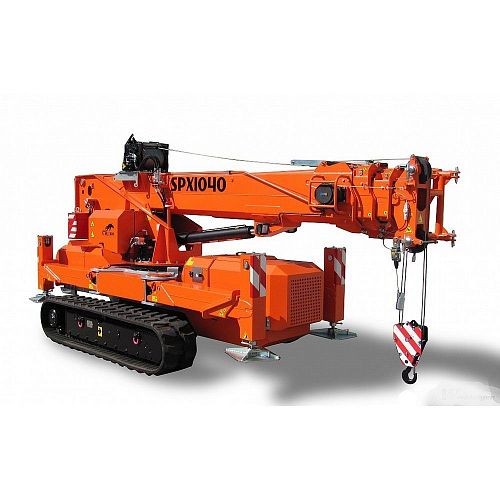

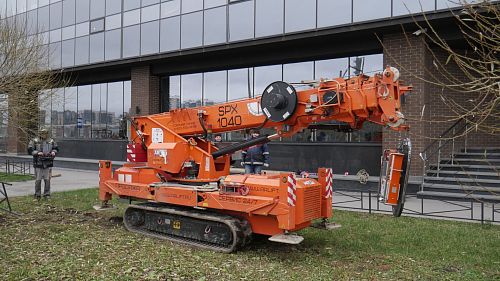

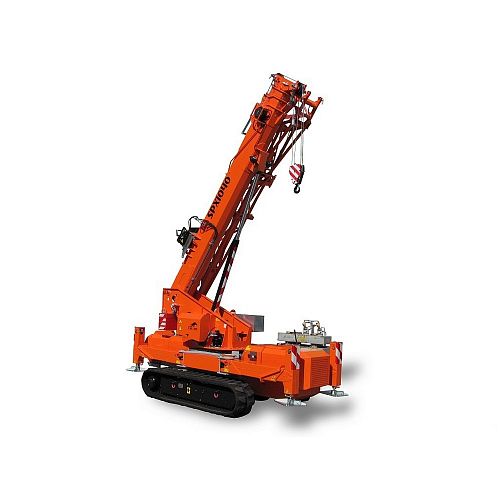

Mini crane SPX1040CDH

Metal structures assemble Easy. Mini crane SPX1040CDH – powerful and superaccurate assistant at construction site. Power and excellent passability

4000 kg

5387 x 1450 x 2036 mm

13 m

23.5 m

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

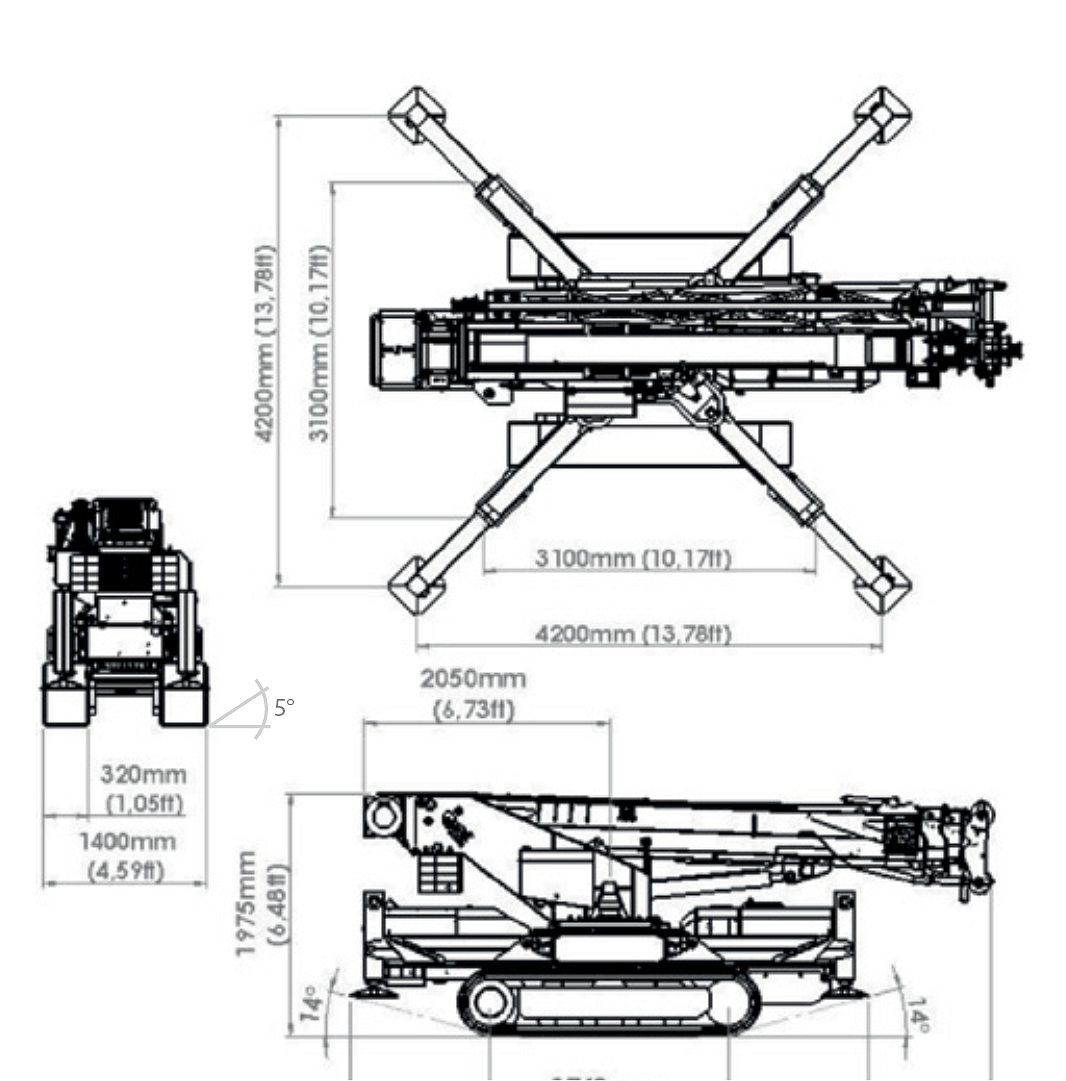

Габариты

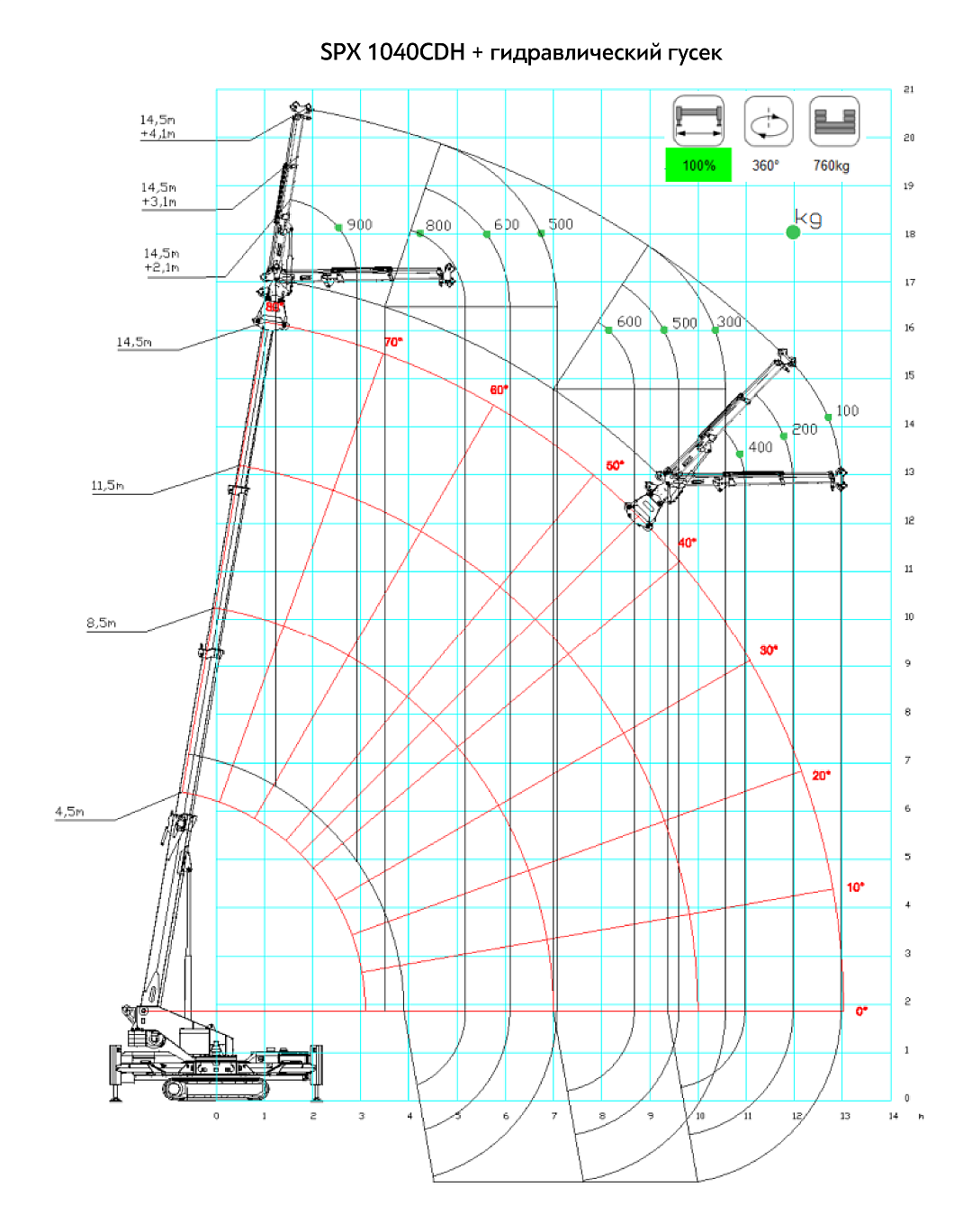

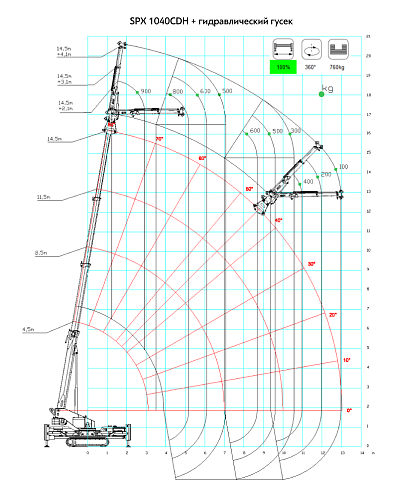

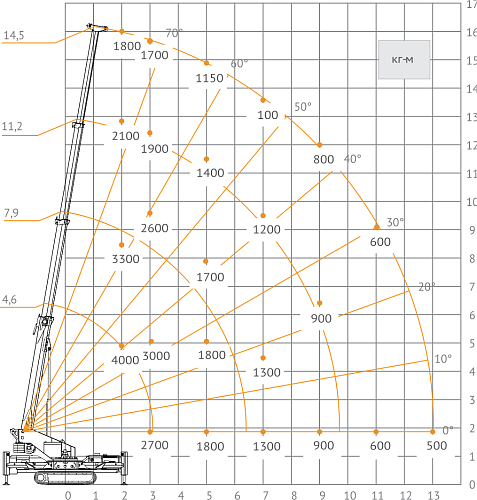

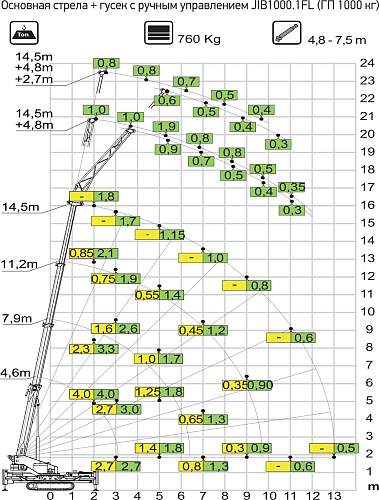

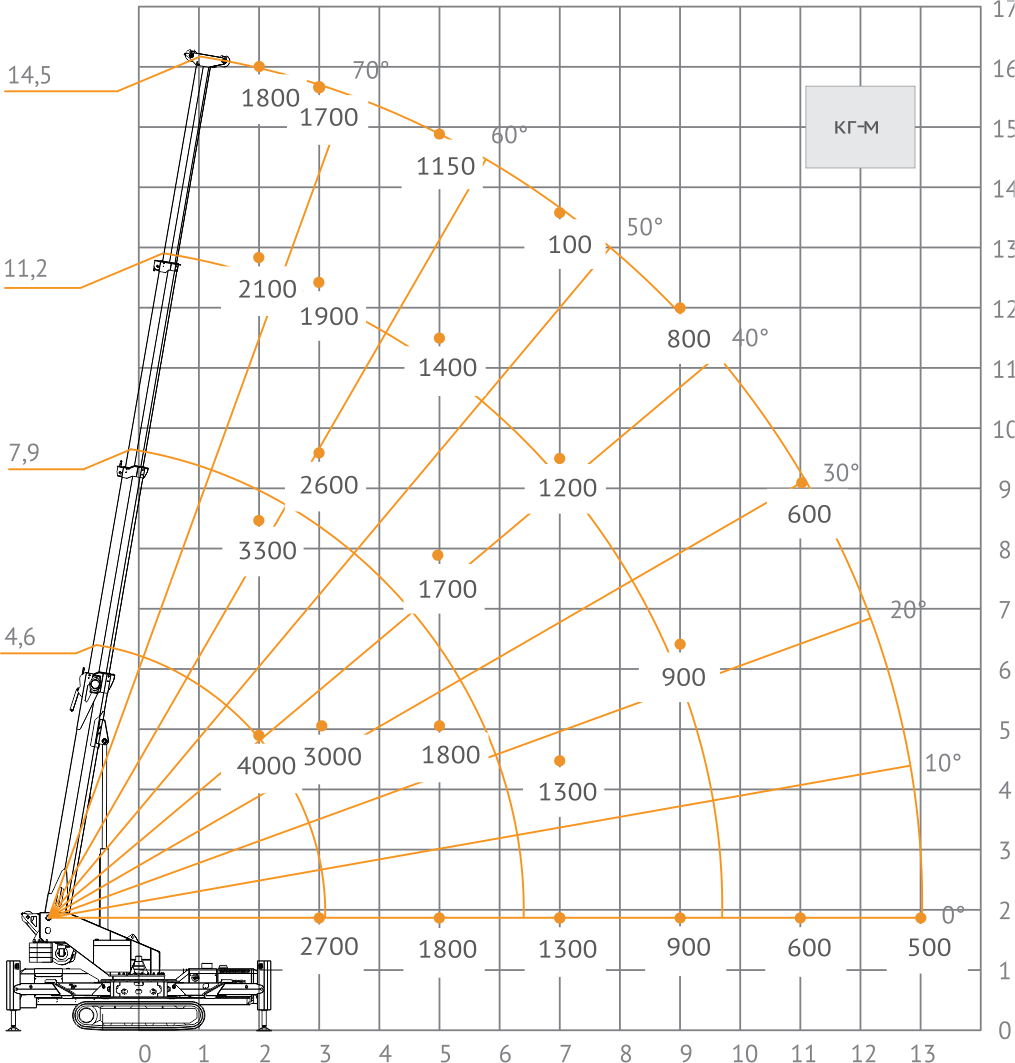

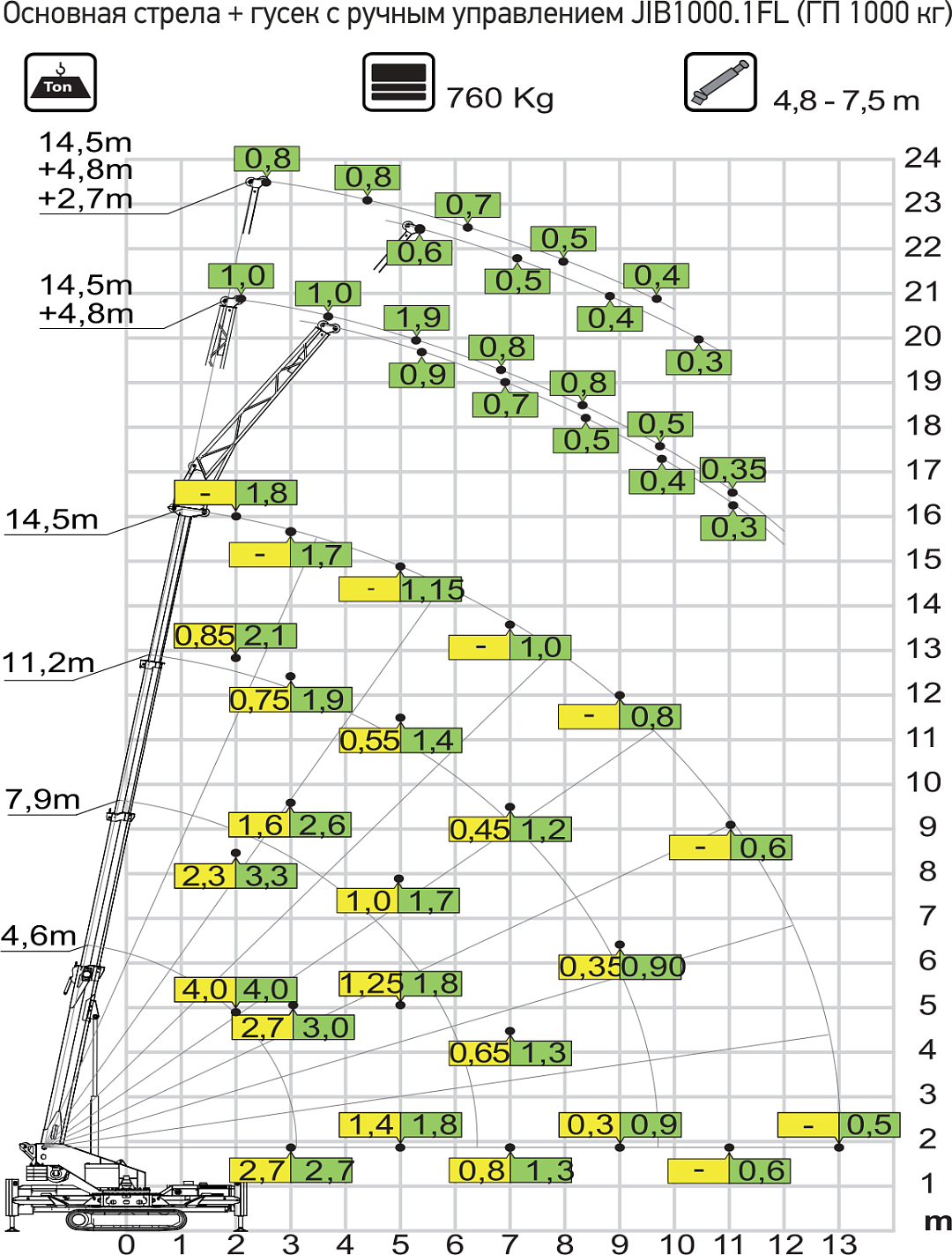

Диаграммы

Дополнительная комплектация

Max. lifting height

23.5 m

Lifting capacity

4000

Engine type

diesel/network (380 V)

Rotation

360В°

Size

5387 x 1450 x 2036 mm

Weight

7385 kg

Horizontal reach

13 m

Drive

DVS

Engine

ISUZU 3CB1

The length of the hoist rope

125 m

Fuel tank capacity

20 l

Area stabilization

4200 х 4200 mm

The pressure of the tracks on the ground

0.59 kg/cm

Max. the load on the outriggers

4500 kg

Диаметр грузового каната

8 мм

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 125 м х 1000 кг, при двукратной запасовке — 62.5 м х 2000 кг, при трёхкратной запасовке — 41.6 м х 3000 кг, при четырехкратной запасовке — 31. 2 м х 4000 кг

Basic configuration

Diesel engine ISUZU 3CB1

Stabilization system and LMI (display load moment, stall prevention, control of separation of the outriggers)

Continuous rotation

Radio remote control

Supports under the outriggers

Pick & Carry function shipping up to 2 tons

Hydraulic drive with output to the main boom

Tower lamps green / yellow / red

Winter package

Additional complete set

Three-phase 400V-380V-4kV power supply drive module for diesel engine

Mechanical geese GP 1000 kg

Dvushkivny hook block GP 8 tons under a cable of 10 mm

Manual goose 1 meter GP 300 kg

Hydraulic geese GP 600 K

Tasks

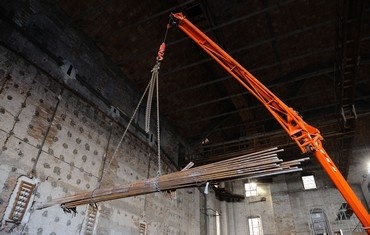

STEEL ERECTION

This kind of works is rather often executed by mini cranes as in the case of glass and equipment installation. Mini cranes carry out steel erection in course of commercial centers construction, parking areas and even objects of transport infrastructure.

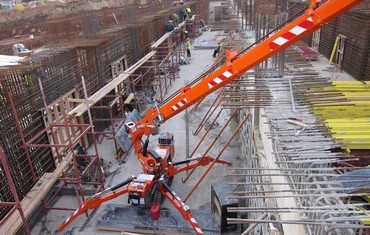

MOUNTING OF FORMWORK

To use motorized or tower crane for performance of framework construction is often not efficient at all. One sheet of framework weights about 200 kg and by its power and height of load lifting mini cranes JEKKO absolutely equal with other type craines.

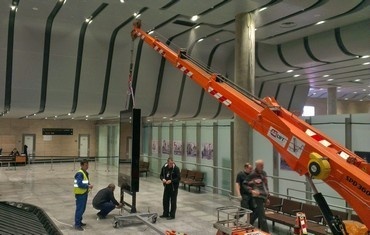

EQUIPMENT INSTALLATION

Mini crane JEKKO SPX1040 is often used for installation of equipment and advertising structures, carried out inside premises. To perform this kind of works, mini crane robot is, as a rule, non-replaceable.

Functional benefits

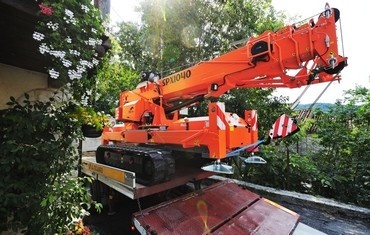

COMPACT SIZE

Provides excellent passability through narrow openings Easily lift and displace loads in extremely confined conditions.

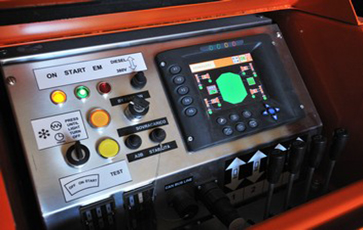

EMBEDDED INTELLIGENCE SYSTEM

Provides clearly evident demonstration of how the crane is working at the object. At the screen at control panel we may see boom outreach and weight of lifting at the current moment load.

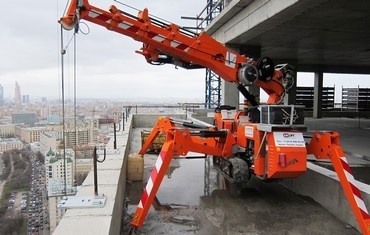

LIGHT WEIGHT OF EQUIPMENT

Even the largest cranes in the JEKKO range can work on the roof, slabs and easily maneuver through the construction site.

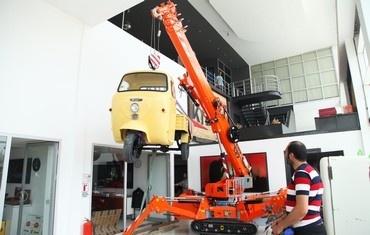

OPERATION USING MAINS SUPPLY

Possibility to work from combustion engine and from mains supply 380 V as well permits to use JEKKO outdoors and in closed premises as well without special ventilation.

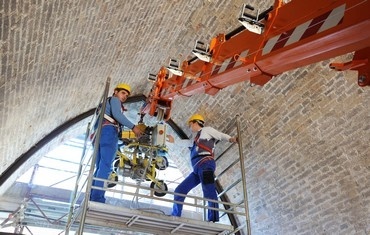

INSTALLATION OF SUPPLIMENTARY EQUPMENT

To perform a whole number of tasks, mini crane may be equipped with vacuum manipulator, double section jib.

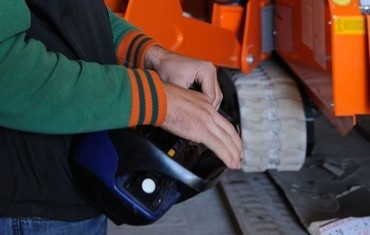

REMOTE CONTROL PANEL

Provides operator's mobility and allows to control load movements with millimeter precision.
