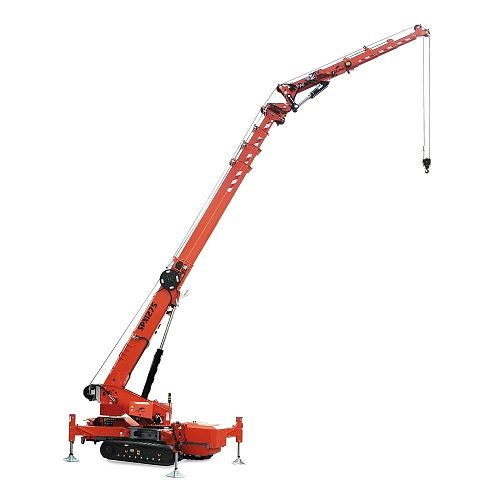

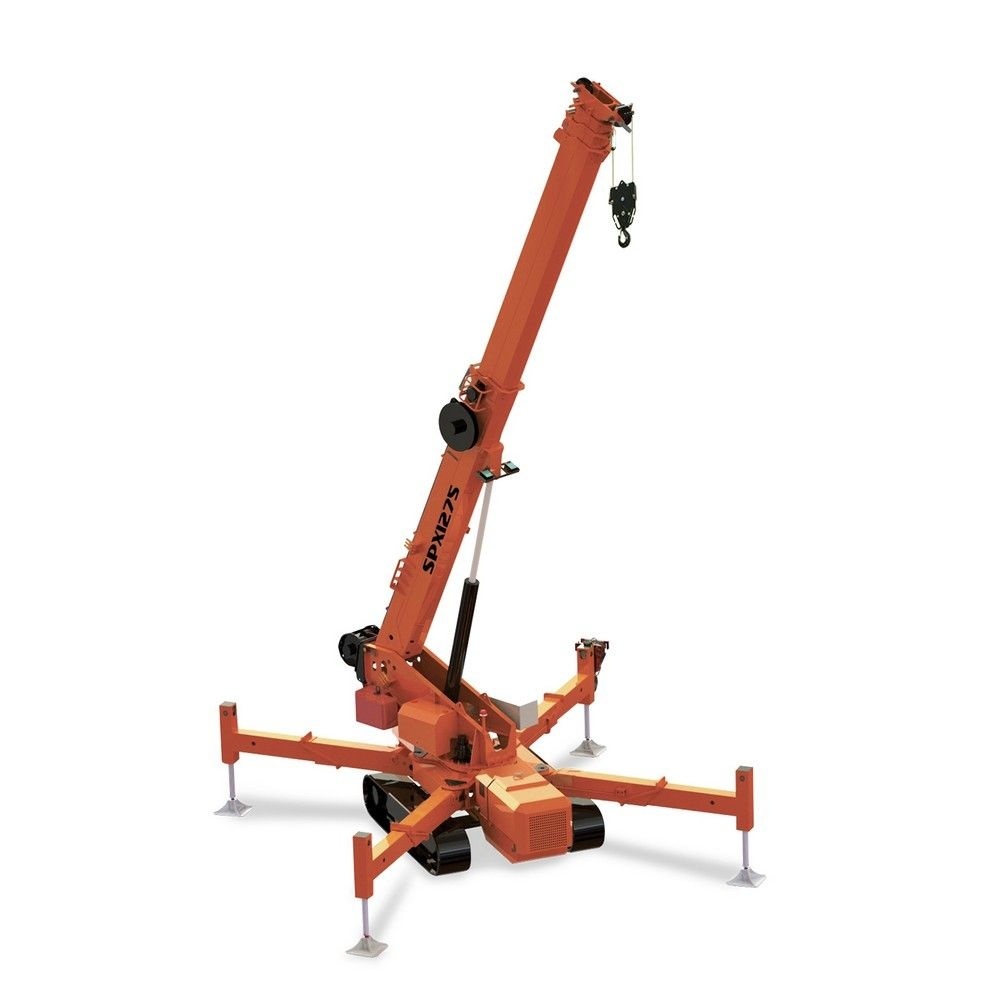

Mini crane SPX1275CDH

Mini crane SPX1275CDH – is the most powerful in Jekko series. This crane able to 'remove mountains'. Super power and compactness

7500 kg

5727 х 1450 х 2038 mm

17.7 m

26.5 m

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

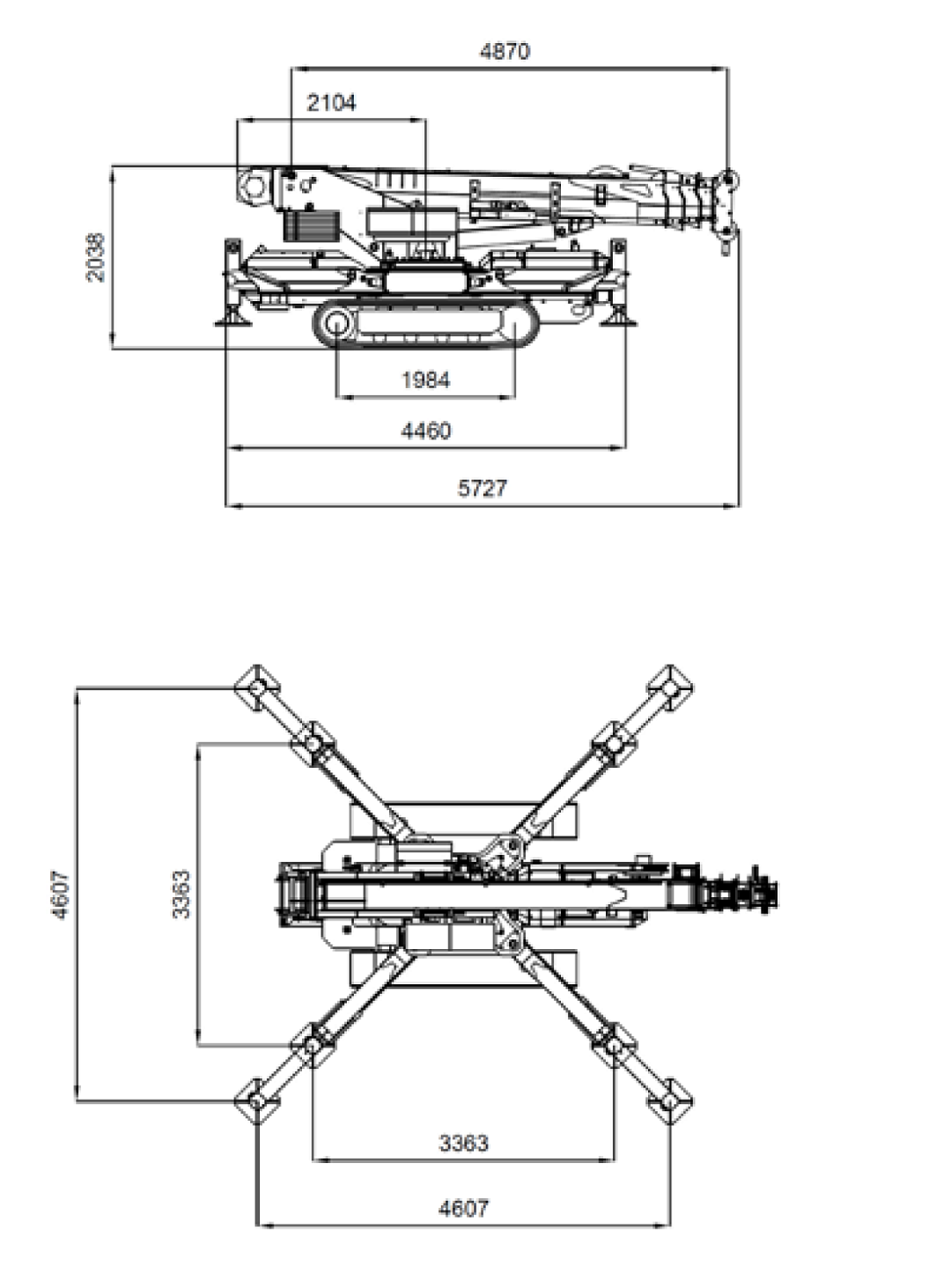

Габариты

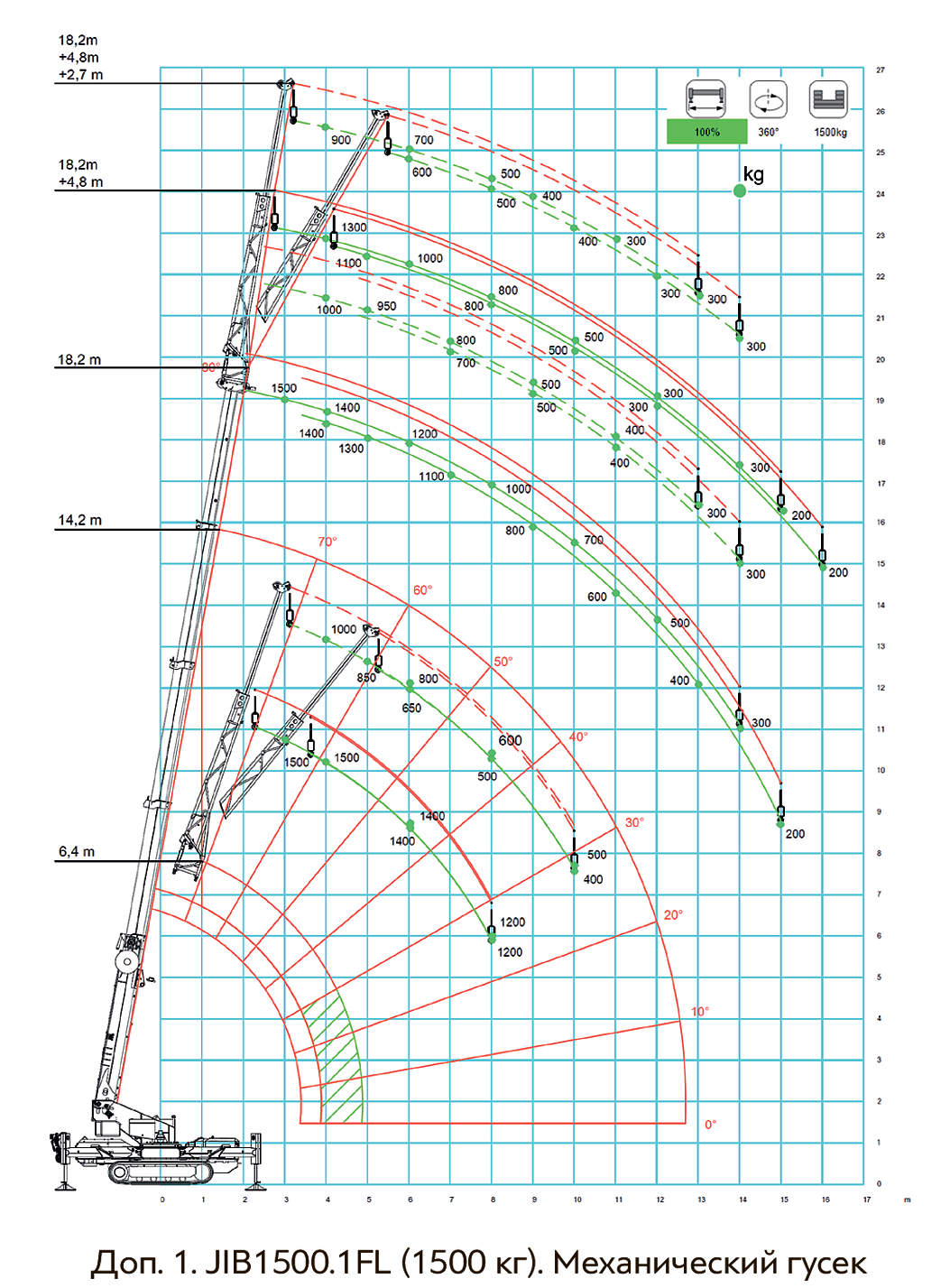

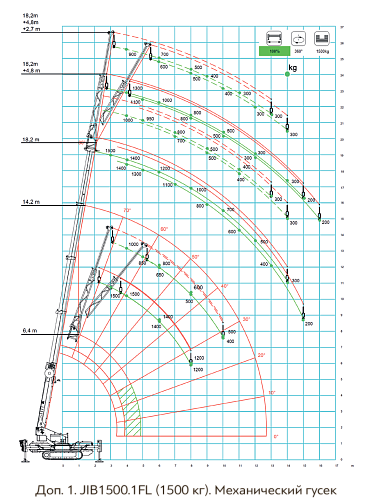

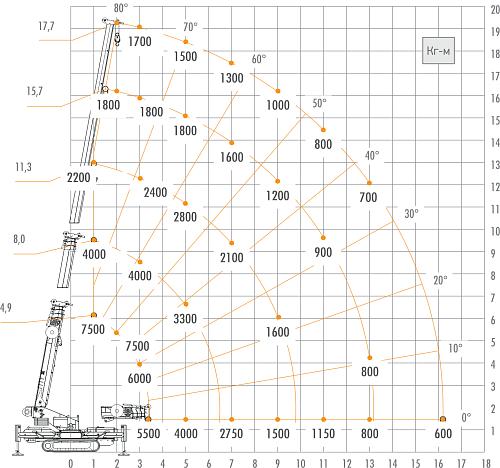

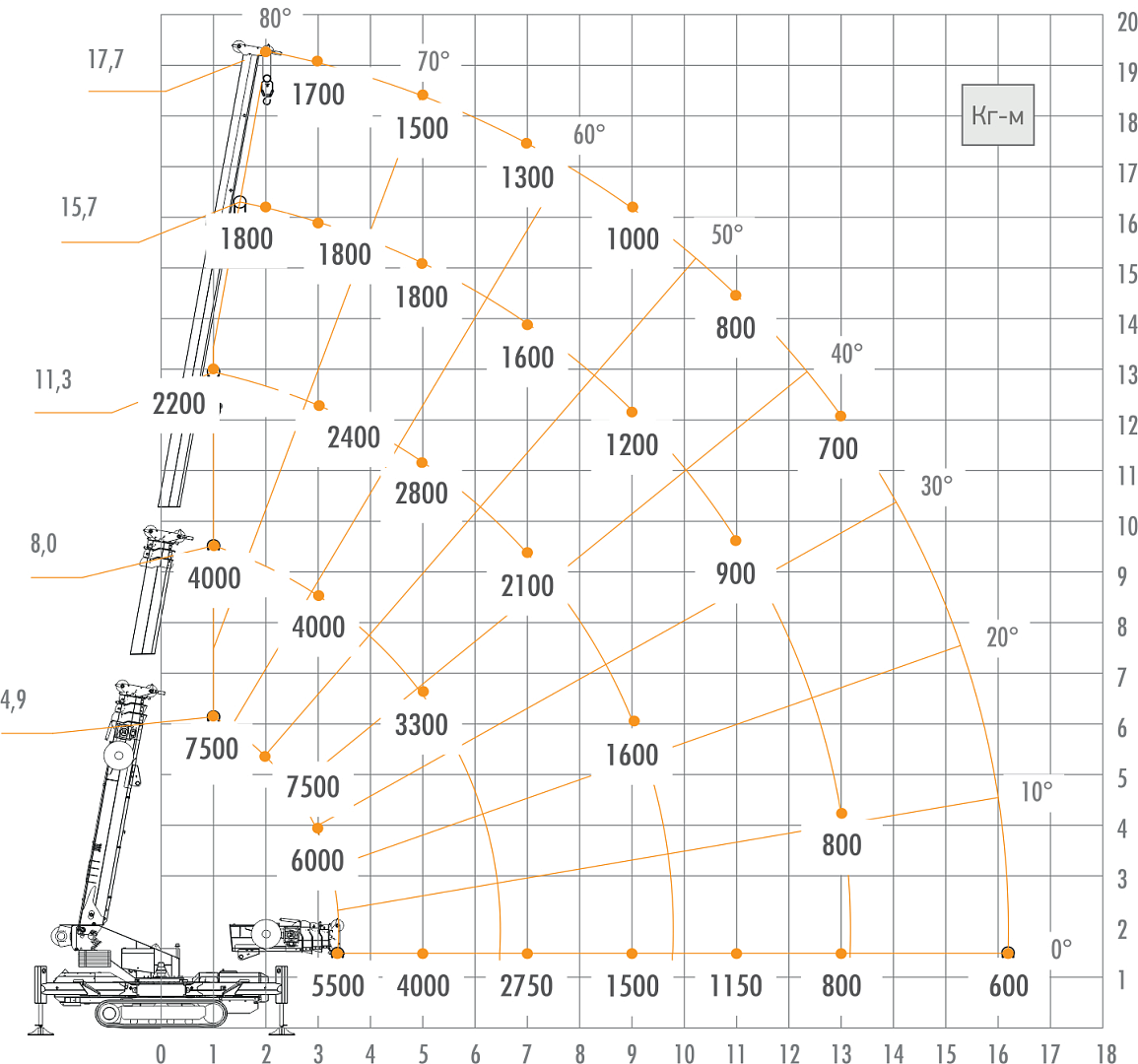

Диаграммы

Дополнительная комплектация

Max. lifting height

26.5 m

Lifting capacity

7500 kg

Engine type

diesel/network 380 V

Horizontal reach

16 m

Size

5727 х 1450 х 2038 mm

Weight

9000 kg

Max. the load on the outriggers

6800 kg

Drive

DVS

Engine

ISUZU 3CB1/ 26.9 kW / 36 ps

The length of the hoist rope

125 m

Fuel tank capacity

20 l

Area stabilization

4600 х 4600 mm

The pressure of the tracks on the ground

0.72 kg/cm

Rotation

360В°

Диаметр грузового каната

10 мм

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 125 м х 1250 кг, при двукратной запасовке — 62.5 м х 2500 кг, при трёхкратной запасовке — 41.6 м х 3750 кг, при четырехкратной запасовке — 31,2 м х 5000 кг, при пятикратной запасовке — 25 м х 6250 кг, при шестикратной запасовке — 20.8 м х 7500 кг

Basic configuration

Diesel engine ISUZU 3CB1

Variable displacement pump

Stabilization system and LMI (load moment indicator, rollover prevention, outrigger separation control)

Continuous rotation

Radio remote control

Winter package

Double winch speed

Pick & Carry function shipping up to 2 tons

Tower lamps green / yellow / red

Additional complete set

Three-phase 400V-380V-8kV power supply drive module for diesel engine

Hydraulic GP 1500 kg

Trekhshkivny hook block GP 8 tons under a rope of 10 mm

Hydraulic drive with output to the main boom

Supports under the outriggers

Mechanical geese GP 1500 kg

Tasks

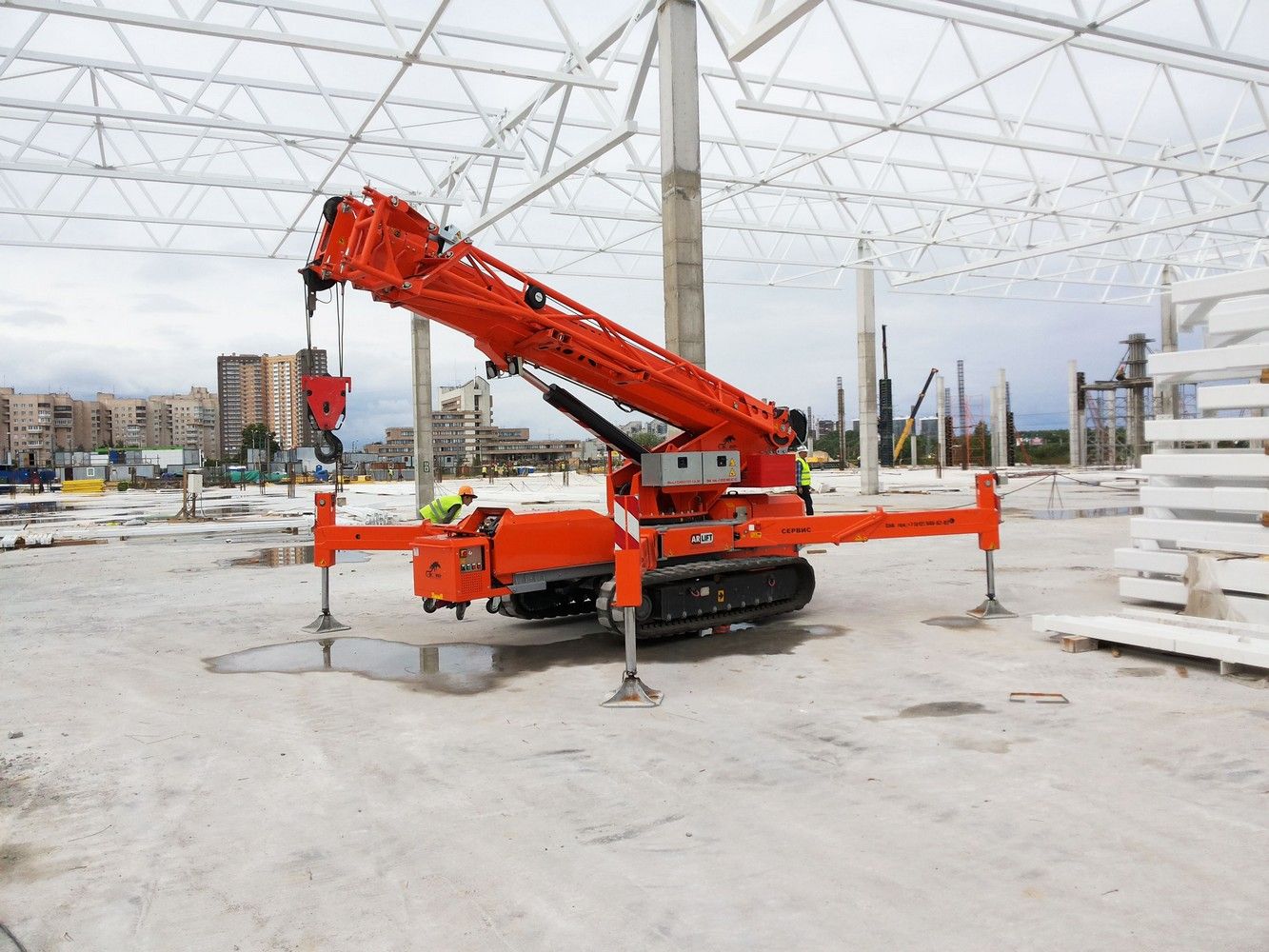

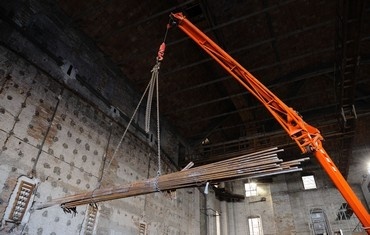

STEEL ERECTION

This kind of works is rather often executed by mini cranes as in the case of glass and equipment installation. Mini cranes carry out steel erection in course of commercial centers construction, parking areas and even objects of transport infrastructure.

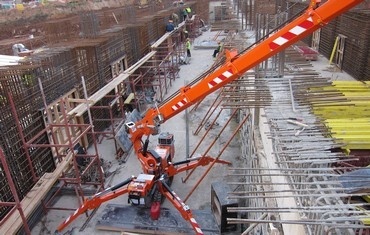

FRAMEWORK CONSTRUCTION

To use motorized or tower crane for performance of framework construction is often not efficient at all. One sheet of framework weights about 200 kg and by its power and height of load lifting mini cranes JEKKO absolutely equal with other type craines.

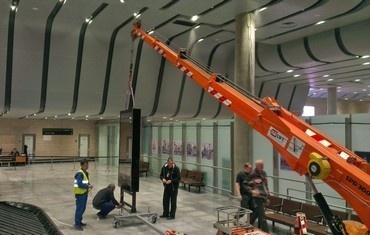

EQUIPMENT INSTALLATION

Mini crane JEKKO SPX1040 is often used for installation of equipment and advertising structures, carried out inside premises. To perform this kind of works, mini crane robot is, as a rule, non-replaceable.

Functional benefits

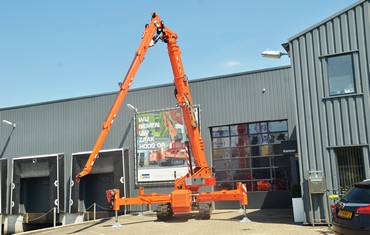

COMPACT SIZE

Provides excellent passability through narrow openings Easily lift and displace loads in extremely confined conditions.

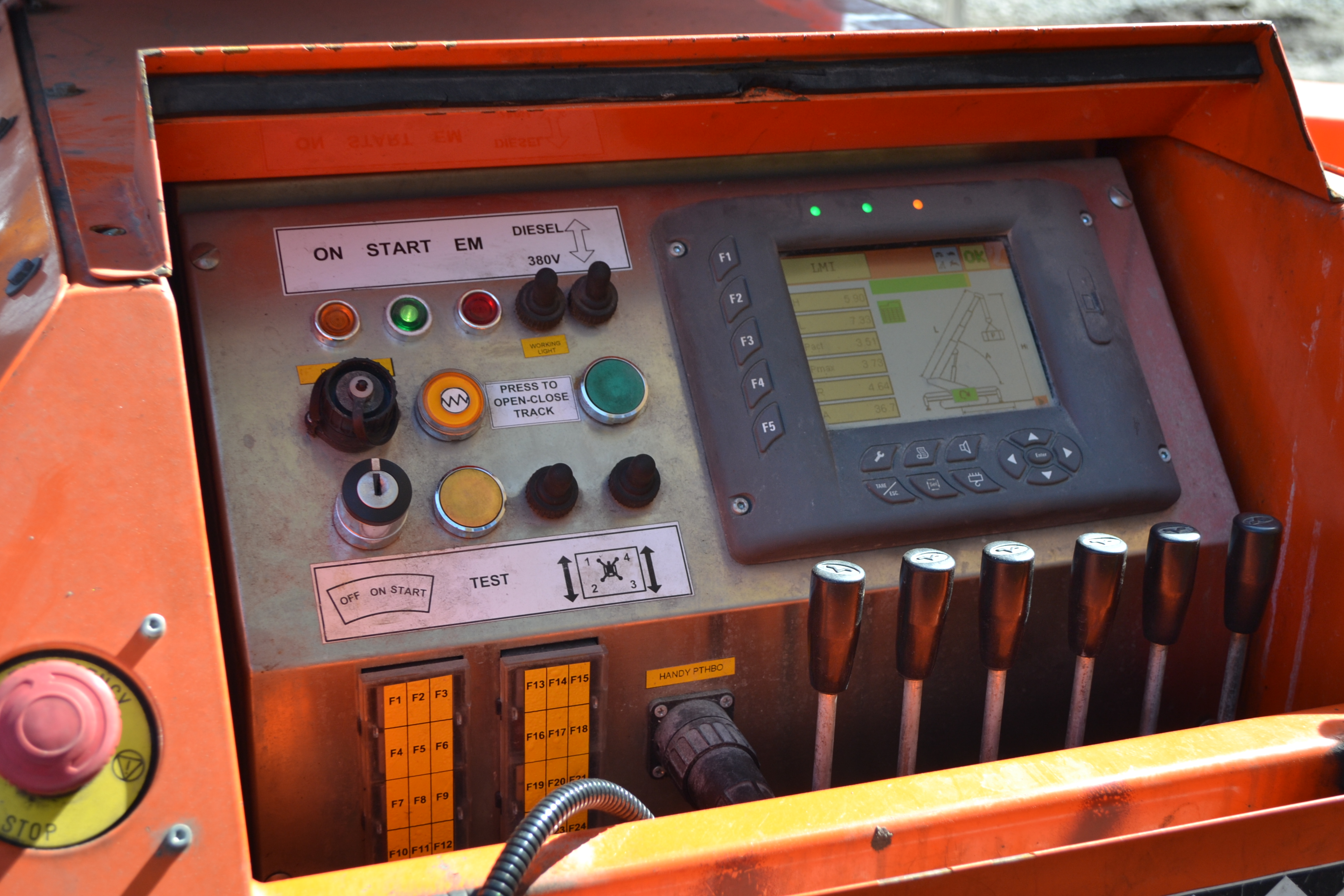

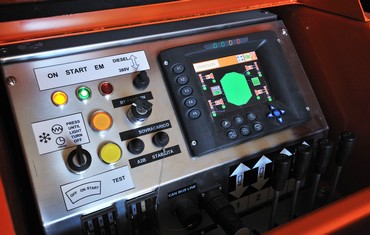

EMBEDDED INTELLIGENCE SYSTEM

Provides clearly evident demonstration of how the crane is working at the object. At the screen at control panel we may see boom outreach and weight of lifting at the current moment load.

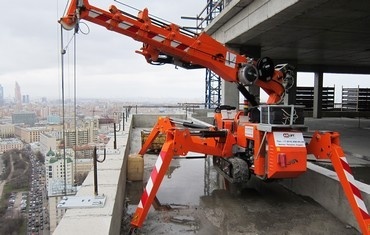

LIGHT WEIGHT OF EQUIPMENT

Even the largest cranes in the JEKKO range can work on the roof, slabs and easily maneuver through the construction site.

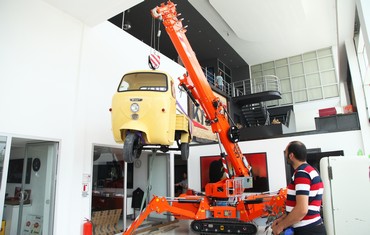

OPERATION USING MAINS SUPPLY

Possibility to work from combustion engine and from mains supply 380 V as well permits to use JEKKO outdoors and in closed premises as well without special ventilation.

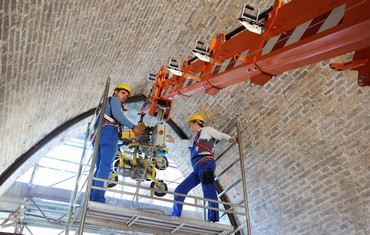

INSTALLATION OF SUPPLIMENTARY EQUPMENT

To perform a whole number of tasks, mini crane may be equipped with vacuum manipulator, double section jib.

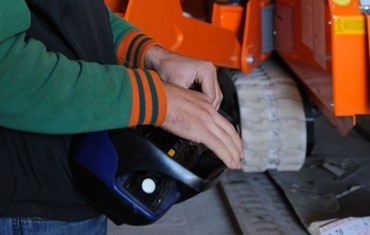

REMOTE CONTROL PANEL

Provides operator's mobility and allows to control load movements with millimeter precision.
