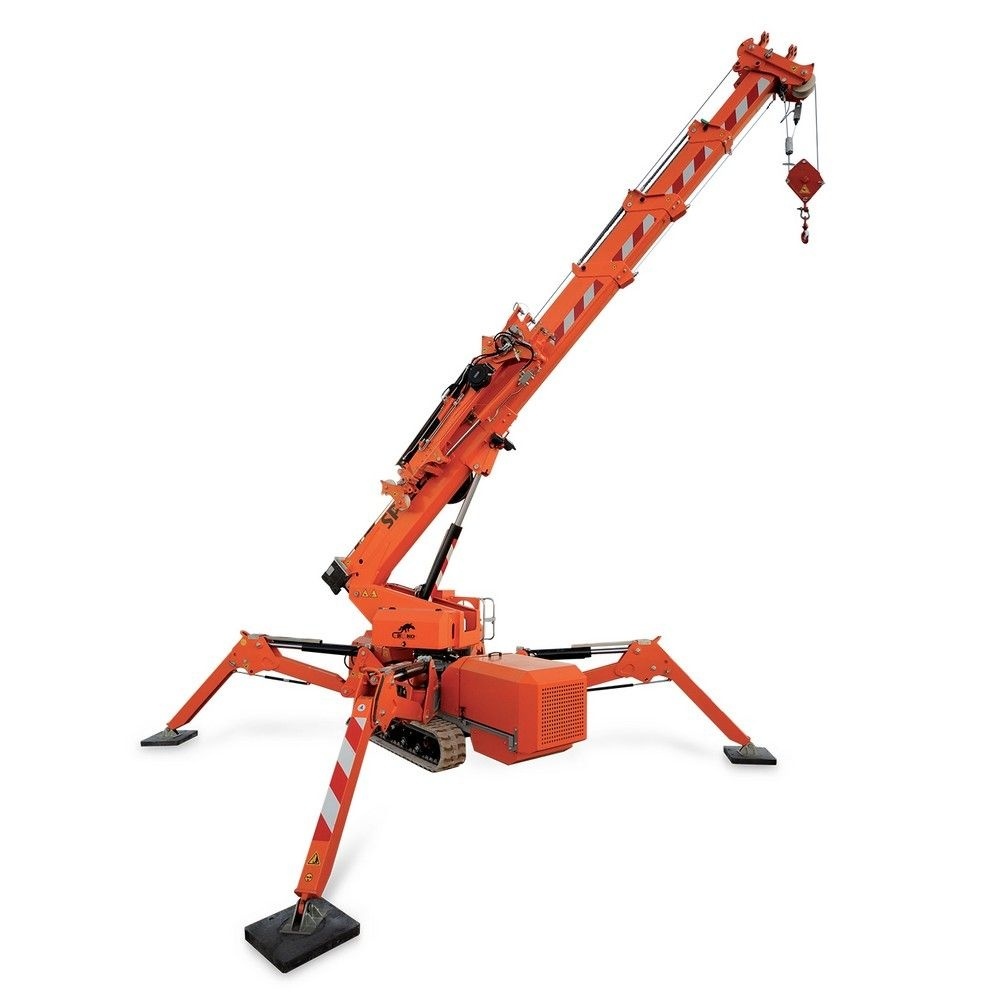

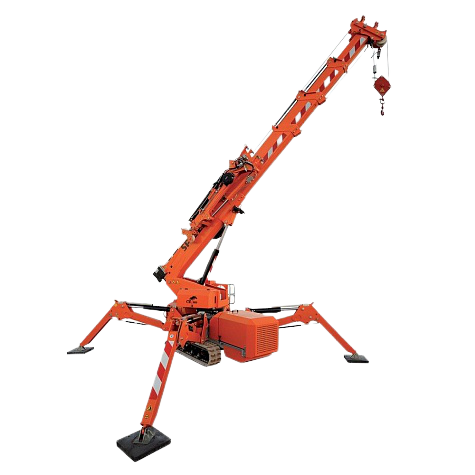

Mini crane SPX527CDH

Mini crane SPX527CDH - multipurpose and consequently most demanded model of Jekko cranes in Russia. This mini crane can cope with anything. Maneuverability and strength

2700 kg

4150 x 1100 x 1960 mm

11.2 m

17 m

Rent

Compare

Rent from 1st day

Free pickup from the warehouse

Delivery from 1 day on the territory of the Russian Federation and Kazakhstan (delivery by Arlift or other transport company)

For more details about delivery and payment

Технические параметры

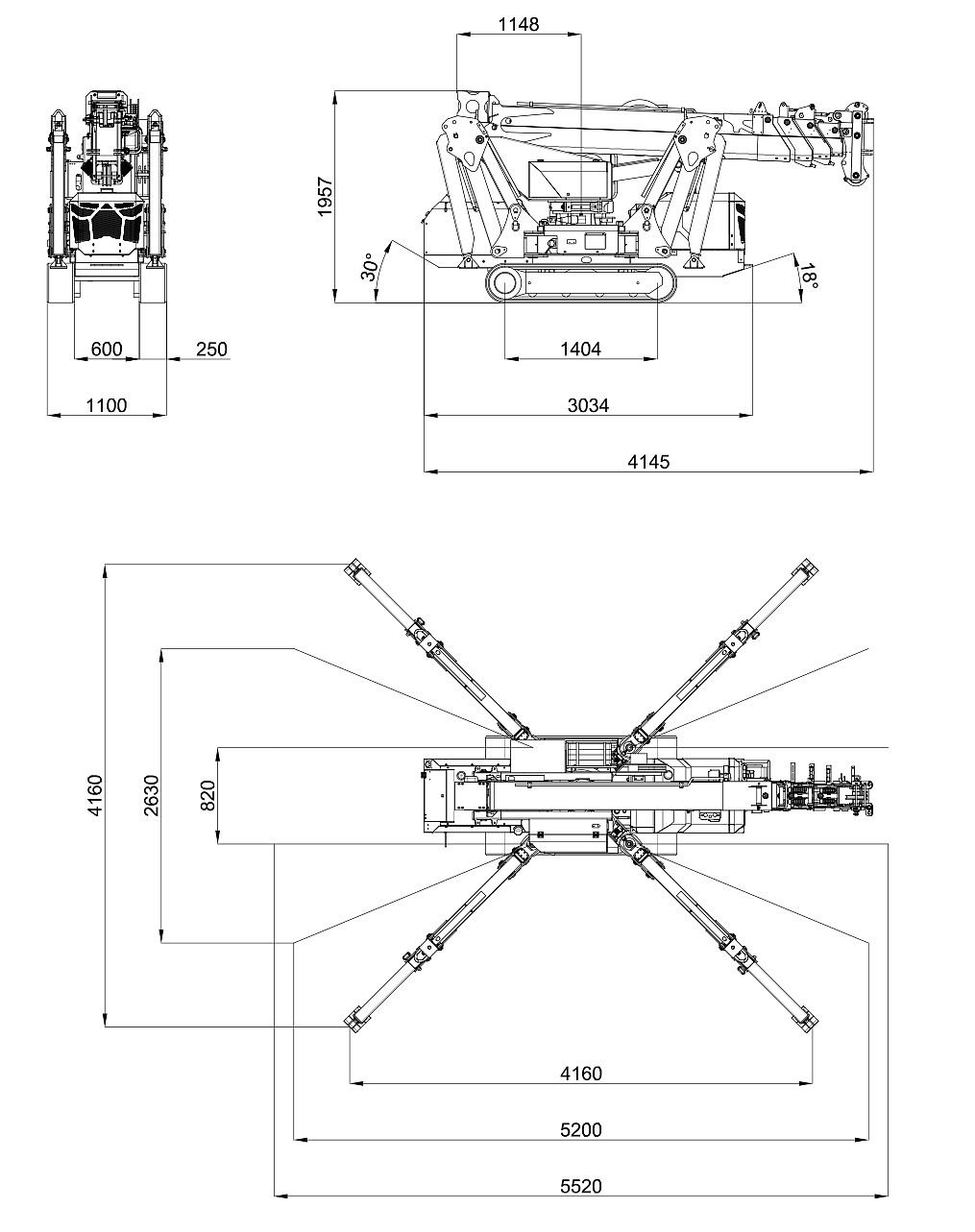

Габариты

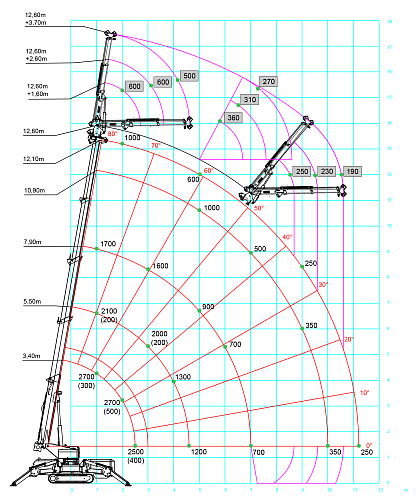

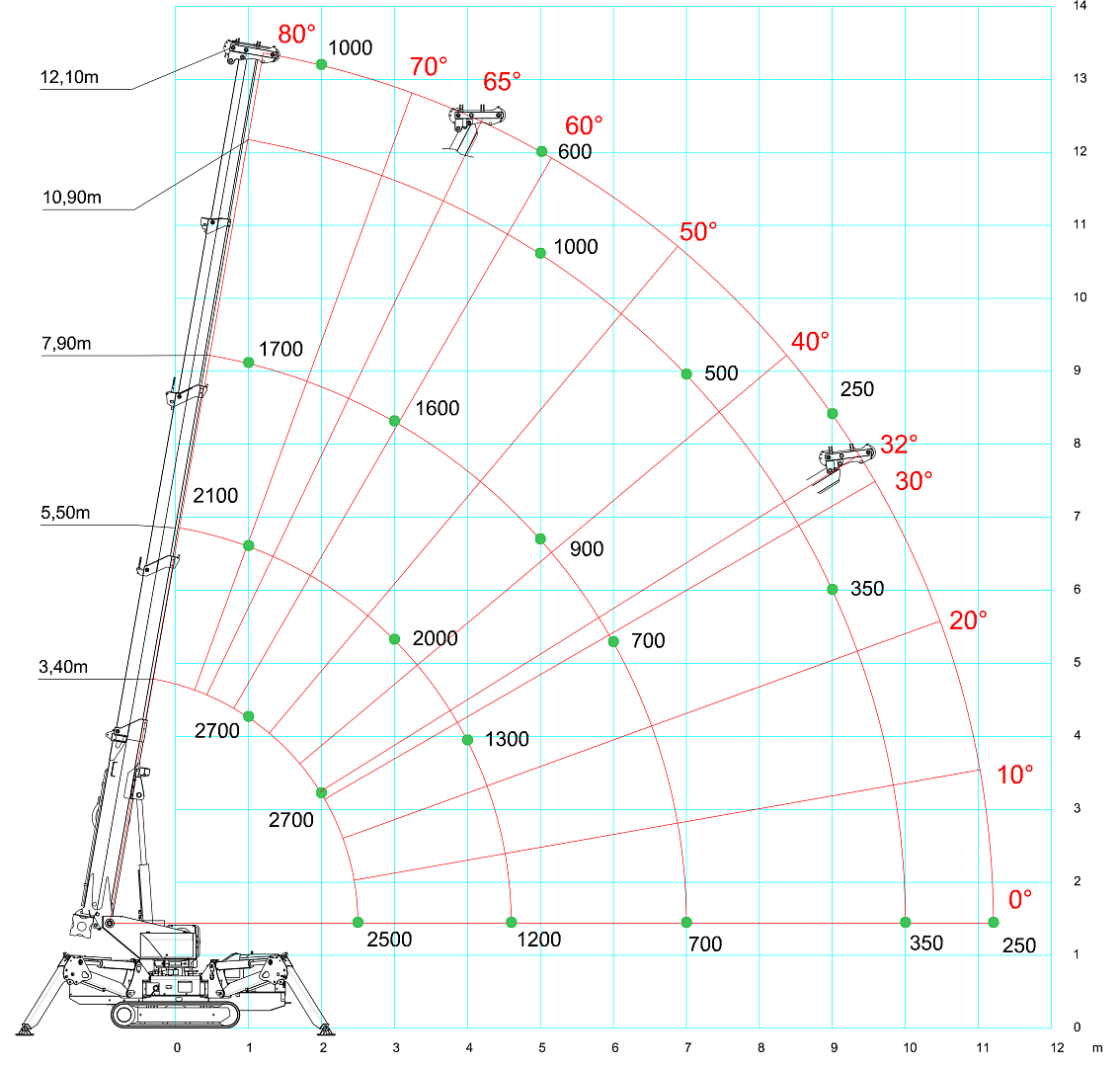

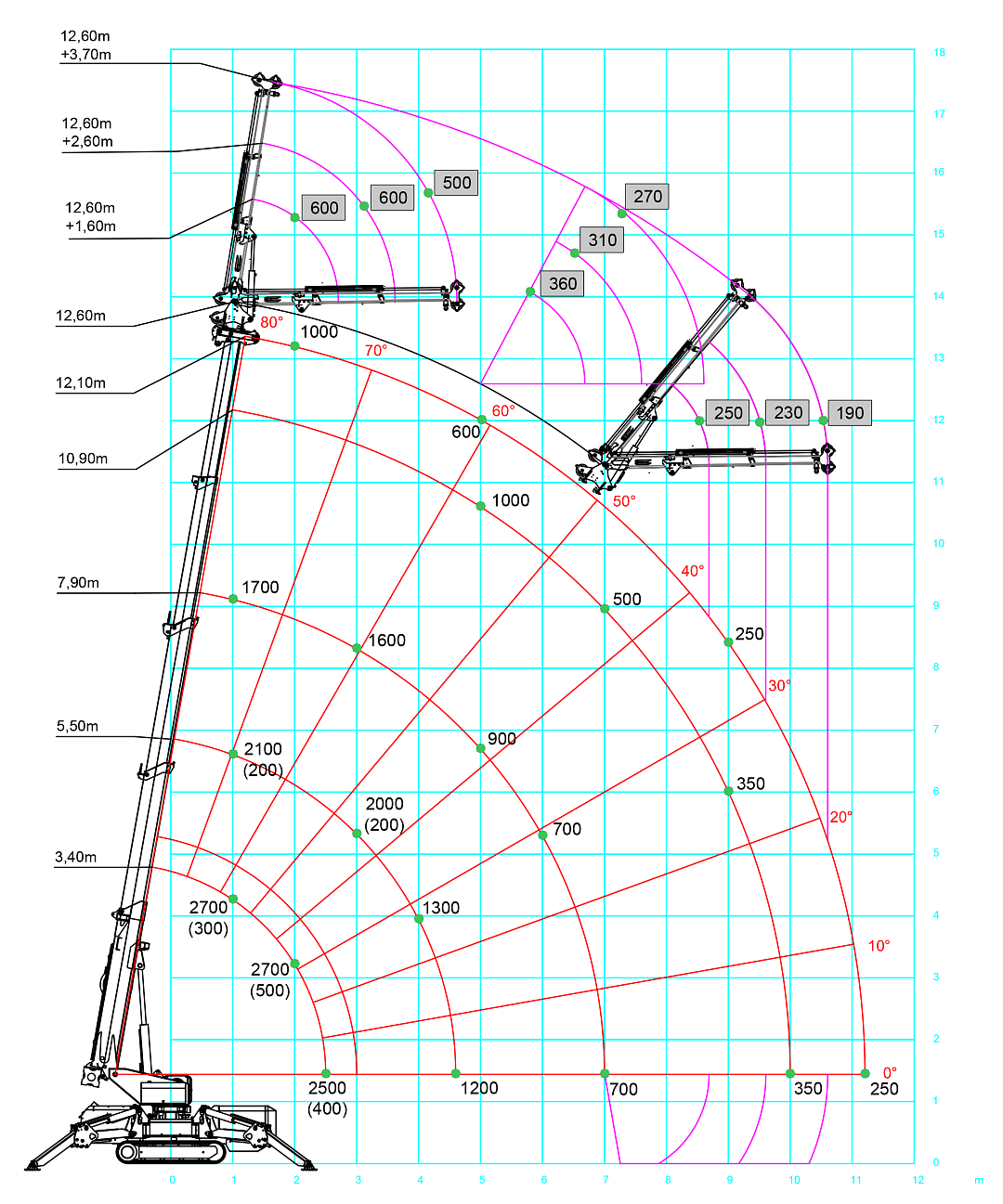

Диаграммы

Дополнительная комплектация

Lifting capacity

2700 kg

Max. lifting height

17 m

Area stabilization

4160 x 4160 mm

Engine type

diesel/network (380 V)

Rotation

360В°

Size

4150 x 1100 x 1960 mm

Weight

3600 kg (without additional equipment)

Horizontal reach

11.2 m

Drive

DVS

Engine

ISUZU 3CB1

The length of the hoist rope

60 m

Fuel tank capacity

25 l

The pressure of the tracks on the ground

0.53 kg/cm

Max. the load on the outriggers

2700 kg

Диаметр грузового каната

8 мм

Глубина опускания крюка (ниже уровня земли)

при однократной запасовке — 60 м х 900 кг, при двукратной запасовке — 30 м х 1800 кг, при трёхкратной запасовке — 20 метров х 2700 кг

Basic configuration

Diesel engine ISUZU 3CB1

Stabilization system and LMI (display load moment, stall prevention, control of separation of the outriggers)

Continuous rotation

Radio remote control

Supports under the outriggers

Pick & Carry function shipping up to 500 kg

Tower lamps green / yellow / red

Winter package

Additional complete set

Three-phase 400 V-380 V-4 kV power supply drive module for diesel engine

Single hook block GP 3 tons for 8 mm cable

Hydraulic drive with output to the main boom

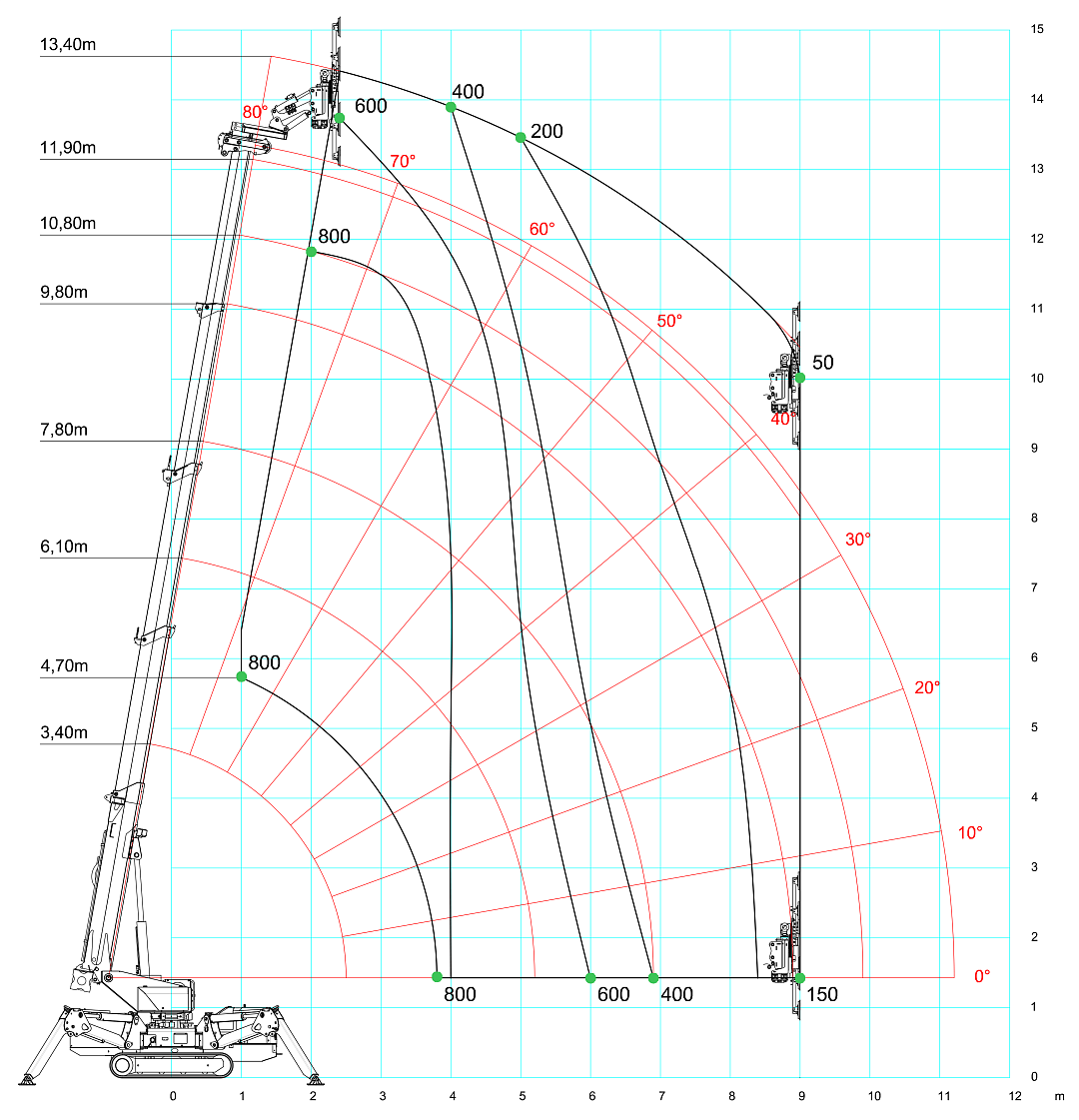

Hydraulic geese GP 800 kg

Mechanical goose GP 800 kg

Tasks

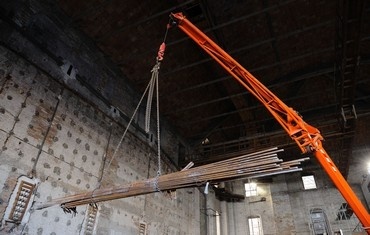

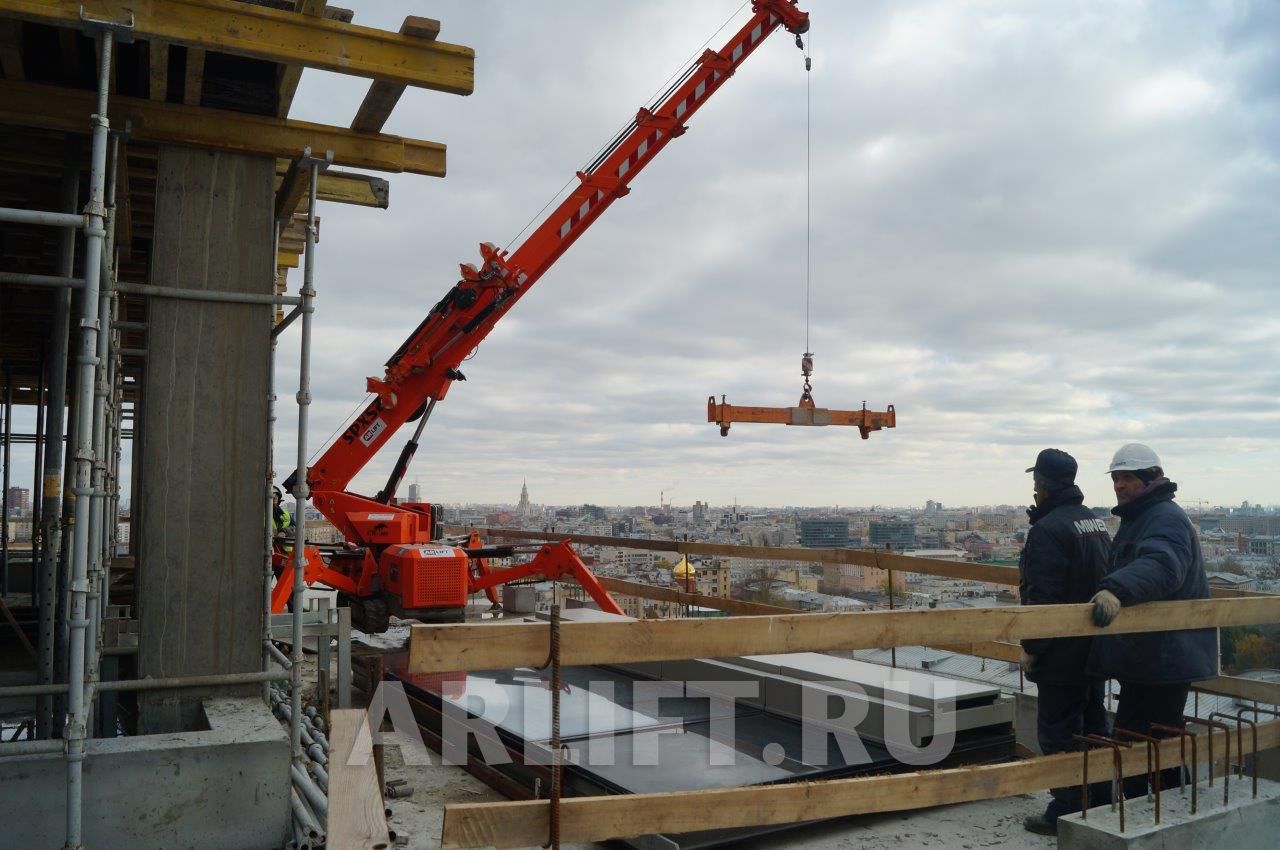

STEEL ERECTION

This kind of works is rather often executed by mini cranes as in the case of glass and equipment installation. Mini cranes carry out steel erection in course of commercial centers construction, parking areas and even objects of transport infrastructure.

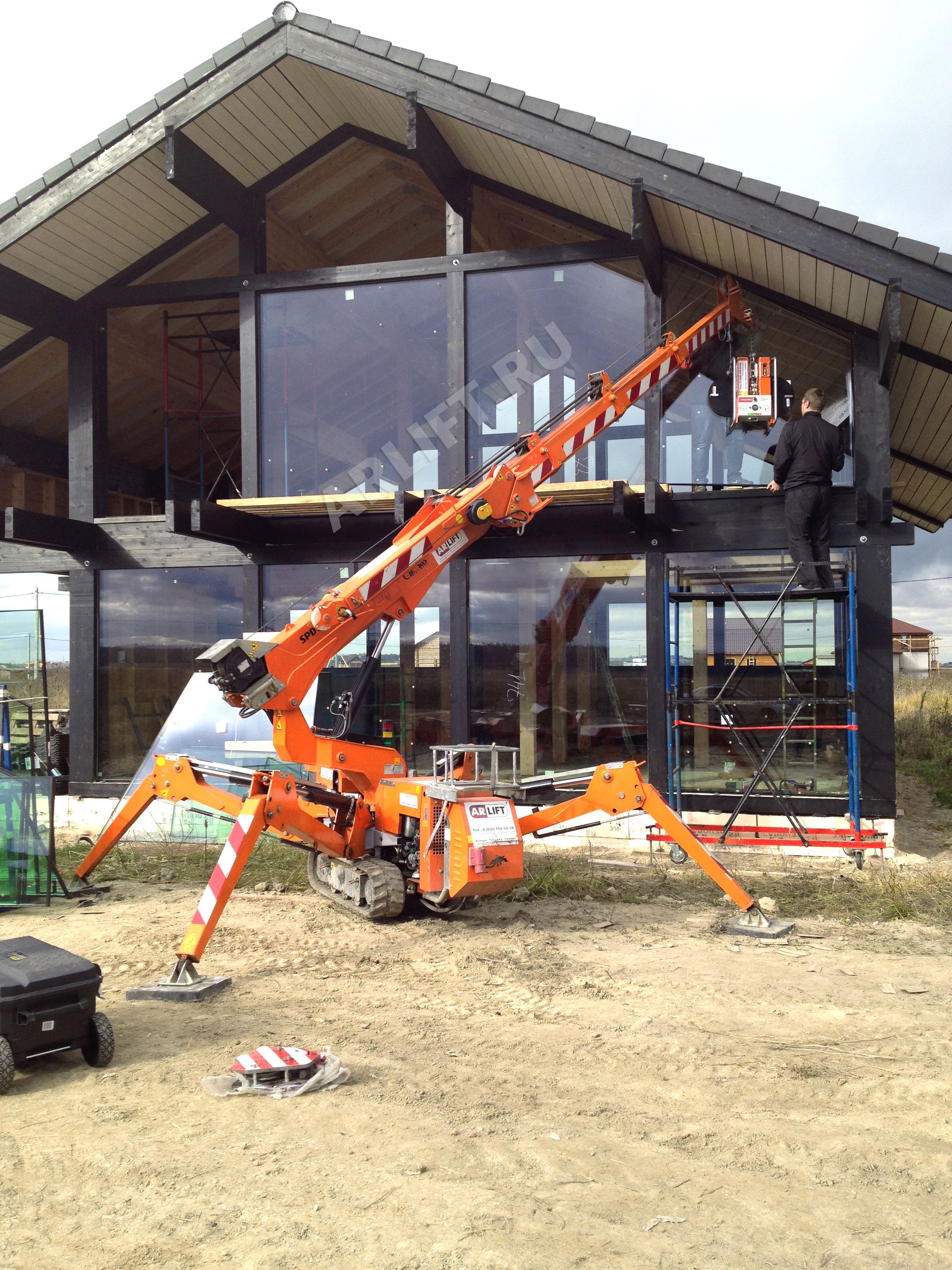

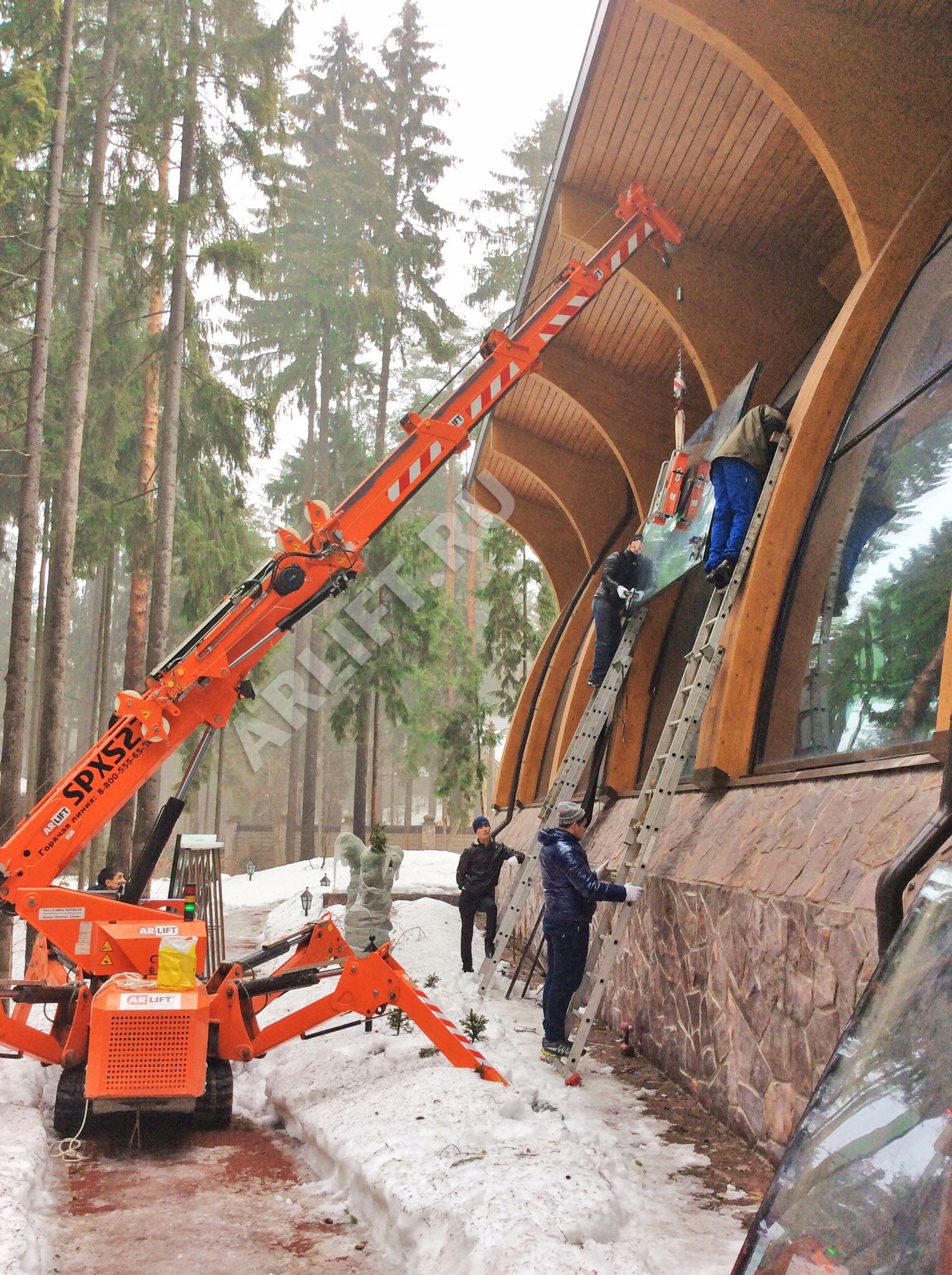

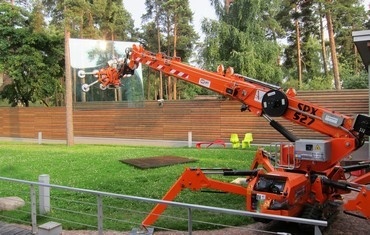

Glazing

Possibility to equip with vacuum manipulator permits mini crane to perform its operations on glazing balconies, shop windows, facades of buildings. Meantime it provides precision and smoothness of operation with glass: crane movement changes proportionally to the efforts, applied to the joystick.

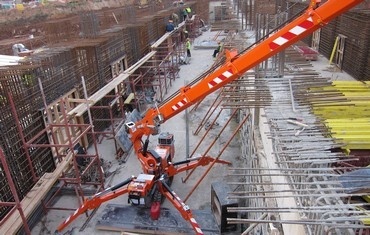

FRAMEWORK CONSTRUCTION

To use motorized or tower crane for performance of framework construction is often not efficient at all. One sheet of framework weights about 200 kg and by its power and height of load lifting mini cranes JEKKO absolutely equal with other type craines.

Functional benefits

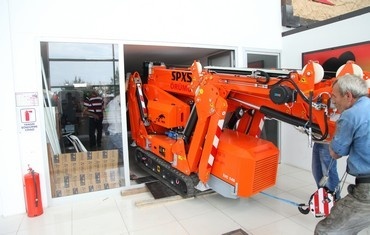

COMPACT SIZE

Provides excellent passability through narrow openings Easily lift and displace loads in extremely confined conditions.

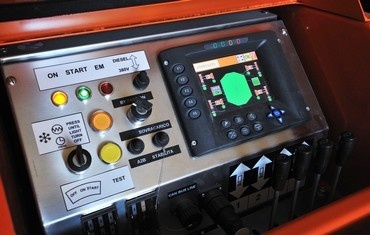

EMBEDDED INTELLIGENCE SYSTEM

Provides clearly evident demonstration of how the crane is working at the object. At the screen at control panel we may see boom outreach and weight of lifting at the current moment load.

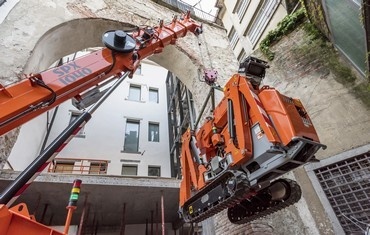

LIGHT WEIGHT OF EQUIPMENT

Mini crane SPX 527 weight constitutes only 3600 kg. It may operate on roof, slabs, underground or inside of premises.

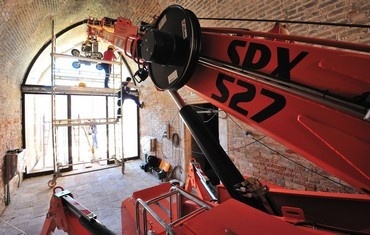

OPERATION USING MAINS SUPPLY

Possibility to work from combustion engine and from mains supply 380 V as well permits to use JEKKO outdoors and in closed premises as well without special ventilation.

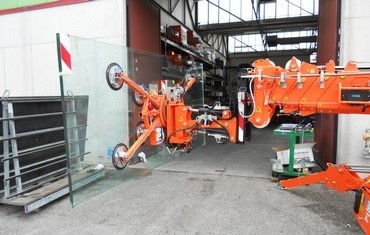

INSTALLATION OF SUPPLIMENTARY EQUPMENT

To perform a whole number of tasks, mini crane may be equipped with vacuum manipulator, double section jib.

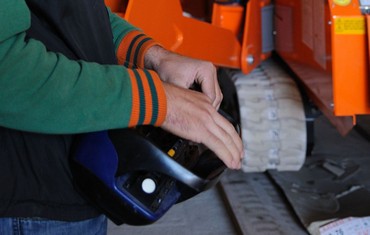

REMOTE CONTROL PANEL

Provides operator's mobility and allows to control load movements with millimeter precision.

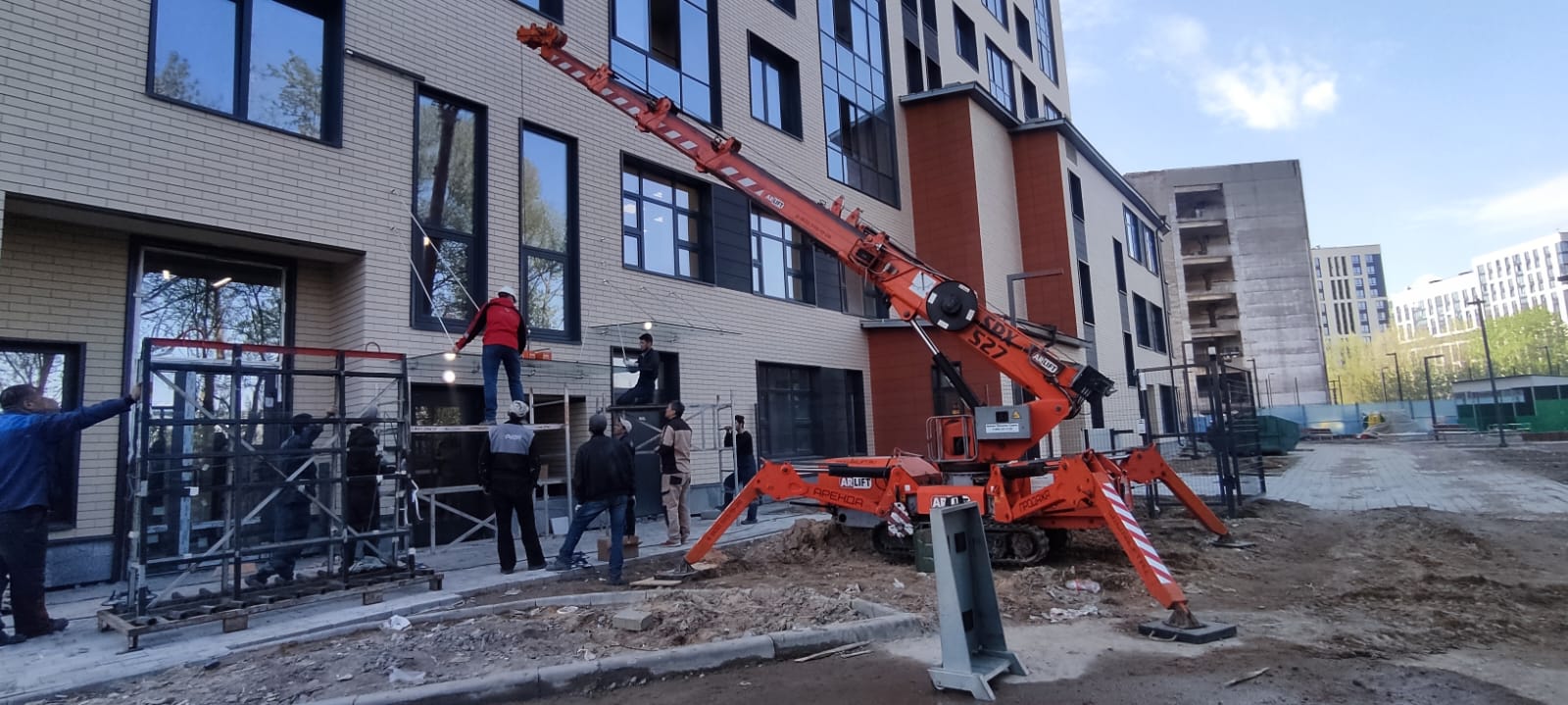

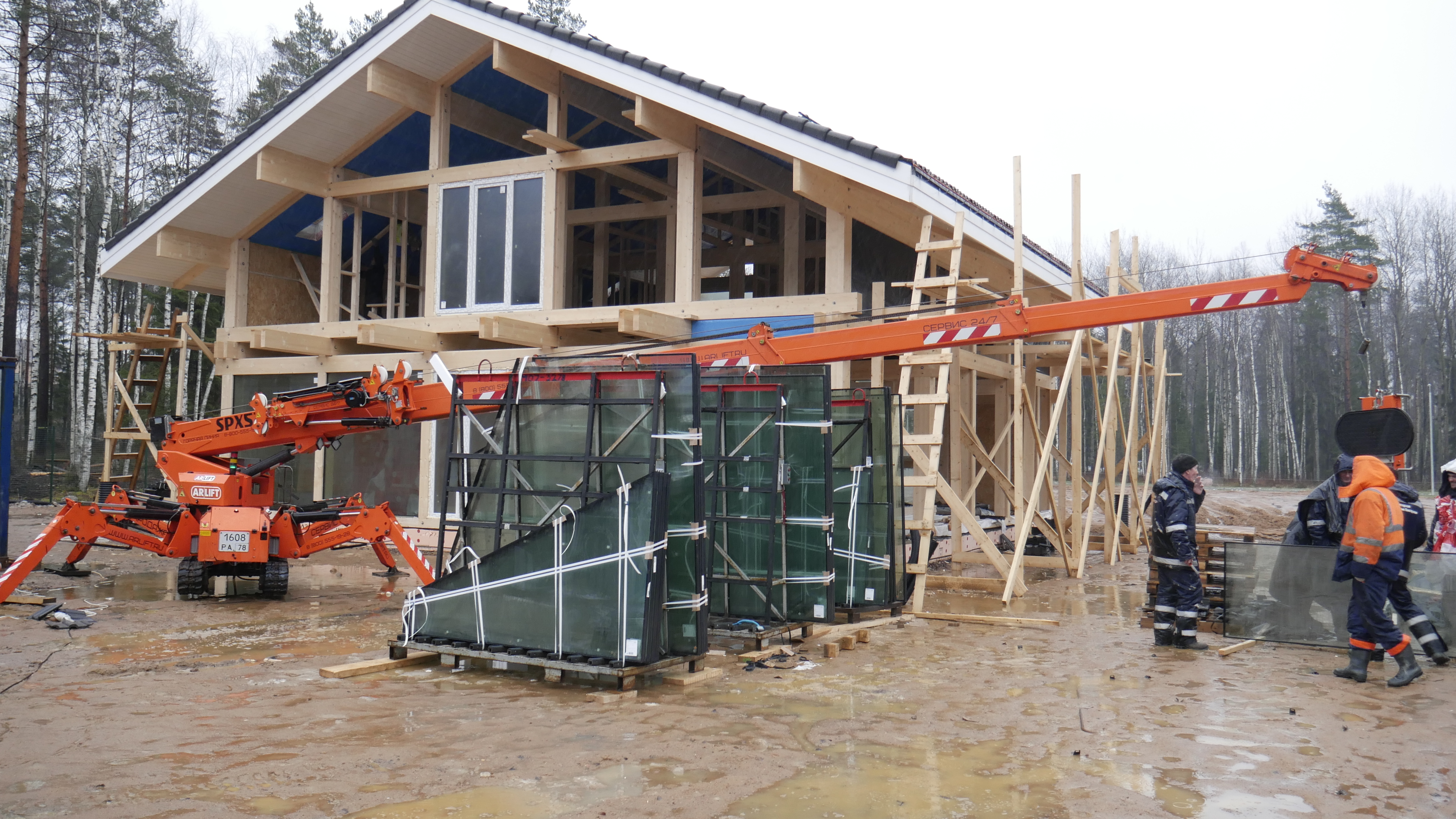

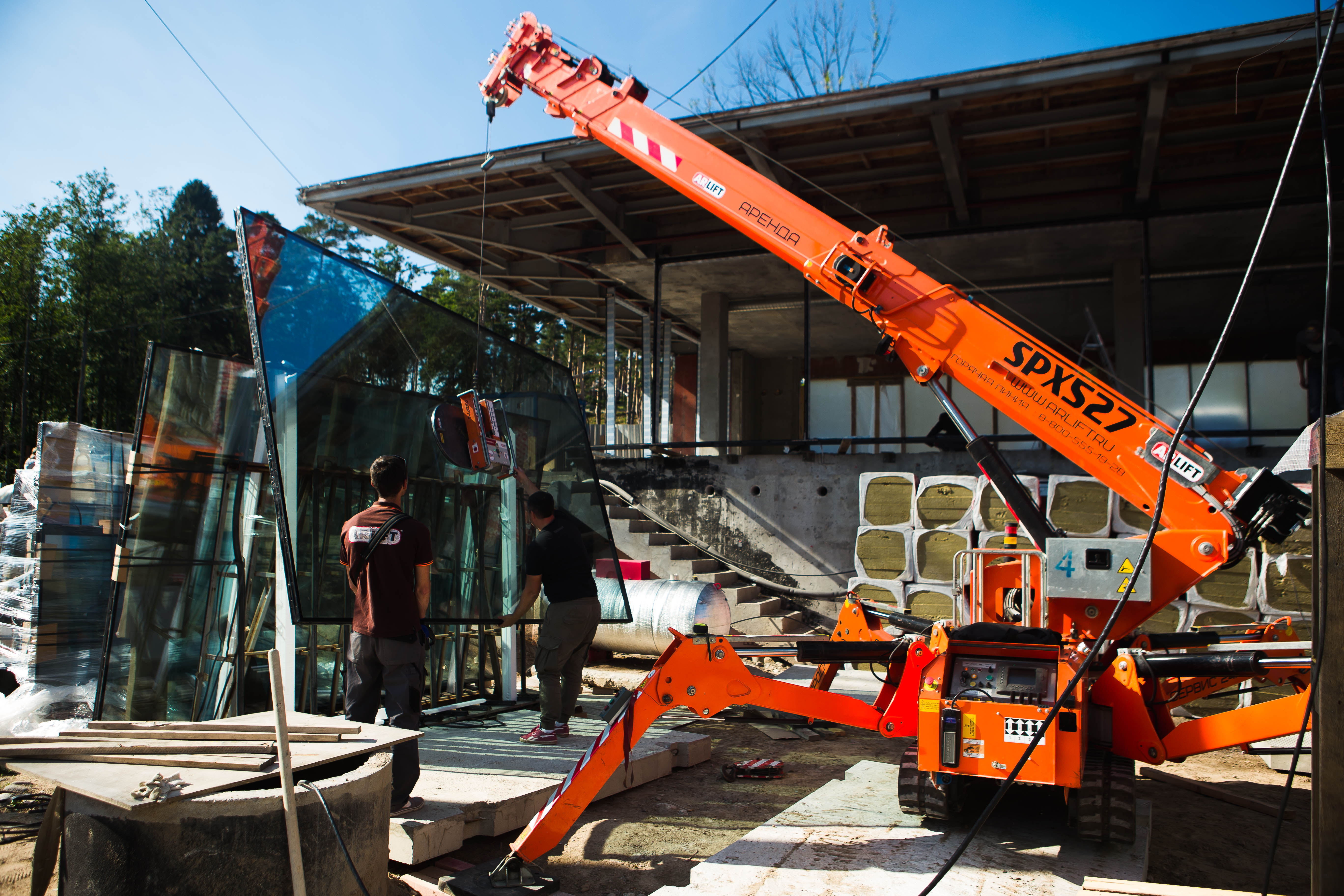

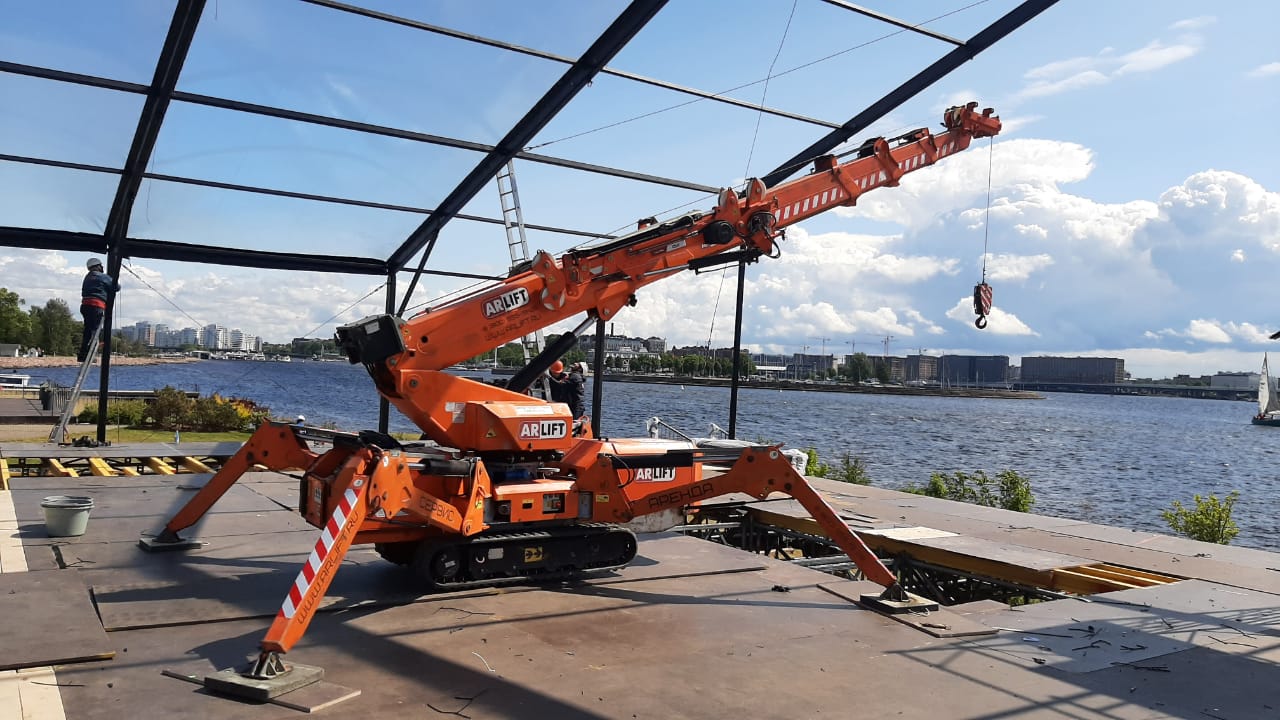

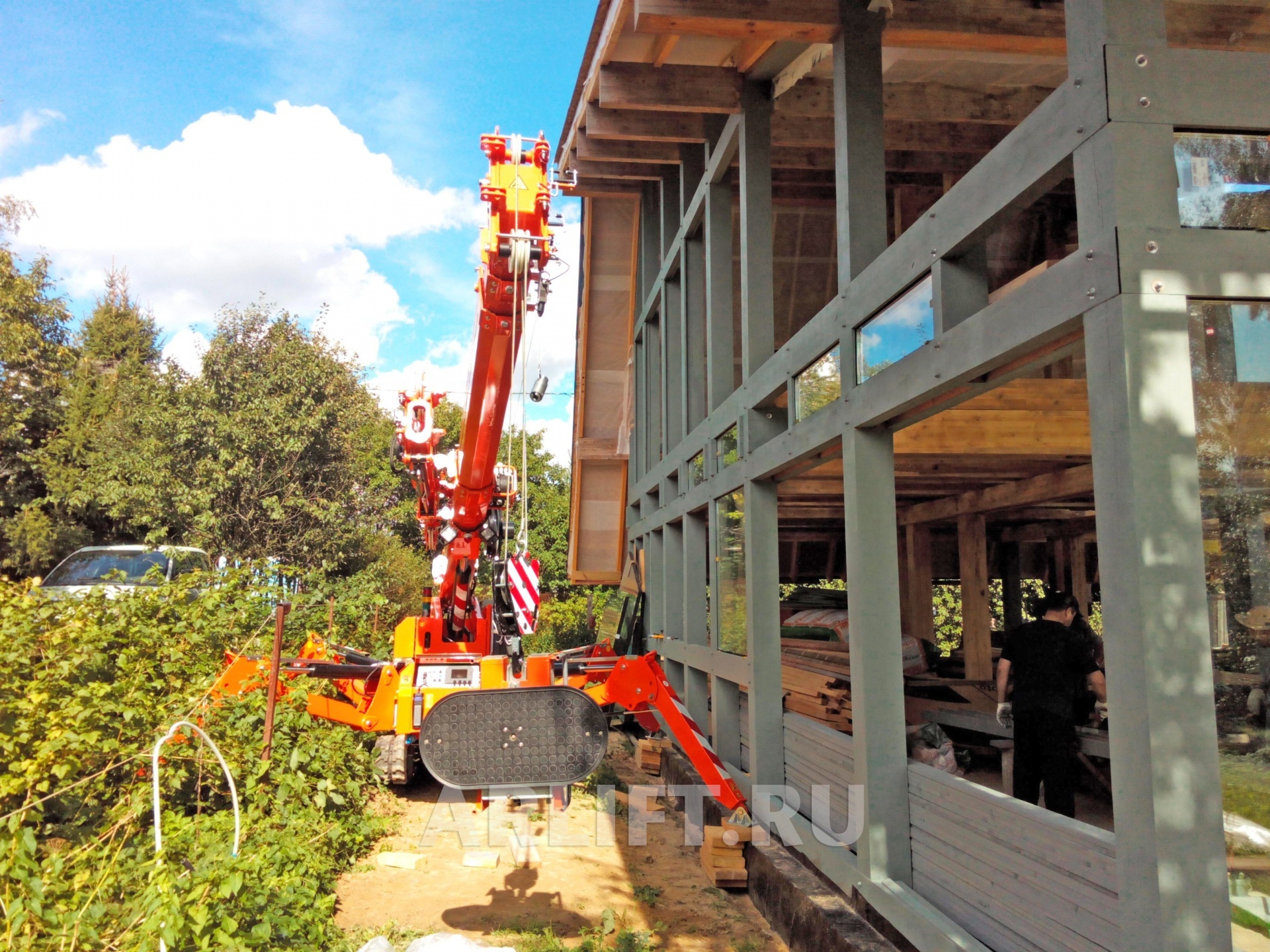

Gallery
