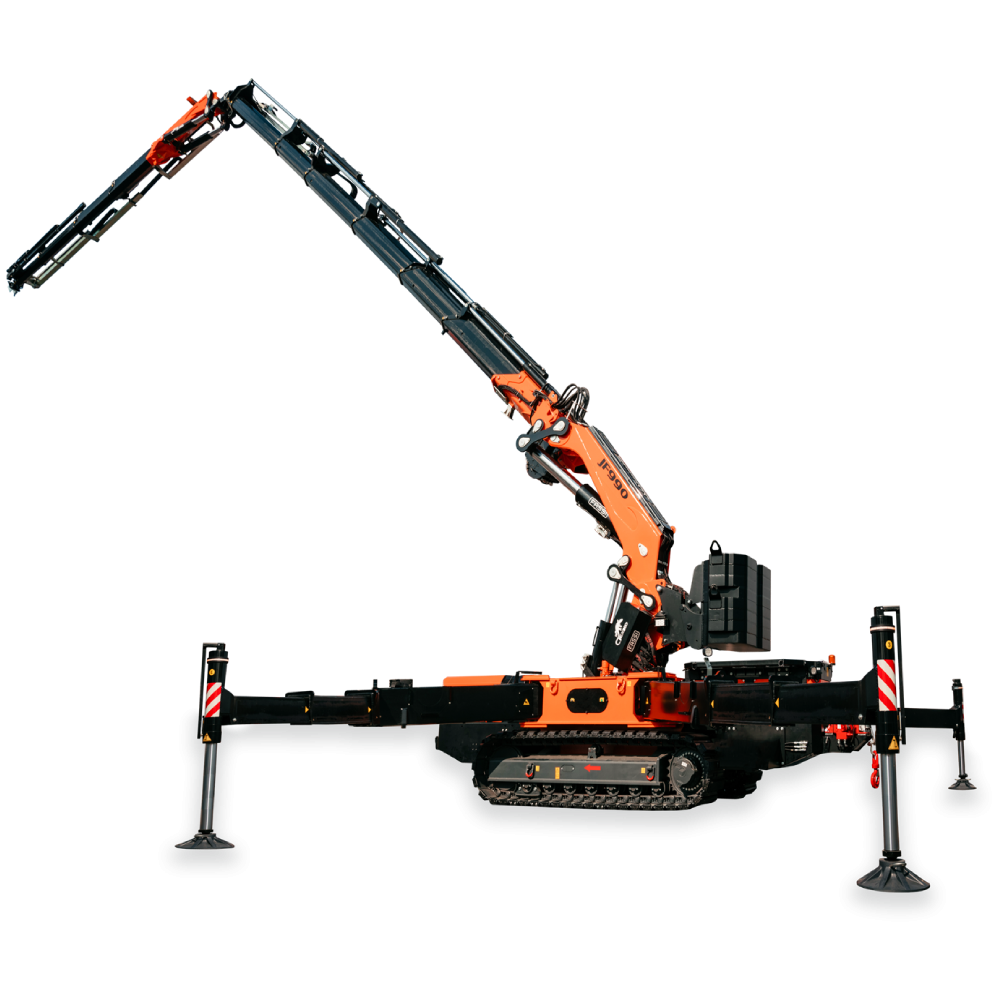

Mini crane JF990

More power, innovation and performance. Unique mini crane with a load capacity of 21.5 tons!

21500 kg

6750 х 2150 х 3450 mm

31.8 m

34.5 m

Compare

Cтоимость по запросу

Запросить кп Купить в лизинг

Расширенные гарантии

Скидки оптовым покупателям

Запчасти всегда есть в наличии

Готовый пакет документации при передаче

Хорошие финансовые условия сделки (лизинг, рассрочка)

Доставка в любую точку России и стран СНГ

Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой.

For more details about delivery and payment

Presentation. JF990.pdf

Areas of application of mini-cranes Arlift. pdf

Технические параметры

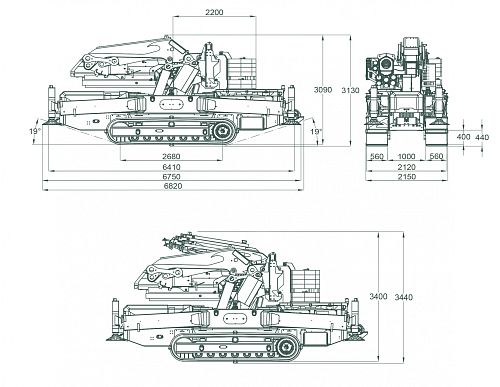

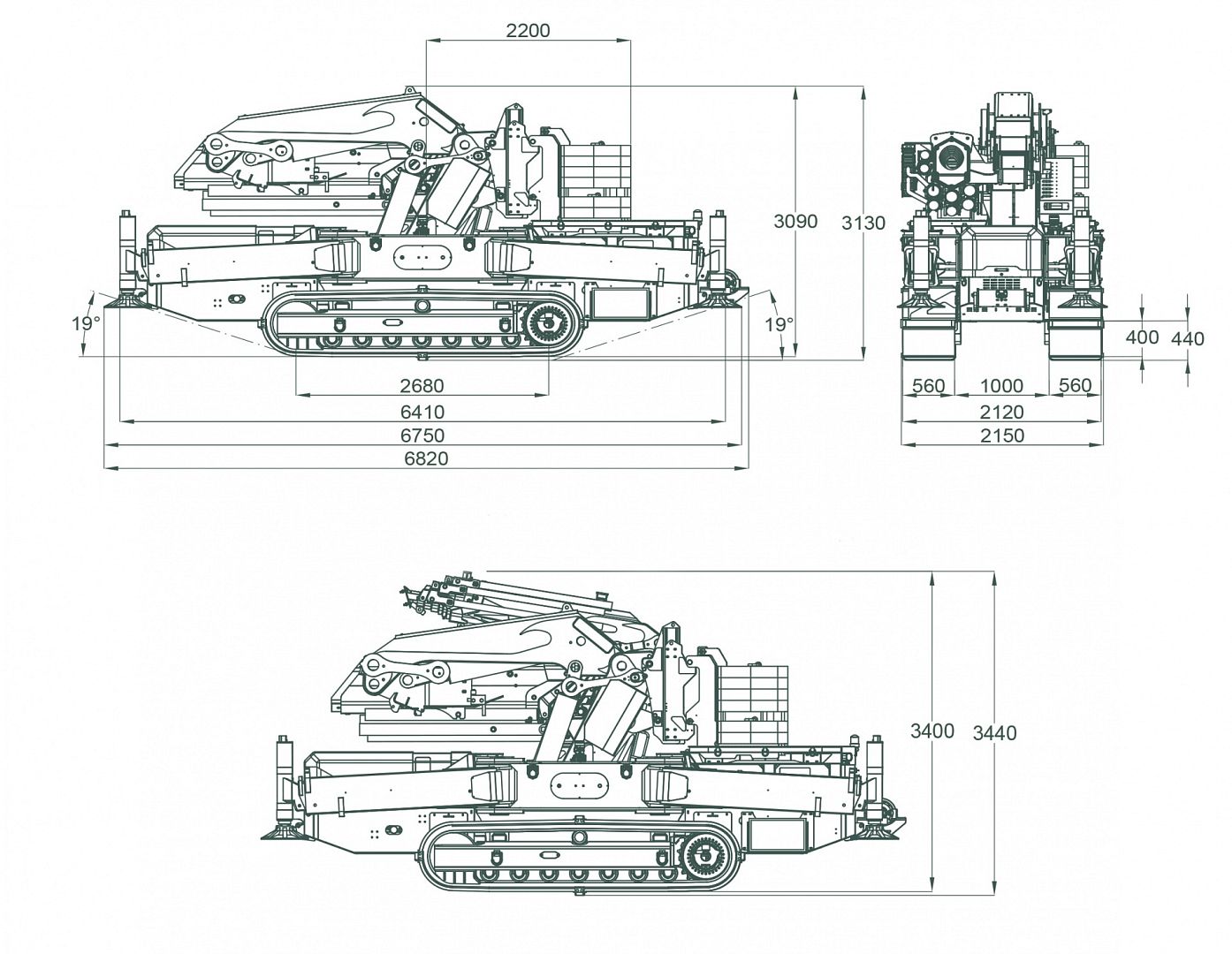

Габариты

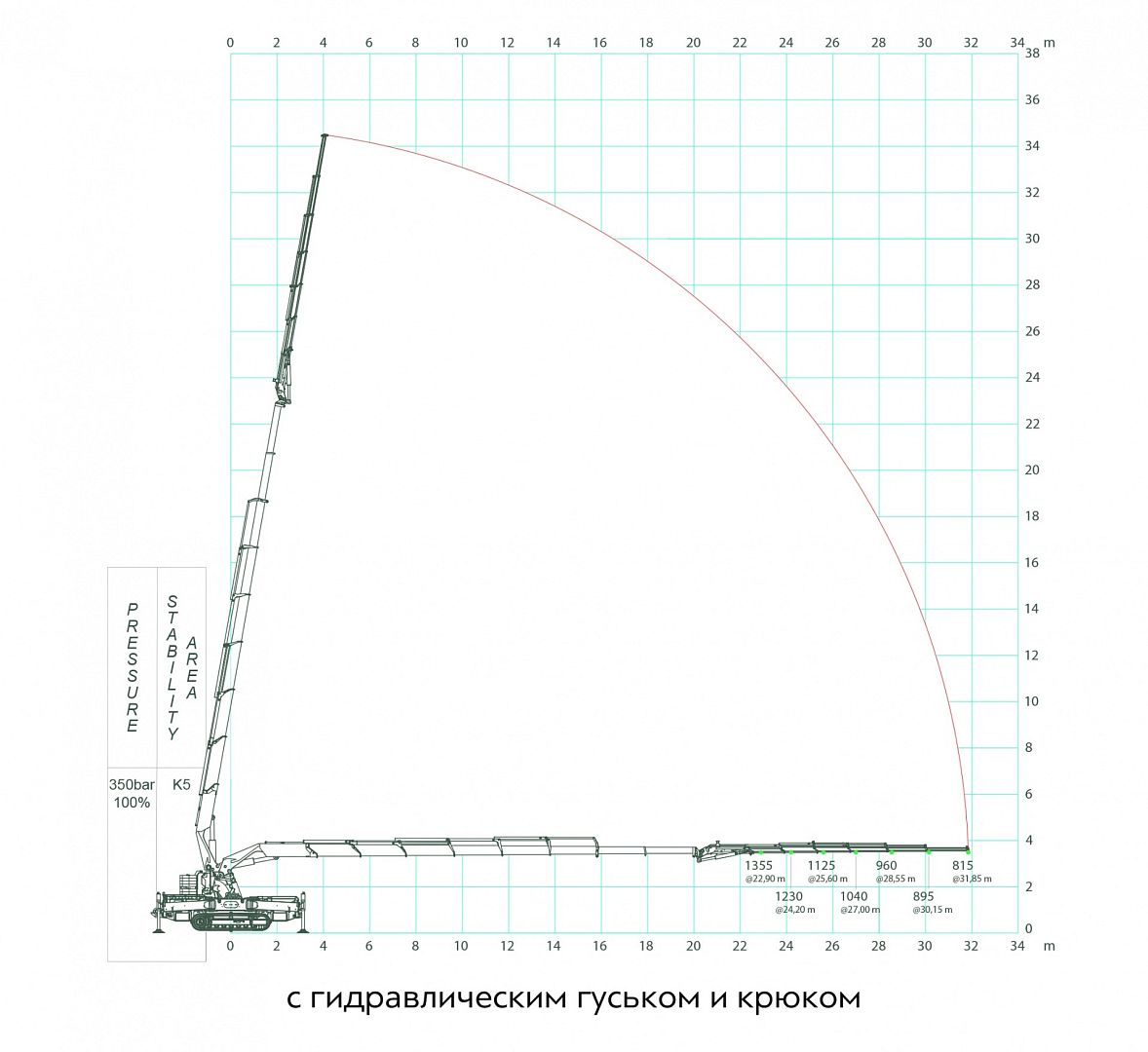

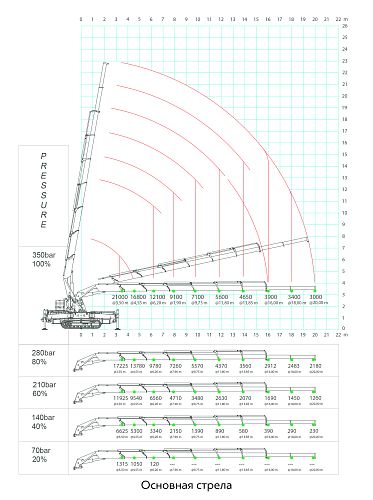

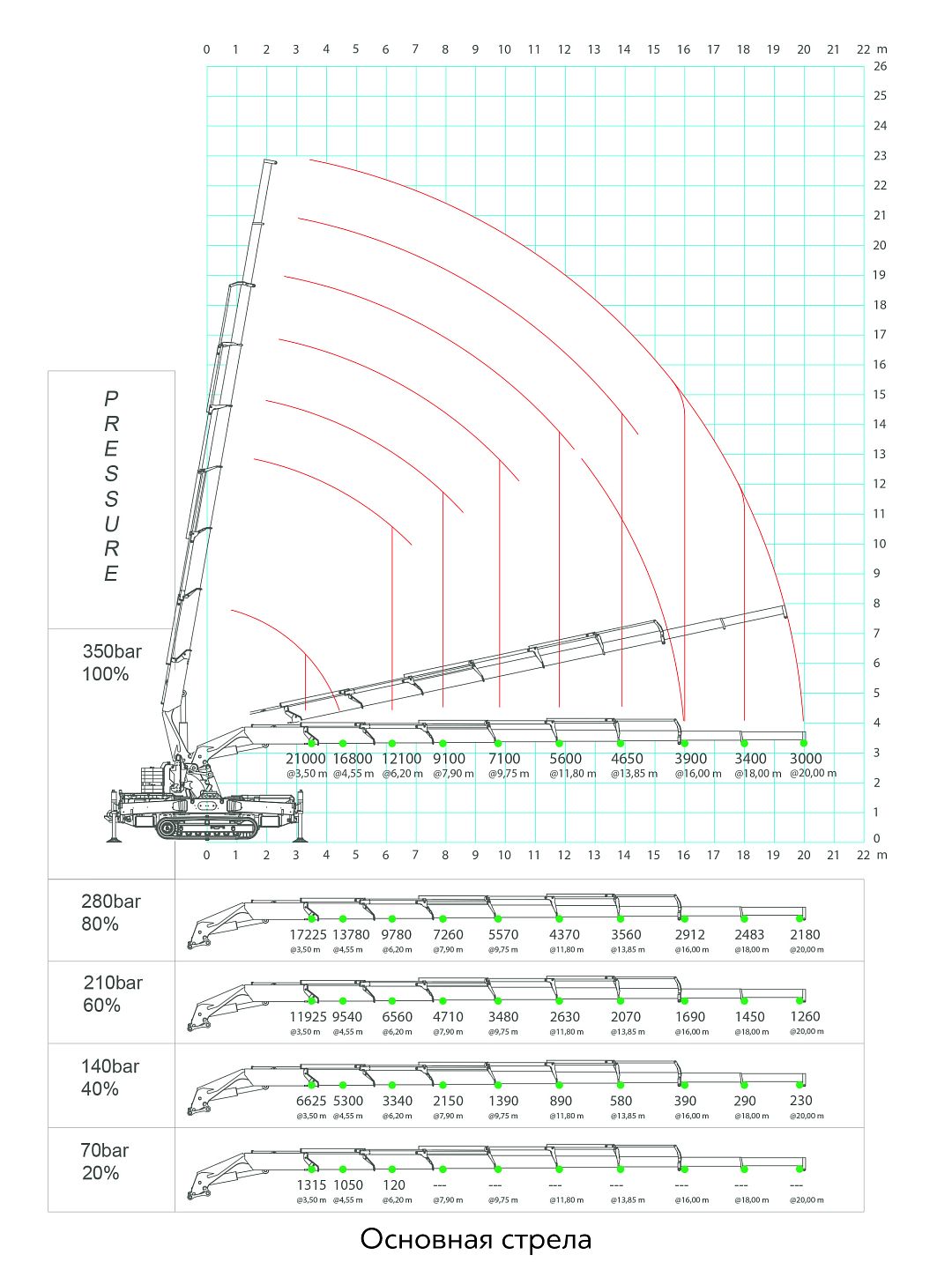

Диаграммы

Дополнительная комплектация

Guarantee

2 years

Max. lifting height

34 m

Lifting capacity

21500 kg

Engine type

diesel/network (380 V)

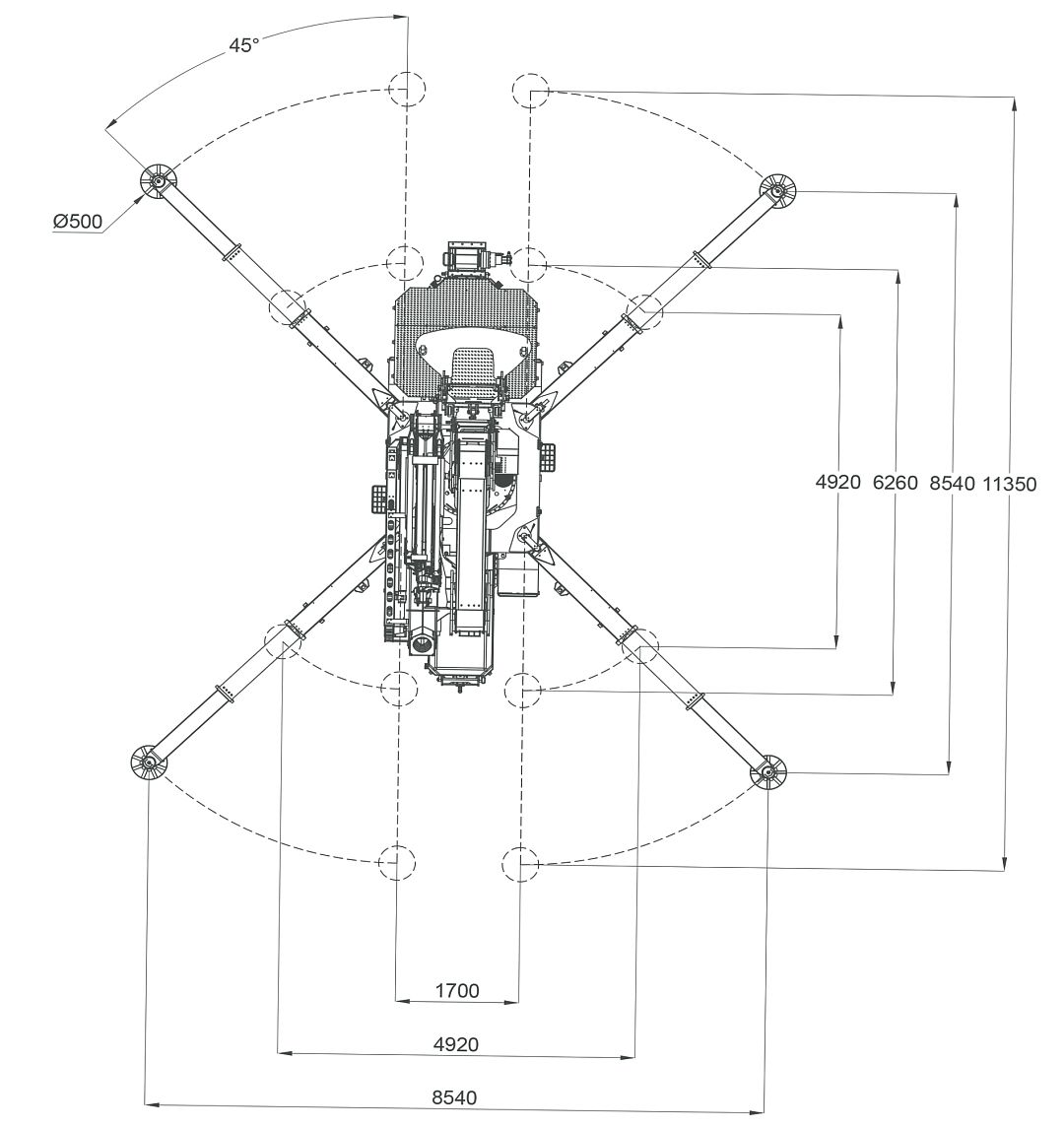

Area stabilization

8540 x 8540 mm

Size

6750 х 2150 х 3450 mm

Weight

29000 kg

Horizontal reach

31.8 m

Drive

DVS

Engine

DEUTZ TCD3. 6 L4 HT - 55.0 kW

The length of the hoist rope

60 m

Fuel tank capacity

75 l

Basic configuration

DEUTZ TCD 3.6 L4 HT diesel engine-55.0 kW

8 hydraulic telescopic sections of the main boom

Remote control

Steel track

Automatic and configurable geometric stability control with five stability levels

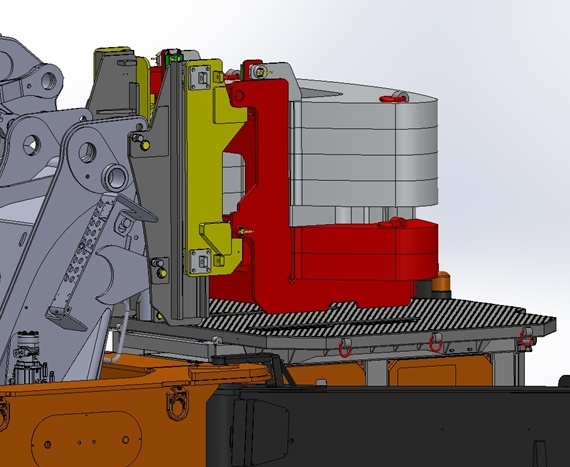

Counterweight 2.1 tons + 3 tons

Tool box

Additional complete set

Power supply drive module three phase 50 Hz 400V13 kW

Non-marking pads for tracks made of white rubber

Tow hook

Towing winch, g / n 10 tons

Hydraulic drive for connecting a towing winch

Remote access, annual subscription

Remote access, extension up to two years

Extended warranty: 3 years

Winch V30, g / n 3 tons with a hook block for triple stocking, 60 m, under a 12 mm cable

V20/V30 main boom hook alignment system

Automatic counterweight removal system

Additional tool box on the outrigger for JFM

Mechanical jib (for the eighth section of the main boom)

Second mechanical jib (for the eighth section of the main boom)

Set of mechanical geese / Searcher hooks (for the eighth section of the main boom)

The automatic system of folding the crane

Hydraulic jib, g / p 5.400 kg, 6 hydraulic sections

V20/V30 hydraulic jib hook alignment system

Set of pulleys for V30 winch on hydraulic jib

Set of folding pulleys for V30 winch on hydraulic jib

Quick connection of hydraulic hoses

Mechanical jib (for the sixth section of the hydraulic jib)

Second mechanical jib (for the sixth section of the hydraulic jib)

Third mechanical jib (for the sixth section of the hydraulic jib)

Set of mechanical tracks / Searcher hooks (for the sixth section of the hydraulic track)

The hydraulic drive for the hydraulic jib

Preset for installing the operator's basket on the hydraulic jib

Double steel basket with hydraulic jib

Double steel basket with mechanical turn on the hydraulic jib

MEWP CE Certificate for the operator's cart (installation and testing at the Jekko factory), valid in the EU

Personal color of tracks, frame, tool box

Personal sticker

Remote access, annual subscription

Remote access, extension up to two years

Extended warranty: 3 years

Tasks

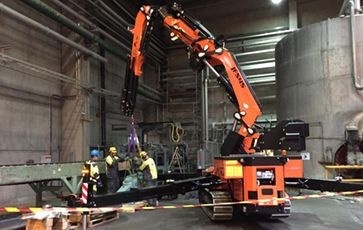

Steel erection

This type of work is not so often performed by mini-cranes than the installation of glass and equipment. Installation of metal structures crawler-mounted mini-cranes during the construction of shopping centers, parking lots and even transport infrastructure facilities.

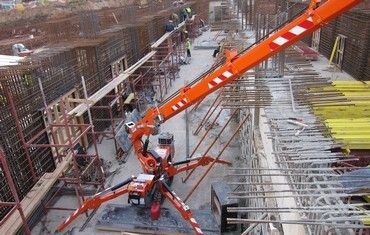

Formwork installation

When installing formwork, the use of a truck crane or a tower crane is often extremely inefficient. One sheet of formwork weighs about 200 kilograms, and JF990 mini cranes are not inferior to cranes of other types in terms of power and weight characteristics.

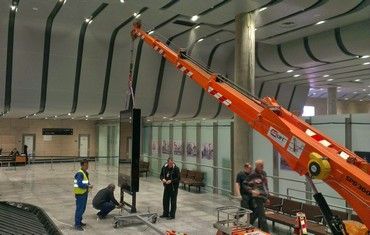

Installation of equipment

Due to the ability to work from the network and the convenience of transportation, the JF990 mini-crane is often used in the installation of equipment and advertising structures that take place indoors. When performing this kind of work, a mini-crane is, as a rule, indispensable.

Functional benefits

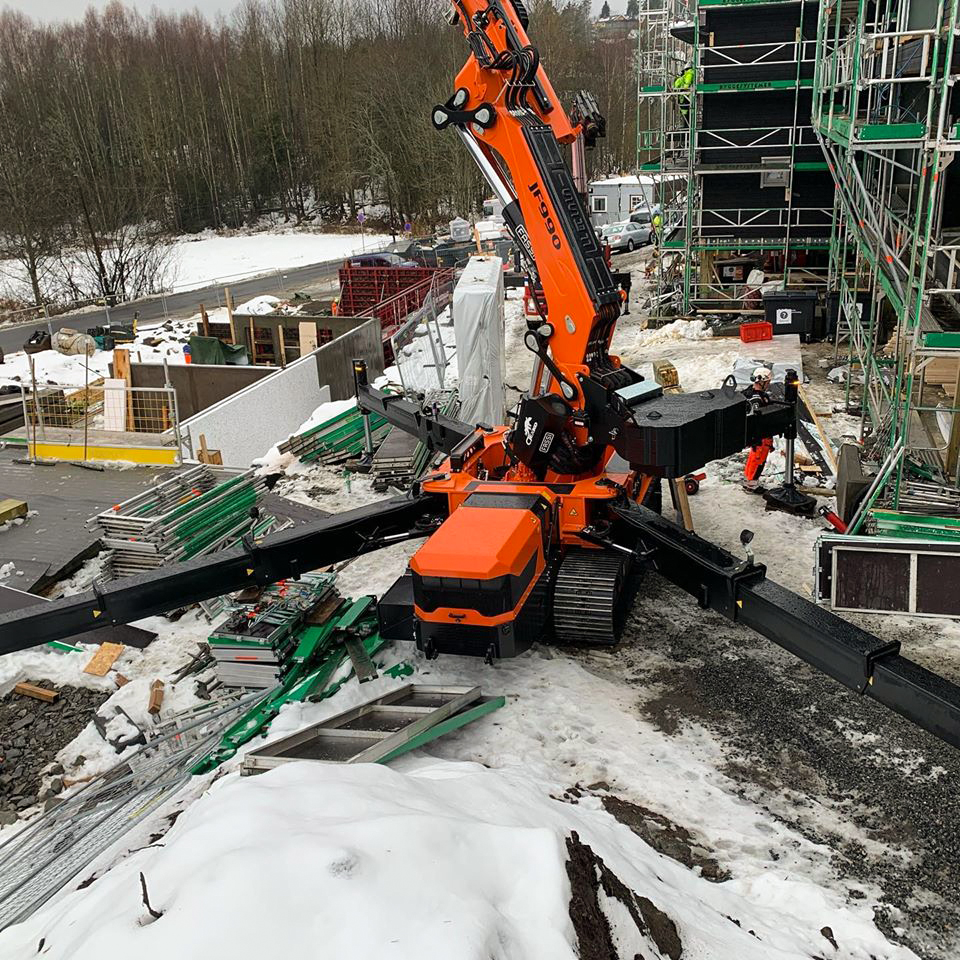

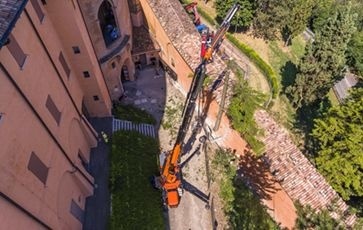

Work in tight spaces

Despite the power, strength of this crane, a lot of weight in comparison with other representatives of the Jekko family - the Jekko JF990 mini-crane passes to any hard-to-reach places to which large equipment cannot access.

Improved stabilization system

Software simplifies use. The crane stabilization system automatically calculates one of four “stability levels”: the first is minimum, and the fourth is maximum, which allows the operator to control the process comfortably and safely.

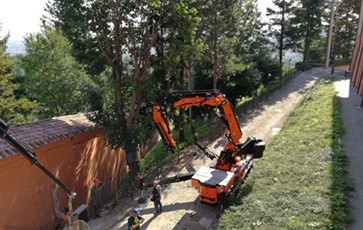

Superpower and Power

Jekko JF990 - the only mini-crane in the Jekko line with a lifting capacity of 21.5 tons! At the same time, the crane is distinguished by high maneuverability and small dimensions.

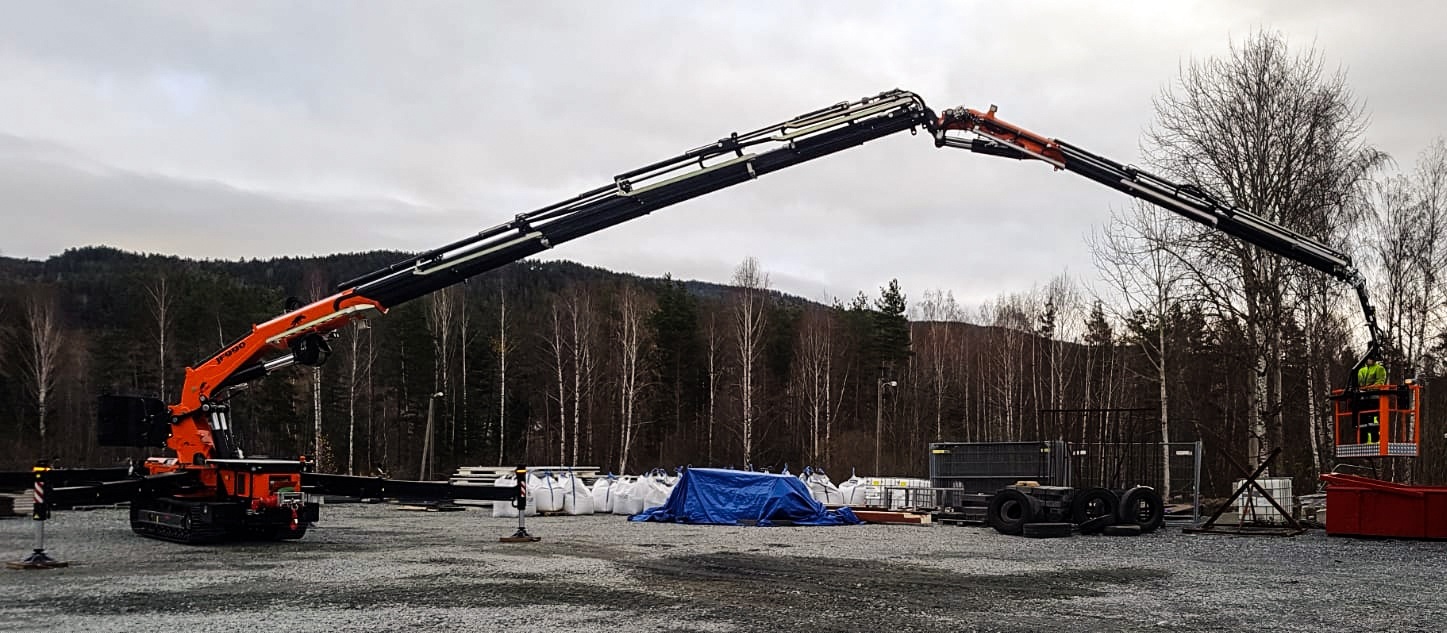

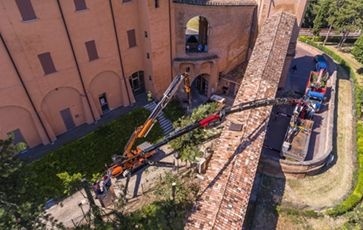

Advanced arrow

Unlike SPX line cranes with telescopic boom with extensions, JF990 has a hinged boom: main boom + secondary boom + 6 additional sections, which allows the crane to be more compact, versatile and powerful.

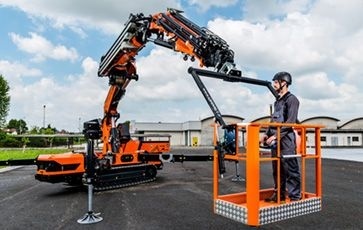

The presence of a basket for the operator

The Jekko JF990 mini crane can be equipped with a basket for lifting people. The crane turns not only into a machine for lifting and moving cargo, but also into a tower for the operator to solve various problems.

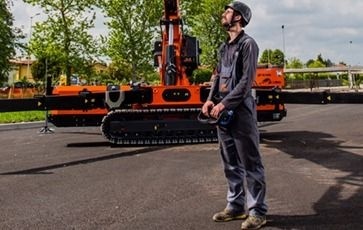

One crane - one operator

Jekko JF990, like other cranes of the Jekko line, is controlled by one operator who performs all operations using the remote control radio. The presence of the remote allows you to perform work with maximum accuracy.
