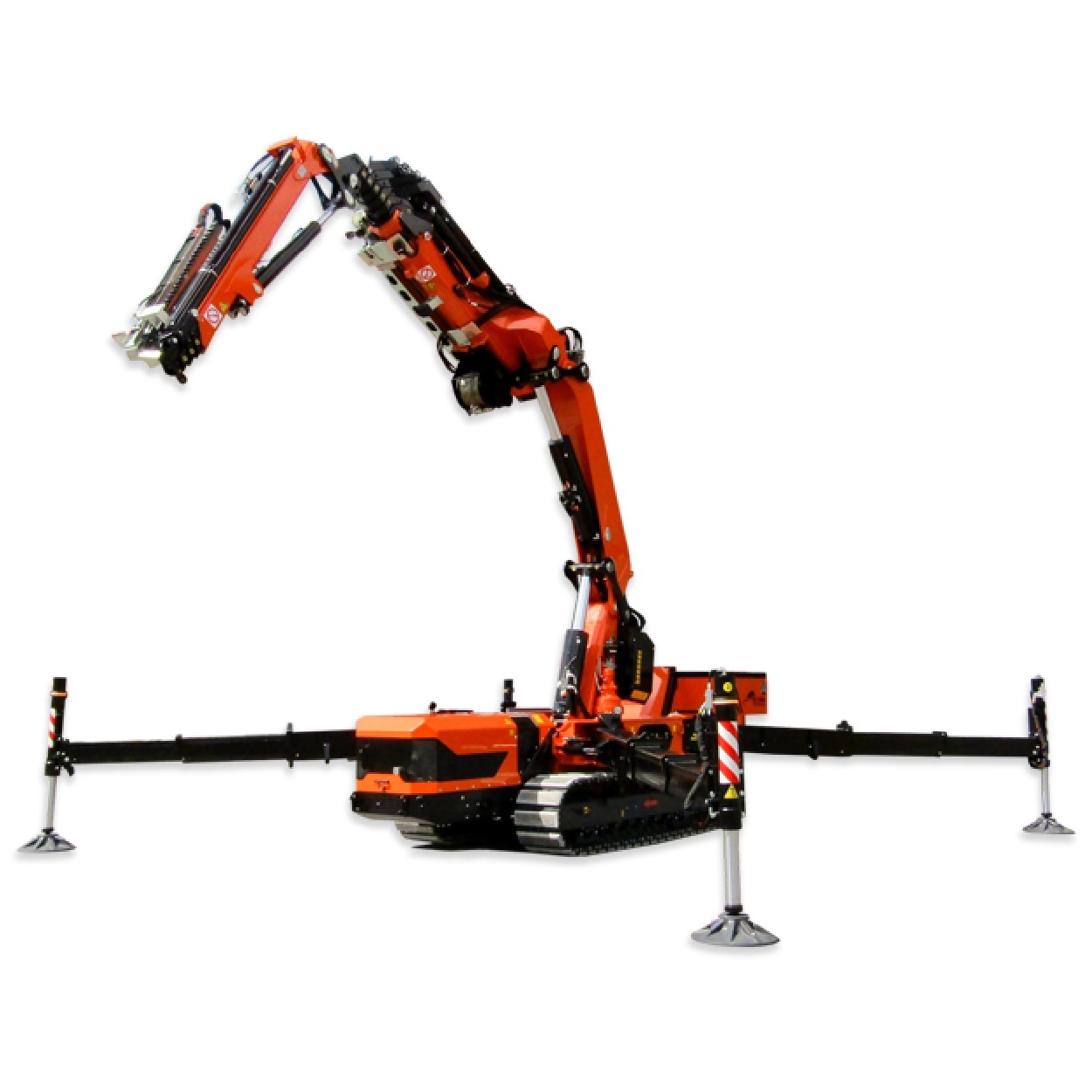

Mini crane JF365CDH-2

The future in construction is a self-propelled-tracked mini-crane JF365CDH-2.

11500 kg

5480 х 1800 х 2800 mm

27 m

29 m

Compare

Cтоимость по запросу

Запросить кп Купить в лизинг

Расширенные гарантии

Скидки оптовым покупателям

Запчасти всегда есть в наличии

Готовый пакет документации при передаче

Хорошие финансовые условия сделки (лизинг, рассрочка)

Доставка в любую точку России и стран СНГ

Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой.

For more details about delivery and payment

Presentation. JF365.pdf

Areas of application of mini-cranes Arlift. pdf

Технические параметры

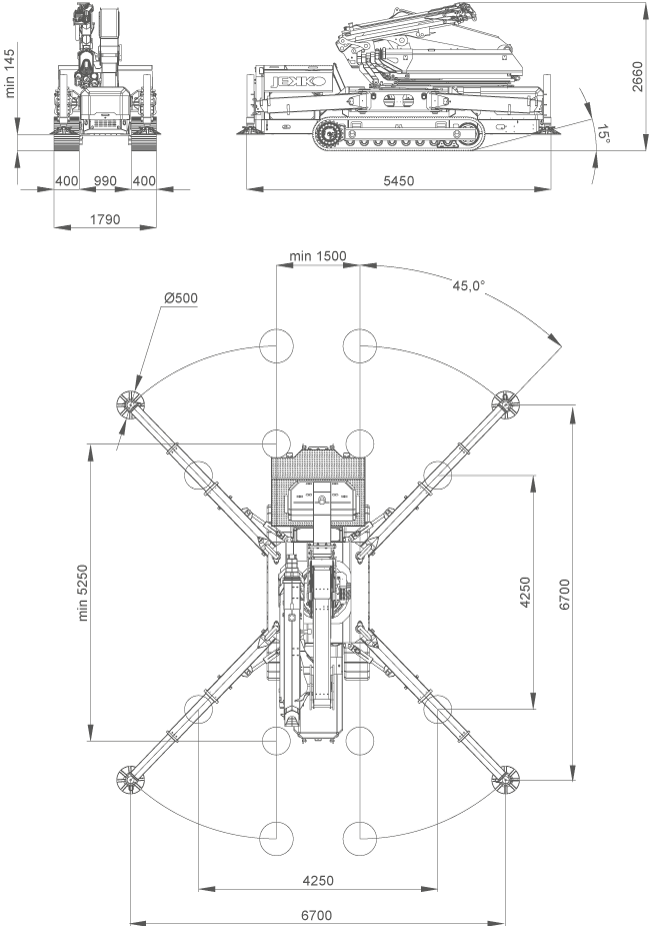

Габариты

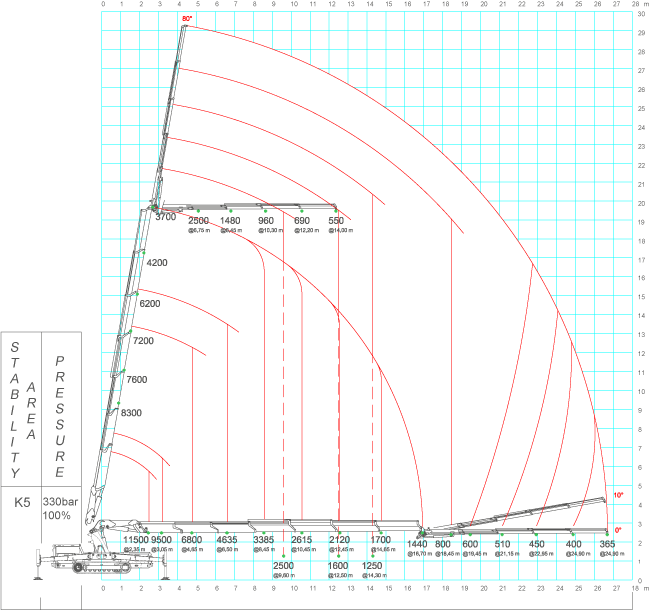

Диаграммы

Дополнительная комплектация

Guarantee

2 years

Max. lifting height

29 m

Lifting capacity

11500 kg

Engine type

diesel/network (380 V)

Area stabilization

6700 x 6700 mm

Size

5480 х 1800 х 2800 mm

Weight

12300 kg

Horizontal reach

27 m

Drive

DVS

Engine

KUBOTA V3307-CR-TE4B 55.4 kW-74 HP

The length of the hoist rope

60 m

Fuel tank capacity

75 l

Basic configuration

Diesel engine Kubota V3307-CRTE 4 TIER IV Stage 5 - TURBO of 55.4 kW/74.3 per HP

6 sections hydraulic telescopic main boom

Dual hydraulic motor on the rotary ring

The dual compound on the joints of main boom

Continuous rotation of the rotary rings

Remote control

Mechanical, hydraulic and electrical installation for the winch

Mechanical, hydraulic and electrical installation for jib

Steel track with two motors

Automatic and selectable control of the geometrical stability with four levels of stability

Tool box

Additional complete set

Power supply drive module three phase 50 Hz 400V13 kW

Non-marking pads for tracks made of white rubber

Tow hook

Towing winch, g / n 10 tons

Hydraulic drive for connecting a towing winch

Remote access, annual subscription

Remote access, extension up to two years

Extended warranty: 3 years

Winch V20, g / n 2 tons with a hook block for triple stocking, 60 m, under a 12 mm cable

V20/V30 main boom hook alignment system

Additional tool box on the outrigger for JFM

Mechanical jib (for the sixth section of the main boom)

Set of mechanical geese / Searcher hooks (for the fourth section of the main boom)

The automatic system of folding the crane

Hydraulic jib, g / n 2.500 kg, 4 hydraulic sections

V20/V30 hydraulic jib hook alignment system

Set of pulleys for V20 winch on hydraulic jib

Set of folding pulleys for V20 winch on hydraulic jib

Quick connection of hydraulic hoses

Mechanical jib (for the fourth section of the hydraulic jib)

Set of mechanical tracks / Searcher hooks (for the sixth section of the hydraulic track)

The hydraulic drive for the hydraulic jib

Preset for installing the operator's basket on the jib

Single steel basket with hydraulic jib

Single-seat steel basket with a mechanical turn on a hydraulic jib

Double steel basket with hydraulic jib

Double steel basket with mechanical turn on the hydraulic jib

MEWP CE Certificate for the operator's cart (installation and testing at the Jekko factory), valid in the EU

Personal color of the boom, tracks, frame, tool box

Personal sticker

Tasks

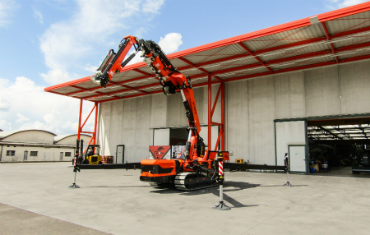

Installation of metal structures

Installation of metal structures is carried out with the help of mini-cranes. With JEKKO JF365CDH-2 you can easily cope with the tasks. Due to the large boom reach and high load carrying capacity, construction work will be completed in the shortest possible time, even in the most inaccessible places.

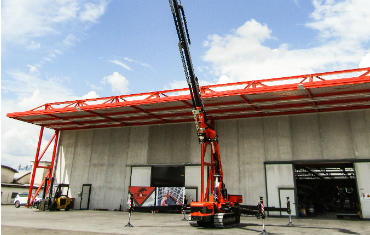

Mounting the formwork

At installation of a timbering use of mini-cranes is widespread. The efficiency of the JEKKO JF365CDH-2 mini-crane on the construction site is very high: it can lift up to 11.5 tons. Due to its briskness and excellent terrain in most situations, it surpasses both a tower crane and a truck crane.

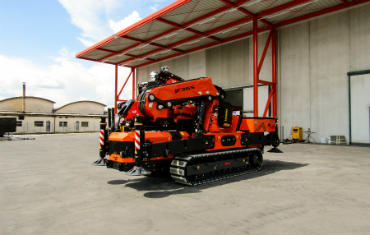

Installation of equipment

Thanks to its small dimensions, the mini-crane JEKKO JF365CDH-2 is able to carry out work on the installation of various equipment and structures outside and inside the room. At the same time the crane can perform work on delicate surfaces, as well as in areas where work from the engine is prohibited.

Functional benefits

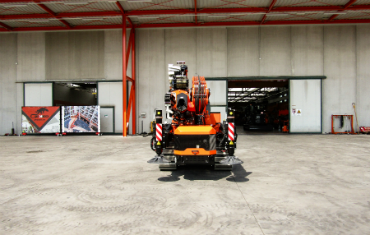

WORK IN RESTRICTED SPACE

Despite the fact that JEKKO JF365CDH-2 is able to lift heavy loads (up to 11.5 tons), this does not prevent it from being maneuverable and compact. He is able to pass even in the most difficult and narrow places.

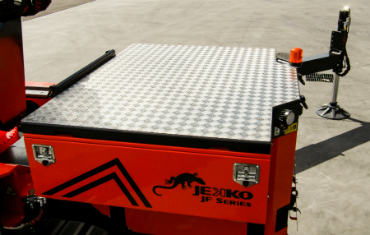

POWER AND might

JEKKO JF365CDH-2 is the second largest mini-crane in the Jekko range. He is able to lift loads weighing up to 11.5 tons! And just imagine, such a load capacity at the MINI-crane!

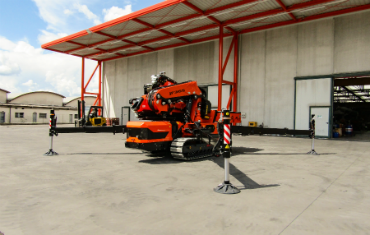

ONE CRANE - ONE OPERATOR

With the help of the remote control of the mini-crane JEKKO JF365CDH-2, only one operator can control it (no additional personnel are required). When this is achieved jeweler precision work.
