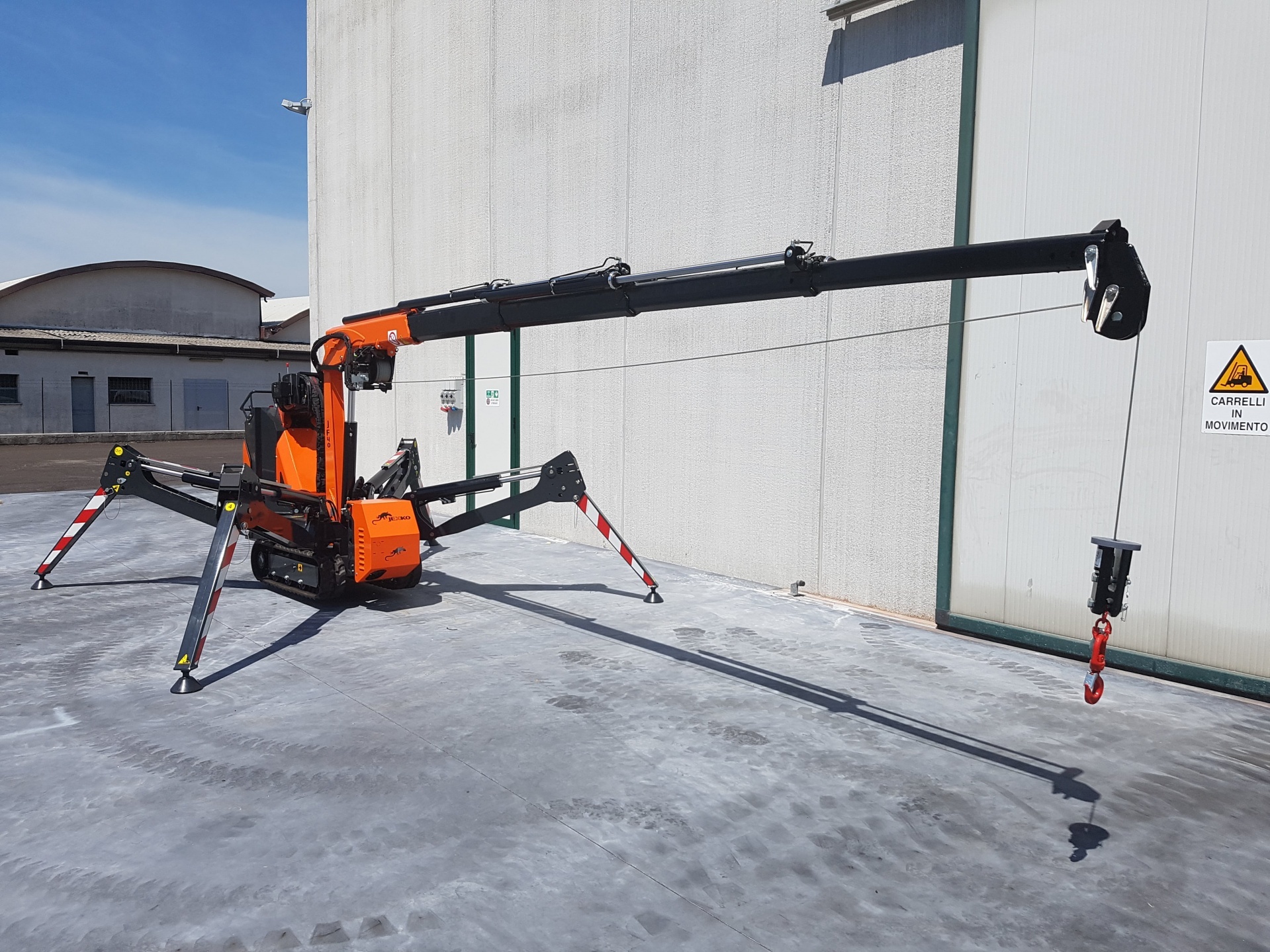

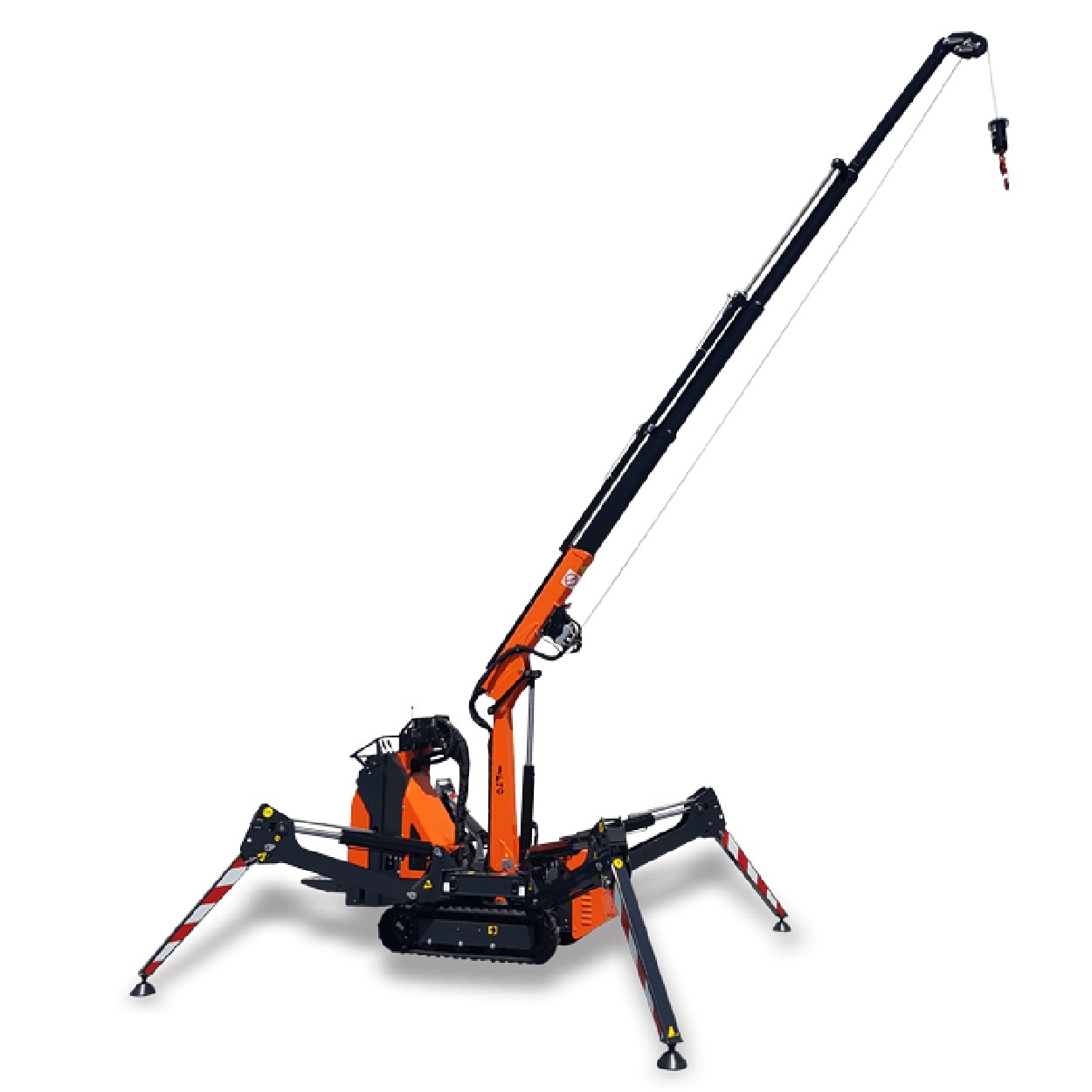

Mini crane JF40

Intuitive, compact and maneuverable JF40 crawler-mounted mini crane with excellent payloads.

2500 kg

2590 x 780 x 1860 mm

6,8 m

8 m

Compare

Cтоимость по запросу

Запросить кп Купить в лизинг

Расширенные гарантии

Скидки оптовым покупателям

Запчасти всегда есть в наличии

Готовый пакет документации при передаче

Хорошие финансовые условия сделки (лизинг, рассрочка)

Доставка в любую точку России и стран СНГ

Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой.

For more details about delivery and payment

Presentation. JF30, JF40.pdf

Areas of application of mini-cranes Arlift. pdf

Технические параметры

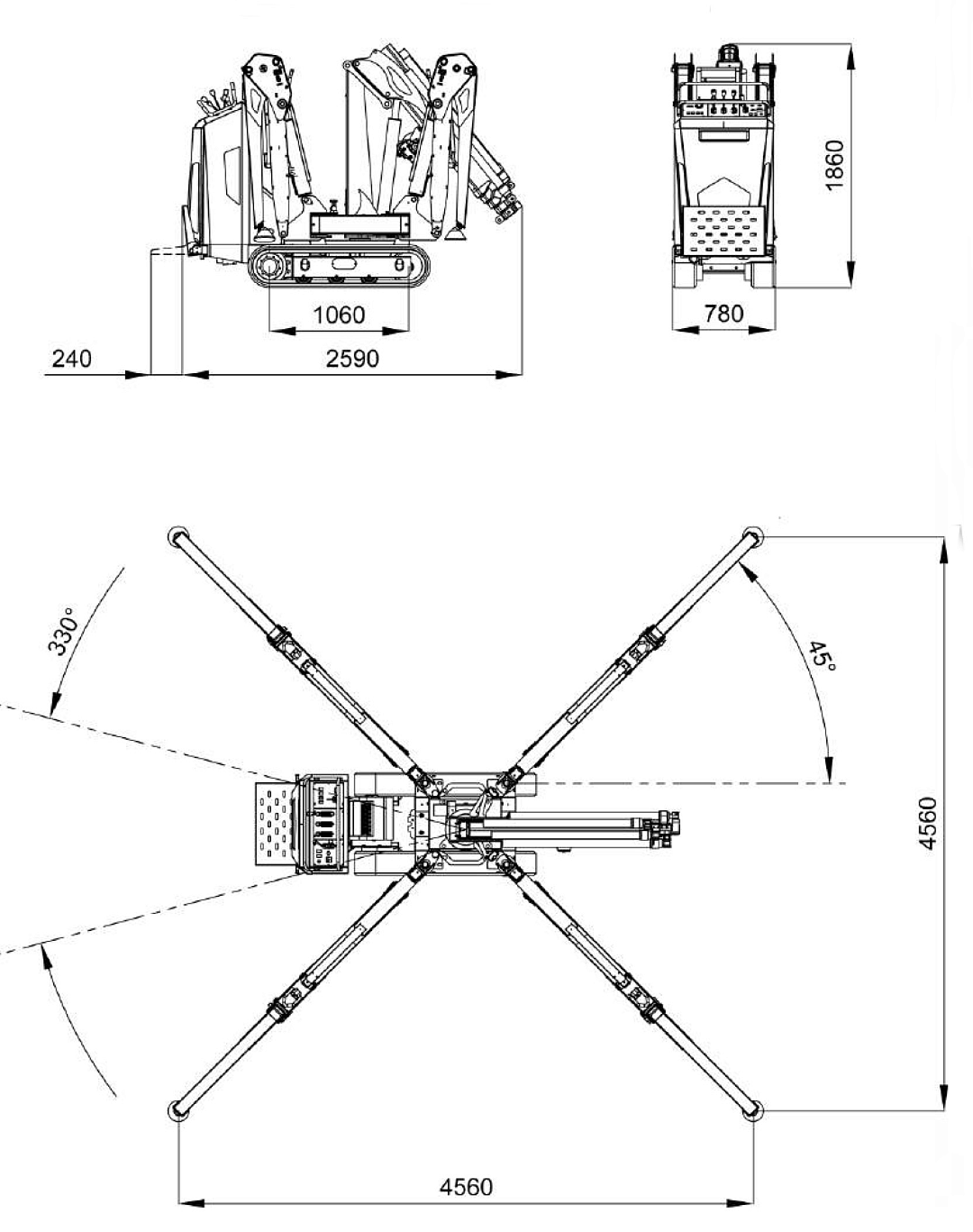

Габариты

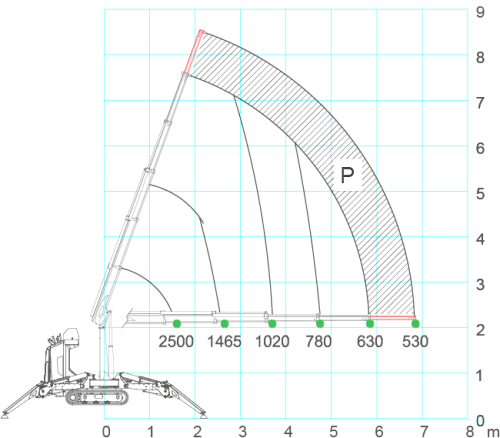

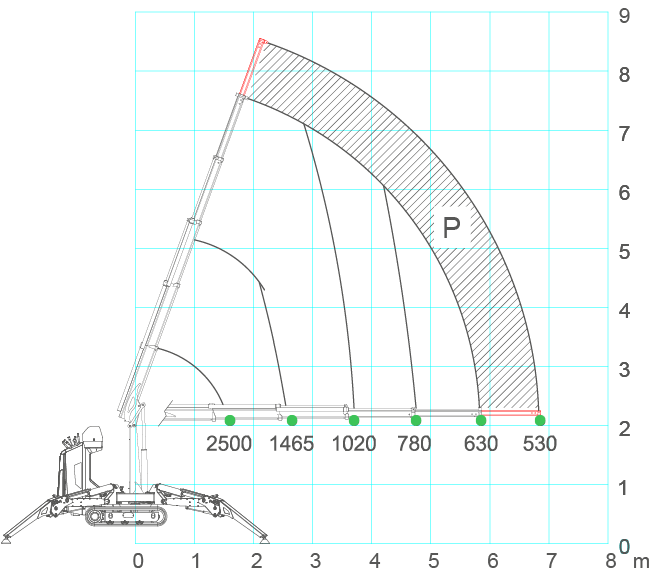

Диаграммы

Дополнительная комплектация

Guarantee

2 years

Max. lifting height

8 m

Lifting capacity

2500 kg

Engine type

gasoline/network (220V/380V)

Area stabilization

4560 x 4560 mm

Size

2590 x 780 x 1860 mm

Weight

1583 kg

Horizontal reach

6,8 m

Drive

DVS

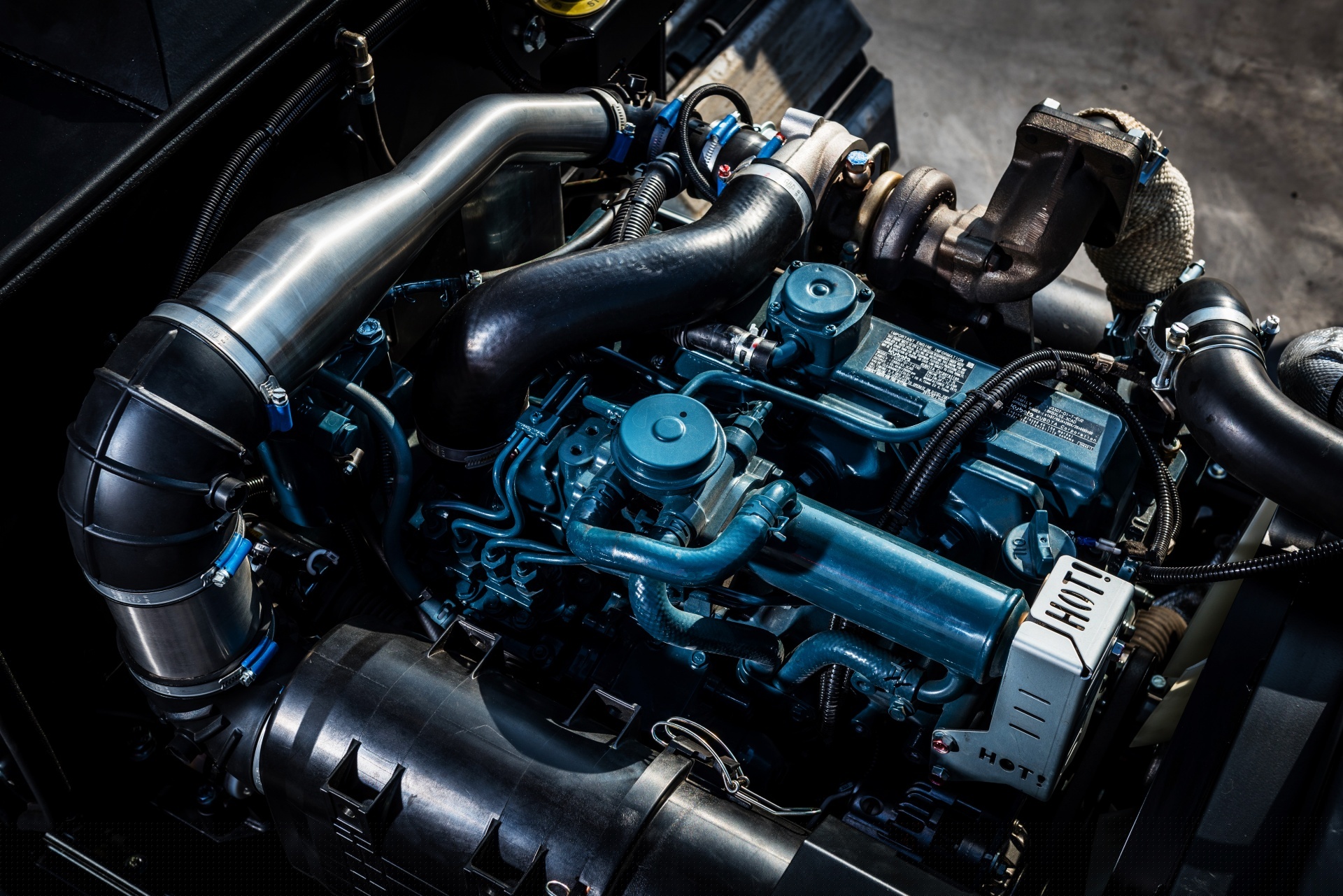

Engine

MZ360-7.6 kW / 10.4 HP

The length of the hoist rope

36 m

Fuel tank capacity

6.7 l

Basic configuration

MZ360 petrol engine and 7.6 kW / 10,4 HP

4 hydraulic telescopic sections

The device of the instant stopping

Pressure gauge

4 hydraulic outrigger, mechanical rotation

Two independent tracks

Folding platform for the operator

Additional complete set

Double stock hook block

Remote control

Winch, g / n 600 kg, 36 m, 6 mm

Caterpillar non-marking white rubber

Supports under the outriggers

Single-phase 50 Hz 220V-2 kW power supply drive module

The drive module from the mains three-phase 50 Hz 400 V-4 kW

Mechanical jib, type P

Stabilization system and LMI (load torque indication) for mechanical jib

Tasks

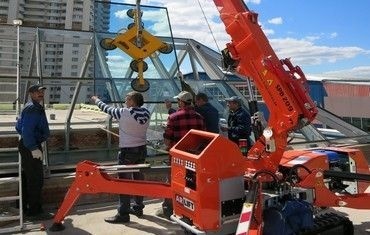

Glazing

The possibility of equipping with a vacuum manipulator allows the mini-crane to perform work on the glazing of balconies, shop windows, and building facades. This ensures the accuracy and smoothness of working with glass: the movement of the crane changes in proportion to the efforts applied to the joystick.

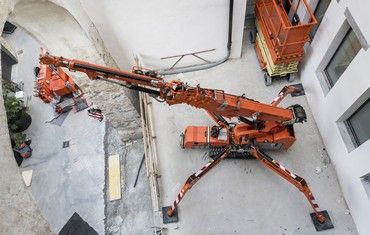

Installation work with floors

Low weight, minimum stabilization area, tracked drive and high maneuverability allow the most difficult high-altitude installation (on ceilings and roofs) in any conditions. Depth of lowering of a cable can reach 100 meters.

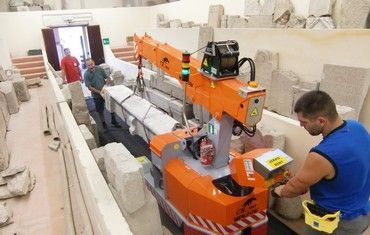

Lifting cargo in cramped conditions

Compact dimensions and excellent load carrying capacity at departure make it possible for JEKKO mini cranes to carry out work on lifting cargo in rooms with a small area, courtyards, wells, narrow openings and even underground. The width of the JF40 is only 0.77 m.

Functional benefits

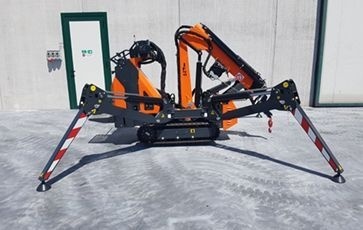

Light weight equipment

The weight of the JF40 is only 1600 kg - this allows the mini-crane to perform work on the floor slabs, to move from platform to platform, even in an elevator.

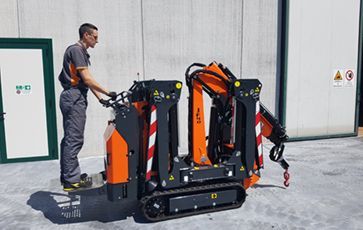

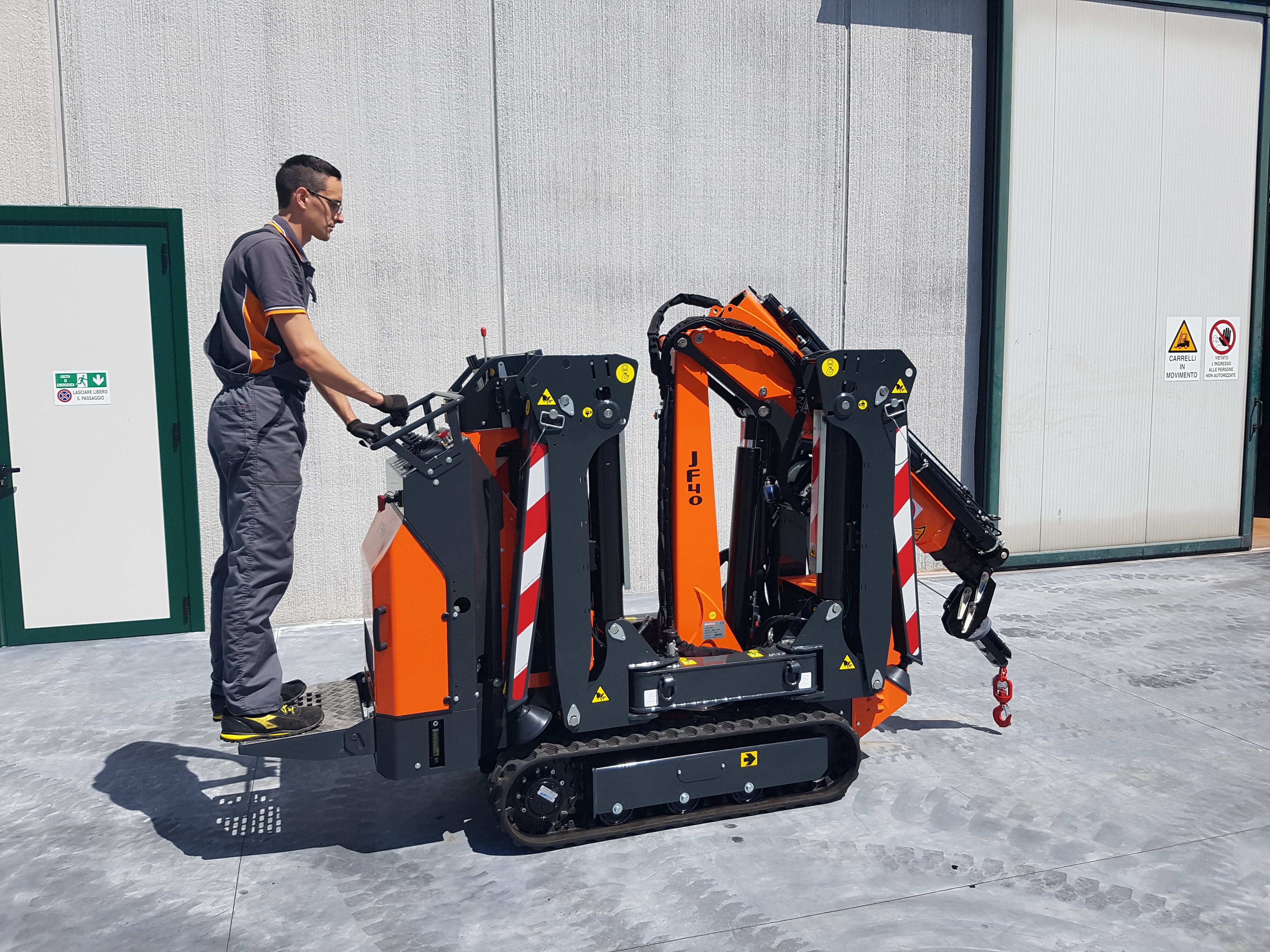

Operator's stand

One of the few mini-cranes in the Jekko line, which has a special support for the operator, allowing work directly from the crane itself.

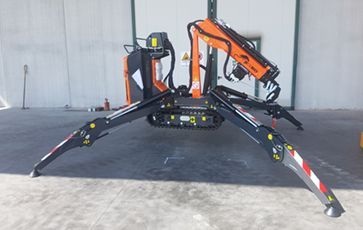

Compact size

Due to its small dimensions, the mini-crane JF 40 can work in cramped conditions, pass through doorways.

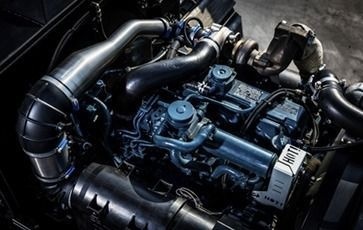

Work from the mains

The presence of two types of engines - diesel and 380V mains - makes it possible to use it on various construction sites and in any premises.

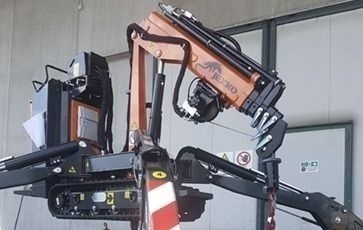

Installation of additional equipment

The mini-crane can be equipped with various types of mounted equipment for the installation of metal structures, glazing of facades of buildings or the supply of goods.

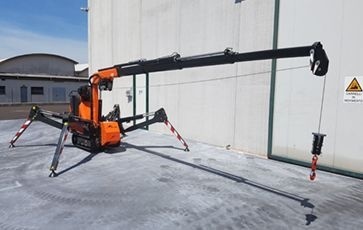

Affordable price

The cost of a mini-crane JF 40 is significantly lower than the cost of other mini-cranes Jekko. Although this crane is able to perform complex construction tasks.
