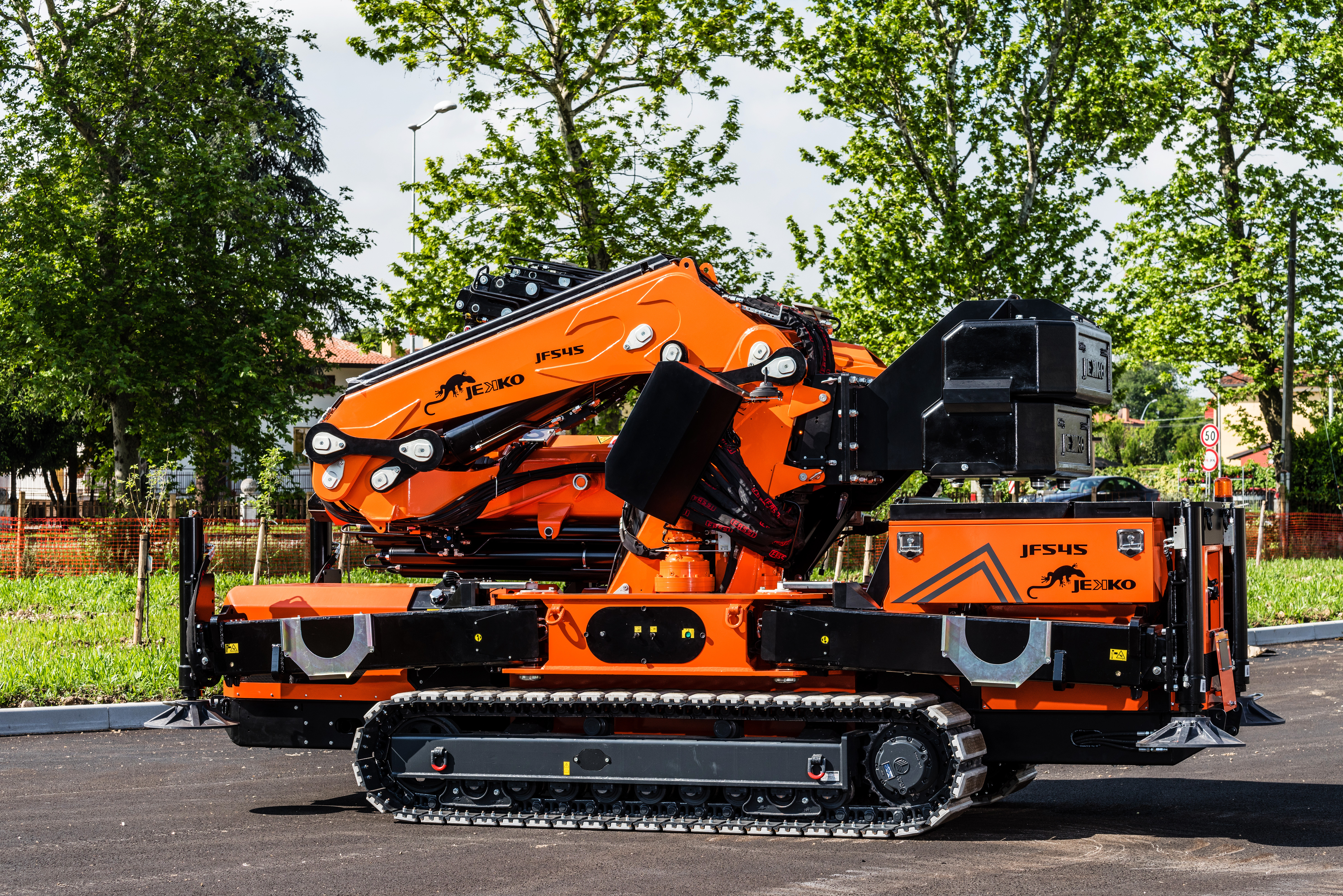

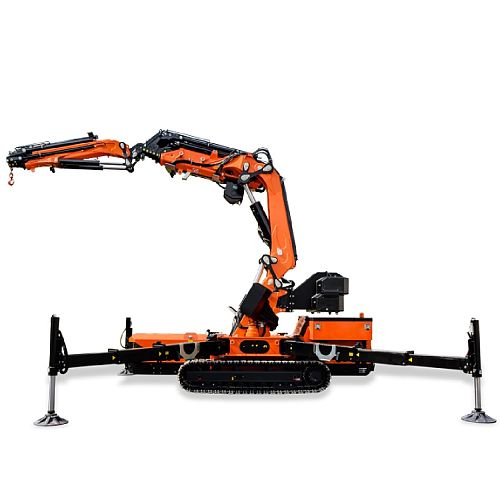

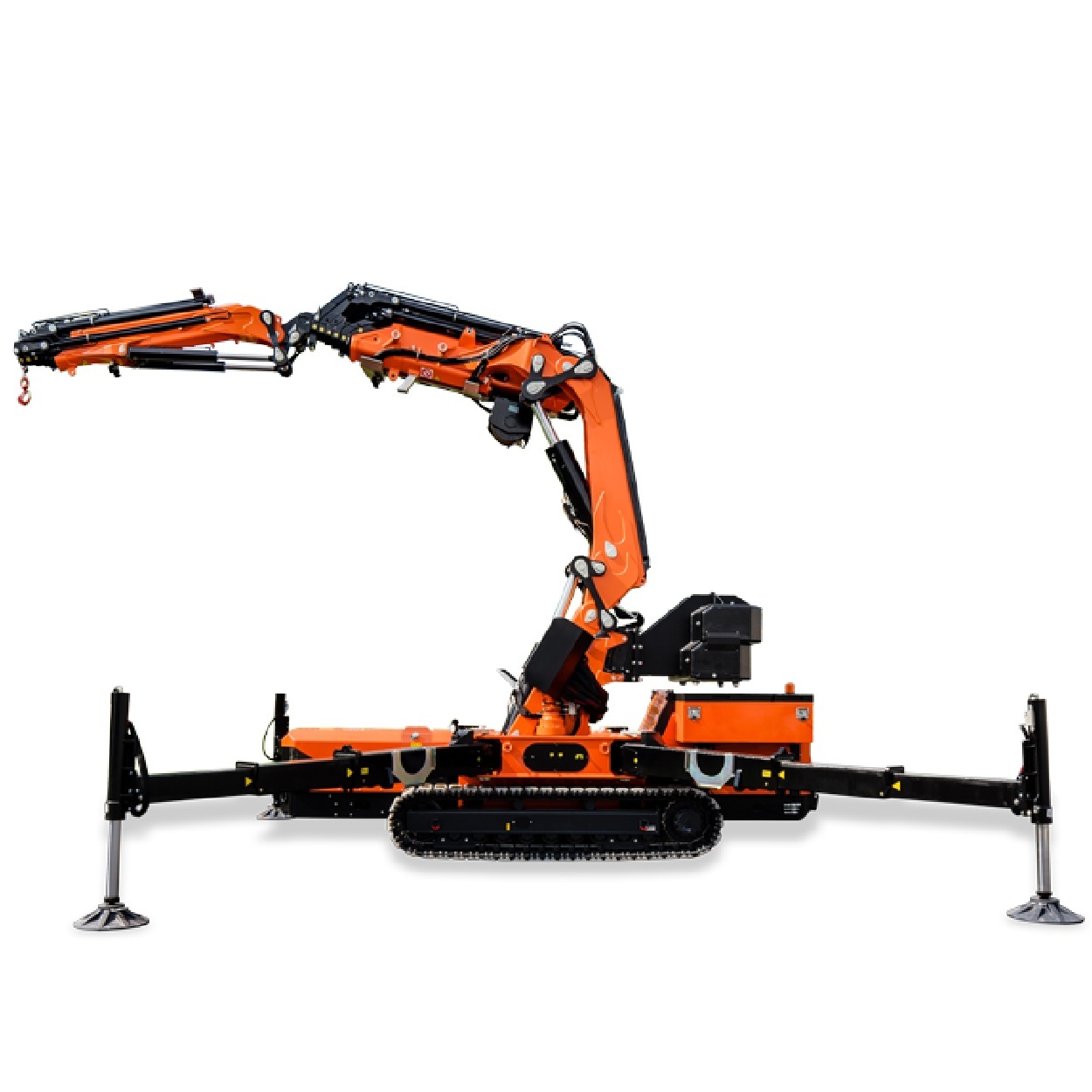

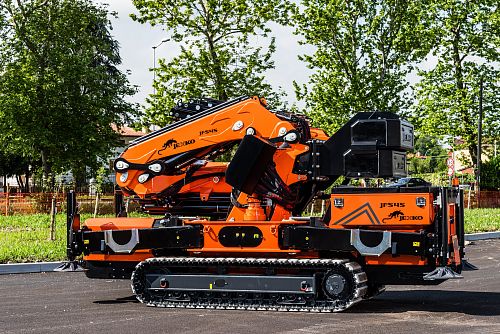

Mini crane JF545CDH-2

Innovation from Jekko - self-propelled crawler loader-manipulator. Model JF545 - it seems that from the realm of fantasy.

15500 kg

5830 х 1840 х 2830 mm

32 m

30 m

Compare

Cтоимость по запросу

Запросить кп Купить в лизинг

Расширенные гарантии

Скидки оптовым покупателям

Запчасти всегда есть в наличии

Готовый пакет документации при передаче

Хорошие финансовые условия сделки (лизинг, рассрочка)

Доставка в любую точку России и стран СНГ

Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой.

For more details about delivery and payment

Presentation. JF545.pdf

Areas of application of mini-cranes Arlift. pdf

Технические параметры

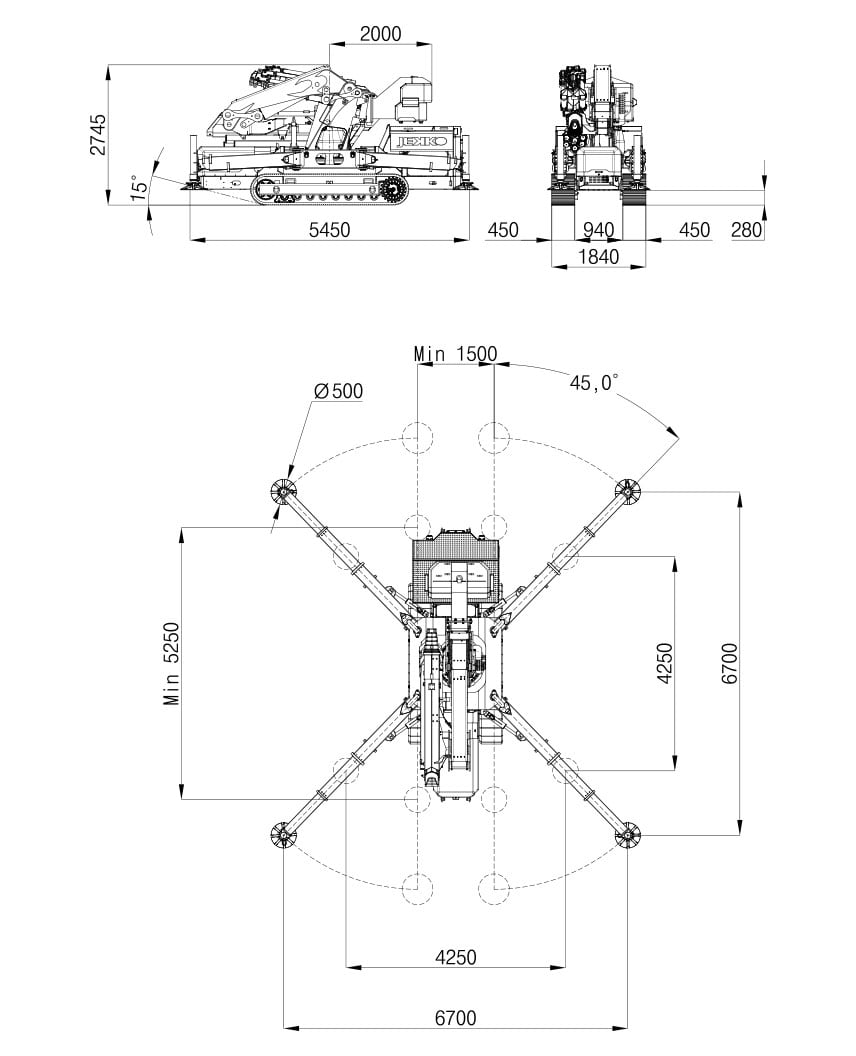

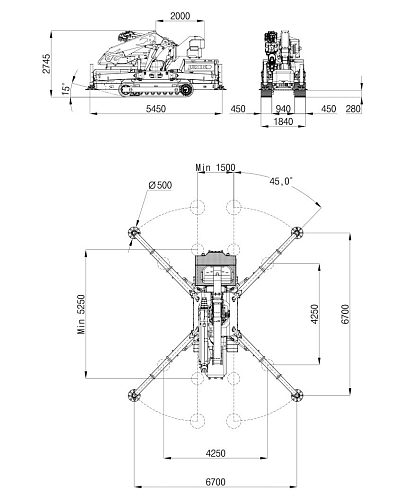

Габариты

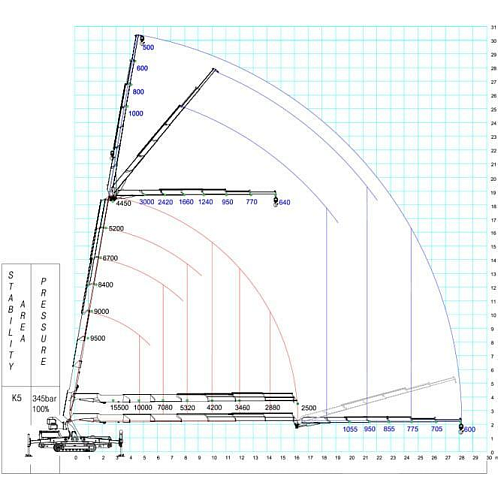

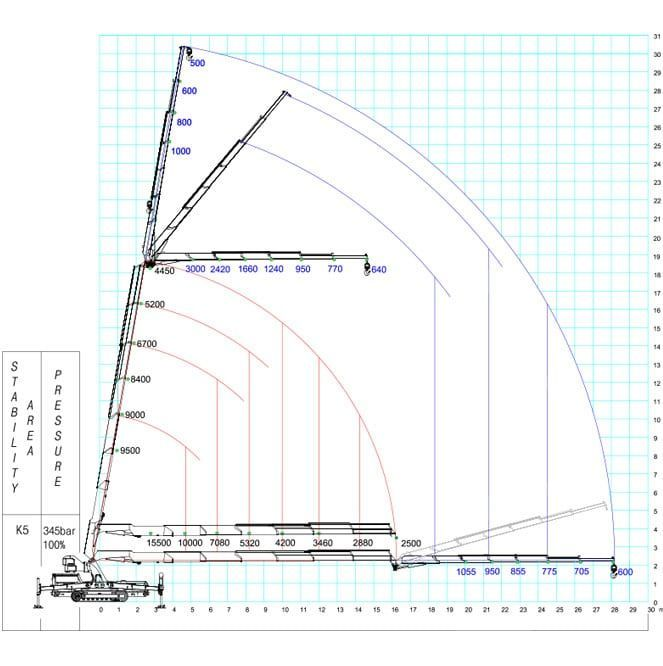

Диаграммы

Дополнительная комплектация

Guarantee

2 years

Max. lifting height

32 m

Lifting capacity

15500 kg

Engine type

diesel/network 380 V

Max. the boom

30 m

Size

5830 х 1840 х 2830 mm

Weight

17200 kg

Horizontal reach

30 m

Drive

DVS

Engine

KUBOTA V3307-DI-T-E3B, 55,4 KW

The length of the hoist rope

60 m

Fuel tank capacity

75 l

Area stabilization

6700 х 6700 mm

Basic configuration

Diesel engine Kubota V3307-CRTE 4 TIER IV Stage 5 - TURBO of 55.4 kW/74.3 per HP

6 sections hydraulic telescopic main boom

Dual hydraulic motor on the rotary ring

The dual compound on the joints of main boom

Continuous rotation of the rotary rings

Remote control

Mechanical, hydraulic and electrical installation for the winch

Mechanical, hydraulic and electrical installation for jib

Opposed to 3.5 tons

Steel track with two motors

Automatic and selectable control of the geometrical stability with four levels of stability

Tool box

Additional complete set

Power supply drive module three phase 50 Hz 400V13 kW

Non-marking pads for tracks made of white rubber

Tow hook

Towing winch, g / n 10 tons

Hydraulic drive for connecting a towing winch

Remote access, annual subscription

Remote access, extension up to two years

Extended warranty: 3 years

Winch V20, g / n 2 tons with a hook block for triple stocking, 60 m, under a 12 mm cable

Winch V30, g / n 3 tons with a hook block for triple stocking, 60 m, under a 12 mm cable

V20/V30 main boom hook alignment system

Automatic counterweight removal system

Additional tool box on the outrigger for JFM

Mechanical jib (for the sixth section of the main boom)

Set of mechanical geese / Searcher hooks (for the sixth section of the main boom)

The automatic system of folding the crane

Hydraulic jib, g / n 3.000 kg, 6 hydraulic sections

Hook alignment system for V20/V30 winch on hydraulic goose

V20 winch pulley set for hydraulic jib

Set of pulleys for V30 winch on hydraulic jib

Set of folding pulleys for V20 winch on hydraulic jib

Quick connection of hydraulic hoses

Mechanical jib (for the sixth section of the hydraulic jib)

Set of mechanical tracks / Searcher hooks (for the sixth section of the hydraulic track)

The hydraulic drive for the hydraulic jib

Preset for installing the operator's basket on the hydraulic jib

Single steel basket with hydraulic jib

Single-seat steel basket with a mechanical turn on a hydraulic jib

Double steel basket with hydraulic jib

Double steel basket with mechanical turn on the hydraulic jib

MEWP CE Certificate for the operator's cart (installation and testing at the Jekko factory), valid in the EU

Personal color of tracks, frame, tool box

Personal sticker

Tasks

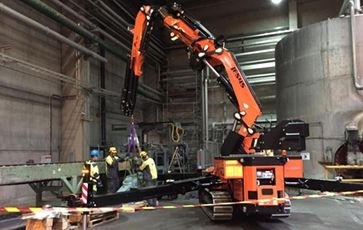

Installation of metal structures

This type of work is no less often performed by mini-cranes than the installation of glass and equipment. Installation of metal mini-cranes on caterpillar tracks produced during the construction of shopping centers, parking lots and even transport infrastructure.

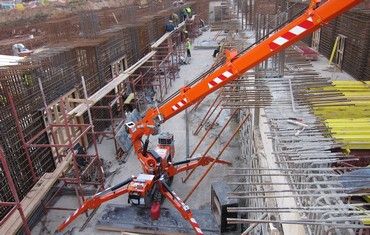

Mounting the formwork

When installing the formwork using a truck crane or tower crane is often extremely inefficient. One sheet of formwork weighs about 200 kilograms, and in terms of power and load-carrying characteristics, JF545 mini-cranes are not inferior to other types of cranes.

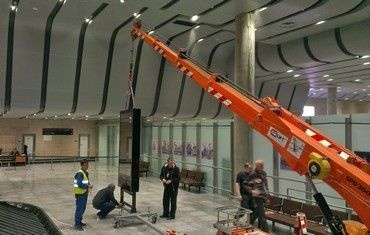

Installation of equipment

Due to the ability to work on the network and ease of transportation, the mini-crane JF545 is often used for the installation of equipment and advertising structures that takes place indoors. When performing this kind of work, a mini-crane is usually indispensable.

Functional benefits

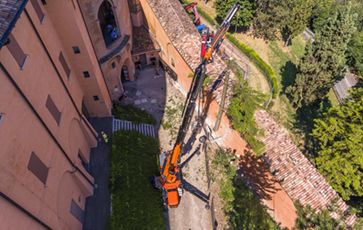

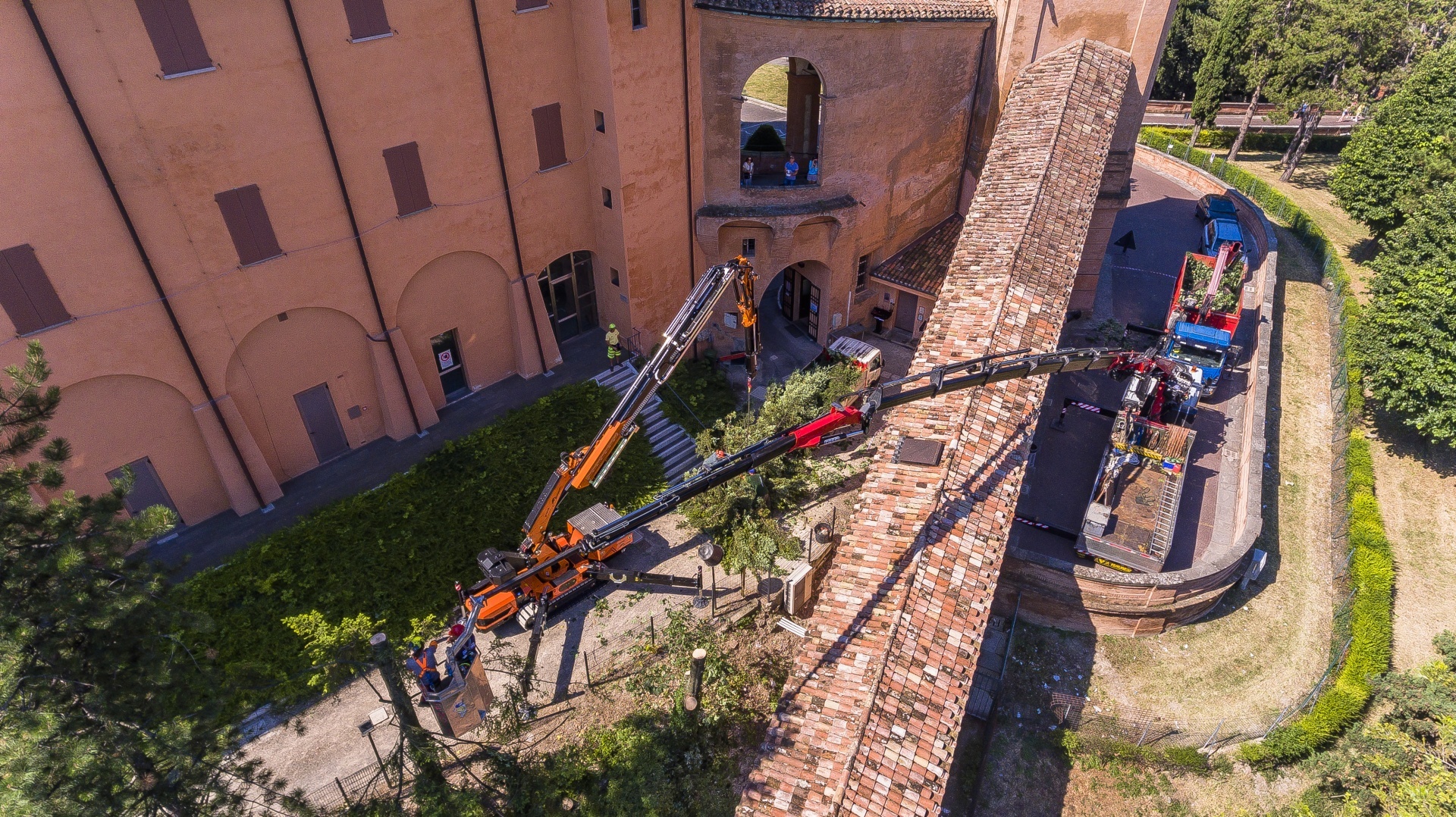

Work in limited space

Despite the power, strength of this crane, a lot of weight compared to other members of the Jekko family - the Jekko JF545 mini-crane passes to any hard-to-reach places that large vehicles cannot access.

Improved stabilization system

Thanks to the new software, the use of the JF545 is greatly simplified. The crane stabilization system automatically calculates one of four “stability levels”: the first is minimal, and the fourth is maximum, which allows the operator of a mini-crane to control the process comfortably and safely.

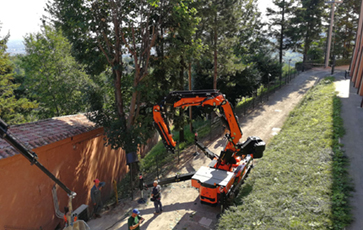

Overpower and power

Jekko JF545 - the only mini-crane in the Jekko line with a load capacity of 15.5 tons! At the same time the crane is distinguished by high maneuverability and small dimensions.

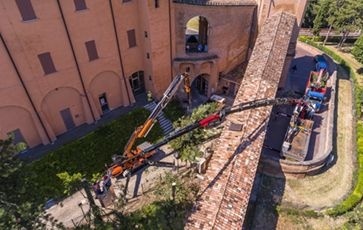

Refined boom

Unlike SPX cranes with telescopic boom with extensions, the JF 545 has a hinged boom: main boom + secondary boom + 6 additional sections, which allows the crane to be more compact, versatile and powerful.

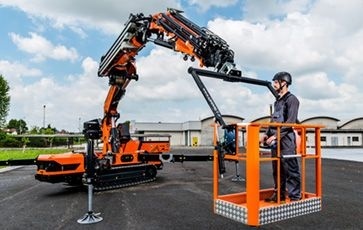

The presence of a basket for the operator

On the mini-crane Jekko JF545 you can install a basket for lifting people. The crane turns not only into a machine for lifting and moving cargo, but also into a tower for the operator to solve various tasks.

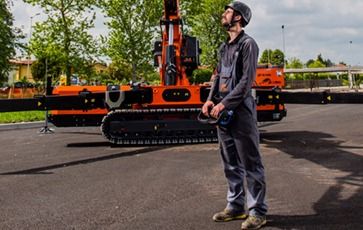

One crane - one operator

Jekko JF545, as well as other cranes of the Jekko range, is operated by one operator performing all operations using a radio remote control. The presence of the remote allows you to work with maximum accuracy.
