Glazing of new modern Range Rover car show in Kazan

Object: Range Rover, Kazan
Type of work: Installation of glass (800 kg)

Implementation:

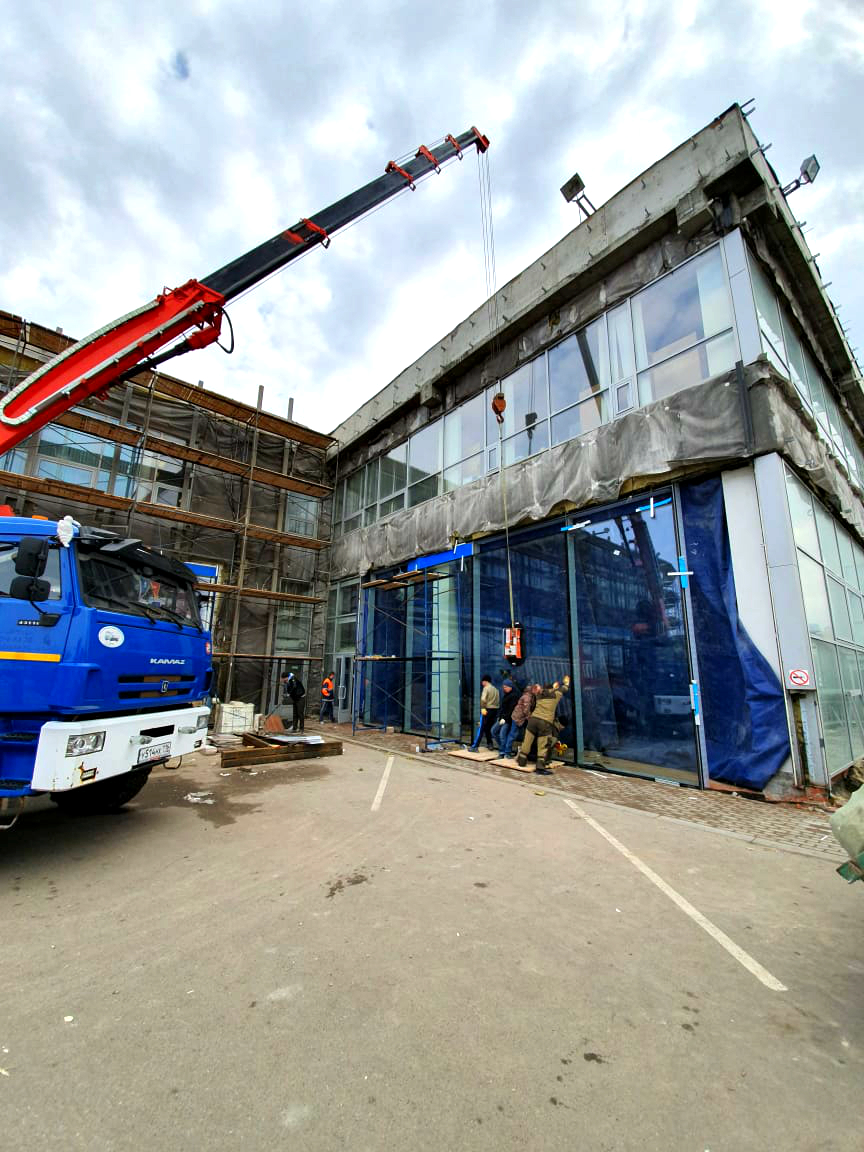

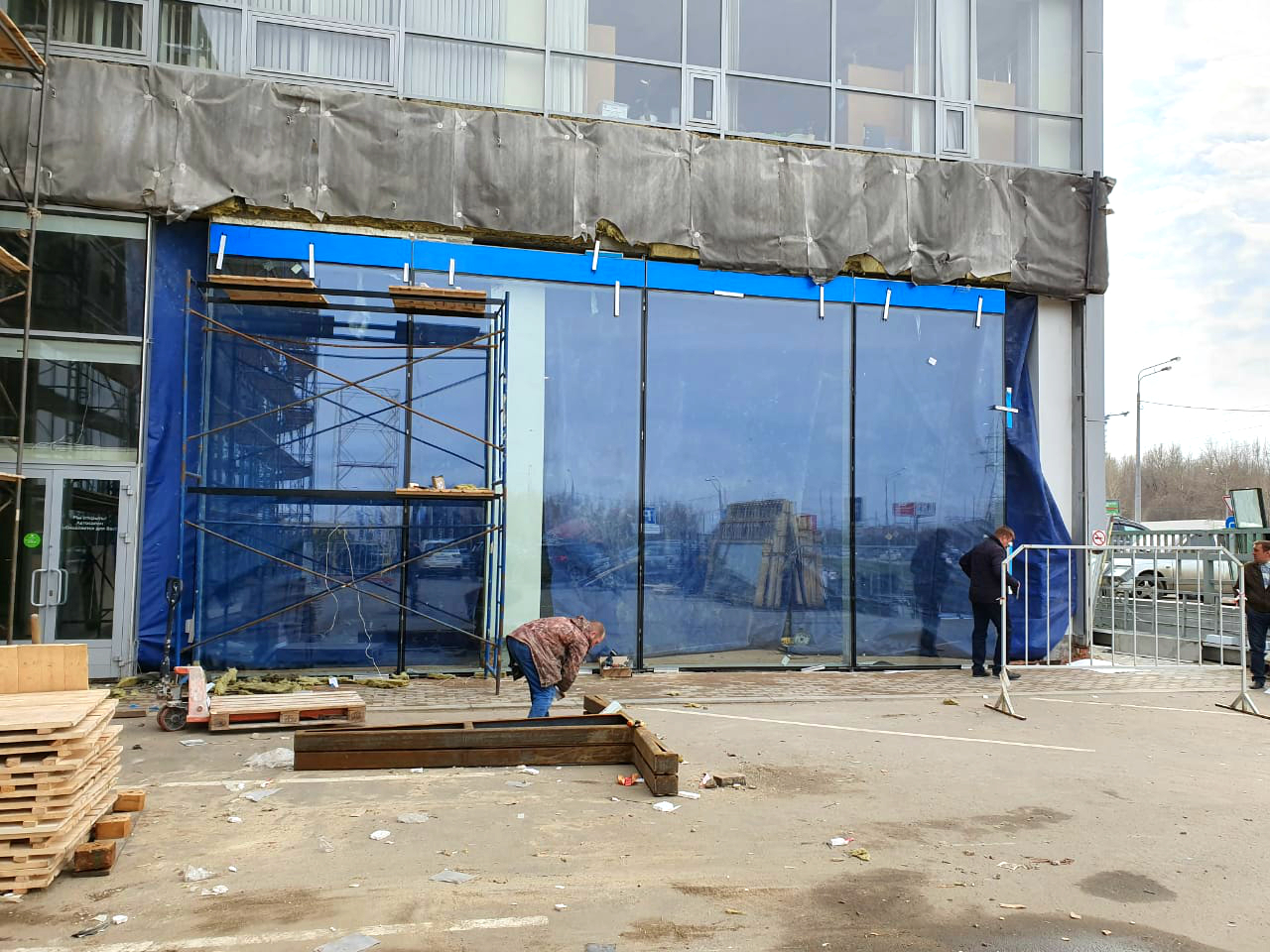

Glazing of the new modern Range Rover store in Kazan was with adventure. The builders used their own equipment. But the vacuum gripper did’t cope with its task, as the installation took place in rainy weather. Glass which weighs was 800 kg broke.

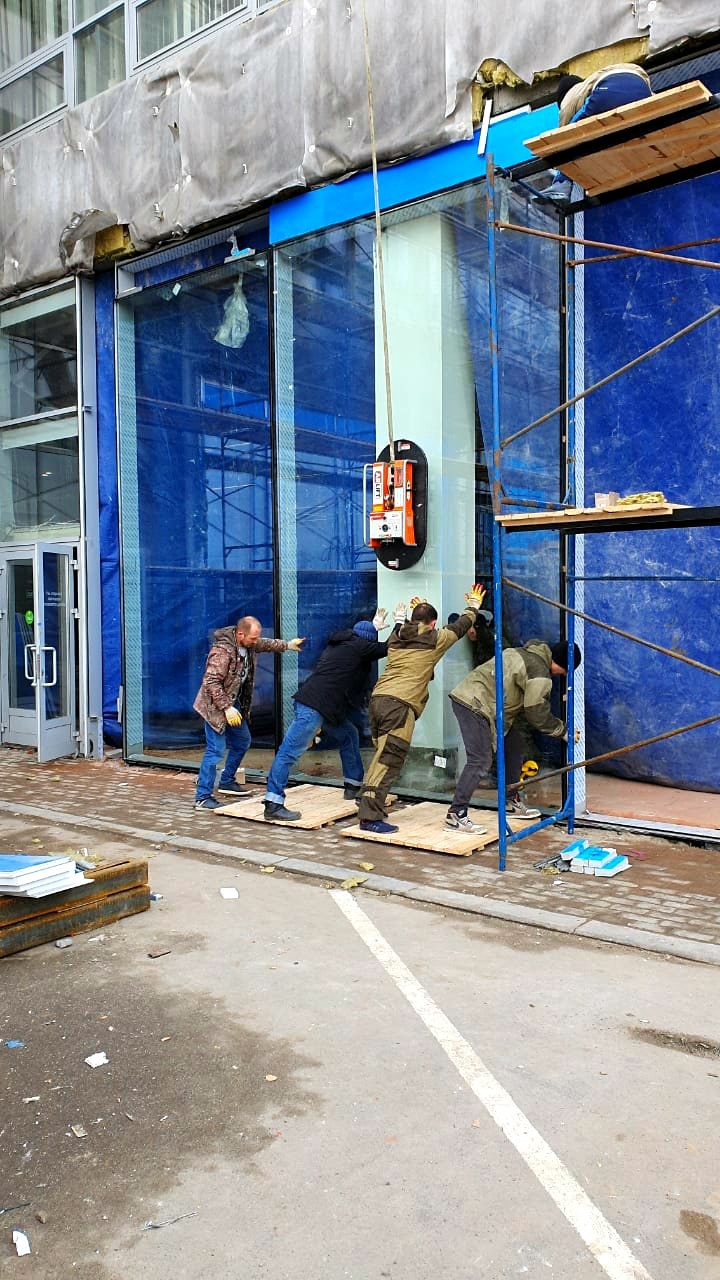

They decided to rent a vacuum gripper Arlifter GS-850, which is equipped with a drainage system and perfectly performs its tasks even during heavy rainfall. In addition, the gripper can work at low temperatures (up to -30 C).

• Installation of glass weighing up to 850 kg and sandwich panels up to 8 m
• Load capacity 850 kg
• Dimensions 1000х500х220 mm
• Full charge capture: 8 hours
• 100-150 cycles when the battery is fully charged
• Profile height for gripping: up to 3 mm
• Operating temperatures: -20 to +50
• Rotates 360° with locking at every 90°
• Dehumidification and air filtration system (possibility of safe work outdoors during precipitation)
• Drive vacuum (system of compensation for loss of vacuum)
• Sound and light security system
• Safety slings
