Installation of wall and roof panels in Novosibirsk
Task: To install roofing and wall panels 11 and 6 meters long

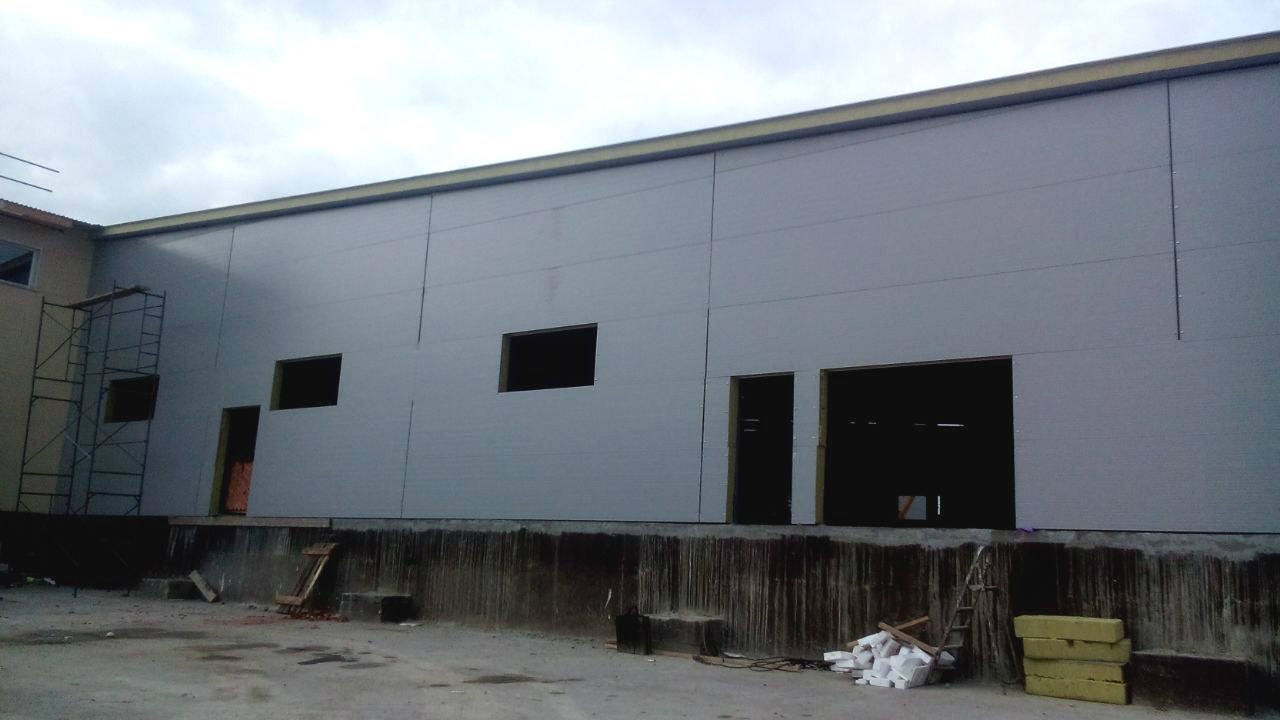

Implementation: Installation of panels, whether roofing or wall, for the ARLIFT technology is a common thing. This time, our equipment was required to assemble panels as part of the construction of a warehouse in Novosibirsk.
At installation were used:
- Wall panel with a length of 6 m and a weight of 400 kg
- Roof panel 11 m long and weighing 400 kg
To perform the installation, the most demanded model of vacuum capture was used - ARLIFTER SP-4.
What tasks does the ARLIFTER SP-4 vacuum pickup:

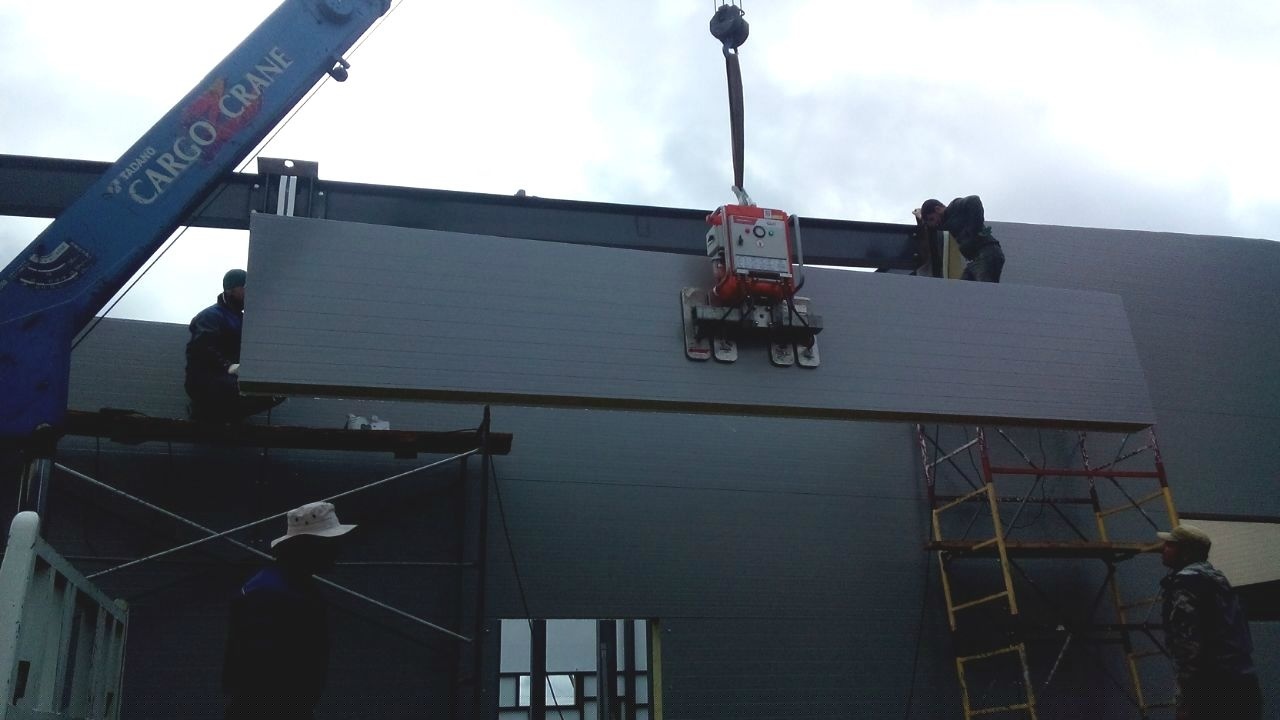

- Vertical and horizontal installation of sandwich panels

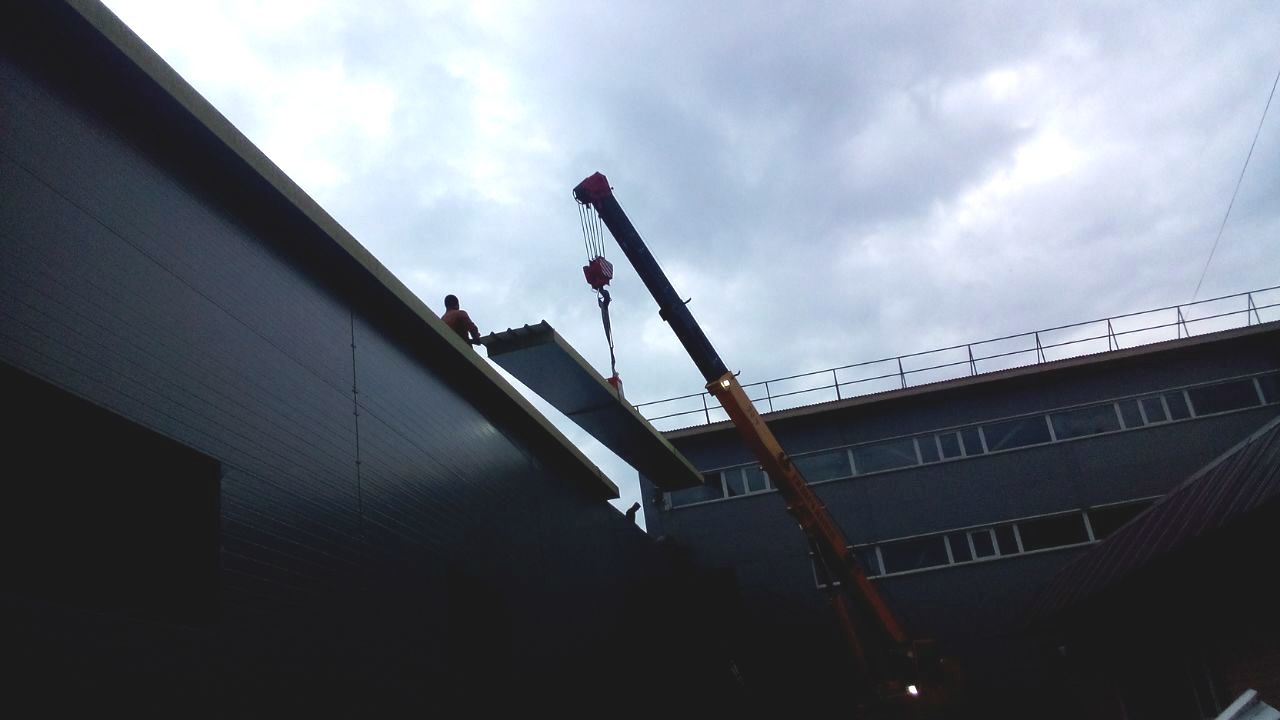

- Installation of the roof
This vacuum grip is easy to transport - its dimensions are only 1200x850x460 mm, and its weight is 1000 kg. Additionally, it can be equipped with a system of extenders and cross-beams, which will increase the mounting surface to 26 meters. The presence of a dehumidification and air filtration system allows it to work safely in all weather conditions and temperature conditions, and the presence of a weight bracket always keeps the vacuum gripper in a horizontal position.
The vacuum capture ARLIFTER SP-4 perfectly coped with the work on the installation of roofing and wall panels in the warehouse of the city of Novosibirsk.
The client was pleased with the work done!
15/10/2018
