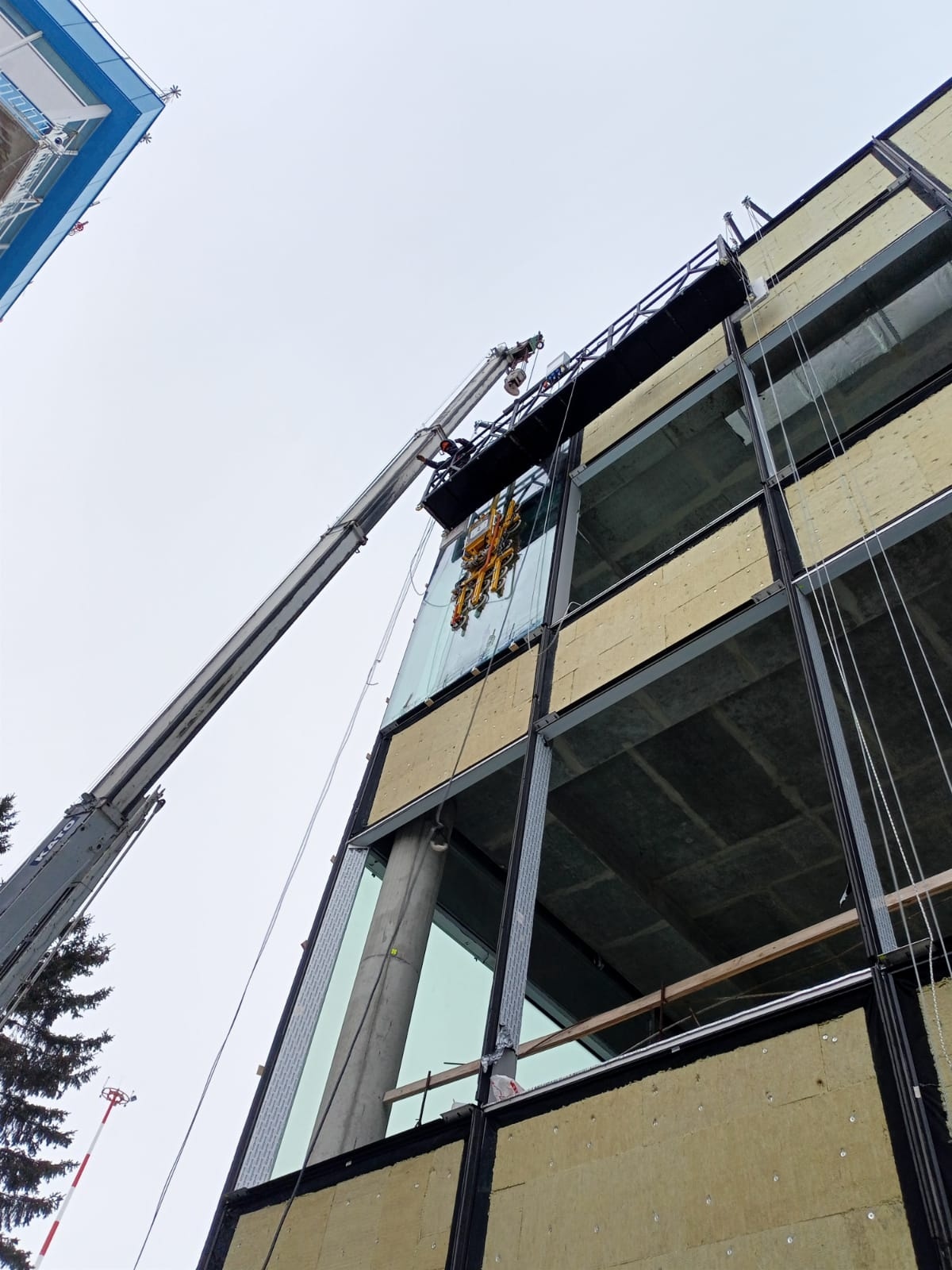

Installation of heavy double-glazed windows during the construction of the airport in Novosibirsk

Large-sized double-glazed windows are increasingly used in modern architecture. Thanks to panoramic glazing, the room becomes brighter, visually more spacious, with a wonderful wide view of the surrounding landscape, and the building looks modern, stylish and elegant. Currently, there are several options to carry out the installation of heavy glasses. One of the simplest and safest is the use of Arlift vacuum grippers.

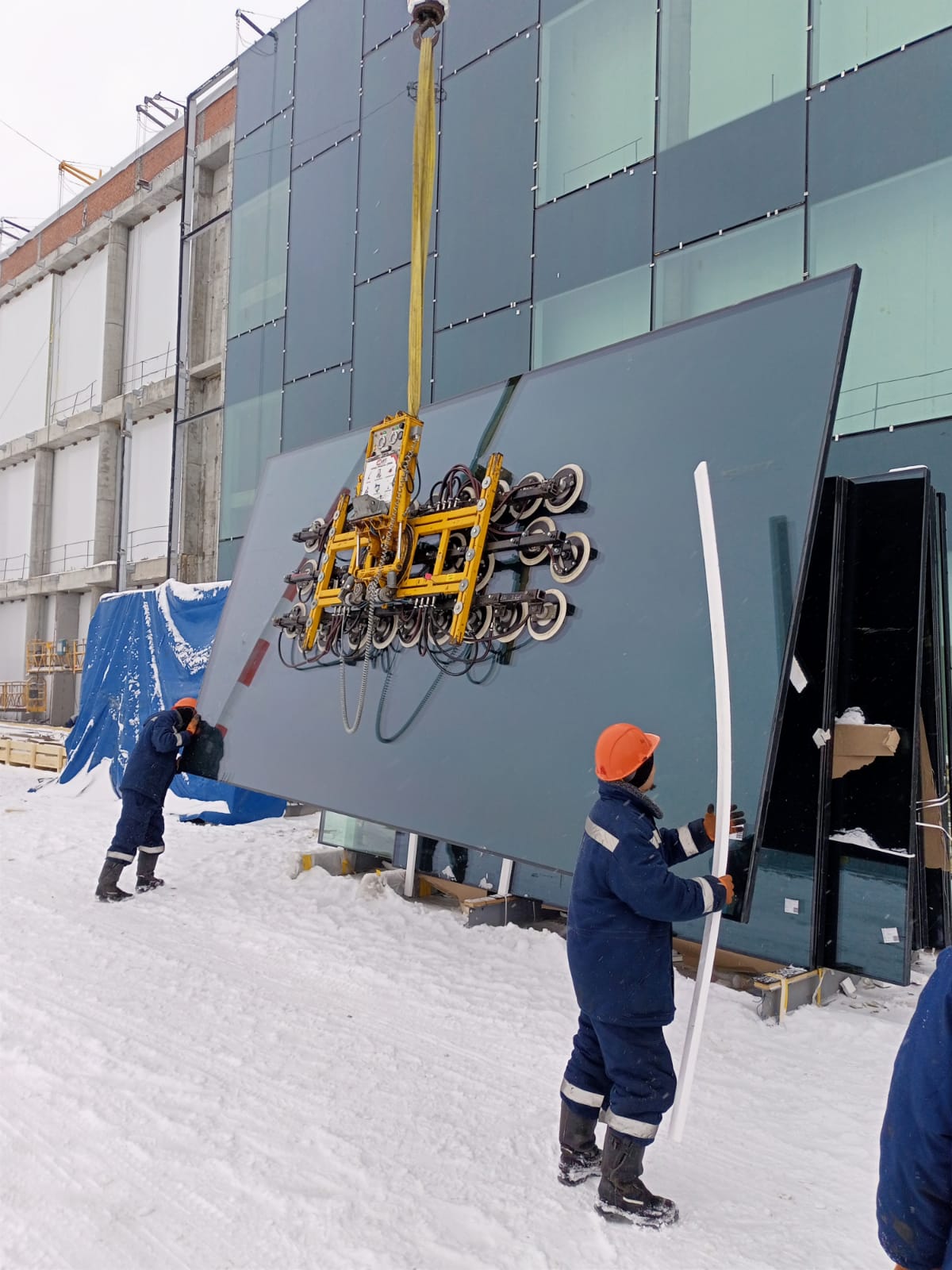

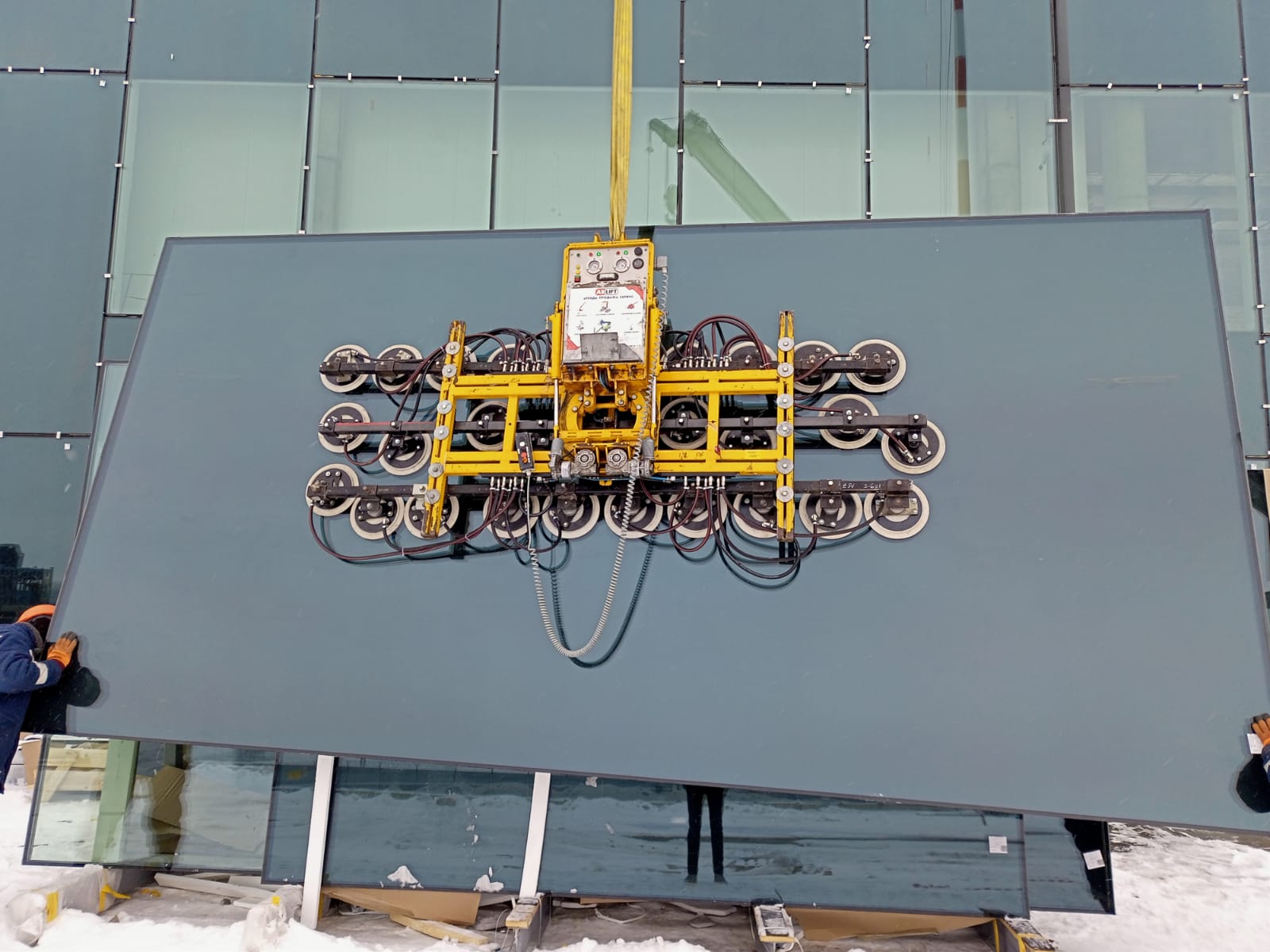

The ARLIFT-F/R-1500 vacuum gripper is designed for mounting flat and radial translucent structures weighing up to 1500 kg. Automatic 360° rotation allows you to turn the glass from the transport position to the mounting position without re-locking.

The double-circuit vacuum system significantly increases the safety of installation. The presence of a counterweight makes it possible to install a double-glazed window under the visor, as well as strictly observe the vertical position of the glass. Both the vacuum gripper and the counterweight are controlled from a remote control, which significantly speeds up and simplifies the installation process.
