Installation of a pedestrian bridge in Petrozavodsk.

The design of modern aboveground passages assumes the presence of a large number of translucent elements, as well as fairly narrow passages and modest dimensions for the installation of structures.

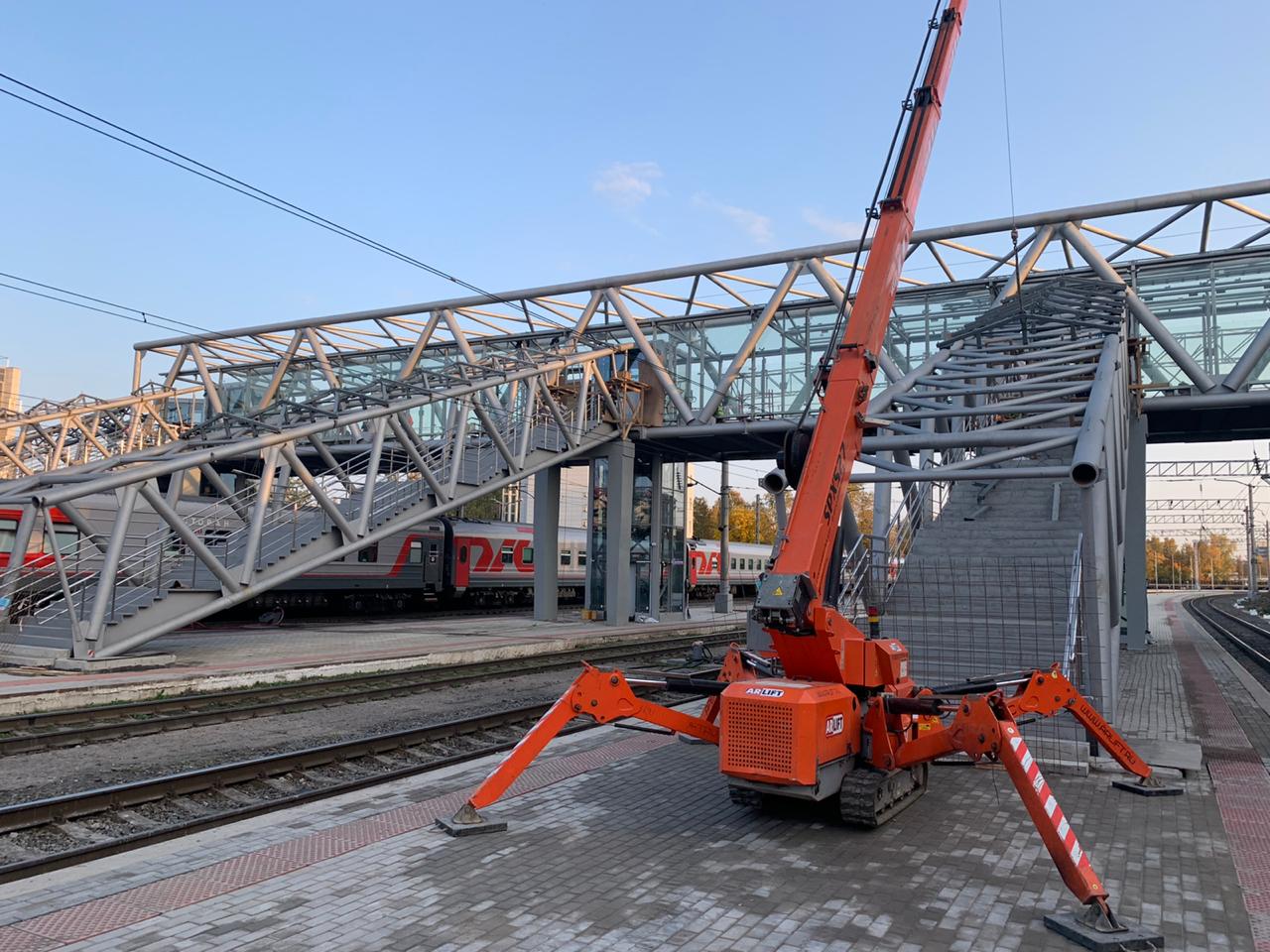

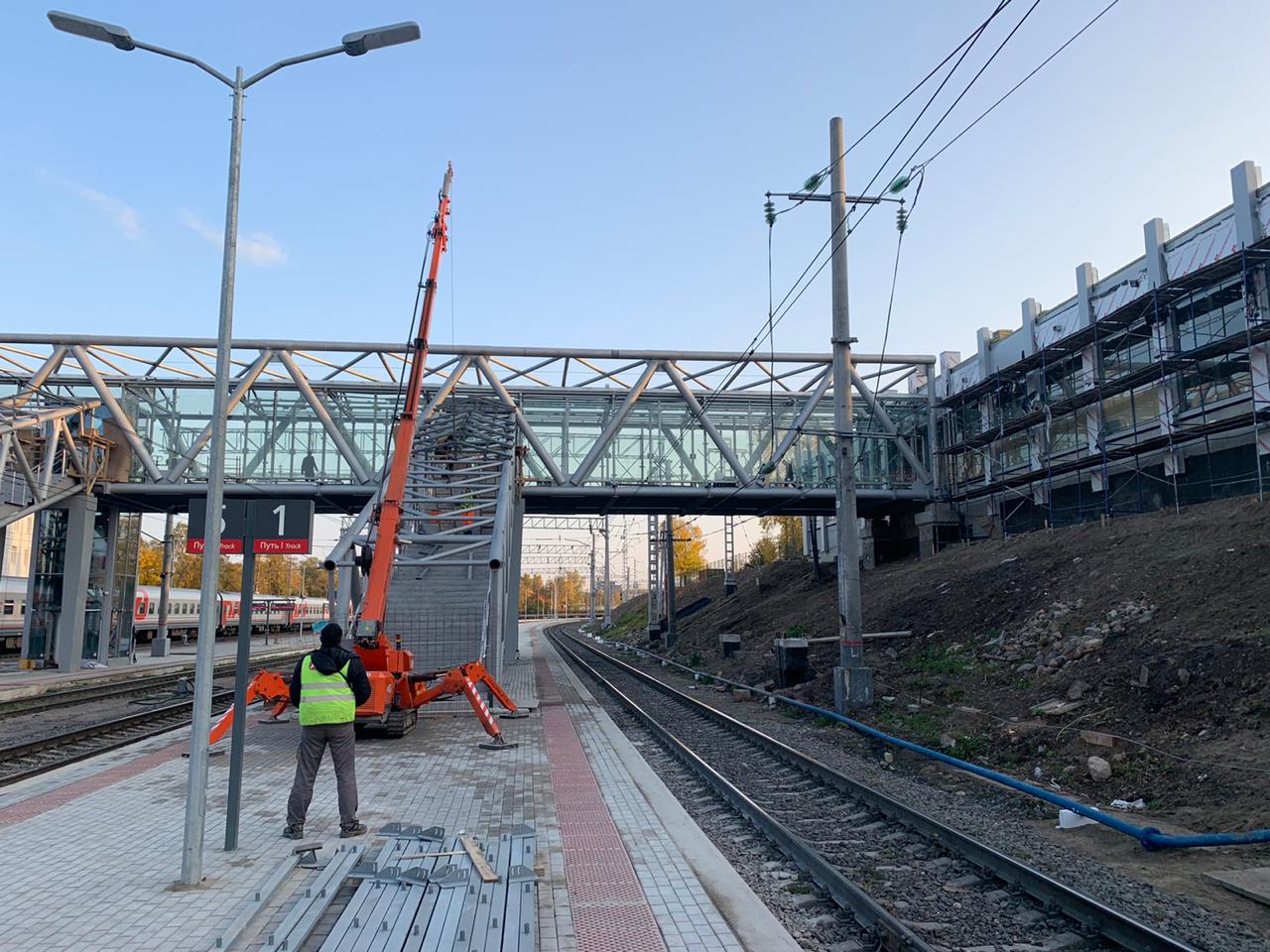

Therefore, it is important to take into account not only the material that builders work with, but also the method with which they make installation. For installation of double-glazed Windows in a limited space, preference was given to small-sized special equipment Arlift. The construction involved the mini-crane Arlift SPD360, mini-crane SPX527, vacuum gripper GS line GS and glass manipulator MR800.4.

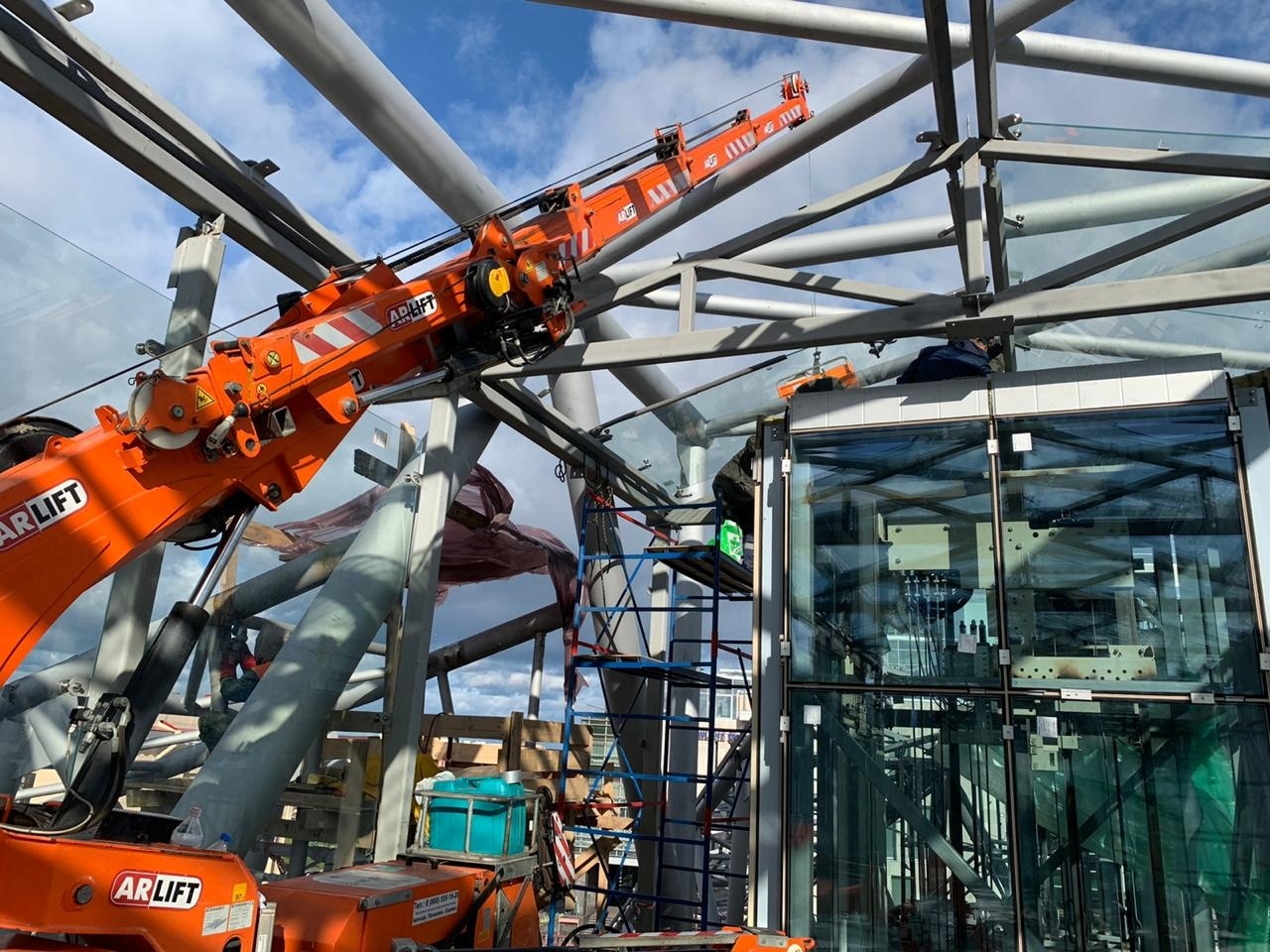

Mini-cranes are designed for Various types of work, including installation of metal structures, lifting loads to a height, installation of formwork and double-glazed Windows. The unique features of the equipment are its compact size and light weight, which allow you to work on limited areas, pass through narrow openings, and work on surfaces that are completely unsuitable for other cranes. The built-in intelligent system allows you to control the operation of the mini-crane: the boom reach and the weight of the load being lifted, and the remote control allows the operator to work in a convenient position and perform installation with millimeter accuracy.

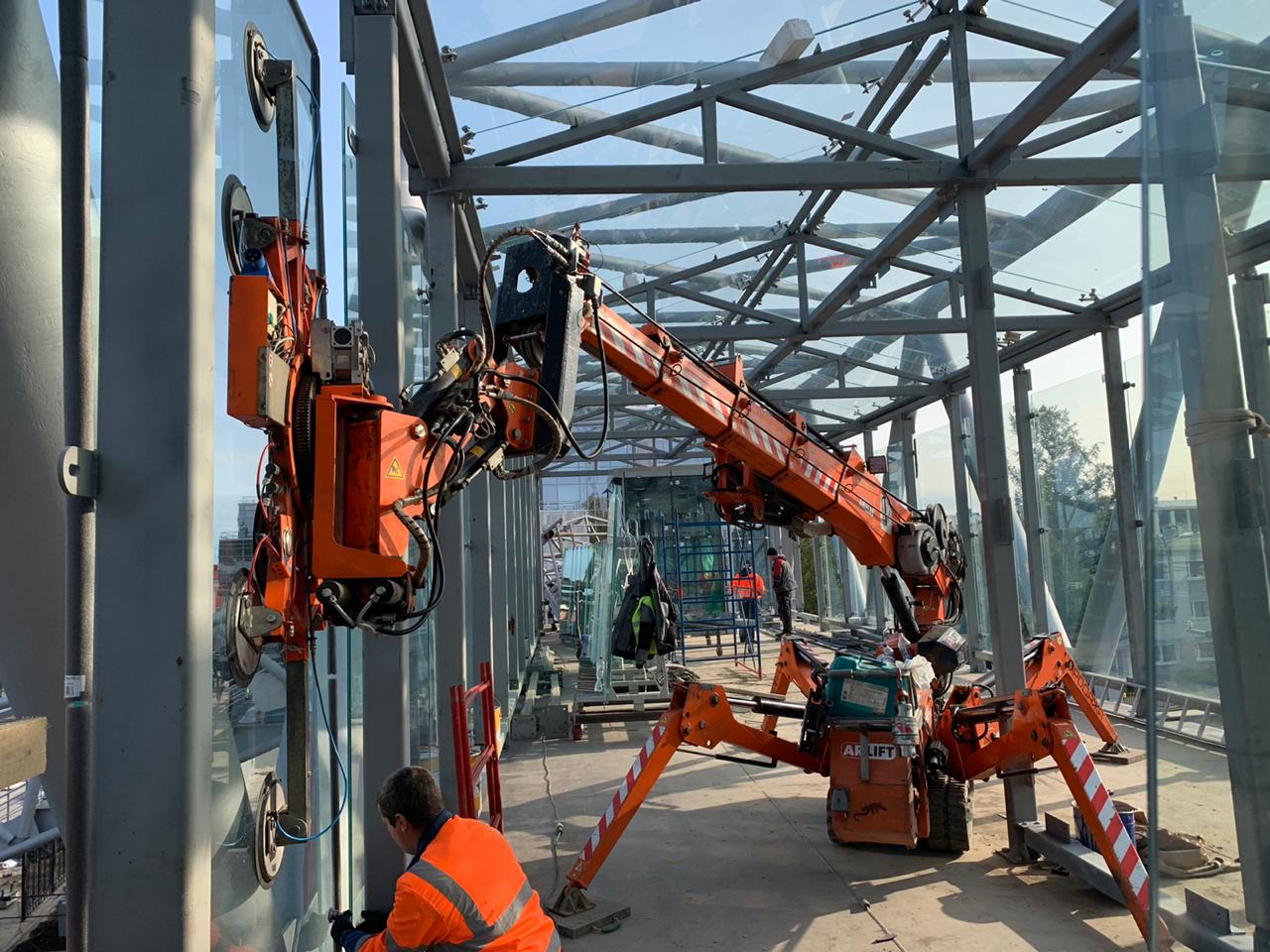

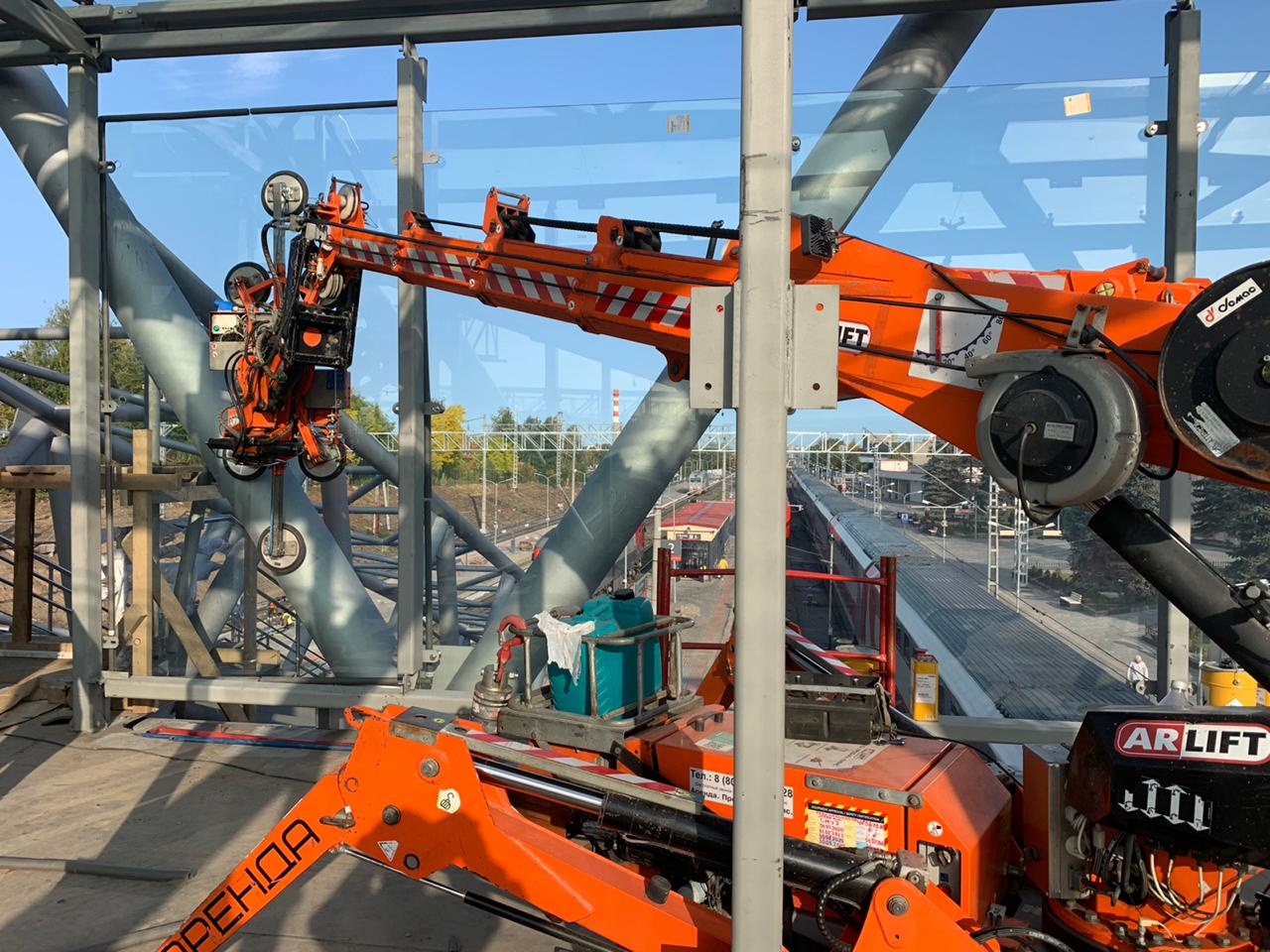

Double-glazed Windows were installed using Arlifter GS-500 vacuum equipment and a manipulator with a vacuum suction Cup for MR 800 glass.4. The manipulator is an additional equipment that is used for precise processing and installation of glass. The load capacity of the manipulator is 800 kg.

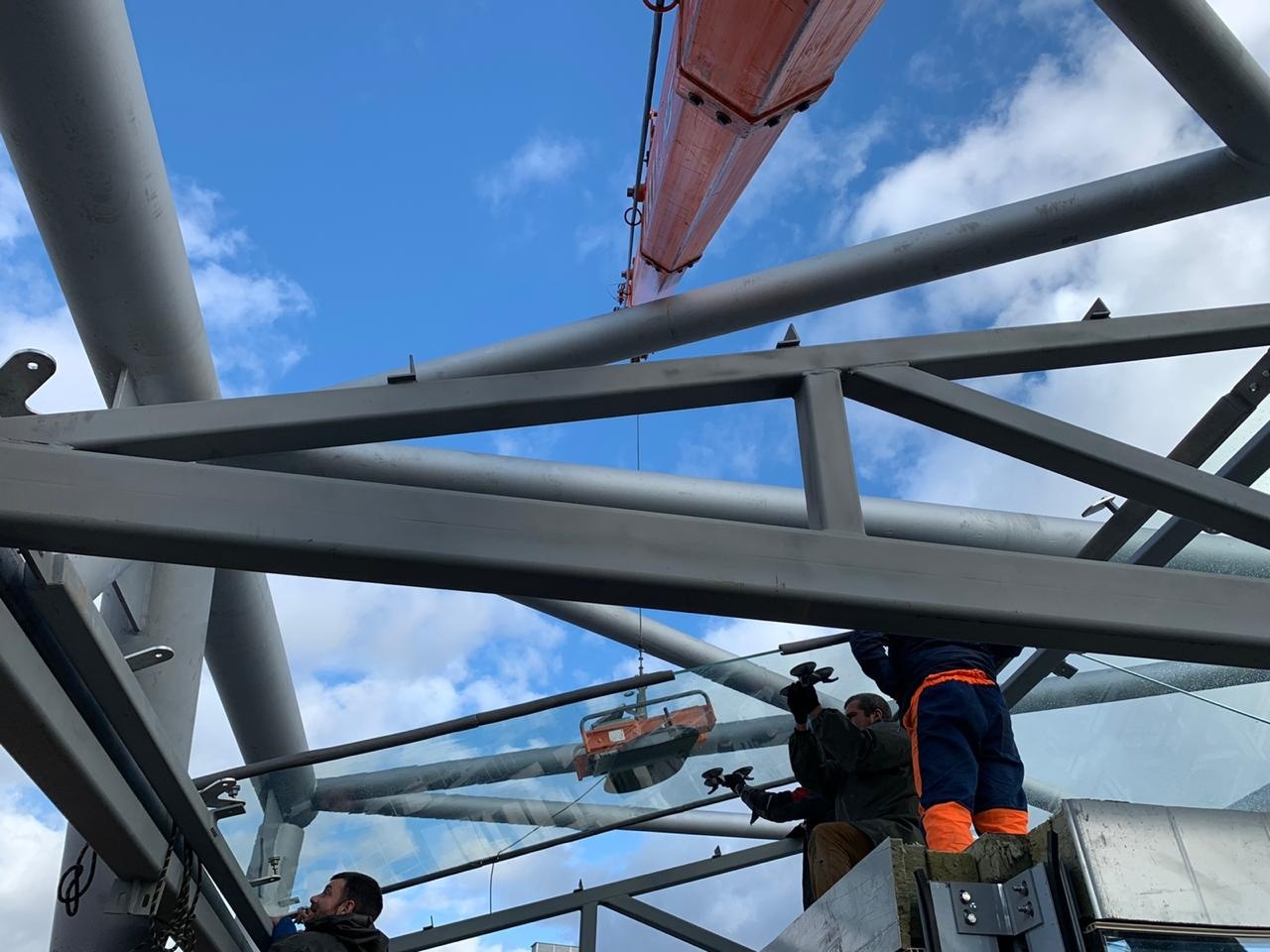

In addition, for the installation of some double-glazed Windows, the Arlifter GS-500 vacuum gripper was used. GS — 500 is a modern equipment of ARLIFT's own production, designed for the installation of glass and sandwich panels weighing up to 500 kg. Thanks to the dehumidification system, it can work in all weather conditions: it is not afraid of rain or low temperatures. The backup vacuum storage guarantees safety at all stages of work.
