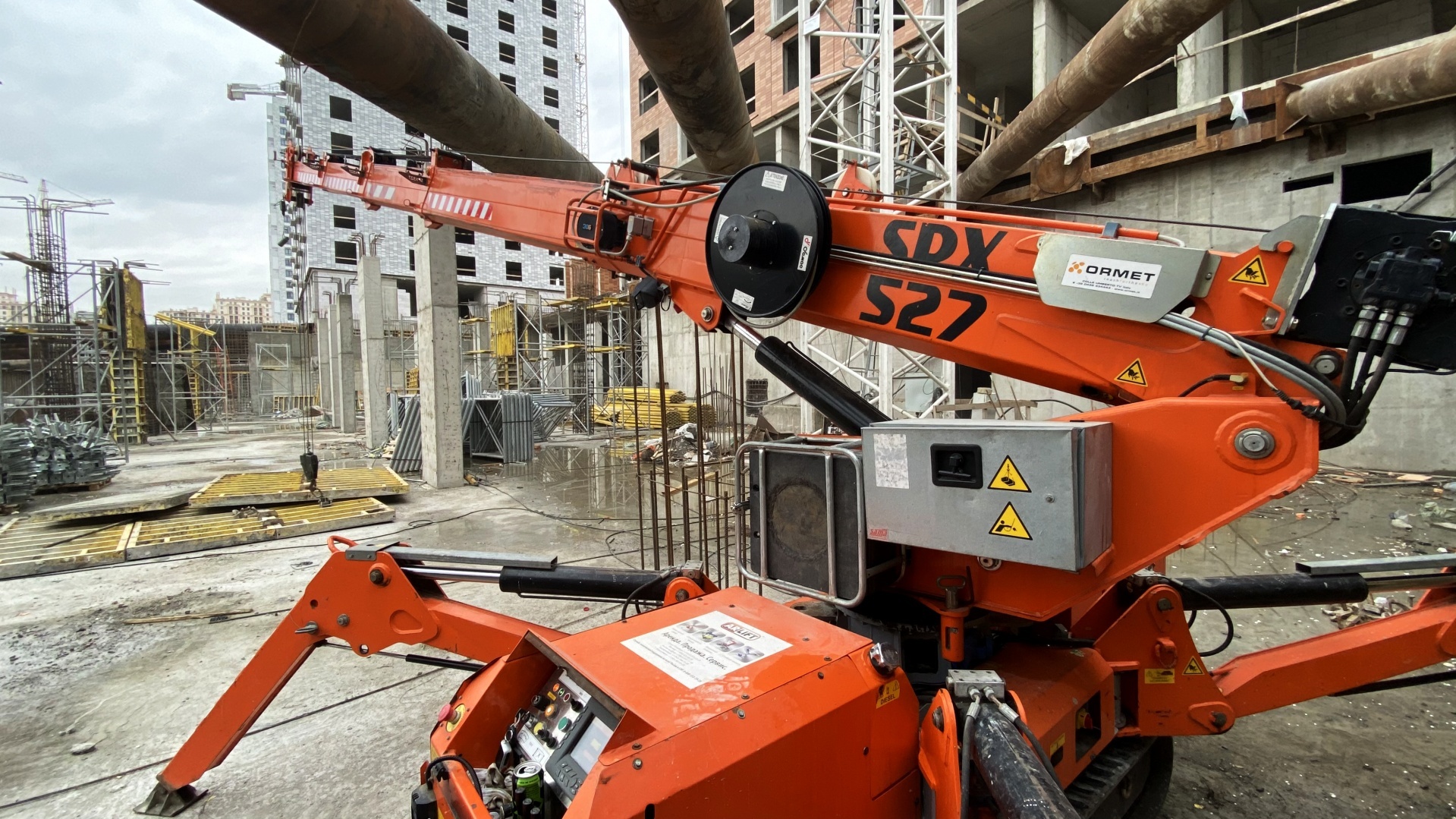

SPX527CDH MINI CRANE: FORMWORK INSTALLATION

In professional construction, reusable quick-assembled formwork is often used. Formwork is a whole system that includes panels or frames with ready-made mounting holes, metal ties, protective tubes, fasteners, stops, and other elements.

The average weight of the formwork is 200 kg, so it is not easy for a Builder to work with such a system. However, there is a solution - this is the use of a mini-crane when installing the formwork.

This type of equipment such as a mini-crane can be easily used when working with the installation of various types of formwork:

• Stationary formwork;
• Collapsible formwork – the most common type;
• Suspended formwork;
• Formwork made of reinforced concrete slabs-shells;
• Formwork for precast concrete structures.

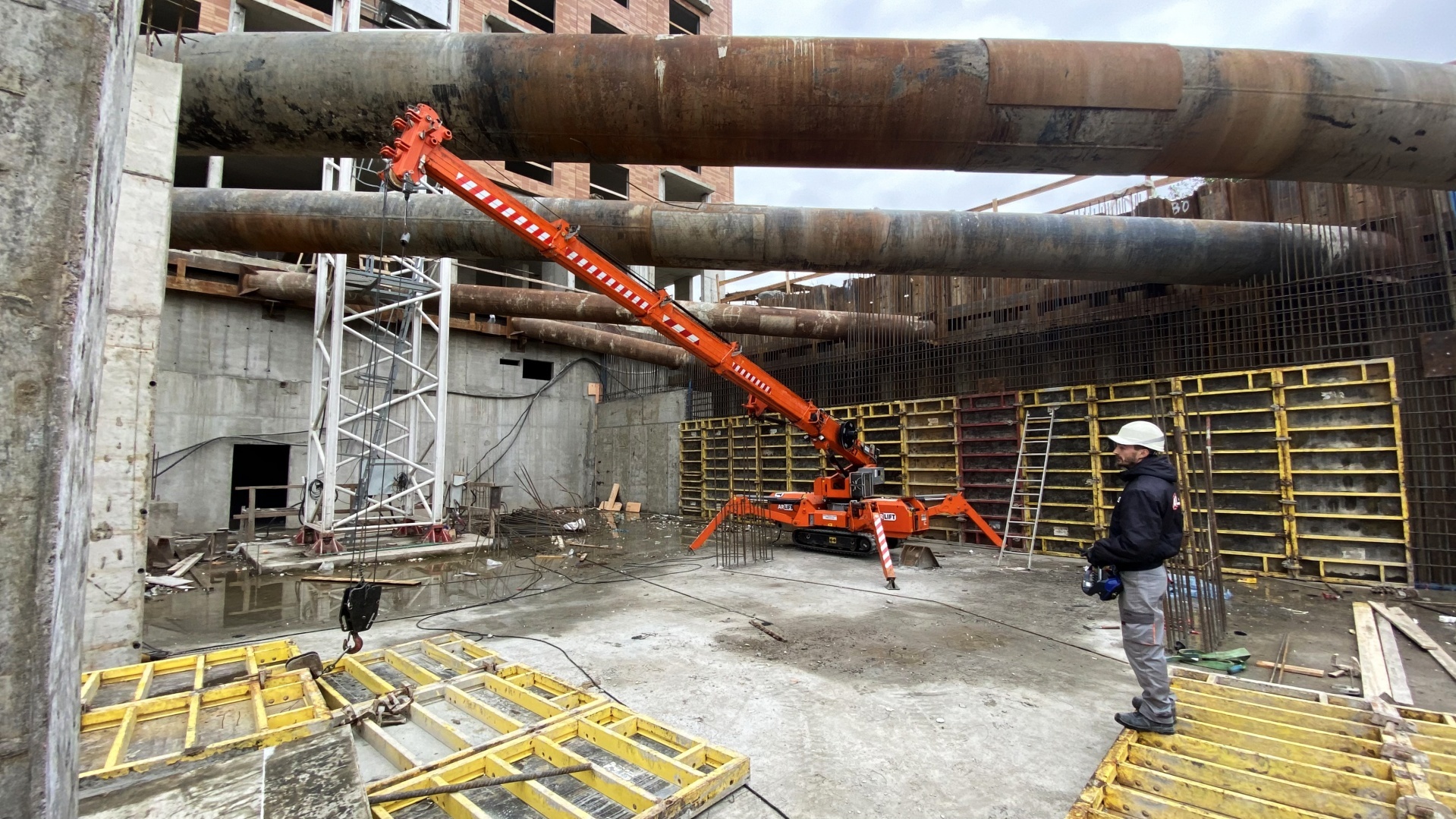

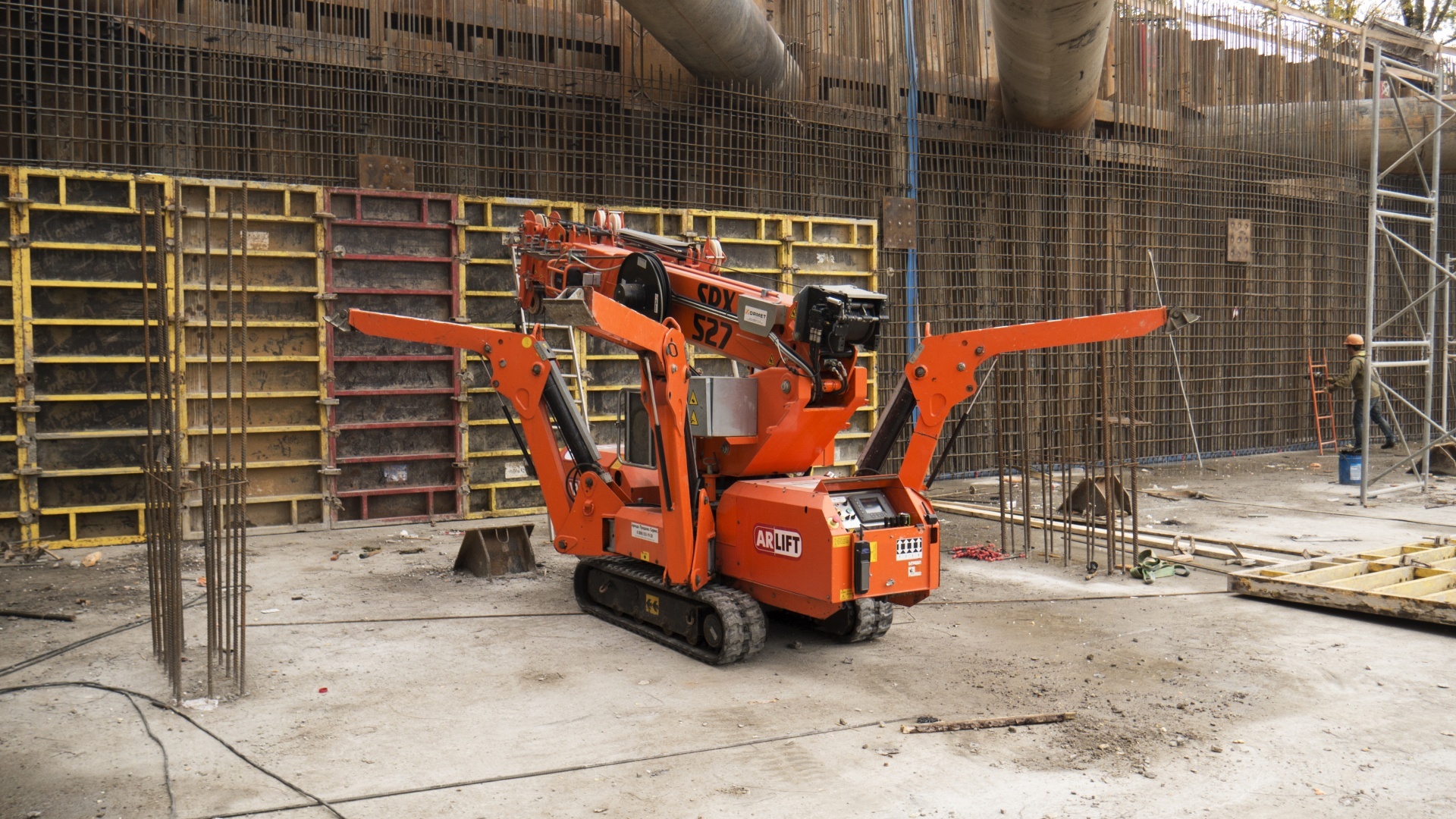

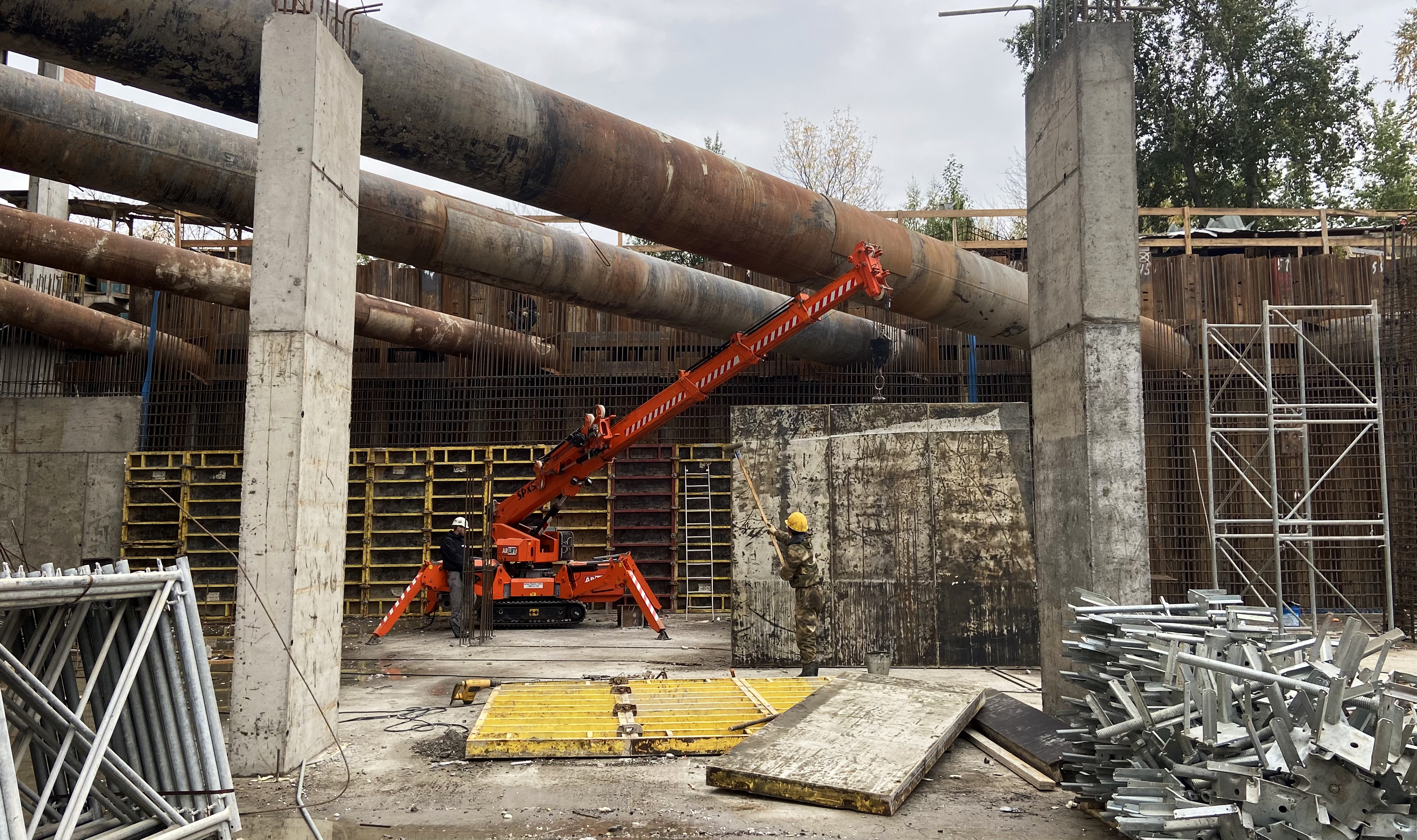

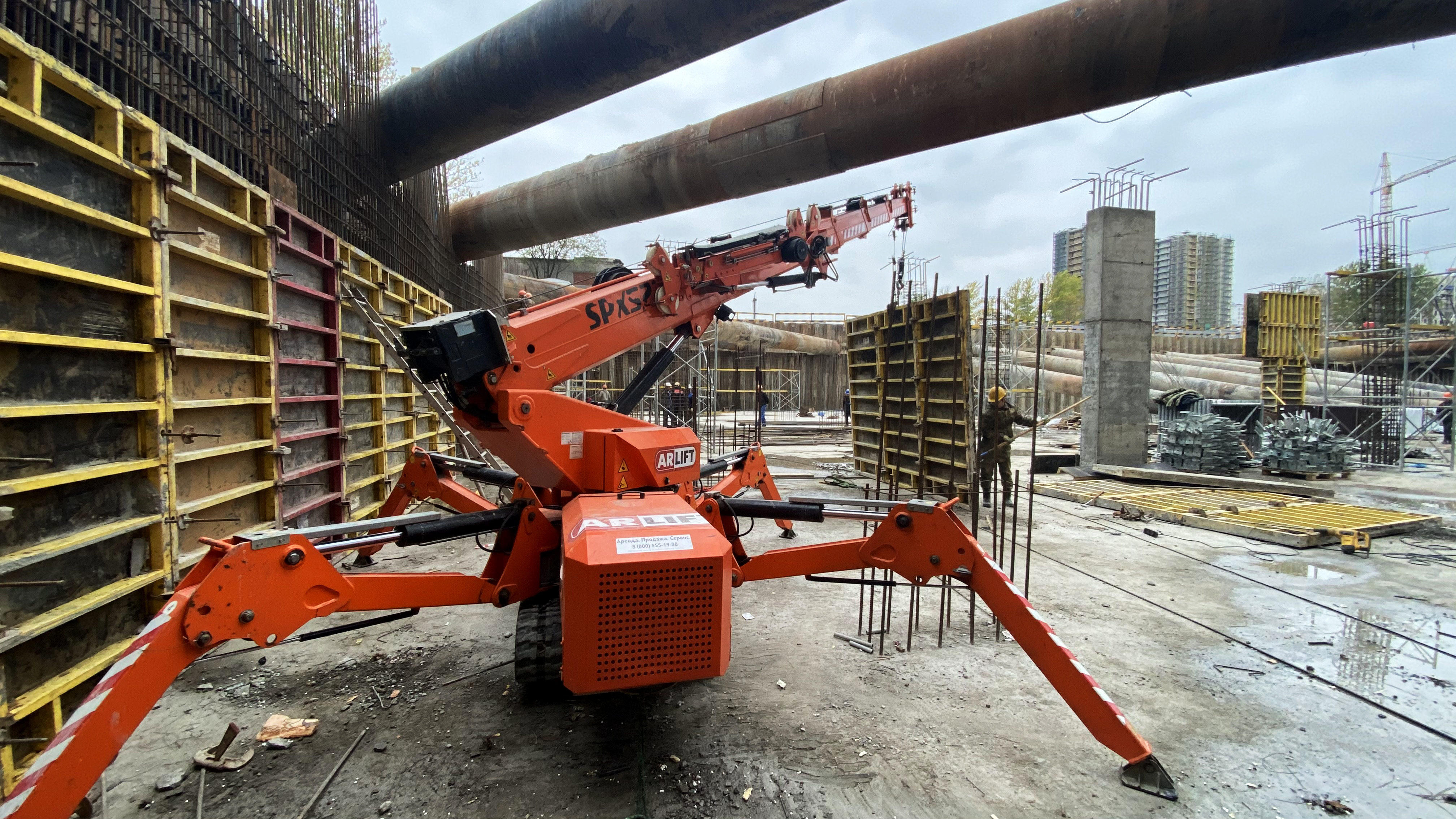

Mini-crane SPX527CDH carried out work on the installation of formwork both on the open surface and between the spacer pipes, the distance between which was 3 meters. The spx527cdh mini crane has a number of advantages for such operations:

• Compact size– 4150х1100х1950 mm, this allowed the crane to be positioned between narrow openings formed by spacer pipes;
• The weight of the crane is only 3600 kg, it can be used on the roof, ceiling and underground;
• Load capacity-2700 kg;

Remote control-provides operator mobility and allows you to thoroughly control the movement of cargo, in this case, the formwork.
