Installation of the glass using a mini-crane SPX 527 and vacuum gripper Arlifter GS-350

Construction is still ongoing in the popular resort complex "Okhta Park". Many new cottage are building here all the time.

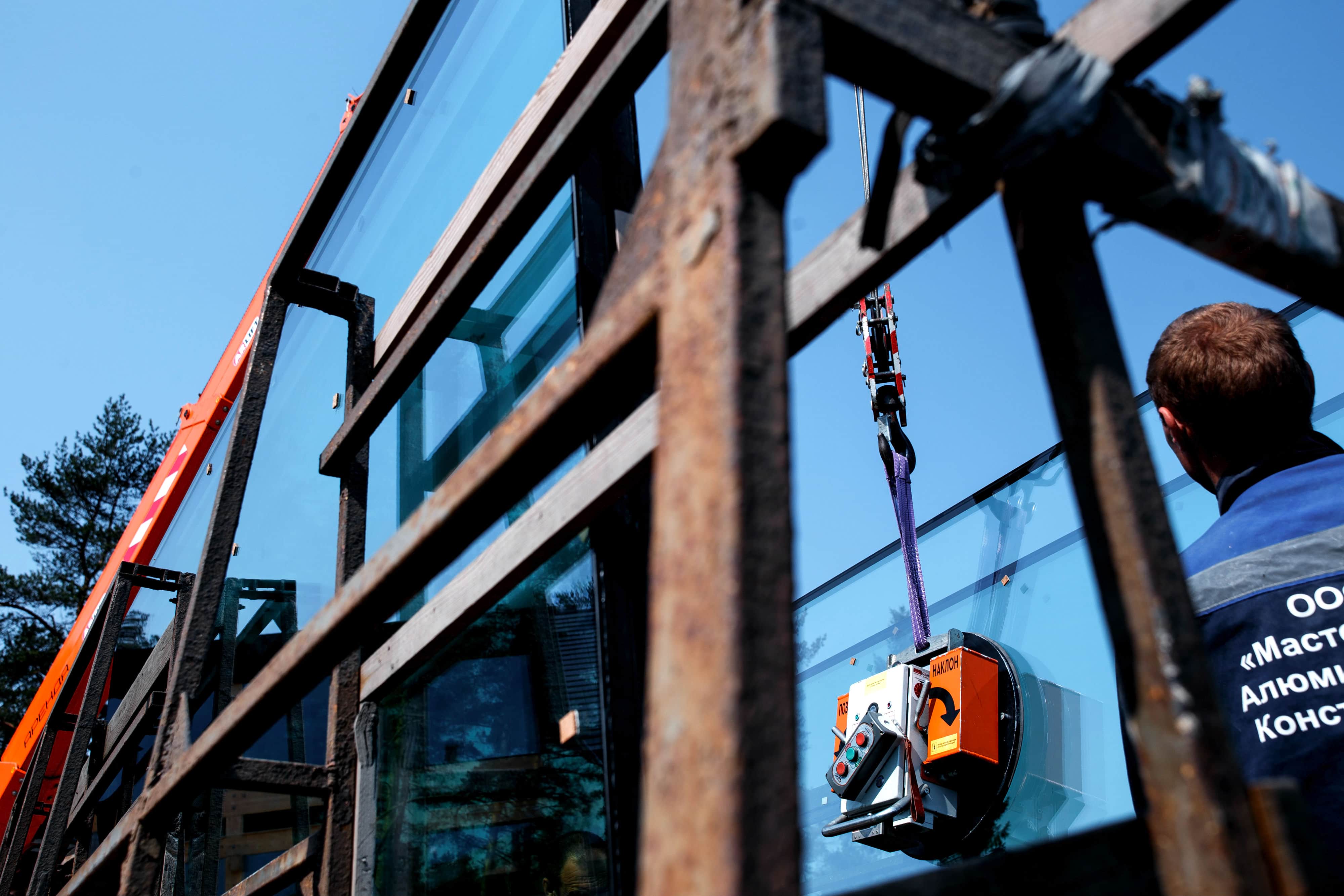

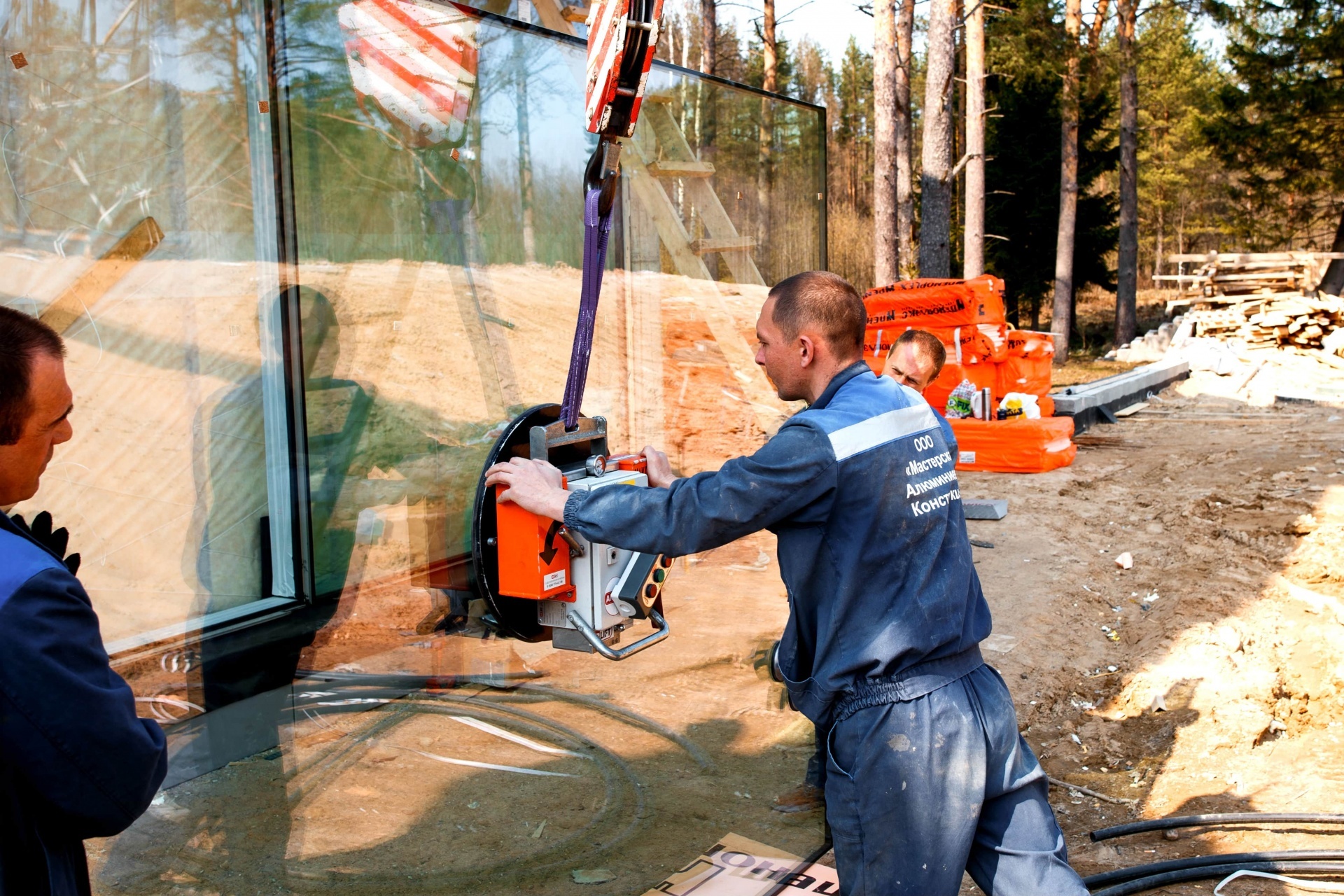

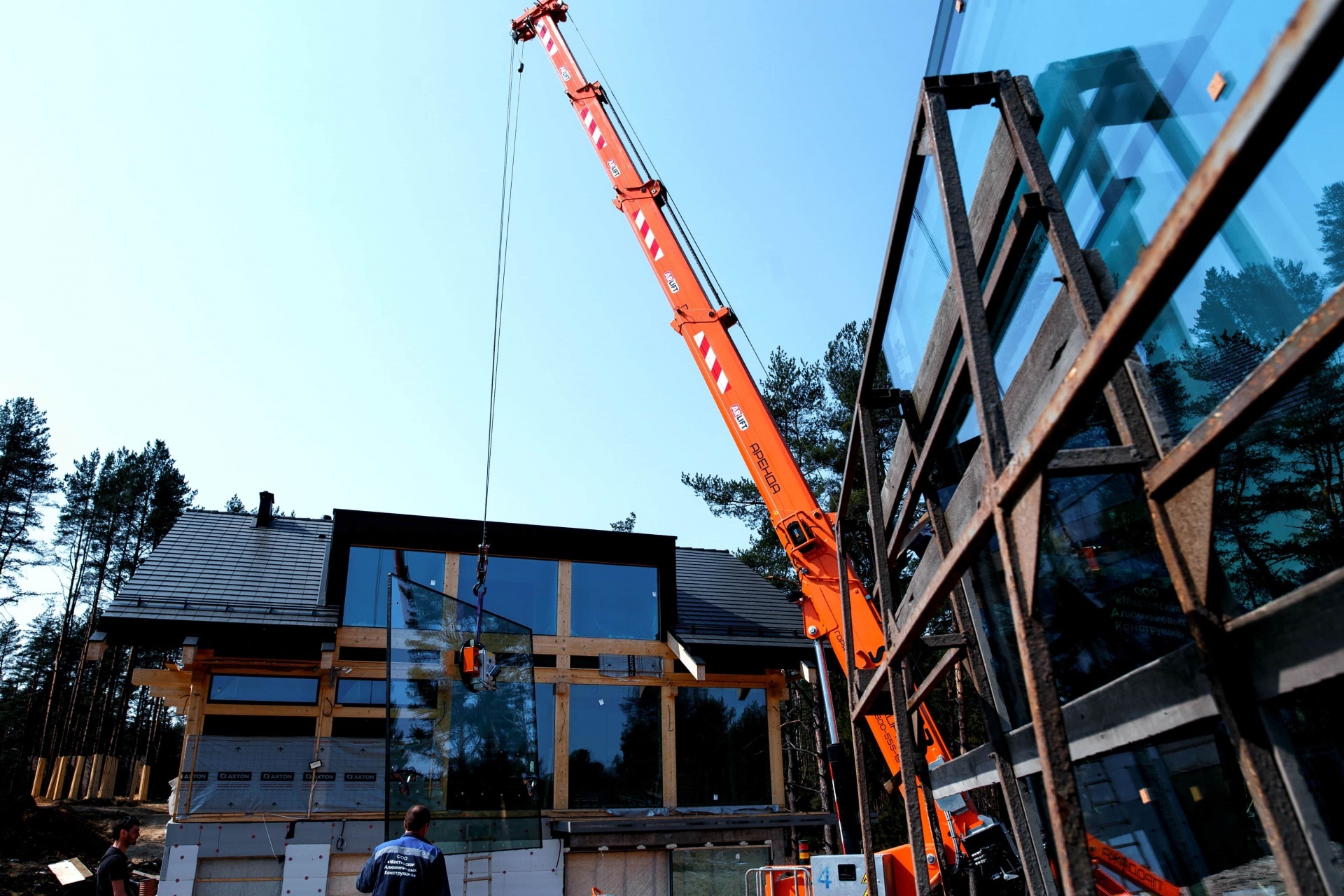

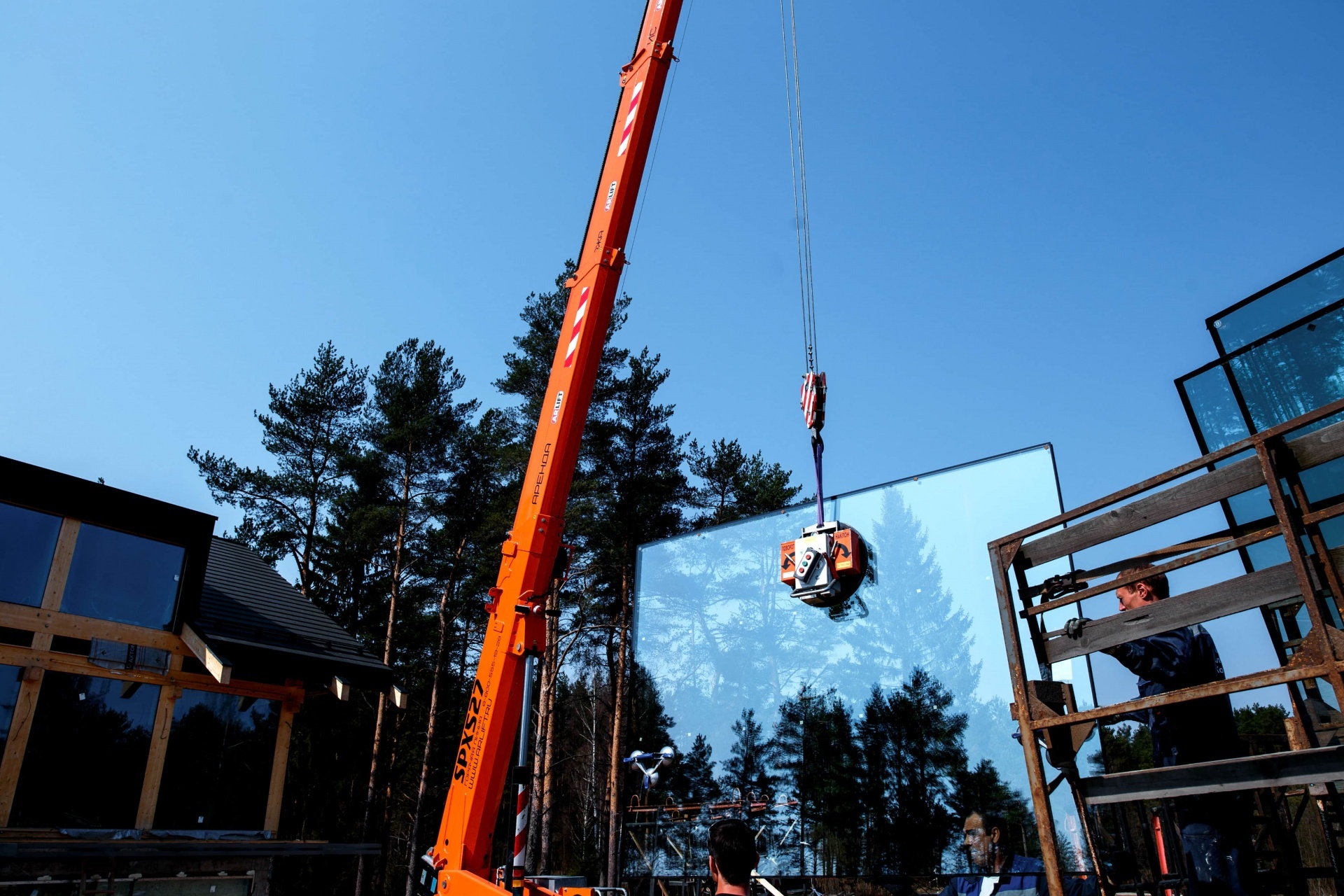

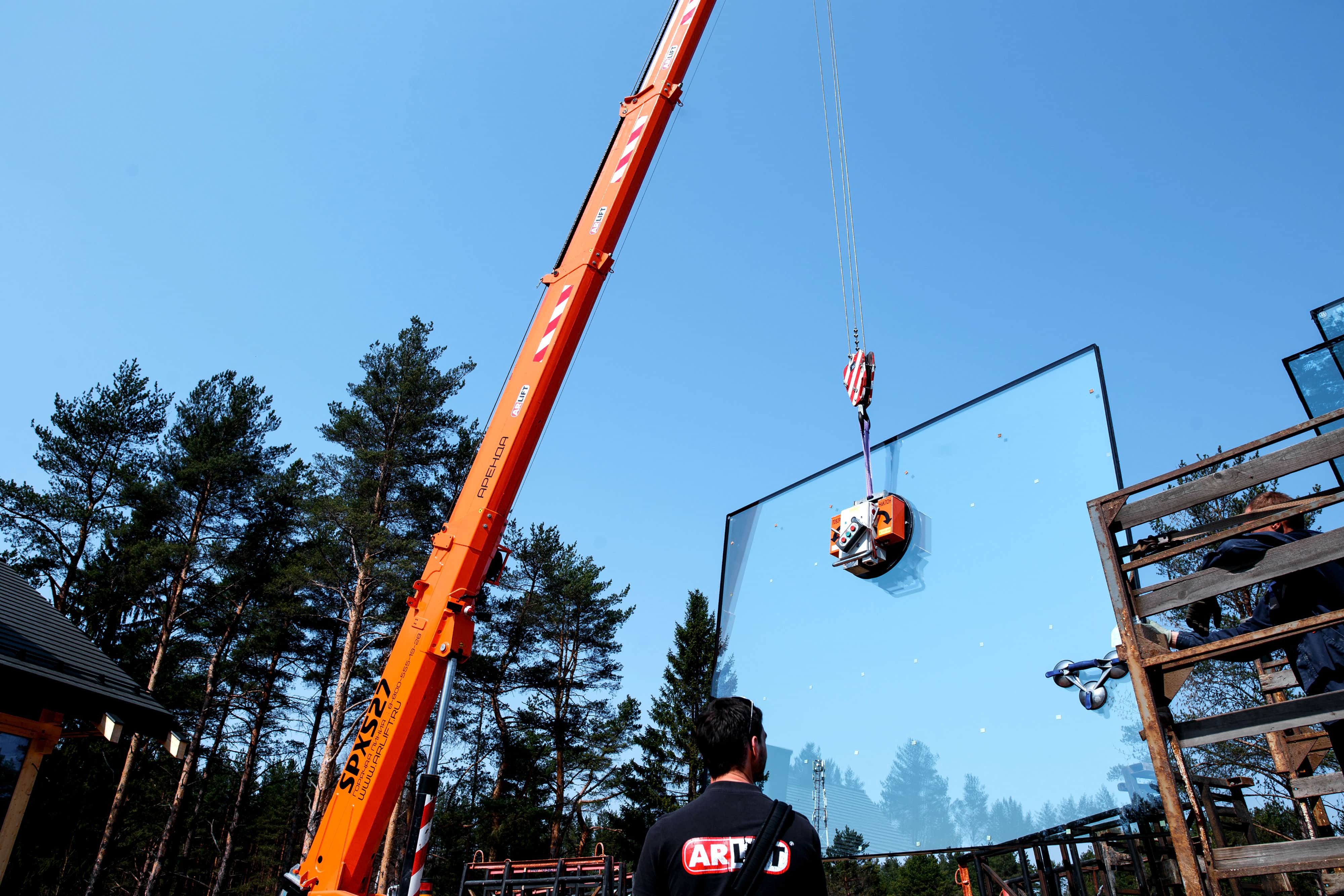

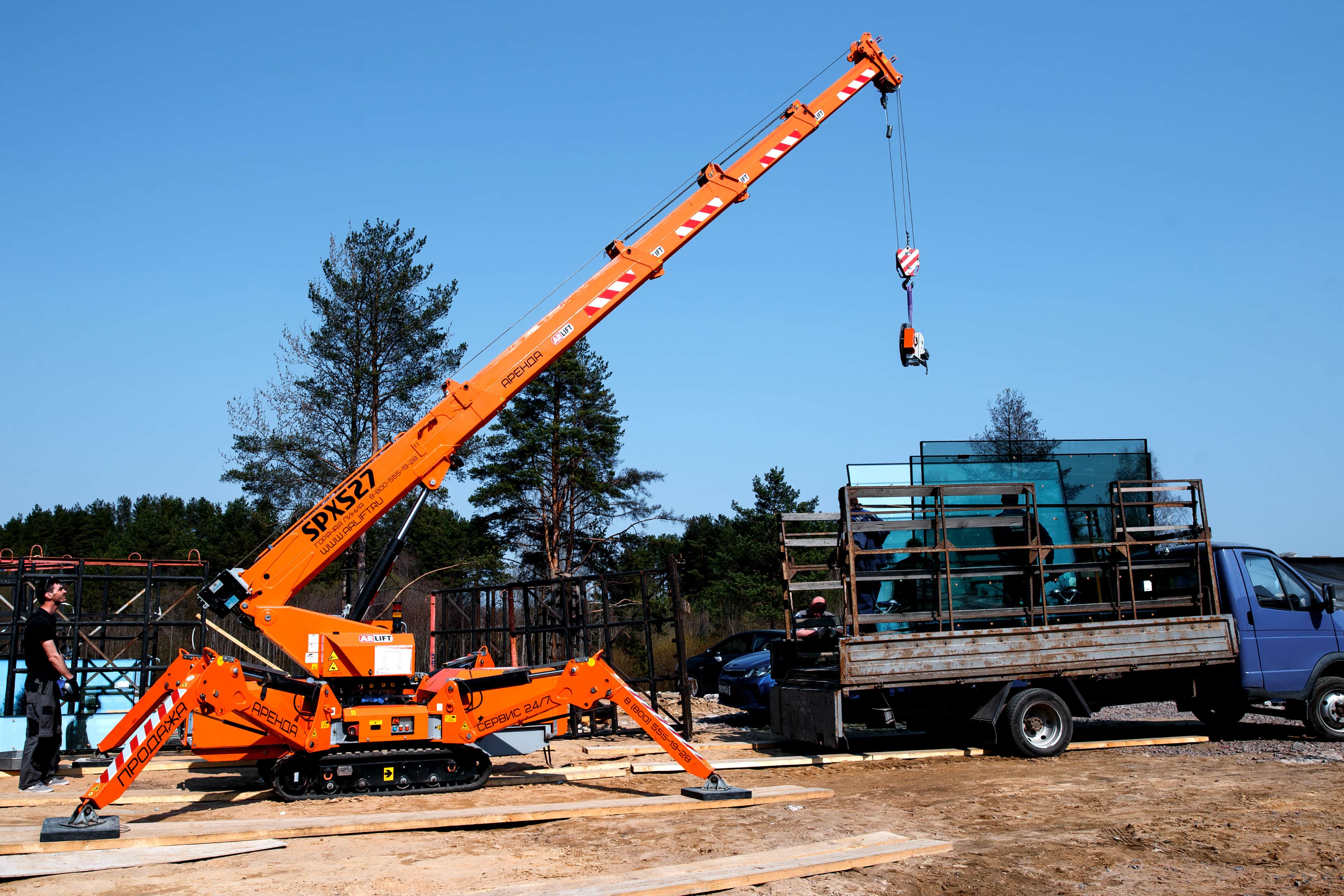

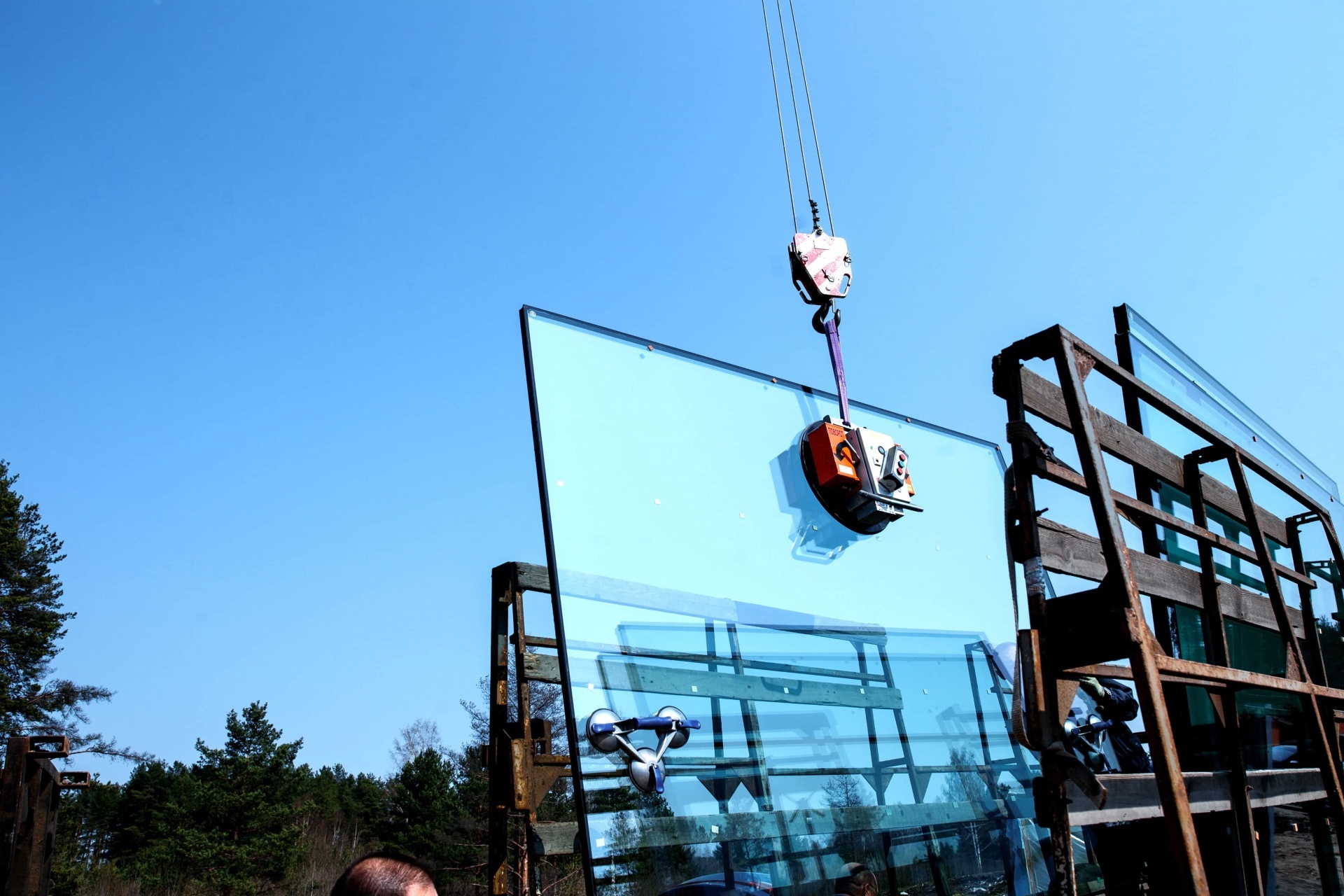

This time, with the help of technology company Arlift was made installation of glass weighing about 200 kg on one of the future buildings. The vacuum gripper ARLIFTER GS 350, working in tandem with the SPX 527 mini-crane, coped with the task and was able to perform the entire scope of work in a short time.

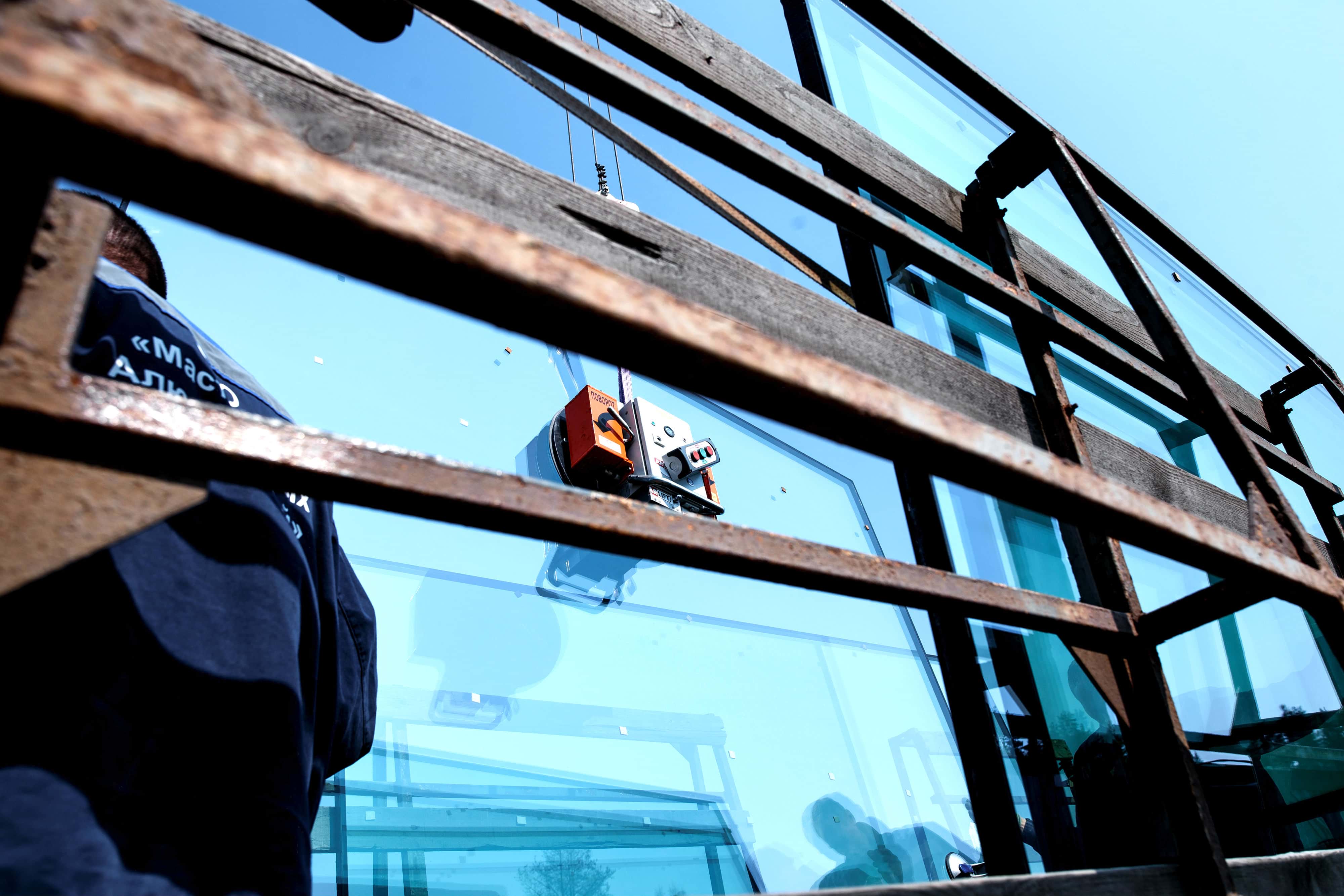

Technical characteristics and basic vacuum gripper ARLIFTER GS-350:

• Installation of glass weighing up to 350 kg and sandwich panels up to 8 m
• Load capacity 350 kg
• Dimensions 500x500x200 mm
• Full charge capture: 8 hours
• Rotates 360° with locking at every 90°
• Dehumidification and air filtration system (possibility of safe work outdoors during precipitation)
• Drive vacuum (system of compensation for loss of vacuum)
• Sound and light security system

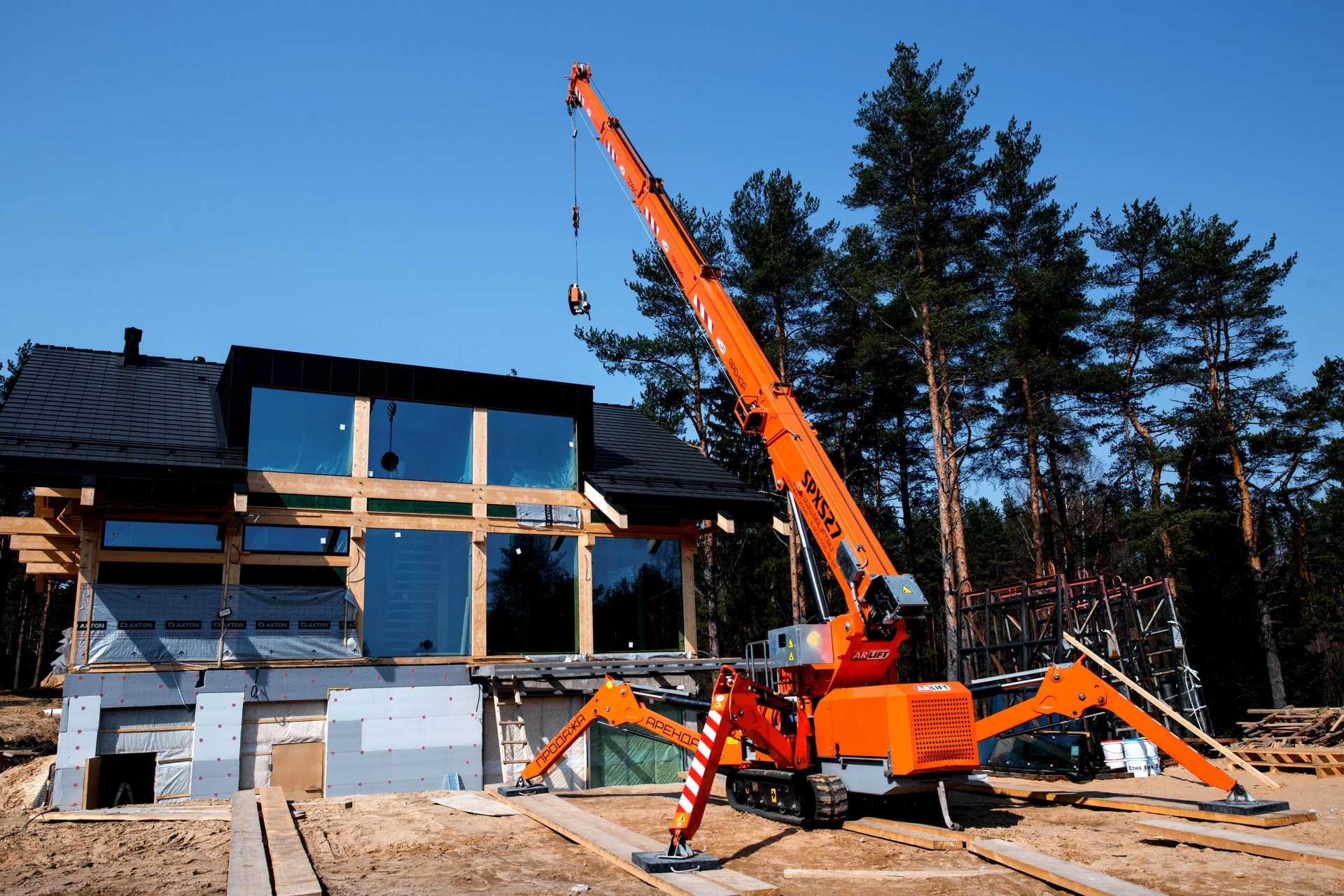

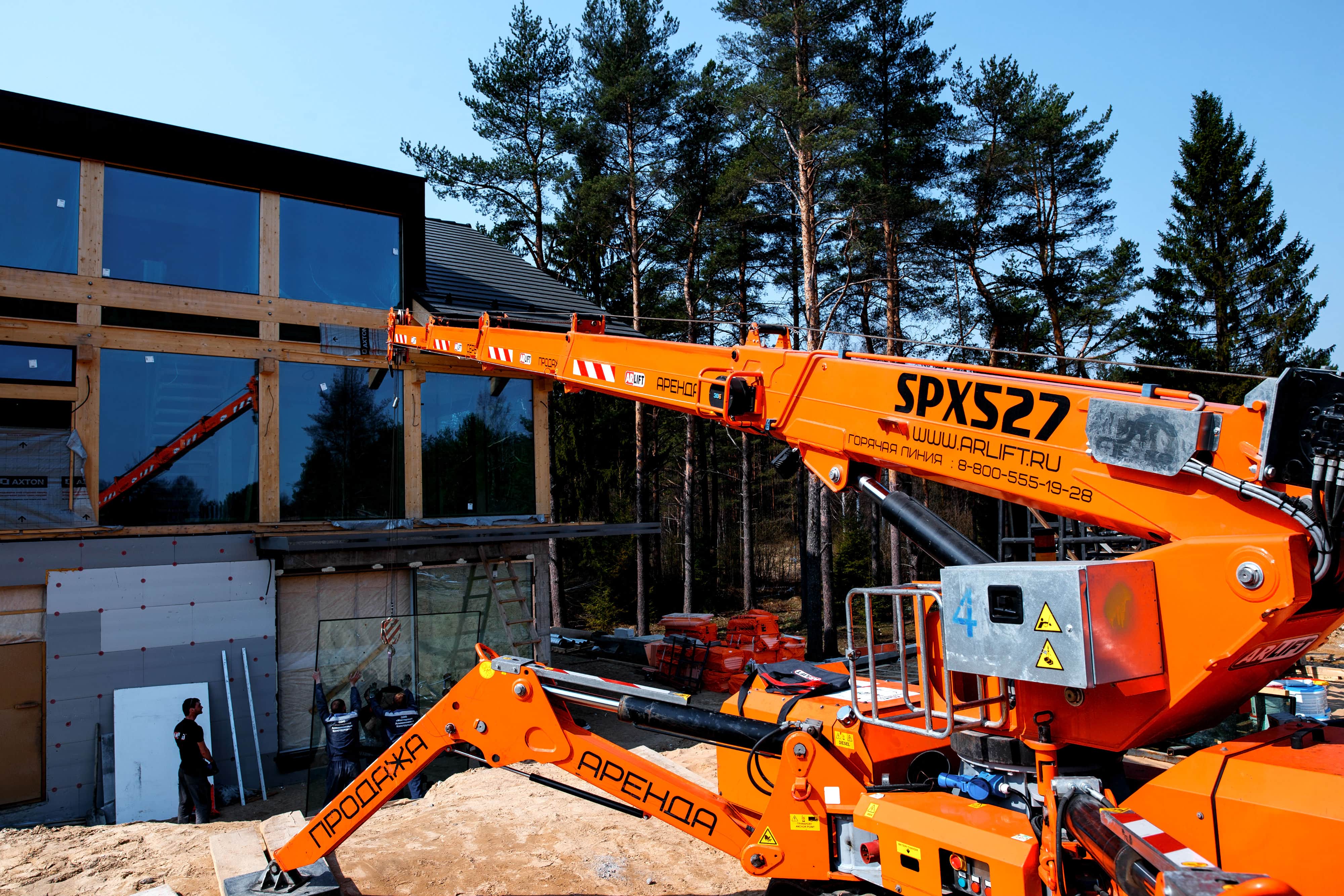

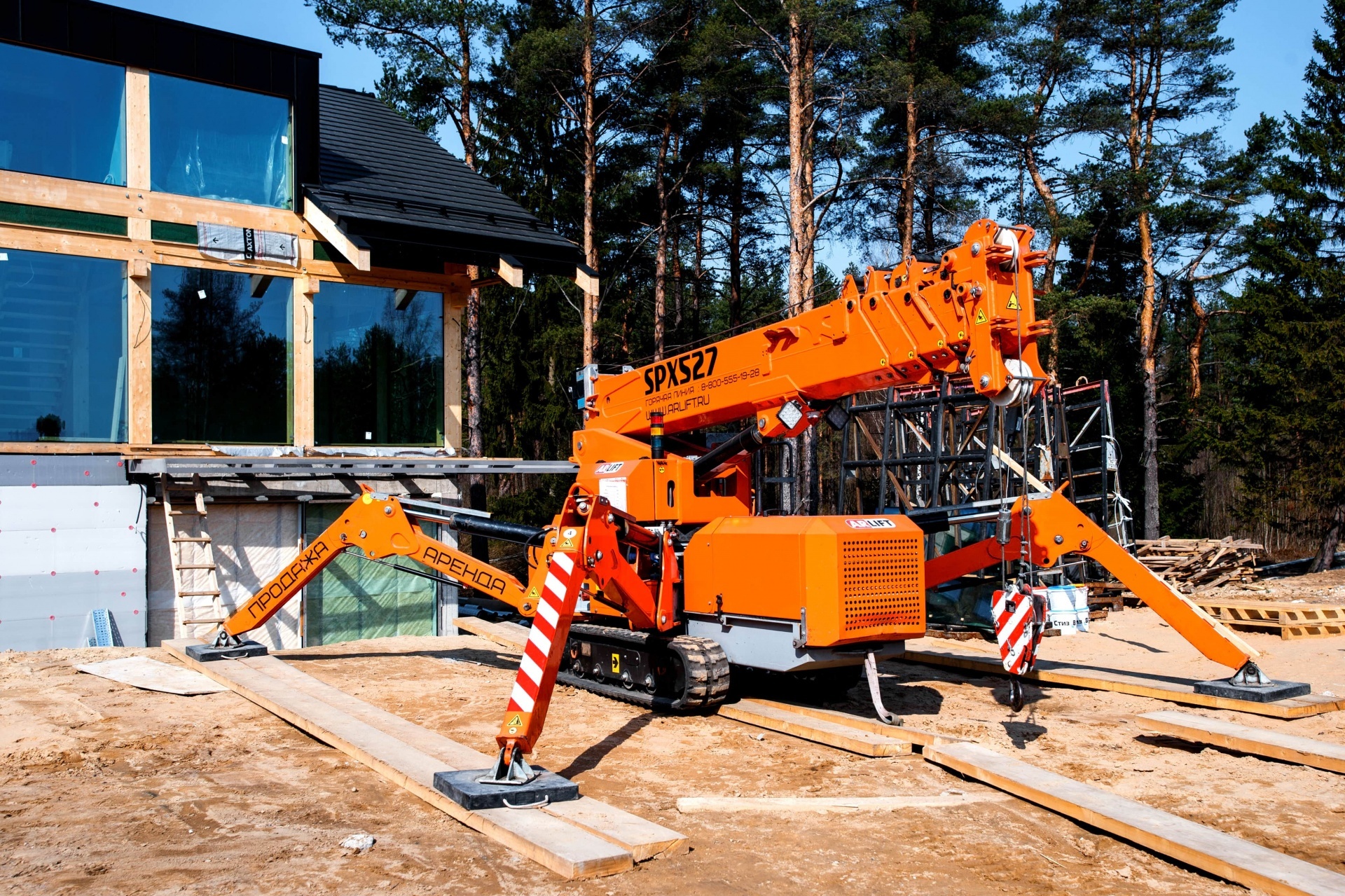

Specifications and basic equipment of the SPX 527 mini-crane:

• Lifting capacity 2.7 t
• Max. a boom length of 11.2 m
• Weight 3.6 t
• The length of the hoist rope 60 m
• The area of stabilization 4469х4469 mm
• Poppy. lifting height 17.5 m
• Dimensions 4150 x 1100 x 1960 mm
• Horizontal flight (max) 11.2 m
• Stabilization system and LMI (display load moment, stall prevention, control of separation of the outriggers)
• Continuous rotation
• Radio remote control
