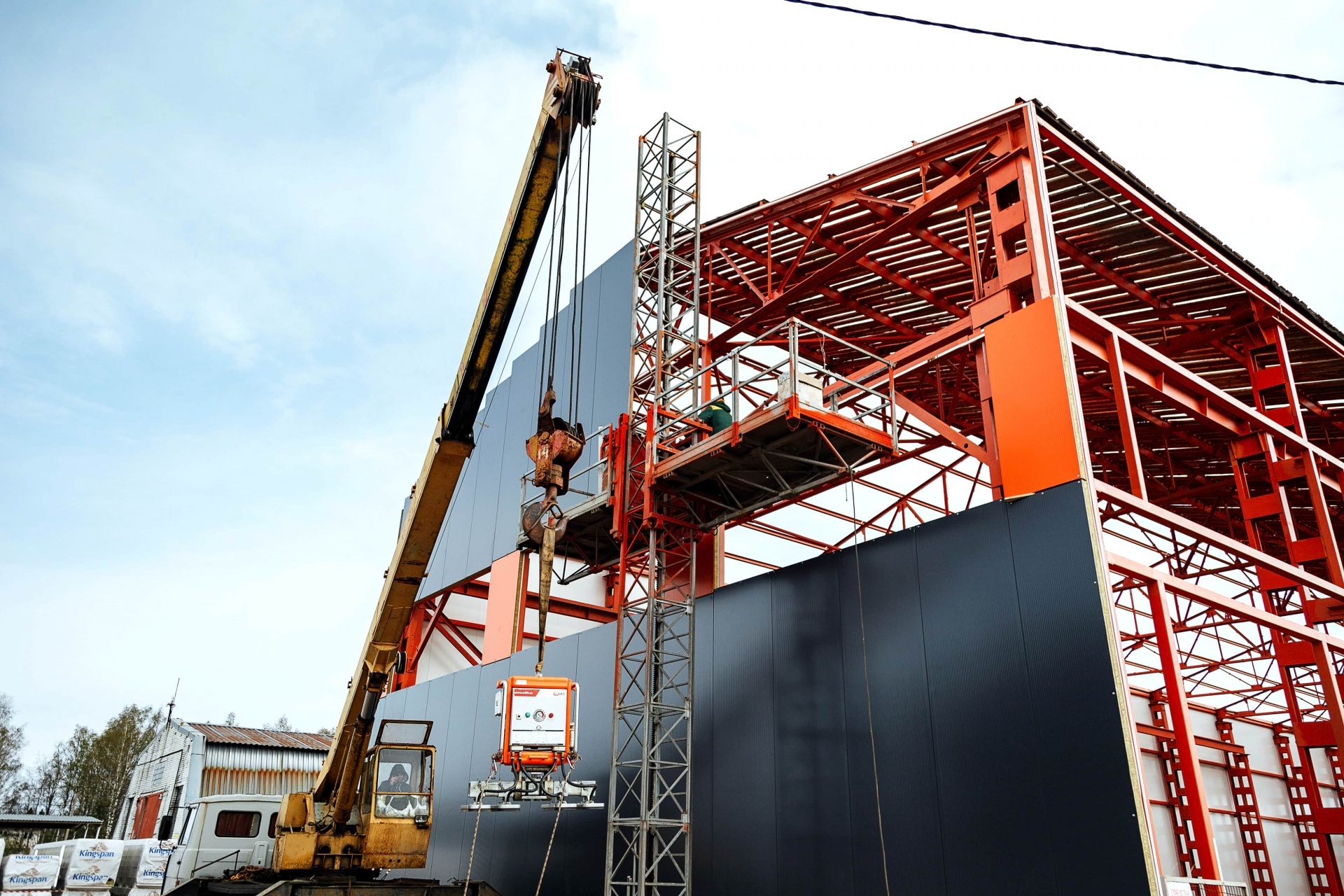

Installation of sandwich panels for warehouse complex in Vsevolozhsk

Object: Warehouse complex
Type of work: Installation of sandwich panels 2500 square meters

Implementation:

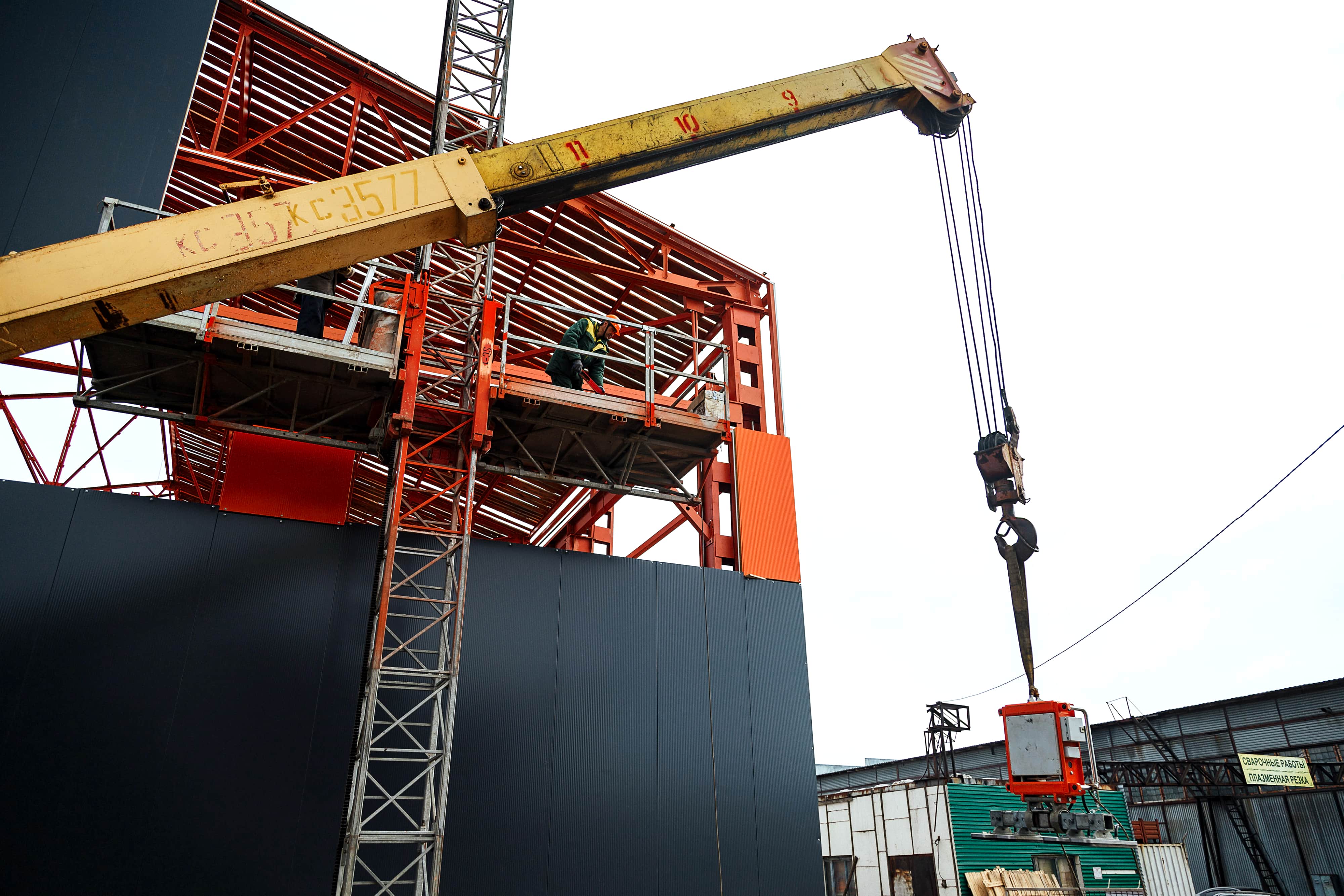

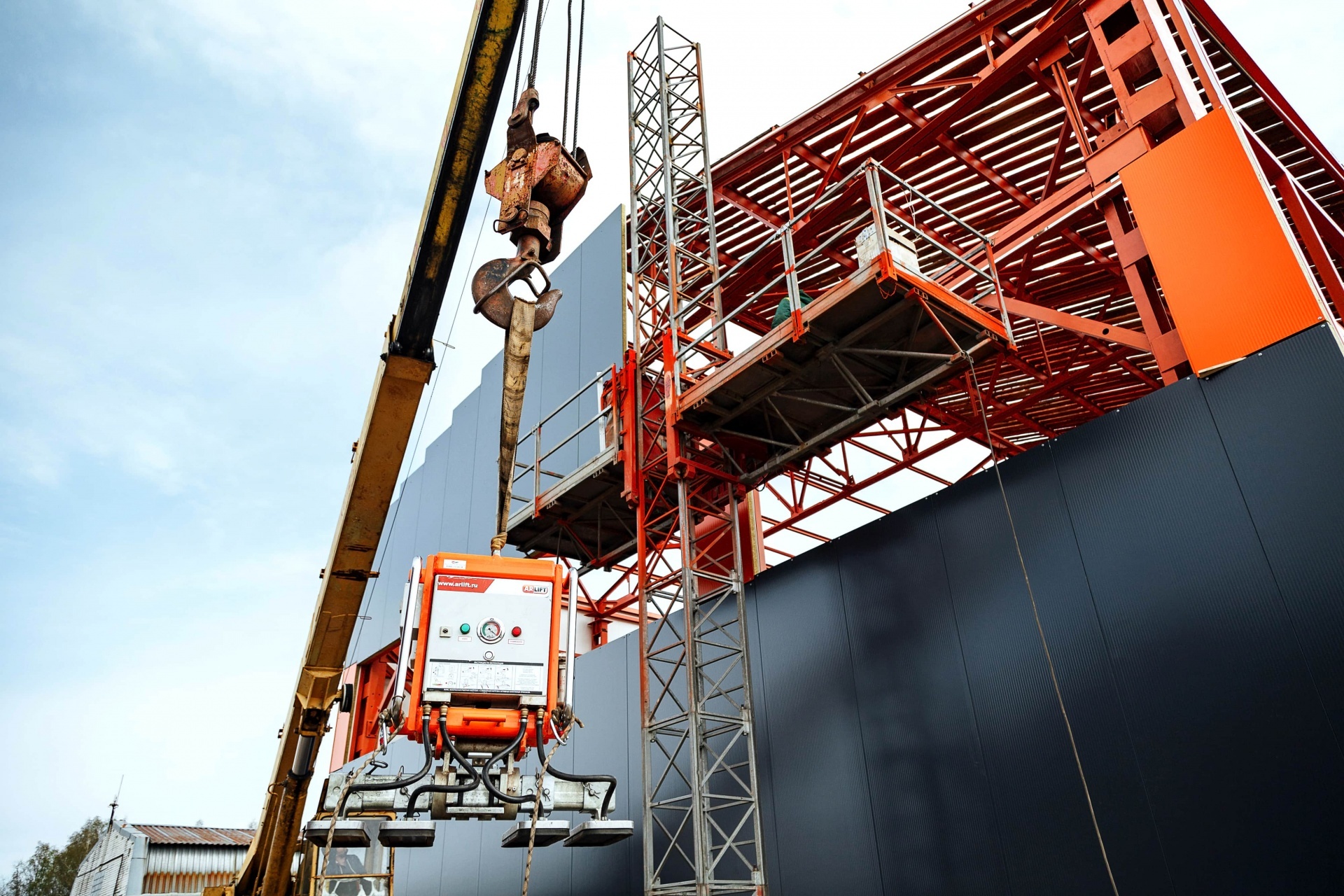

Not a secret that for the construction of production and storage facilities used sandwich panels. This modern technology allows you to quickly get the finished product. The customer of the company Arlift had a task — in the shortest time to make installation of sandwich panels of a warehouse complex.

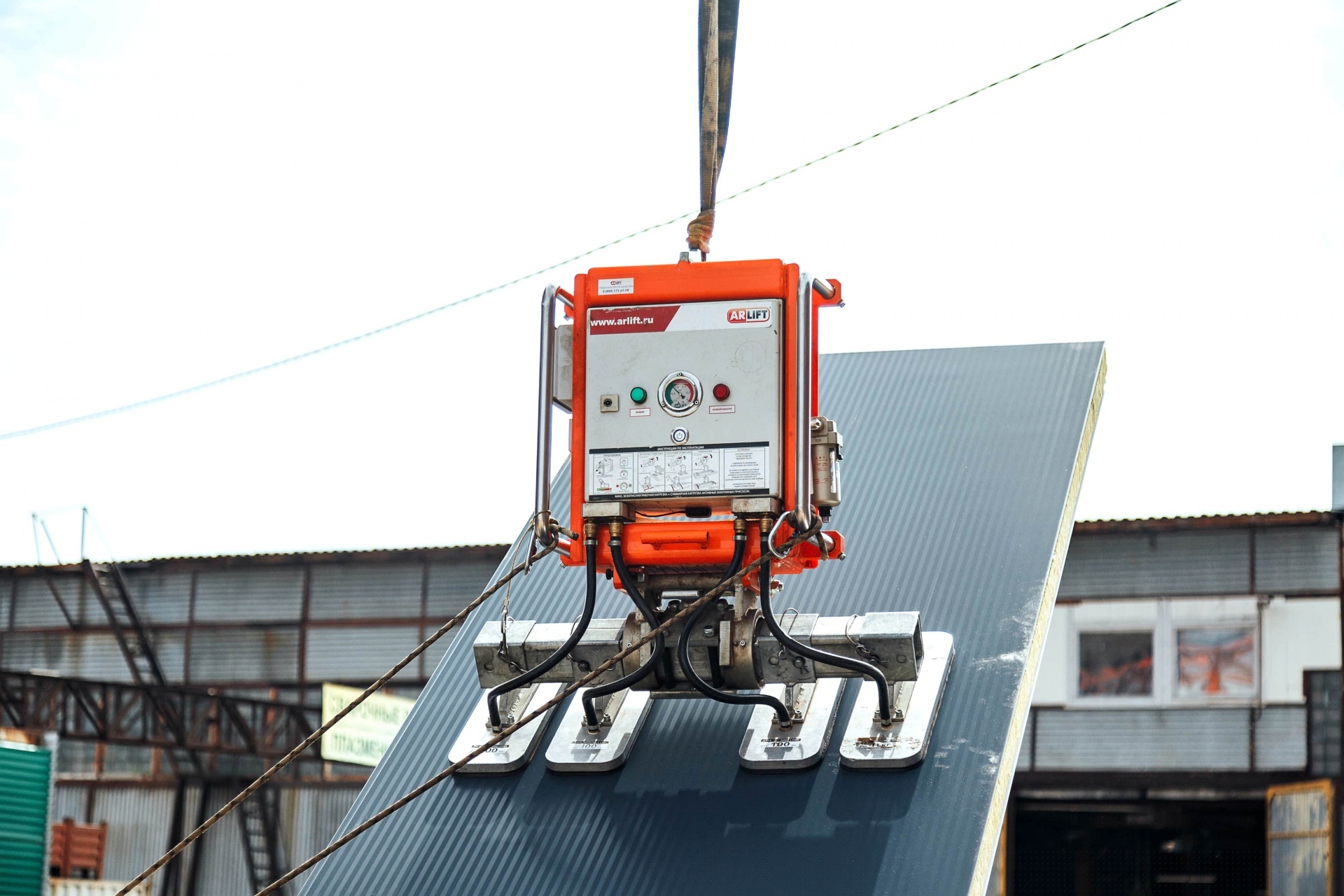

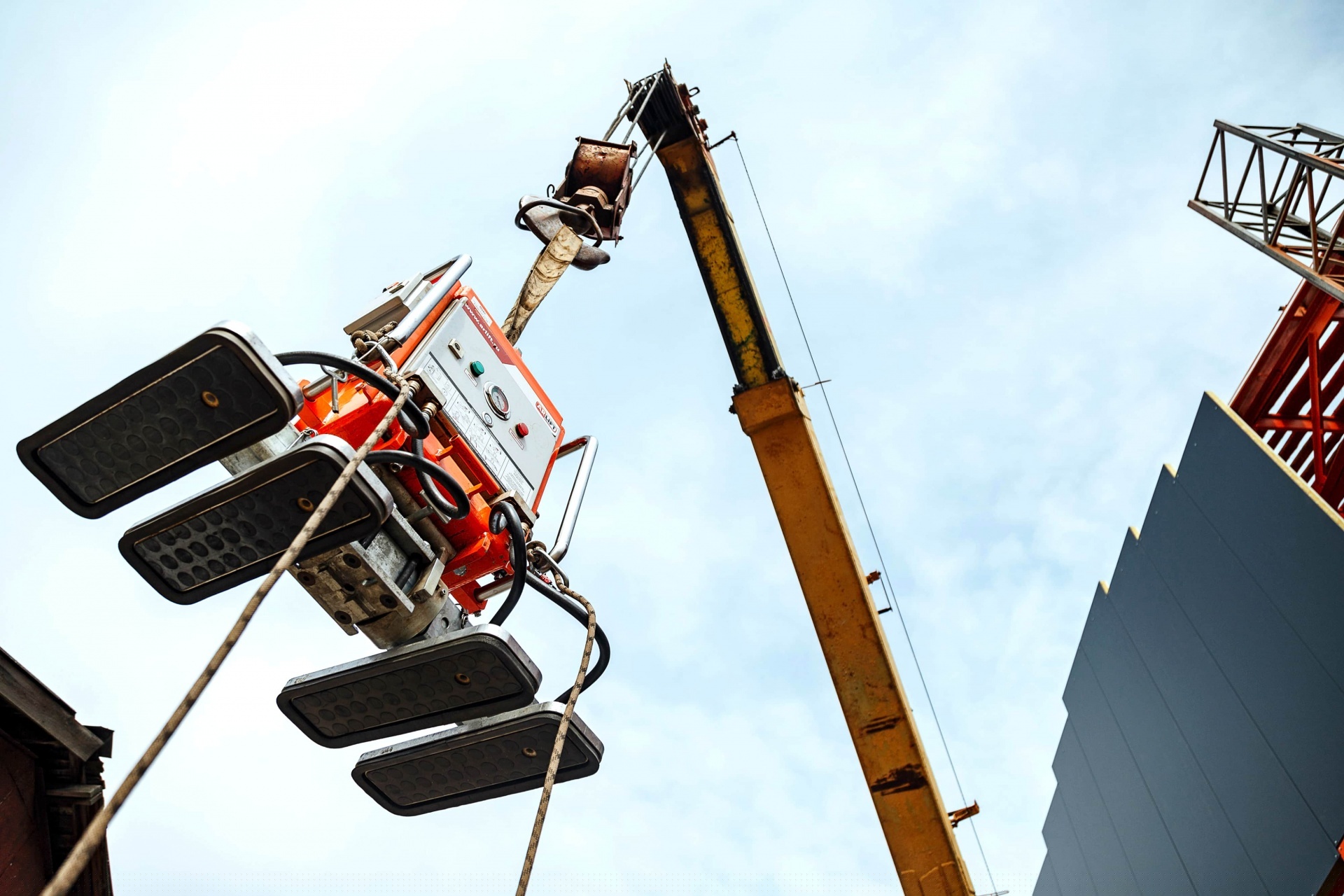

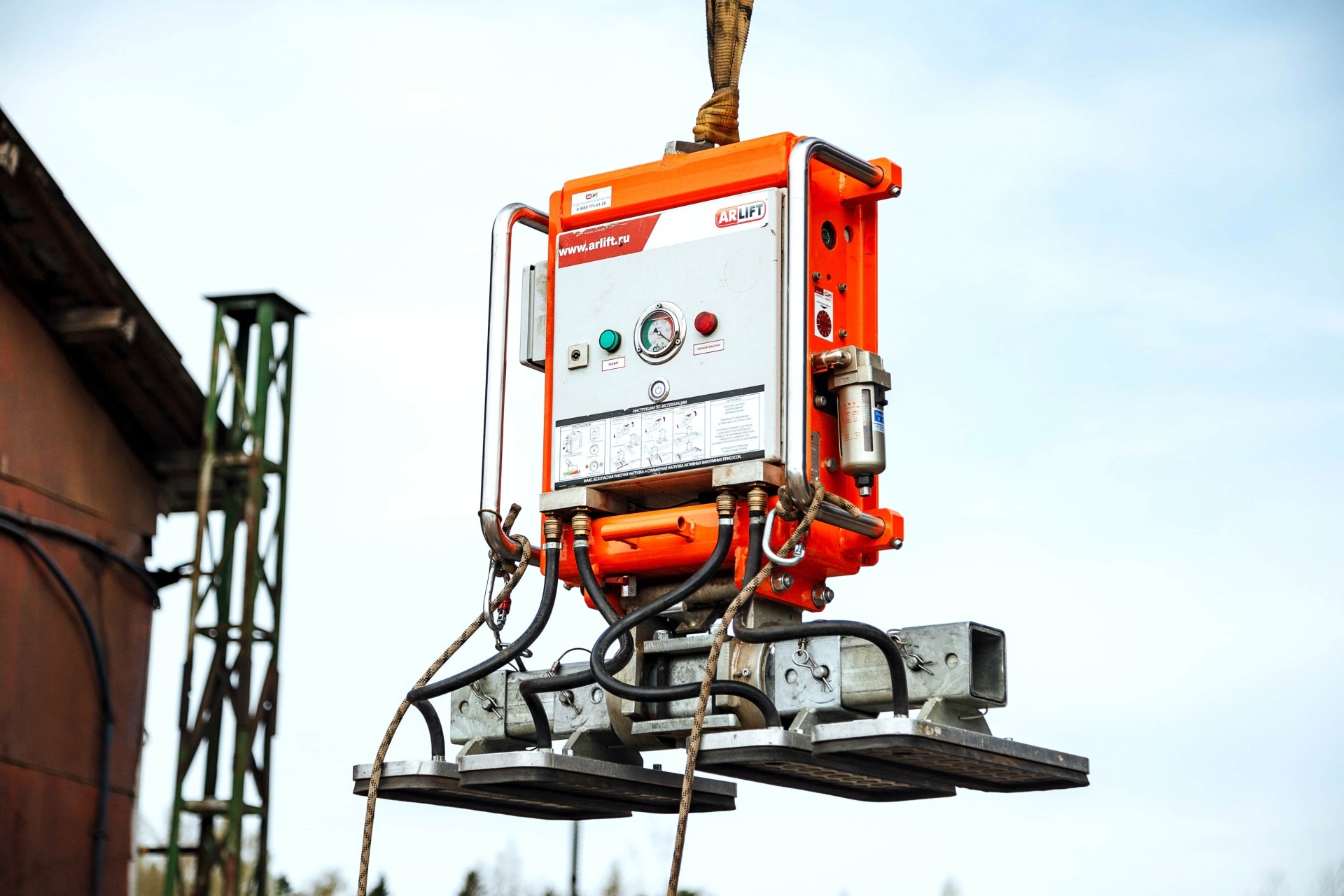

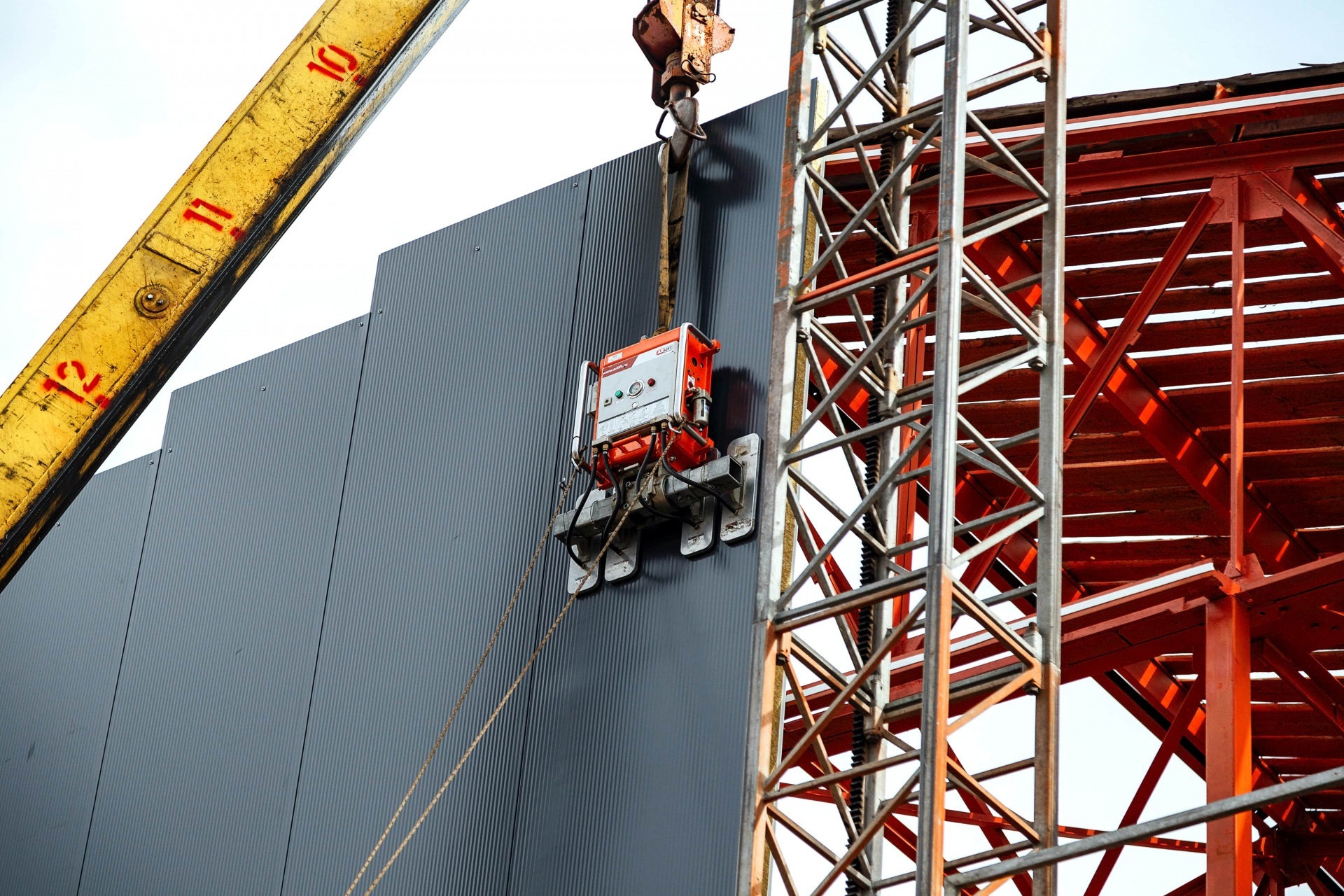

They chose the vacuum gripper ARLIFTER SP-4. It can make installation of wall and roofing sandwich-panels up to 26 meters.

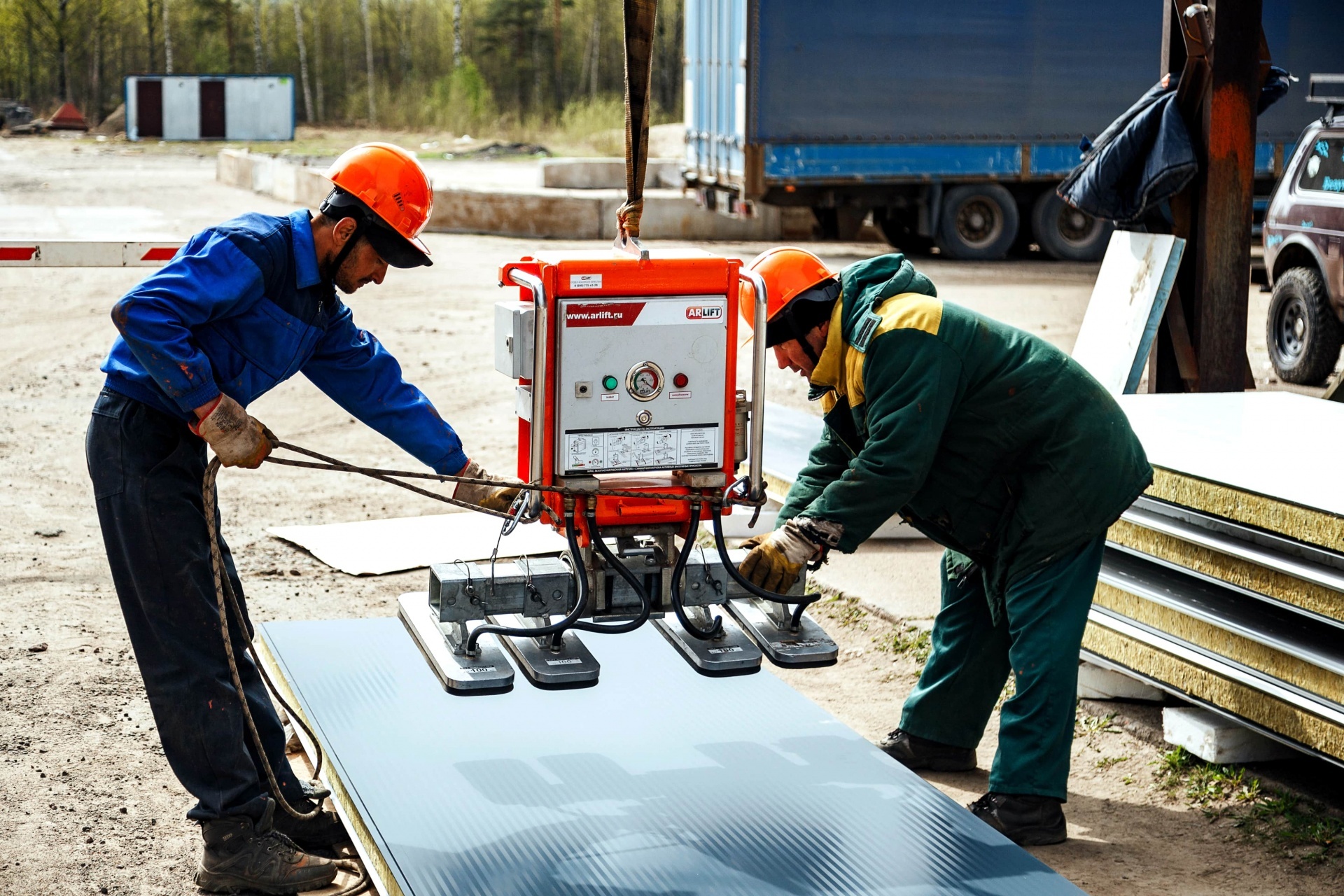

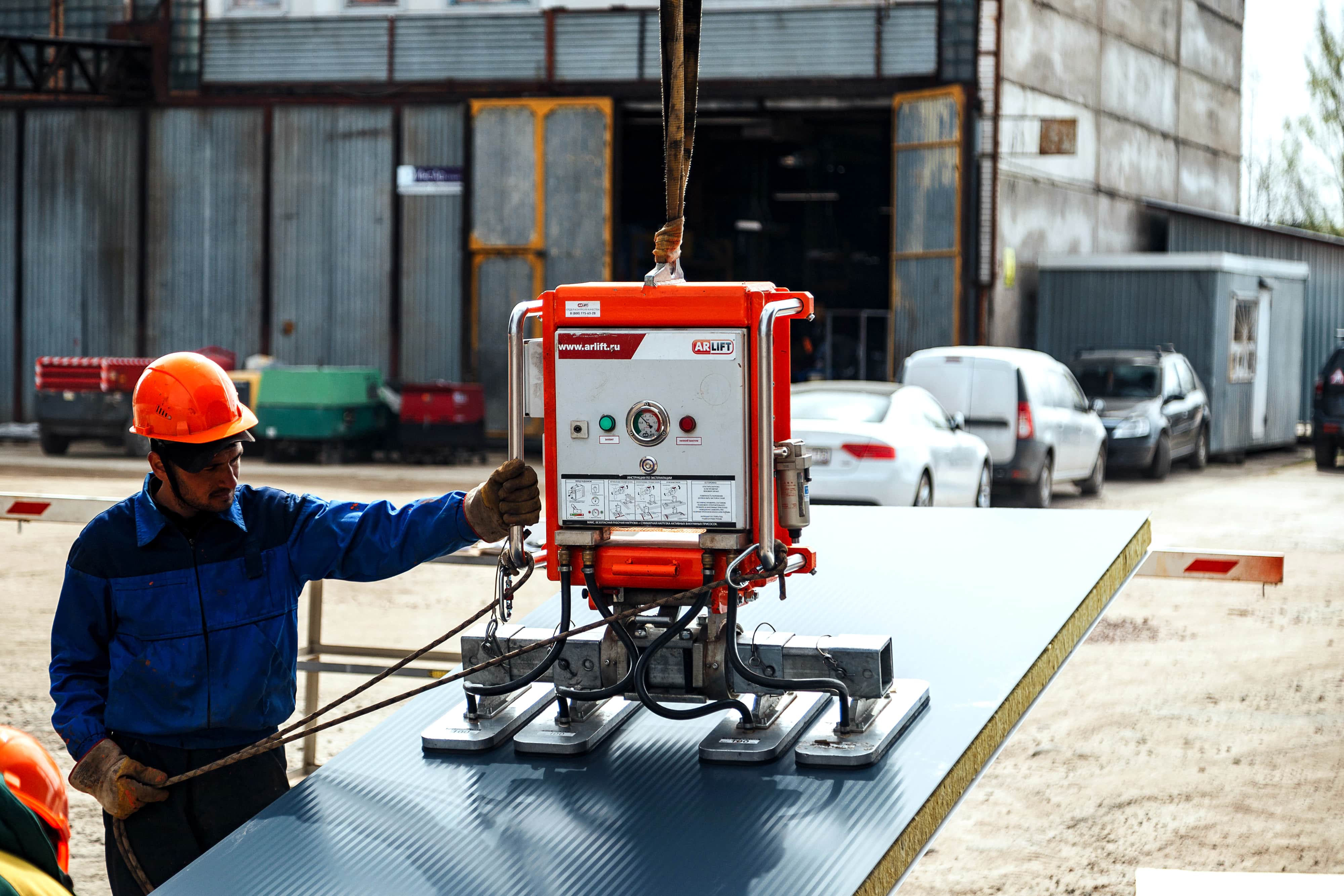

This gripper is one of the most popular models, as it has the ability to perform a range of tasks: vertical and horizontal installation, installation of the roof. The gripper ability to change the orientation of the sandwich panel in a suspended state (360 degree rotation). The ARLIFTER SP-4 allows you to transfer panels to the installation site directly from the stack, without prior preparation, which gives a significant saving of time and space for unloading. In addition, for the installation need teams for 2-3 people.

• Use of wall+roof
• Carrying capacity 1000 kg
• Dimensions 1200х850х460 mm
• Built-in charger
• Full charge capture: from 8 hours
• 100-150 cycles when the battery is fully charged
• Profile height for gripping: up to 5 mm
• Operating temperatures: -20 to +50
• Dehumidification and air filtration system (possibility of safe work outdoors during precipitation)
• Drive vacuum (system of compensation for loss of vacuum)
• Sound and light security system
• Safety slings
• Extension of the traverse
