> Vacuum gripper ARLIFTER GS-850

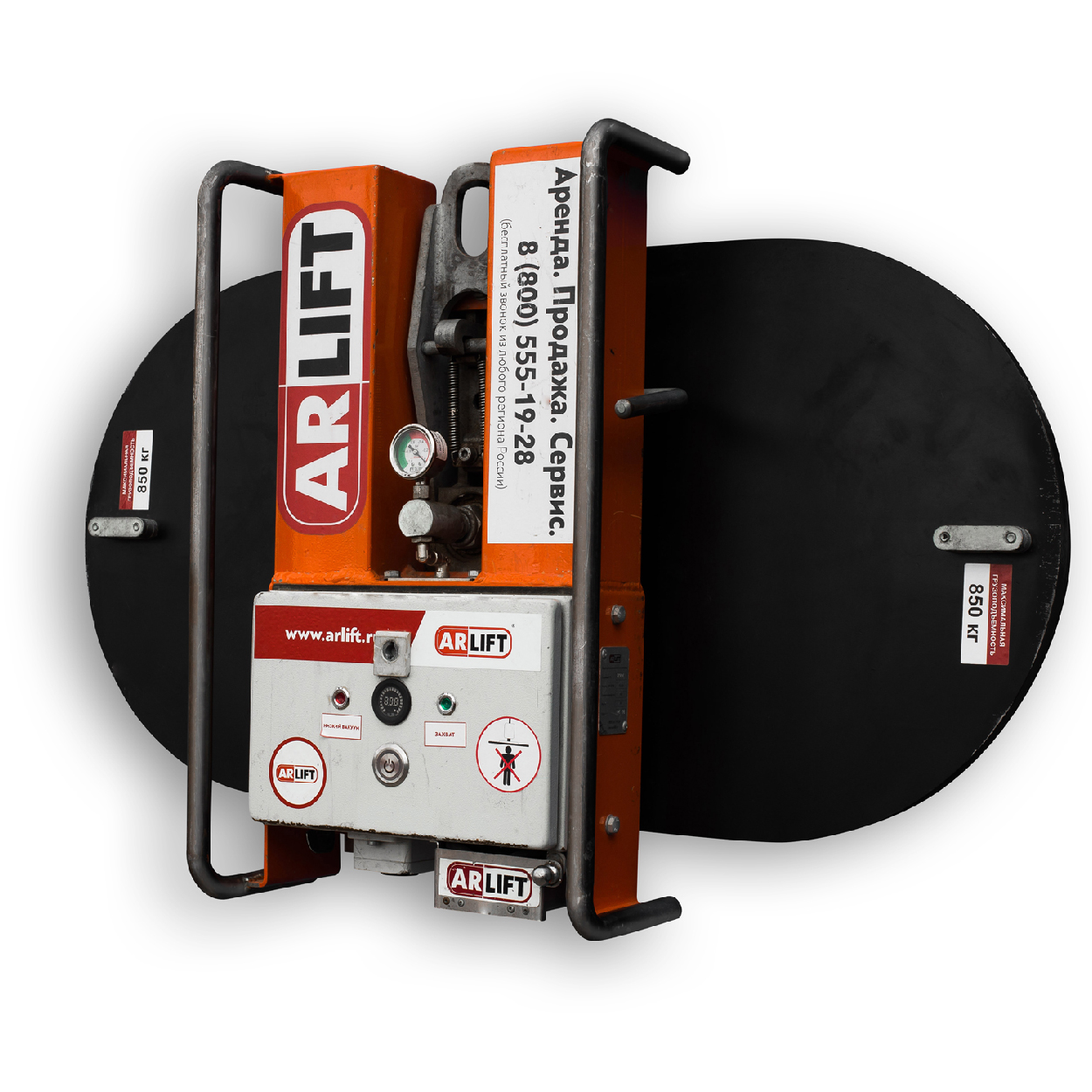

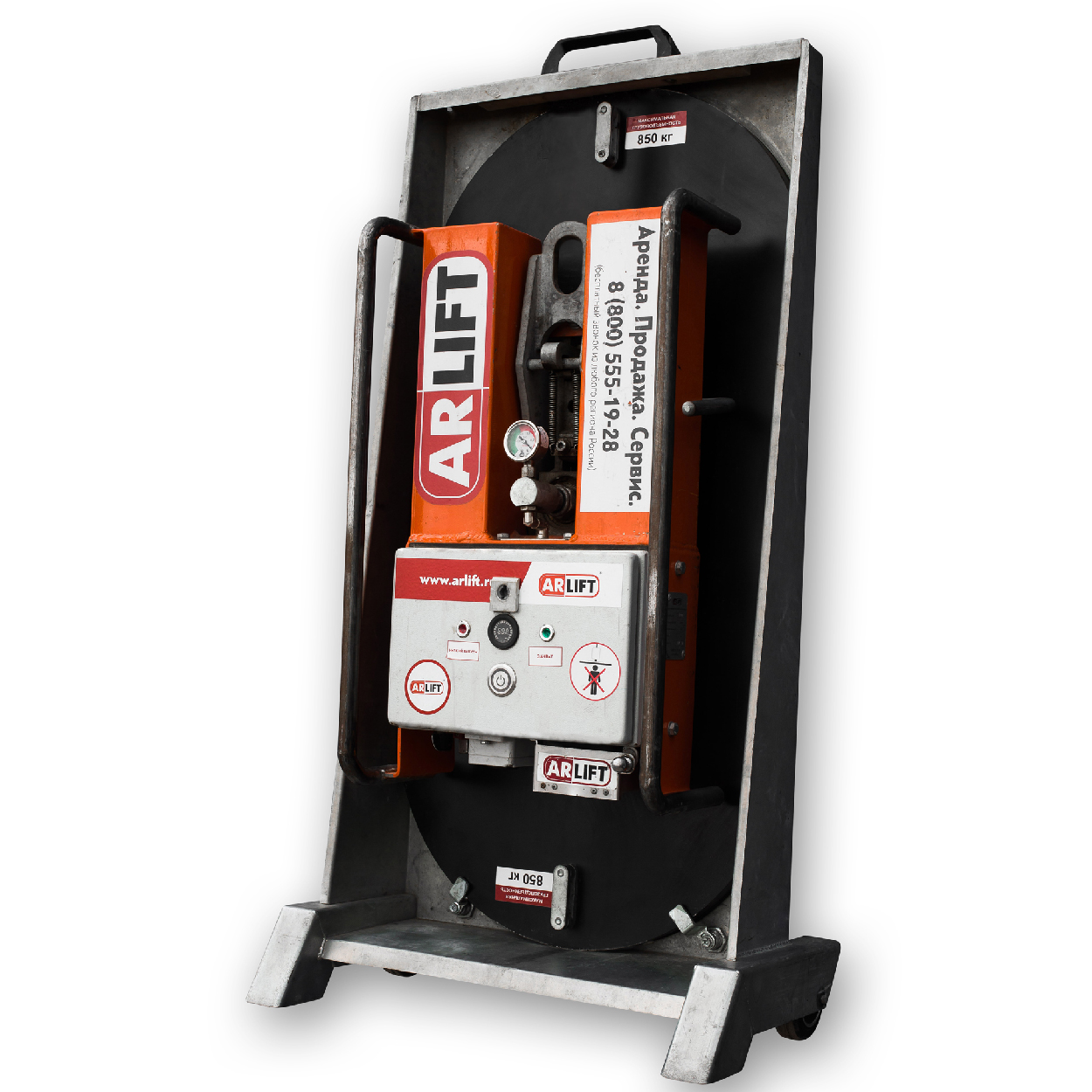

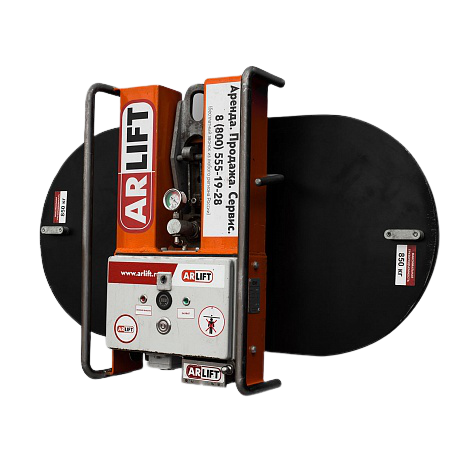

Vacuum gripper ARLIFTER GS-850

VACUUM GRIPPER ARLIFTER GS-850
VACUUM GRIPPER ARLIFTER GS-850
VACUUM GRIPPER ARLIFTER GS-850
Installation of glass weighting up to 850 kg and sandwich panels up to 8 meters long
Lifting capacity 850 kg

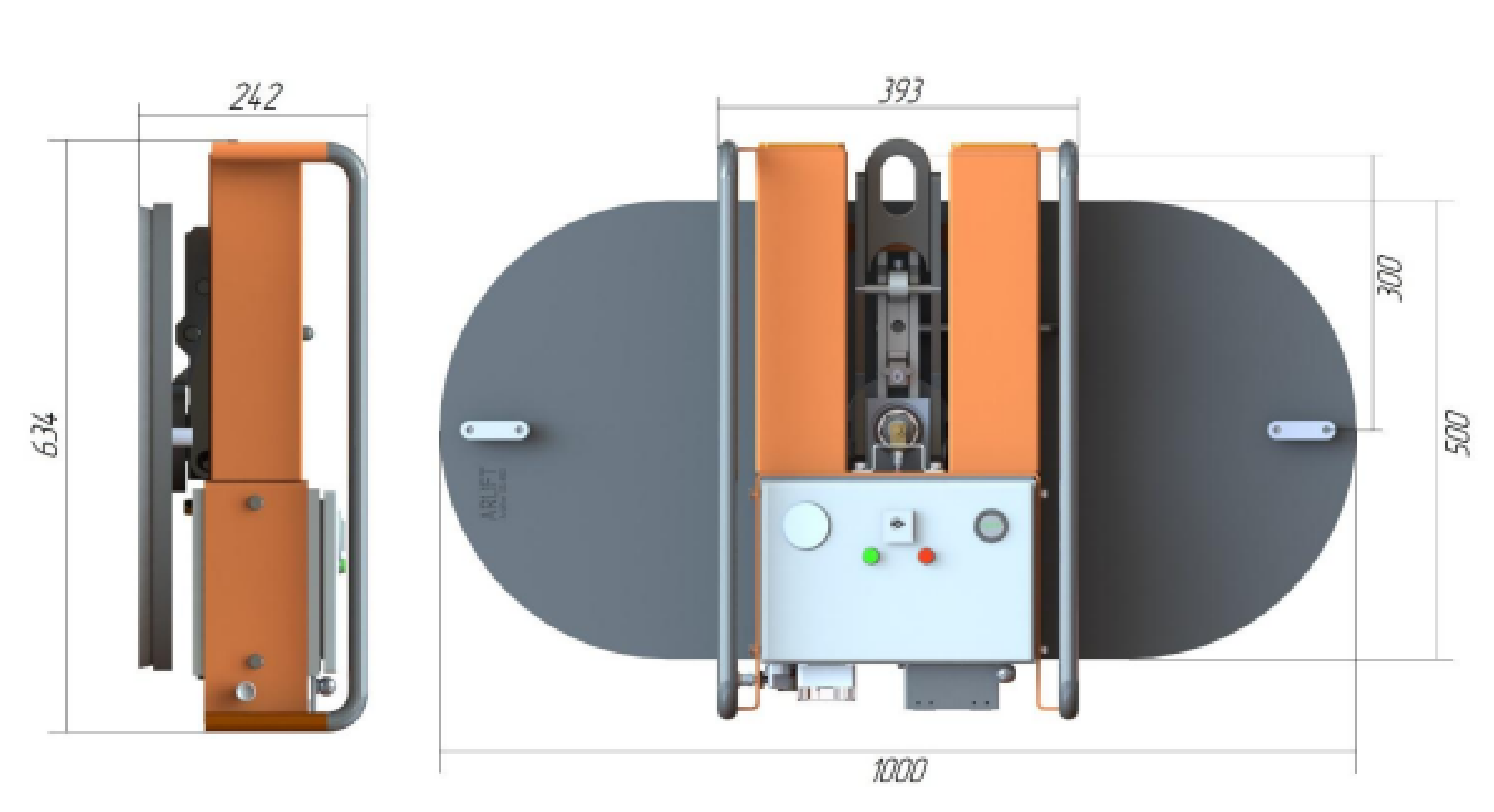

Size 1000 х 500 х 220 mm
Weight 65 kg
Compare
Cтоимость по запросу
Запросить кп Купить в лизинг
Не является публичной офертой. Размещено на правах рекламы. Количество товара ограничено. Наличие товара проверять по контактным телефонам на сайте.
Расширенные гарантии
Скидки оптовым покупателям
Запчасти всегда есть в наличии
Готовый пакет документации при передаче
Хорошие финансовые условия сделки (лизинг, рассрочка)
Доставка в любую точку России и стран СНГ
Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой. Сроки и стоимость доставки оборудования складывается из нескольких факторов, таких как наличие на складе Арлифт, наличие на складе поставщика, конечный пункт доставки. Всю информацию необходимо уточнять перед покупкой.
For more details about delivery and payment
GOST R 59268-2020.pdf
ARLIFTER GS-500, GS-850 user manual. pdf
Arlifter GS-500 and GS-800 instructions (sandwich panel). pdf
Arlifter GS-500 and GS-850 manual (glass). pdf
Технические параметры
Дополнительная комплектация
Application
Glass+sandwich
The type of glass
Direct
Lifting capacity
850 kg
The length of with polyurethane foam/PPI
12 m
Length with mineral wool
8 m
Charger
built-in
Full charge capture
8 hours
When the battery is fully charged
100-150 cycles
Profile height for capturing
up to 3 mm
Operating temperature
-20В° to +50В°
Rotate 360В°
with locking at every 90В°
Dehumidification system and air filtration
the ability to safely work outdoors under sediments
the ability to safely work outdoors under sediments
the system of compensation for loss of vacuum
Security system
sound and light
Additional feature
Safety slings
Remote equipment (remote)
Trolley for transportation and storage
Additional complete set
Weight distribution bracket
GPS tracker
Winter package (gel battery, rubber seals with increased wear resistance)

Tasks

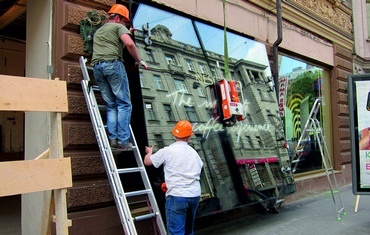

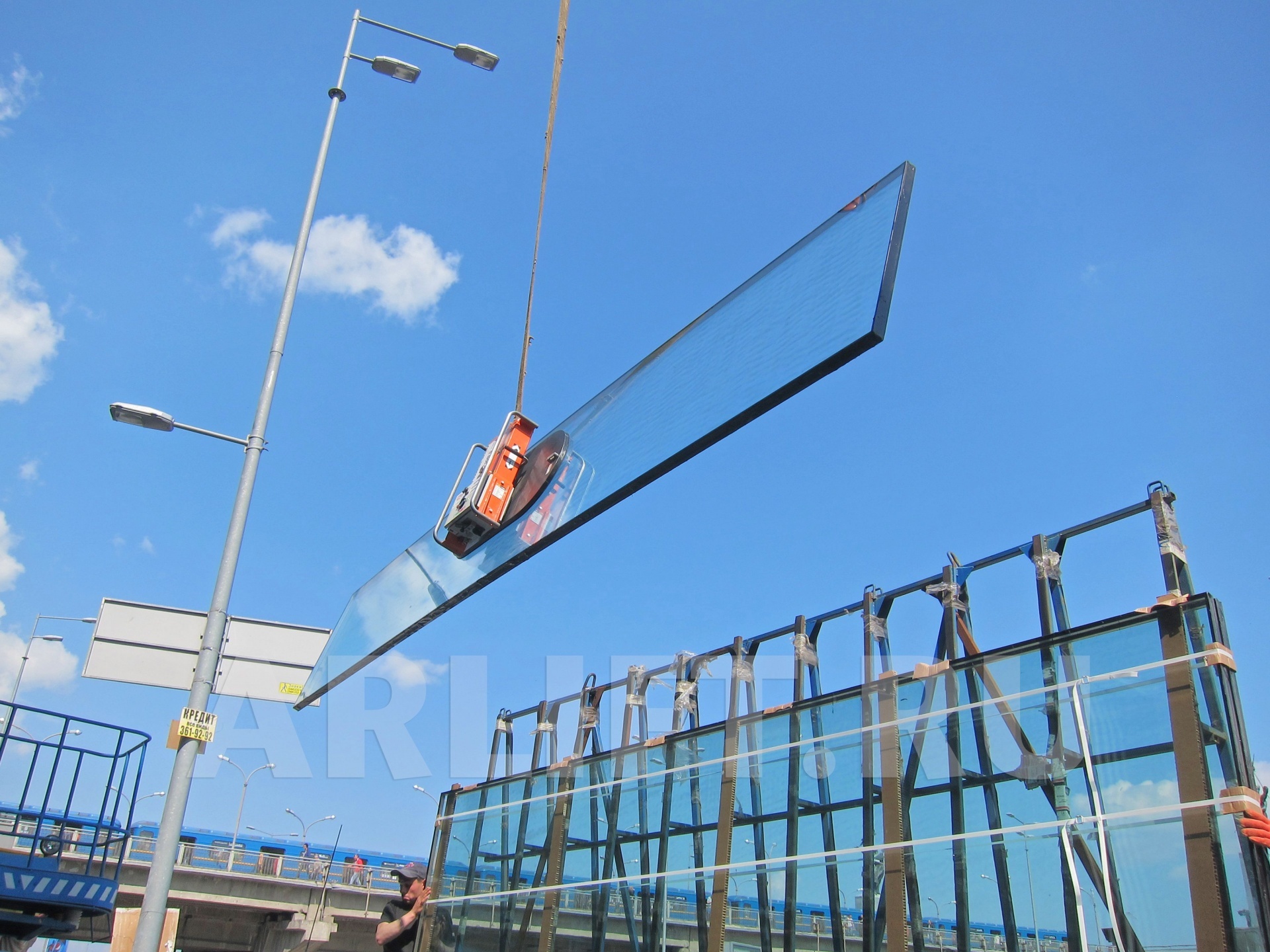

Glass installation
GS-850 ARLIFT will perform installation of glass weighting up to 850 kg. To install large size glasses it is possible to use simultaneously two grippers
Glass installation

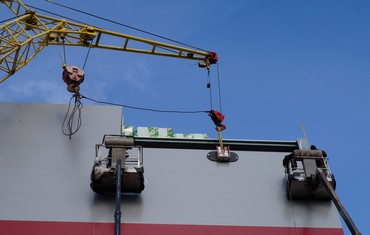

Horizontal installation 6-10 m
GS-850 ARLIFT install not only glasses, but also perform horizontal installation of sandwich panels from 6 to 10 meters long depending on panel thickness
Horizontal installation 6-10 m

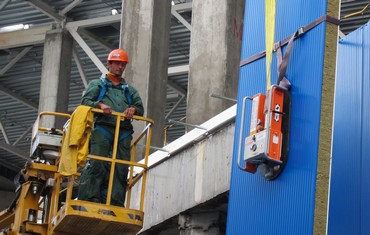

Vertical installation 10-14 m
GS-850 ARLIFT excellent manages with vertical installation of sandwich panels, which length may reach 14 meters
Vertical installation 10-14 m

Functional benefits

1

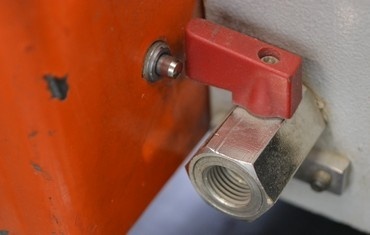

MOISTURE DISEANGAMENT SYSTEM
MOISTURE DISEANGAMENT SYSTEM
Permits to perform assemble works in adverse weather condition: in case of falling rain and snow. Unique properties of ARLIFT vacuum grippers
2

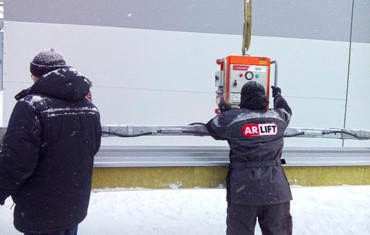

OPERATING TEMPERATURE: -25° - +50°С
OPERATING TEMPERATURE: -25° - +50°С
It is possible to carry out assemble works at lower temperatures. Vacuum gripper demonstrated excellent results at objects in Murmansk at -35°С
3

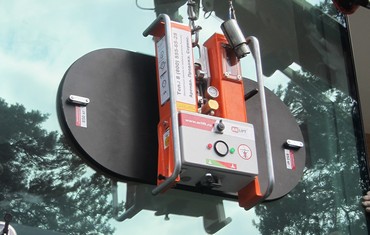

ROTATION AT 360° WITH FIXATION AT EACH 90°
ROTATION AT 360° WITH FIXATION AT EACH 90°
Allows to turnover glass from transport position into installation position, to turn glass without recapture
4

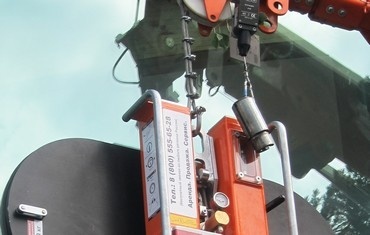

STANDBY VACUUM ACCUMULATOR
STANDBY VACUUM ACCUMULATOR
Guarantees, that in case of sudden vacuum lost under sucker, glass or sandwich panel will not fall down. For additional protection hoisting slings are used
5

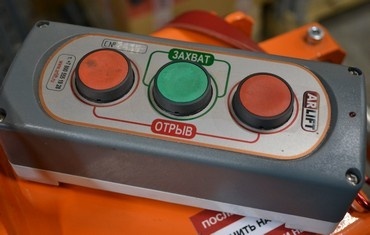

REMOTE CONTROL PANEL
REMOTE CONTROL PANEL
It considerably simplify and accelerate process of installation. All the new ARLIFT machines are equipped with remote control panel
6

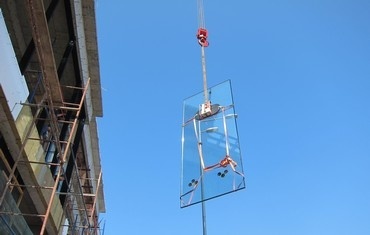

SMALL SIZES AND LIGHT WEIGHT
SMALL SIZES AND LIGHT WEIGHT
Equipment weight constitutes only 65 kg. It is easy to work with it at construction objects, simple to operate and displace (transport support is provided)

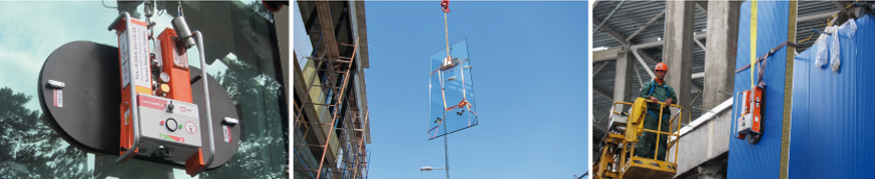

Gallery
